Infrared Induction Photoelectric Switch /Mirror Reflection Photoelectric Sensor

Ordering precautions:

• First select normally open or normally closed
• Select the operating voltage

Description：

--  Strong anti-shock and anti-vibration.

--  Non-contact object detect: Avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.

--  Detect any objects with different materials: Detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.

--  Identify object colors: According to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.

--  High precision: Precise electron circuit, can detect tiny objects with accurate position.

-- when installing it, make sure no sunshine interferece;

• Product Name:Photoelectric switch

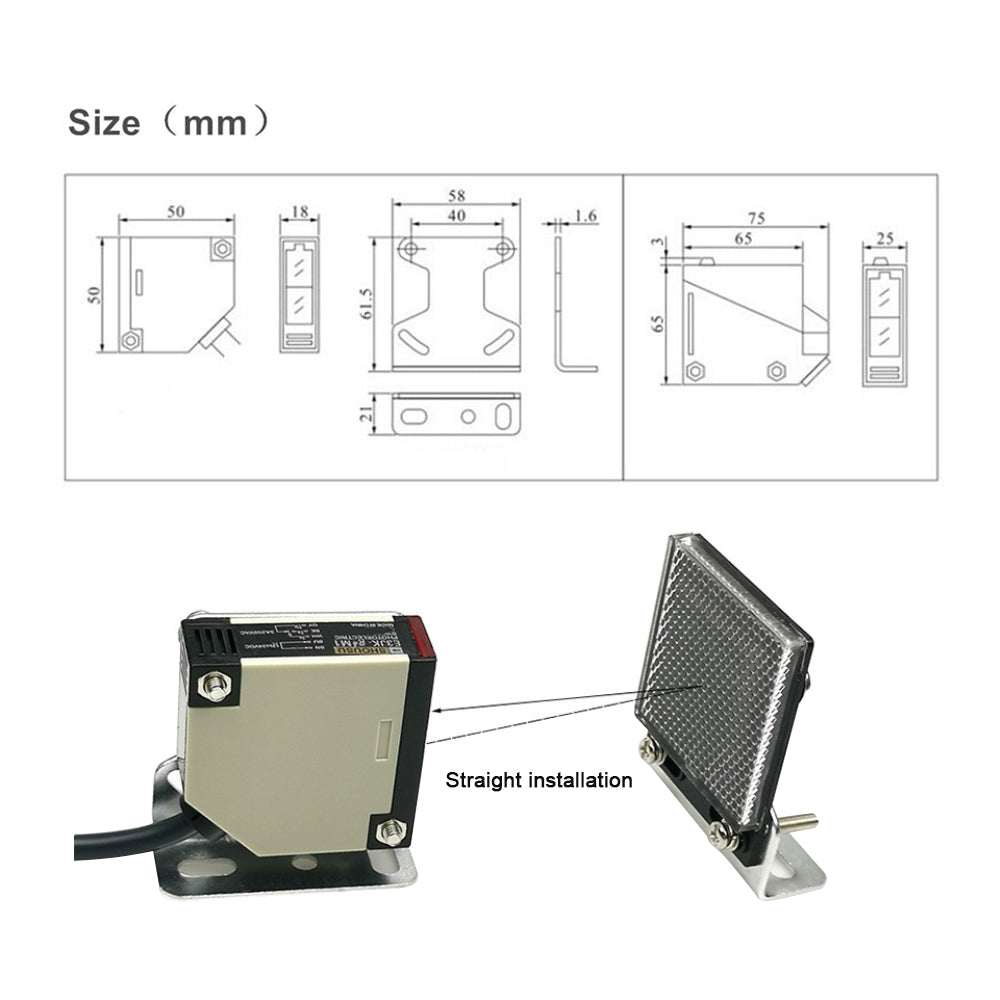

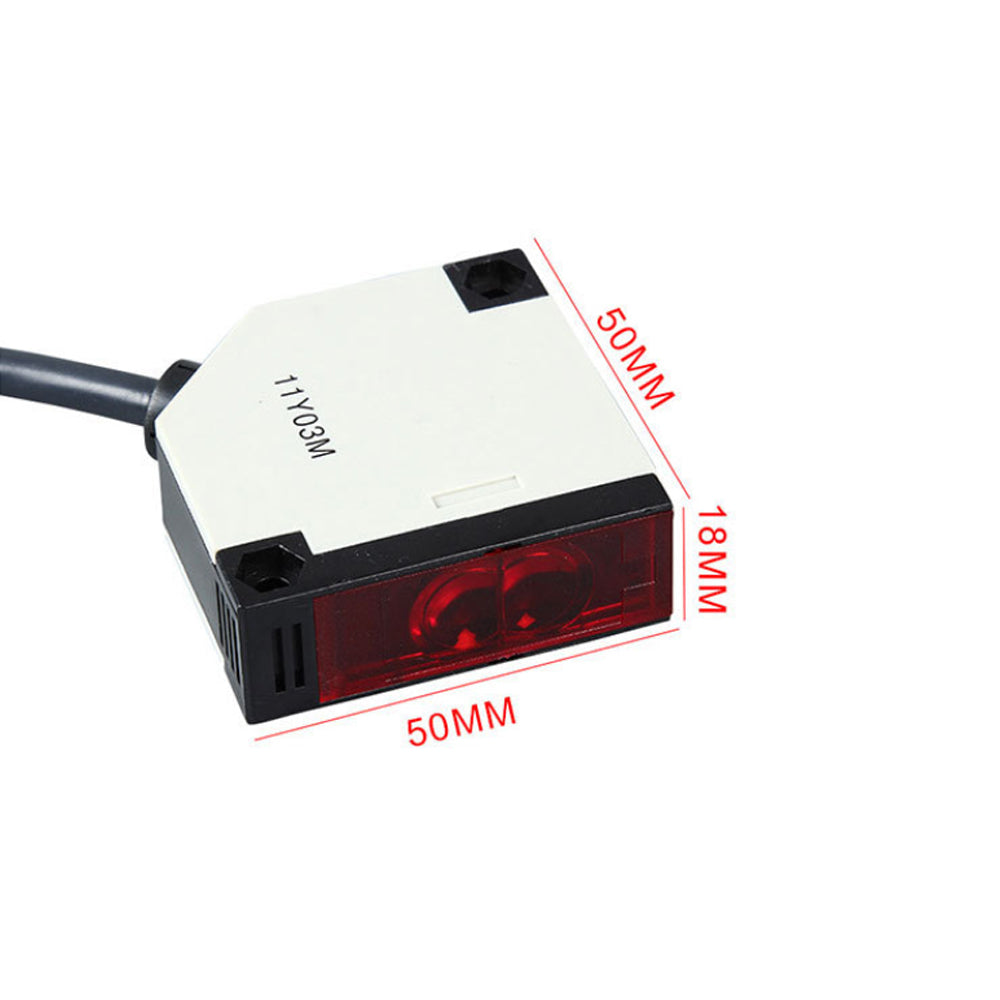

• External dimensions:50mmx50mmx18mm
• Detection distance:<4m
• Detect object：Opaque and transparent objects
• Output：Relay output
• Detection mode：Specular reflection
• Material：ABS
• Cable length：2m
• Light resource: Infrared LED
• Strong anti-shock and anti-vibration
• Fast response: Max. 3ms

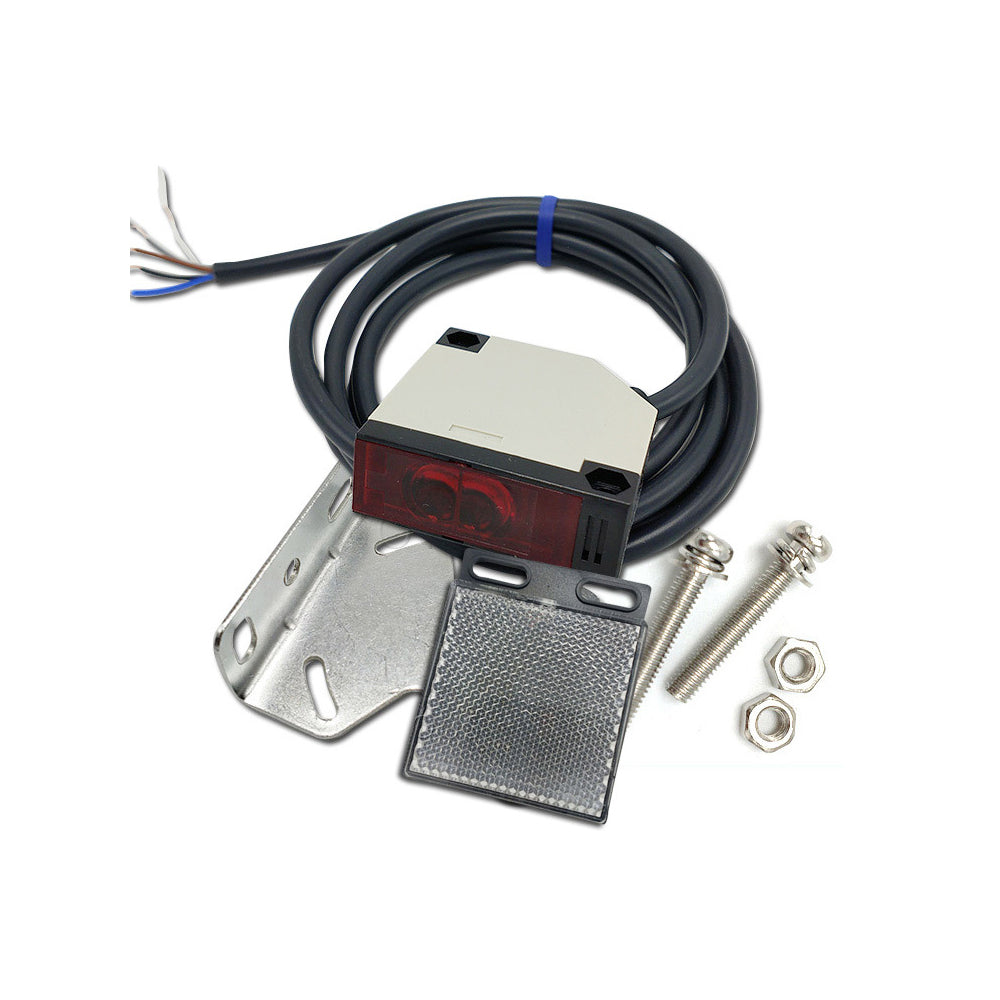

Package：

• 1x Photoelectric switch
