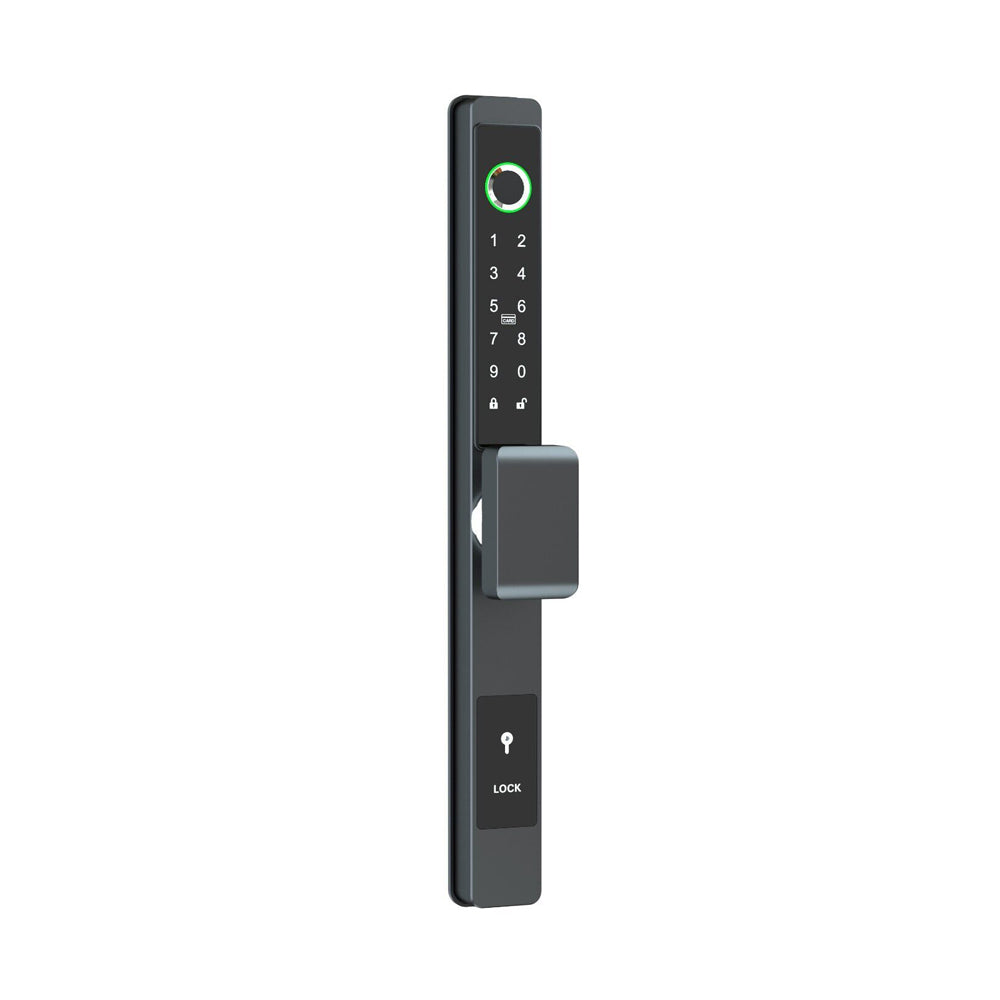

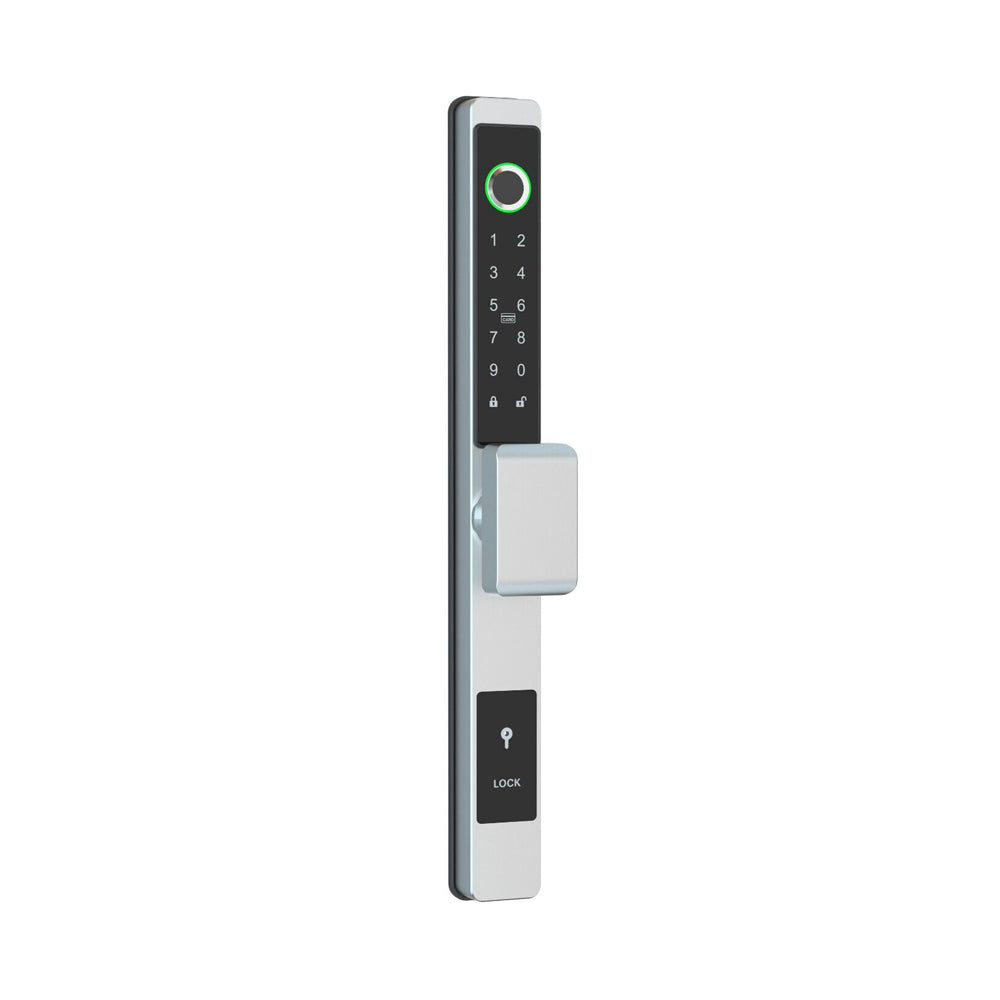

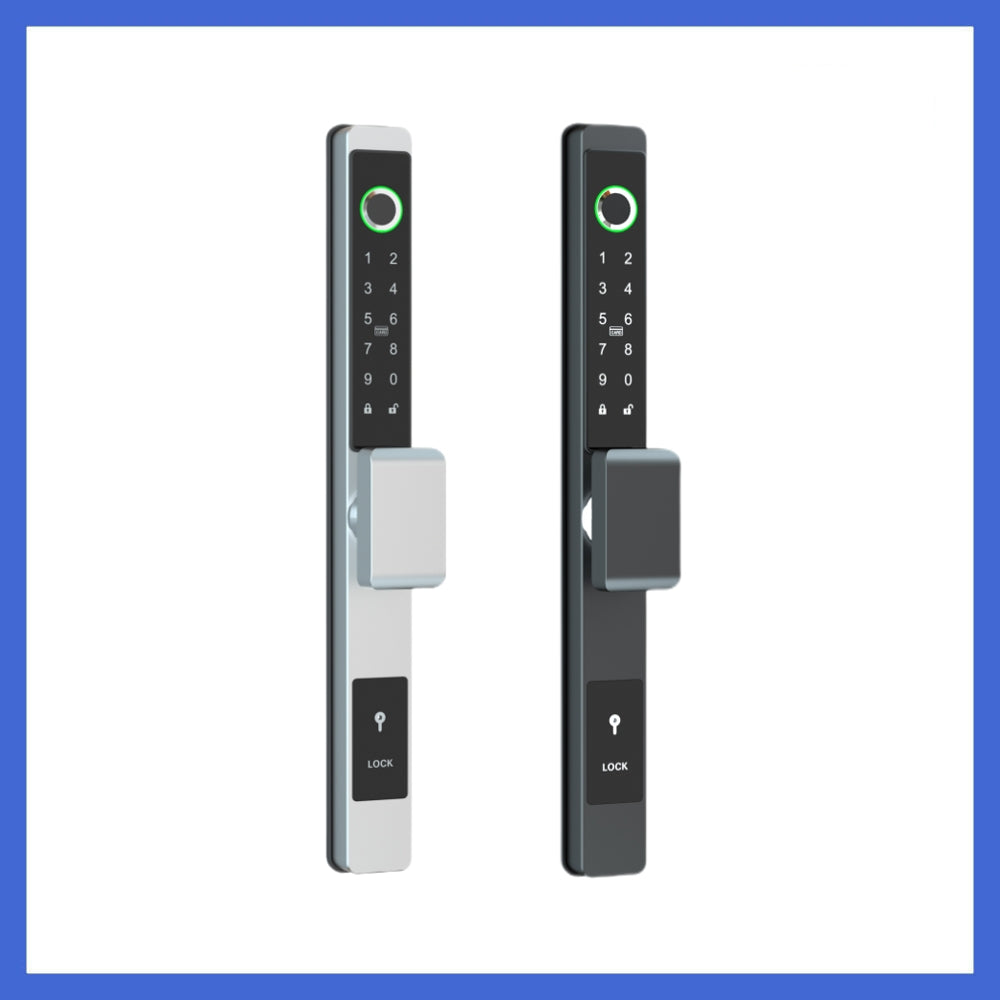

Insulating aluminum alloy Biometric Fingerprint Door Lock + Digits Pad + Mechanic +RFID Card+APP f/narrow side Push/pull door

Specifications

• Main materials:Insulating aluminum alloy
• Main board adopts Financial-grade security chip
• Original bio-semiconductor fingerprint scanner imported from Sweden.
• Modern fashion touchscreen panel.
• Changeable function between passage lock and household lock.
• Dry finger can use the fingerprint lock normally.
• 9V batteries backup power interface.
• Low voltage alarm function.

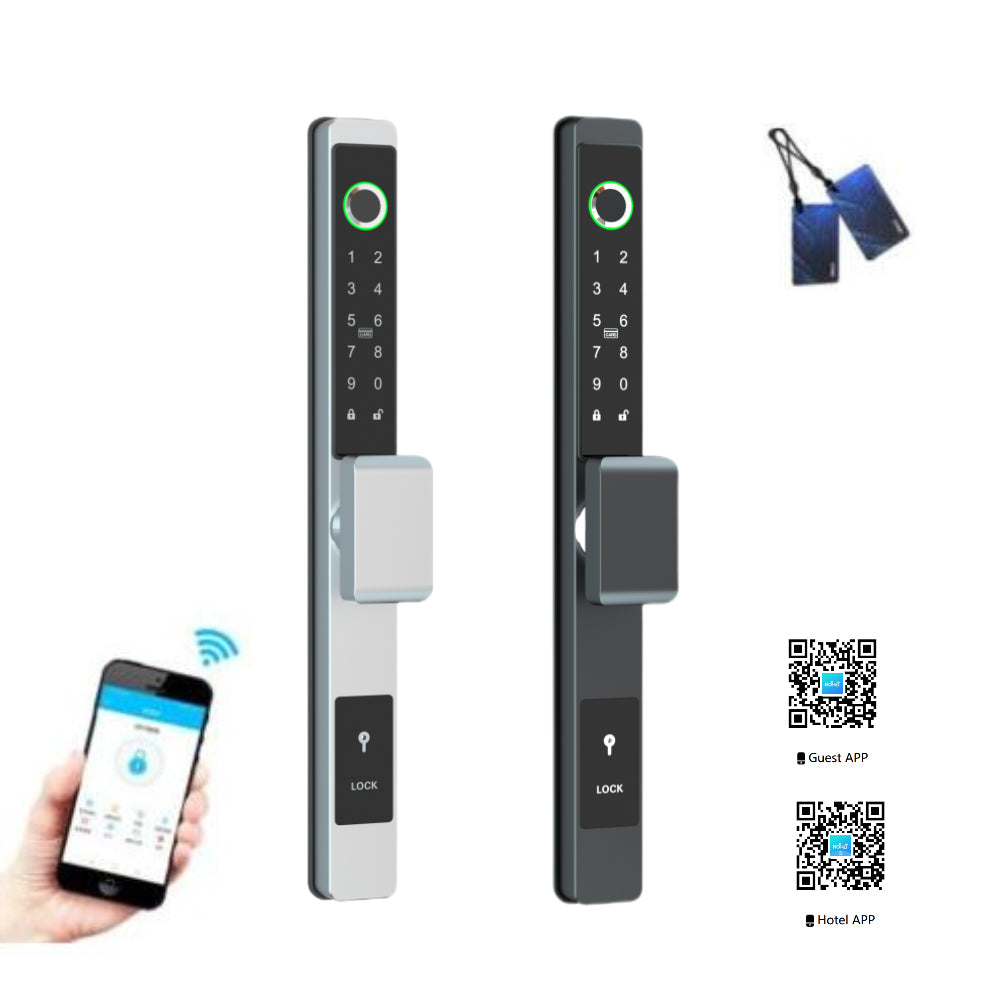

• Unlock ways: fingerprint + code + card + key+app
• Fingerprint collected time: <1s.
• FAR: <0.00001%.
• FRR: <0.01%.
• Capacity: 250pcs fingerprints + 1000 cards + 250 group codes.
• Available cards: Mifare1 IC/S50 card
• Working Temperature: 0 °C ~ + 70 °C
• Static current/Dynamic current :< 65μA/<350mA.
• Power supply: 6V (4*1.5V AA alkaline batteries).
• Battery life: normally opening door for 50,000 times

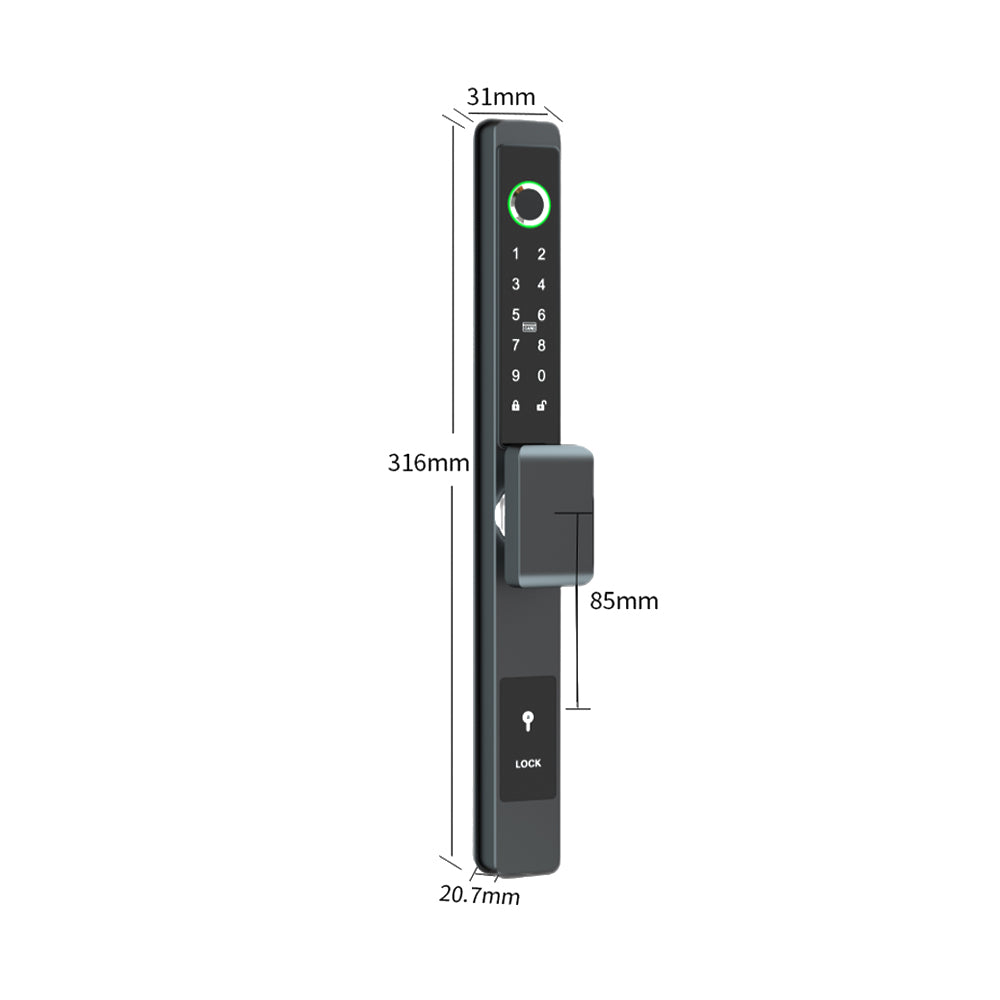

• Size：316mmx31mmx19mm
• App software：TTLock app

Down software:

https://qiniupackage.sciener.cn/hotel/TTHotel_setup_en_2.0.6.exe
