ISO14443A 13.56Mhz 5VRFID Mifare1 S50/S70 card RS232 Reader writer Module
ISO14443A 13.56Mhz 5VRFID Mifare1 S50/S70 card RS232 Reader writer Module
Не удалось загрузить сведения о доступности самовывоза
Please Download its detailed information including SDK from this link:
software.44af.com/YHY/YHY523R/DS_YHY523R_en_v10.pdf
software.44af.com/YHY/YHY523R/YHY523R_SDK_EN.rar
Special Features

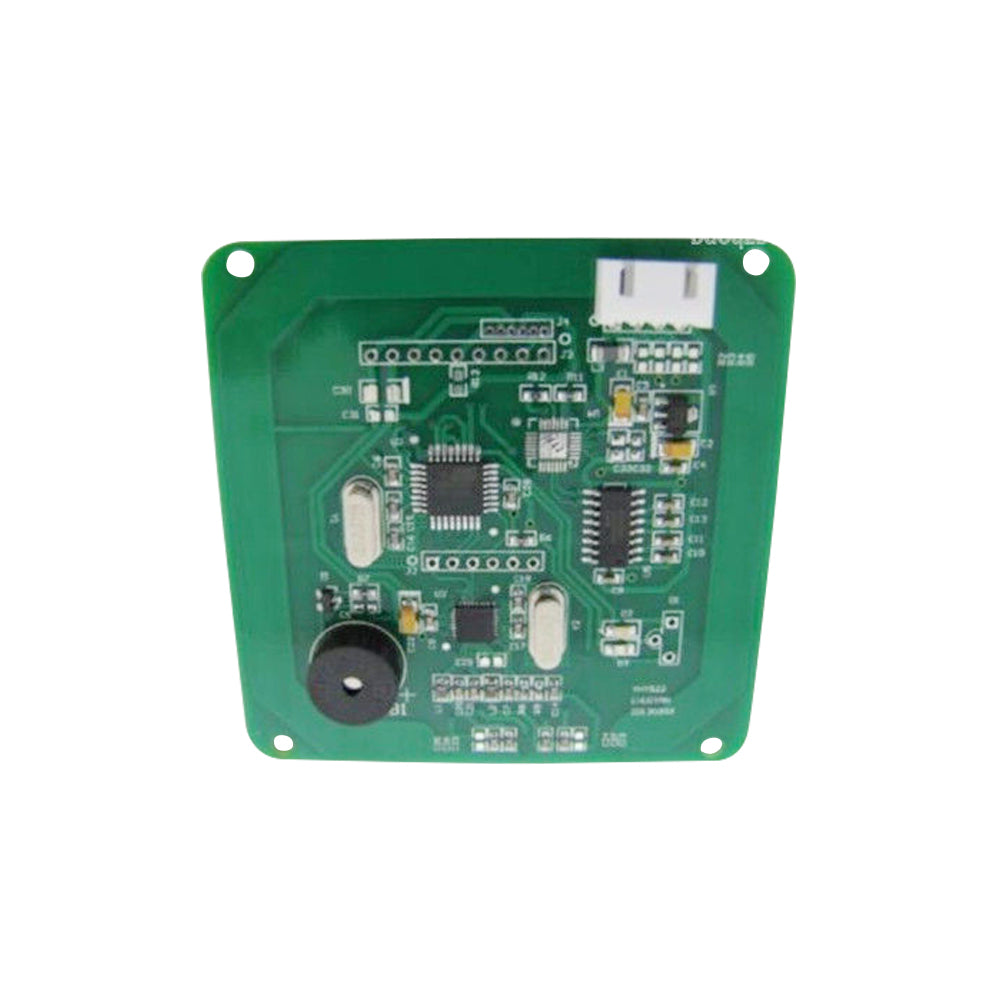

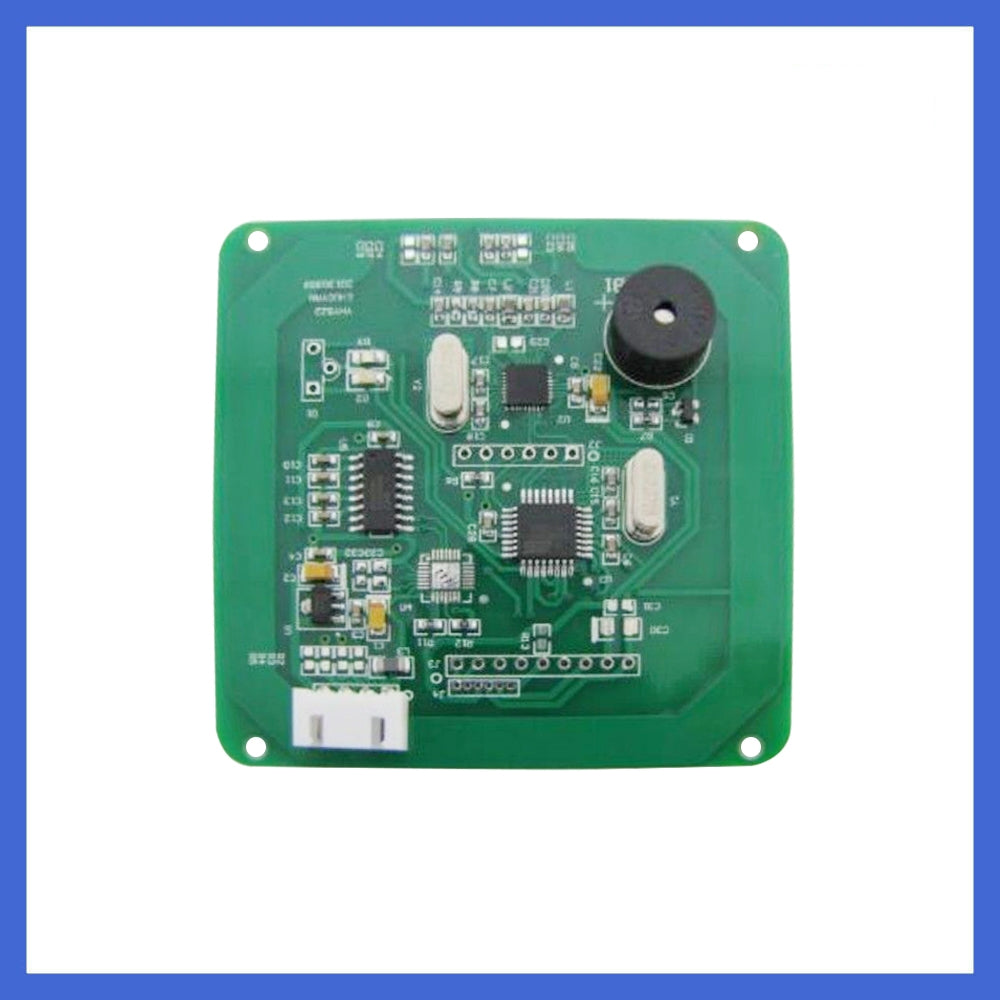

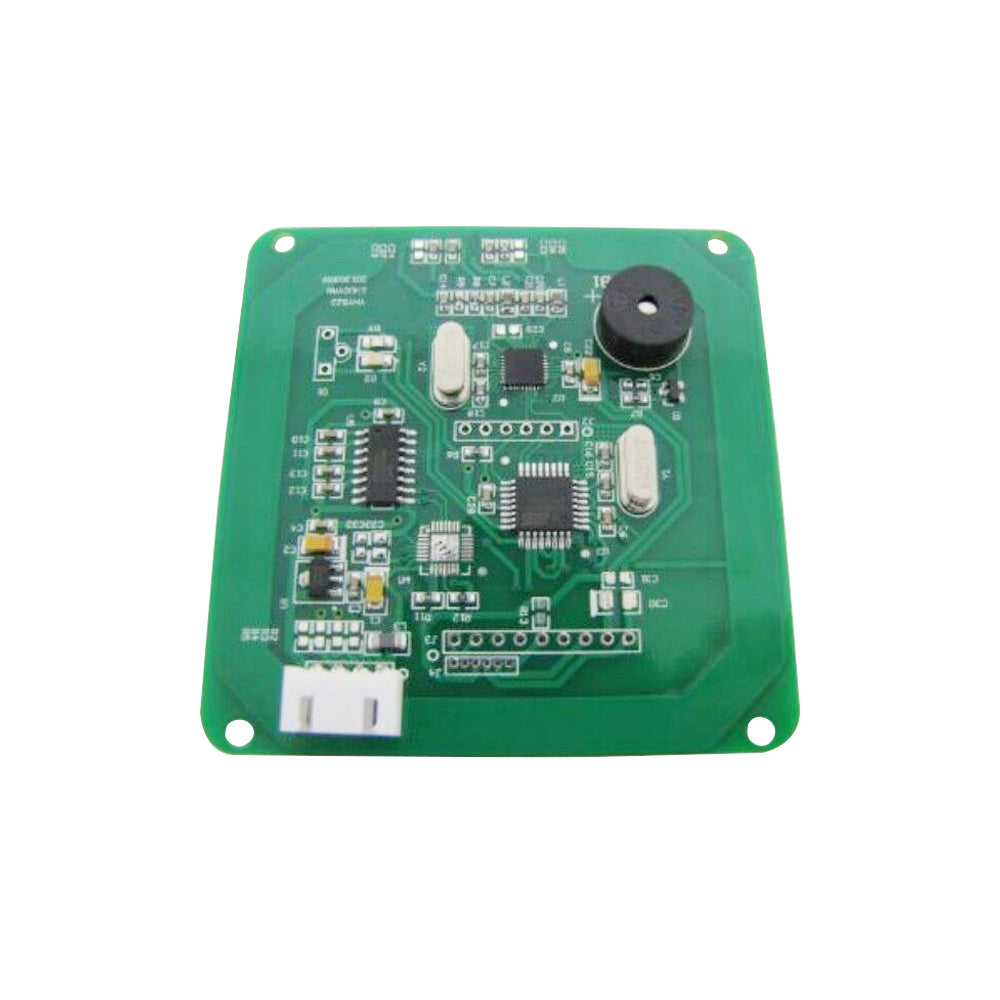

- RFID Read/Write module Base on RC522 and with built-in transceiver antenna
- Auto checks for presence of tags
- Auto read/write data from RFID tag
- Auto increment/decrement value from RFID tag
- Easy LOCK/UNLOCK function to protect RFID information
- Encrypted EEPROM to store configured data and up to 40 groups of keys
- Contactless operating frequency 13.56 MHz
- Supports ISO14443A /MIFARE® ,MIFARE® Classic 1k,MIFARE® Classic 4k
- Communications Interface: RS232
- Typical time to read and write cards:<100ms
- Typical Operating Distance:0–100 mm
- Operating Voltage:DC 5.0V
- Two LED indicators (software controlled)
- Buzzer alarm (software controlled)
- Size: 70 mm × 70mm × 10mm
- Weight:20g(not including cabel)
Package：

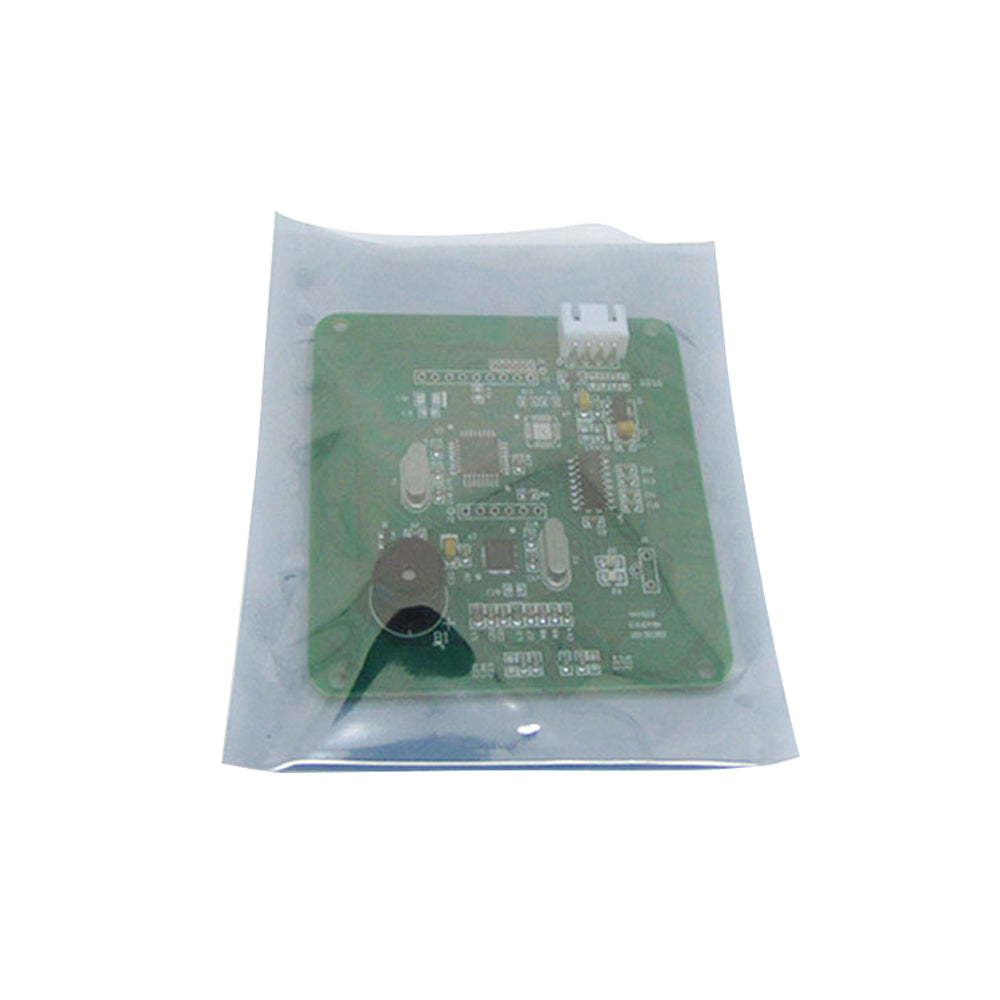

- 1 x rfid module
- 1 x S50 card
N ORDER TO Compare all the Mifare1 reader& writer's specifications,the form below lists all the modules,
you can finally find something you need!
|
Model |
YHY502CG |
YHY502CTG |
YHY502CTG++ |
YHY522 |
YHY523U |
|
Standards & Protocols |
|||||
|
ISO 14443 A |
√ |
√ |
√ |
√ |
√ |
|
ISO 14443 B |
|
|
|
|
|
|
ISO 15693 |
|
|
|
|
|
|
Mifare®Classic protocol |
√ |
√ |
√ |
√ |
√ |
|
Carrier frequency |
13.56MHz |
13.56MHz |
13.56MHz |
13.56MHz |
13.56MHz |
|
Tag supported |
|||||
|
Mifare 1k |
√ |
√ |
√ |
√ |
√ |
|
Mifare 4k |
√ |
√ |
√ |
√ |
√ |
|
I.CODE SLI |
|
|
|
|
|
|
Tag_it2k HF-1 |
|
|
|
|
|
|
Product Features |
|||||
|
Operating distance typ.[mm] |
60 |
60 |
50 |
50 |
100 |
|
Host interface |
|||||
|
TTL RS232 |
√ |
√ |
|
√ |
|
|
RS232 |
|
|
√ |
|
|
|
USB |
|
|
|
|
√ |
|
Other Main Features |
|||||
|
Supply Voltage (V) |
3.3/ 5.5 |
3.3/ 5.5 |
3.3/ 5.5 |
3.3 |
5 |
|
Auto Detecting |
√ |
√ |
√ |
√ |
√ |
|
Integrated Antenna |
|
√ |
√ |
√ |
√ |
|
Reader & Writer |
√ |
√ |
√ |
√ |
√ |
|
Size(mm) |
40 ×25× 6 |
58 ×35× 6 |
58 ×35× 6 |
58 ×35× 6 |
70×70× 10 |
|
Weight(g) |
12 |
10 |
12 |
10 |
20 |
|
Temperature range [°C] |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
0 ~ 60 |
|
Software Development Kit(SDK) |
√ |
√ |
√ |
√ |
√ |
