ISO14443A 13.56Mhz 5VRFID Mifare1 S50S70 card 115200bps USB Reader writer Module
ISO14443A 13.56Mhz 5VRFID Mifare1 S50S70 card 115200bps USB Reader writer Module
Не удалось загрузить сведения о доступности самовывоза
Model No：YHY523U
- Dimensions：70mm(Lx70mmW)x10mm(H
- Weight：20g(Not induding USBcable）
- Interface：USB (VCP)
- Baud rate：11 5200bps(delault)
- Operating Distance：Upto10 omdepe ndsonthe tag type|
- Supply Voltage：5VDC(USBpower)
- Supply Current：42mA loperating); 22mA (dose port t 60mA (maximum )
- Opera ting Temperature：10-50"C
- Storage T emperature：I .20-70"C
- Operating Frequency：13.56MH2
- RF Speed：212 kbps
- Smart Card Supported：ISO 14443AMifare one S50S70
- Operating Systemn：WinNT, Win 2k. Win XP, Win Vista, Win7, Win8, Linux

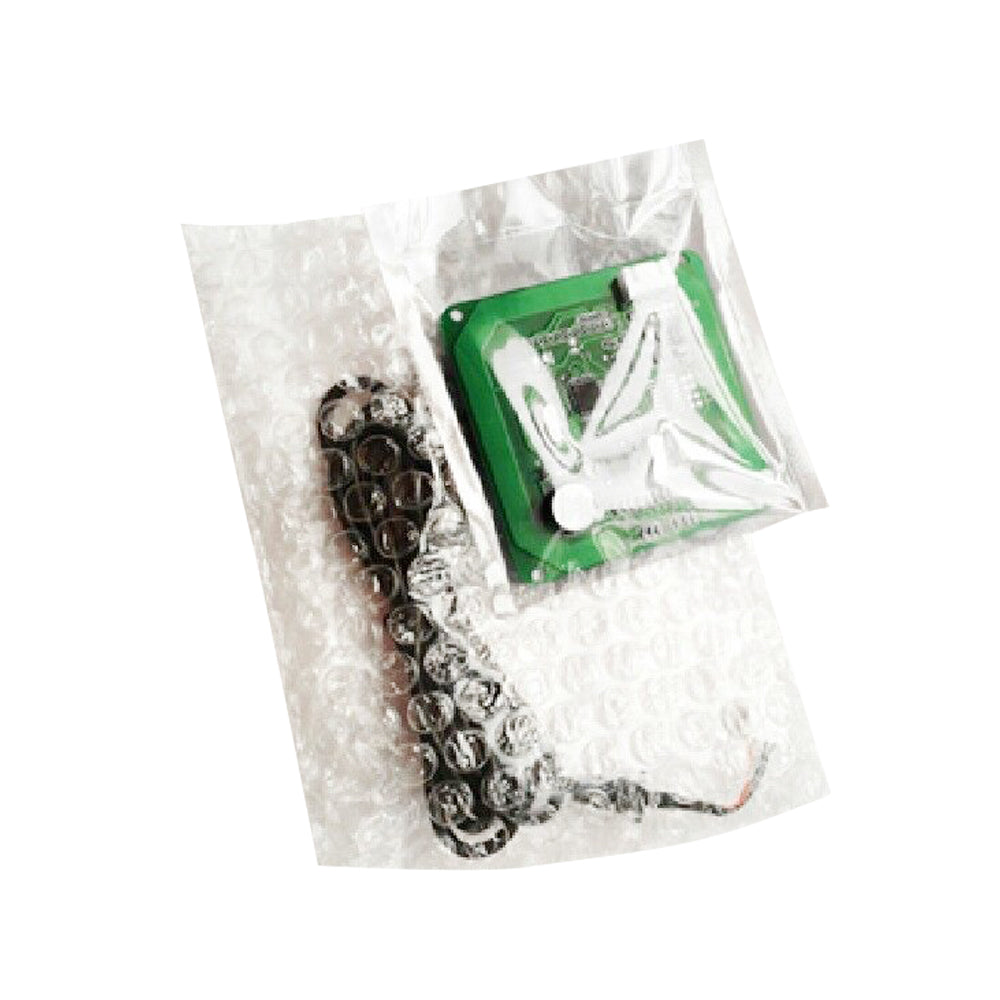

Each Package Included:
-

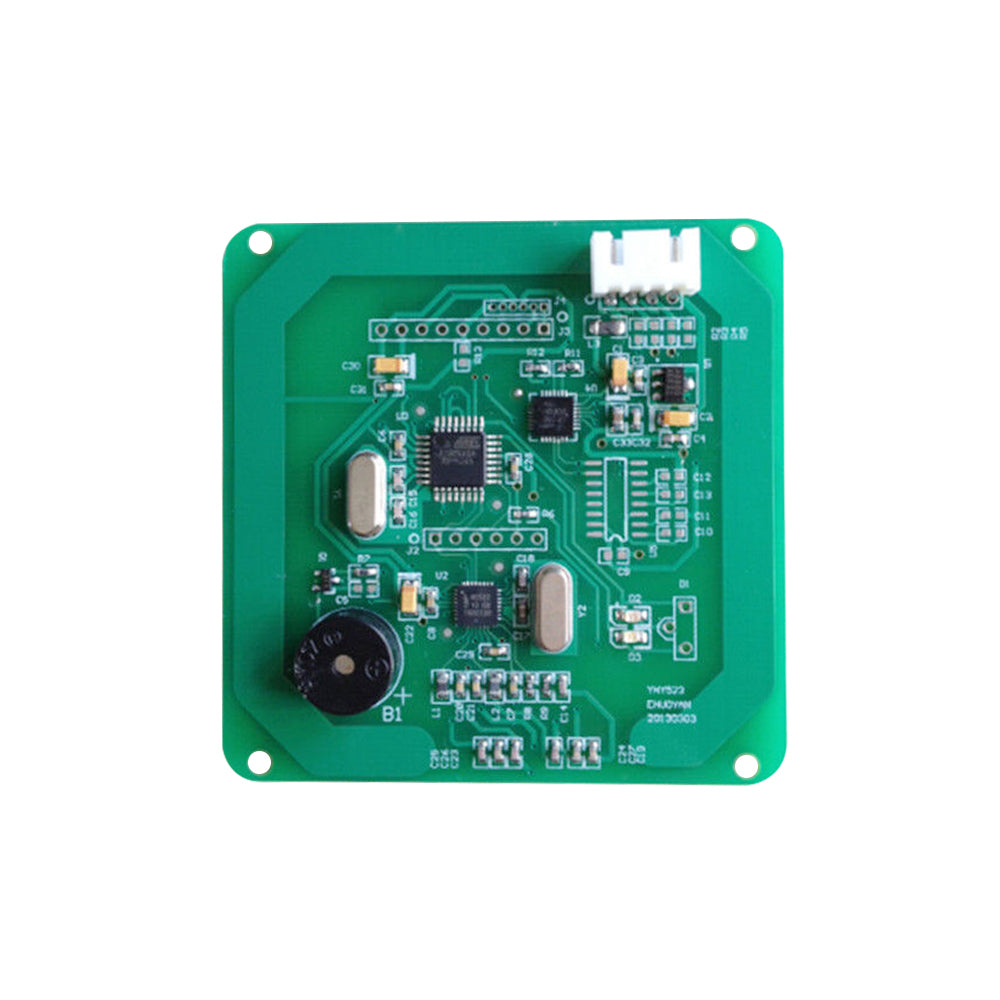

1 x Mifare Rfid Reader/Writer Module YHY5523U
-
1 x USB CABLE

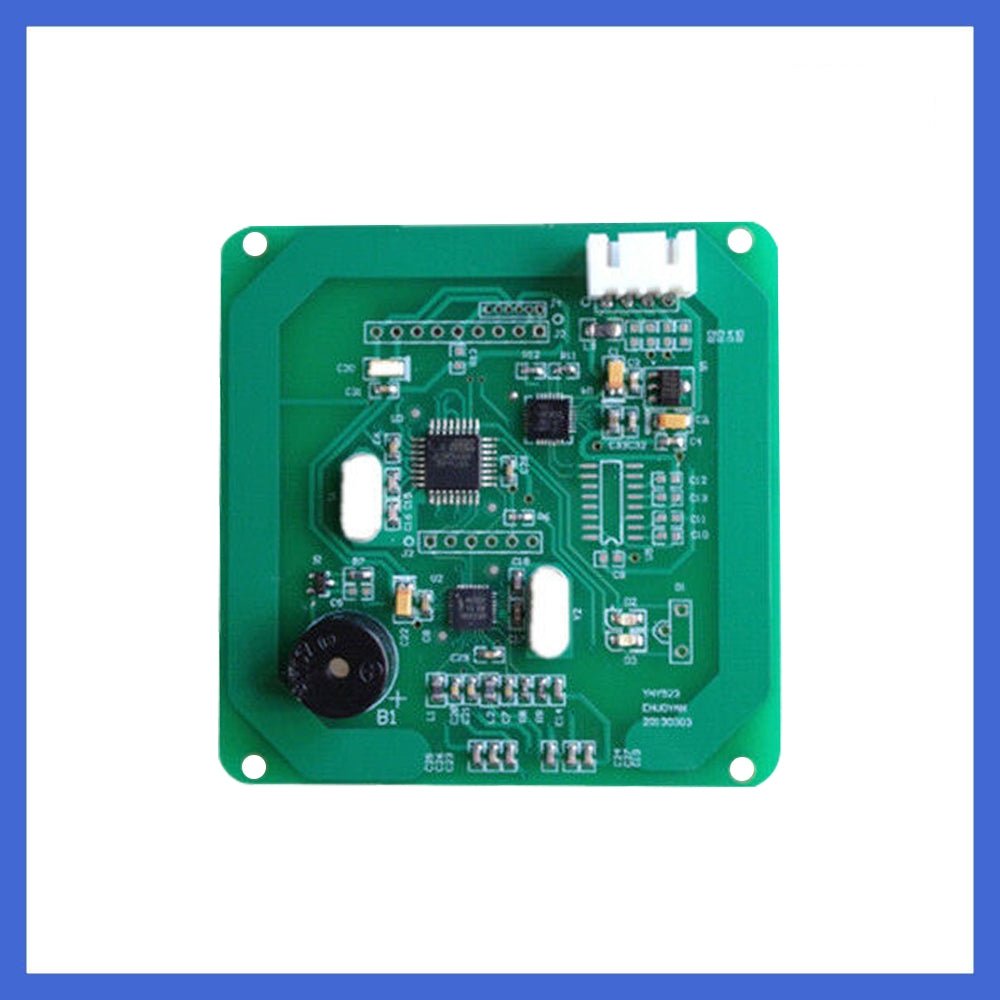

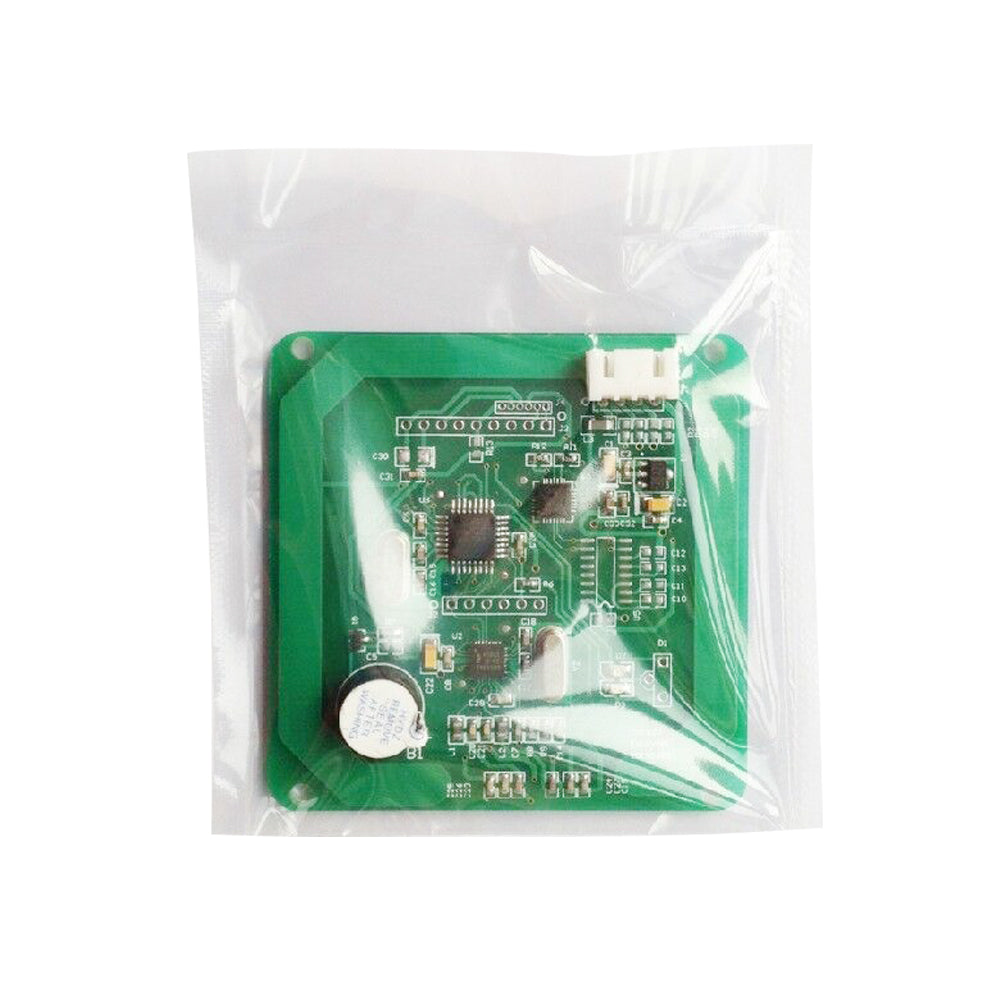

More pictures:
IN ORDER TO Compare all the Mifare1 reader& writer's specifications,the form below lists all the modules,
you can finally find something you need!
|
Model |
YHY502CG |
YHY502CTG |
YHY502CTG++ |
YHY522 |
YHY523U |
|
Standards & Protocols |
|||||
|
ISO 14443 A |
√ |
√ |
√ |
√ |
√ |
|
ISO 14443 B |
|
|
|
|
|
|
ISO 15693 |
|
|
|
|
|
|
Mifare®Classic protocol |
√ |
√ |
√ |
√ |
√ |
|
Carrier frequency |
13.56MHz |
13.56MHz |
13.56MHz |
13.56MHz |
13.56MHz |
|
Tag supported |
|||||
|
Mifare 1k |
√ |
√ |
√ |
√ |
√ |
|
Mifare 4k |
√ |
√ |
√ |
√ |
√ |
|
I.CODE SLI |
|
|
|
|
|
|
Tag_it2k HF-1 |
|
|
|
|
|
|
Product Features |
|||||
|
Operating distance typ.[mm] |
60 |
60 |
50 |
50 |
100 |
|
Host interface |
|||||
|
TTL RS232 |
√ |
√ |
|
√ |
|
|
RS232 |
|
|
√ |
|
|
|
USB |
|
|
|
|
√ |
|
Other Main Features |
|||||
|
Supply Voltage (V) |
3.3/ 5.5 |
3.3/ 5.5 |
3.3/ 5.5 |
3.3 |
5 |
|
Auto Detecting |
√ |
√ |
√ |
√ |
√ |
|
Integrated Antenna |
|
√ |
√ |
√ |
√ |
|
Reader & Writer |
√ |
√ |
√ |
√ |
√ |
|
Size(mm) |
40 ×25× 6 |
58 ×35× 6 |
58 ×35× 6 |
58 ×35× 6 |
70×70× 10 |
|
Weight(g) |
12 |
10 |
12 |
10 |
20 |
|
Temperature range [°C] |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
0 ~ 60 |
|
Software Development Kit(SDK) |
√ |
√ |
√ |
√ |
√ |
