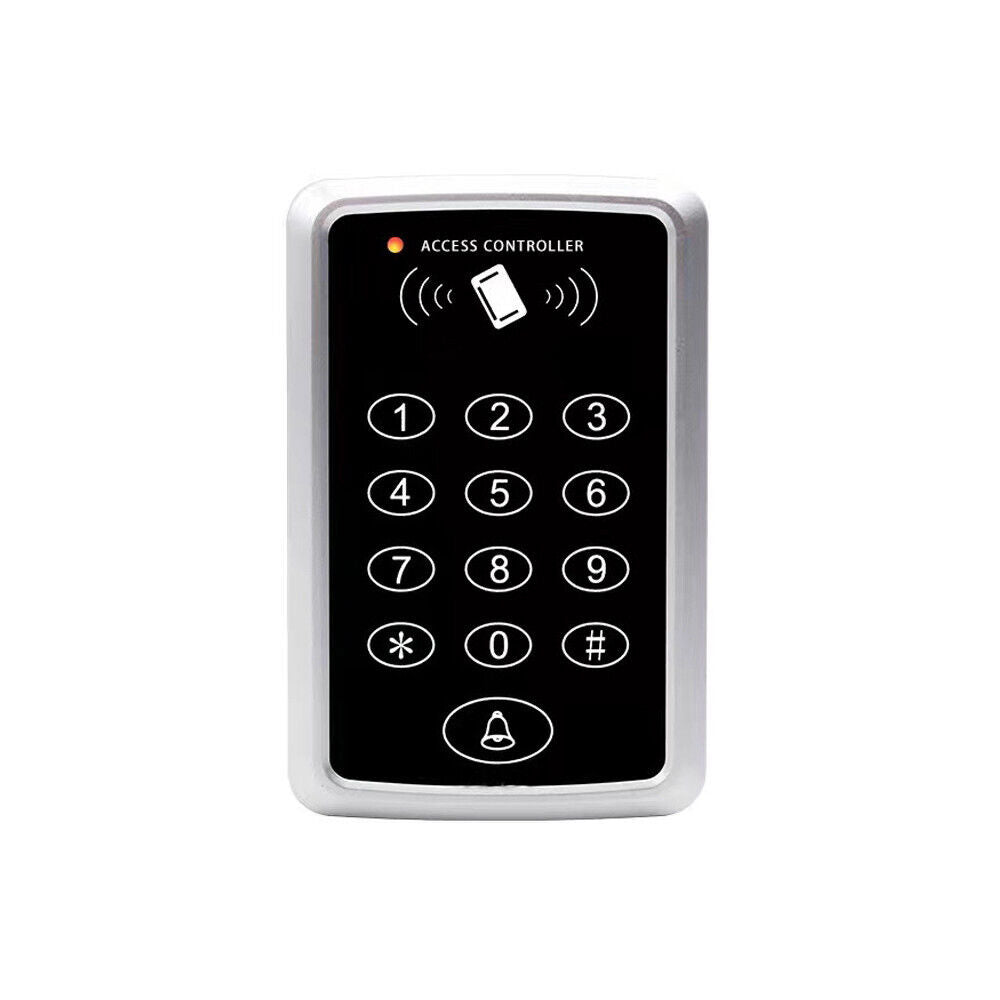

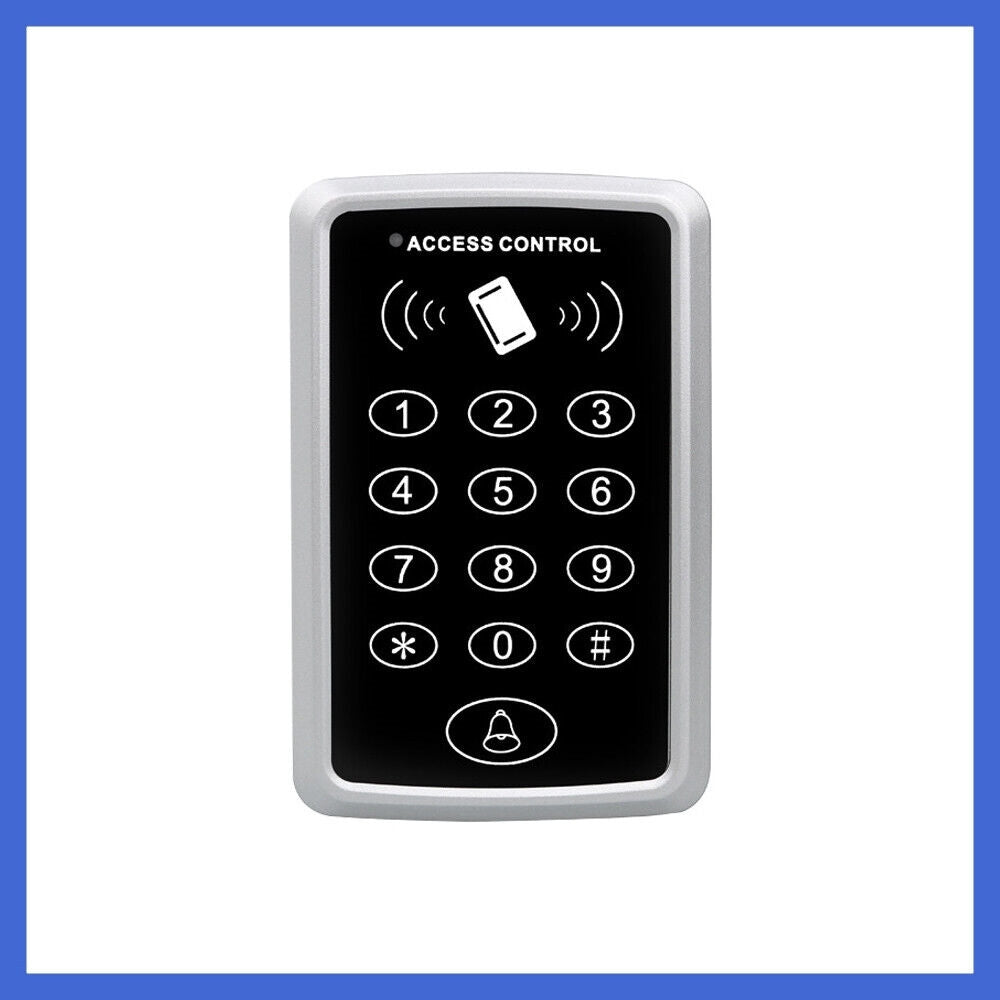

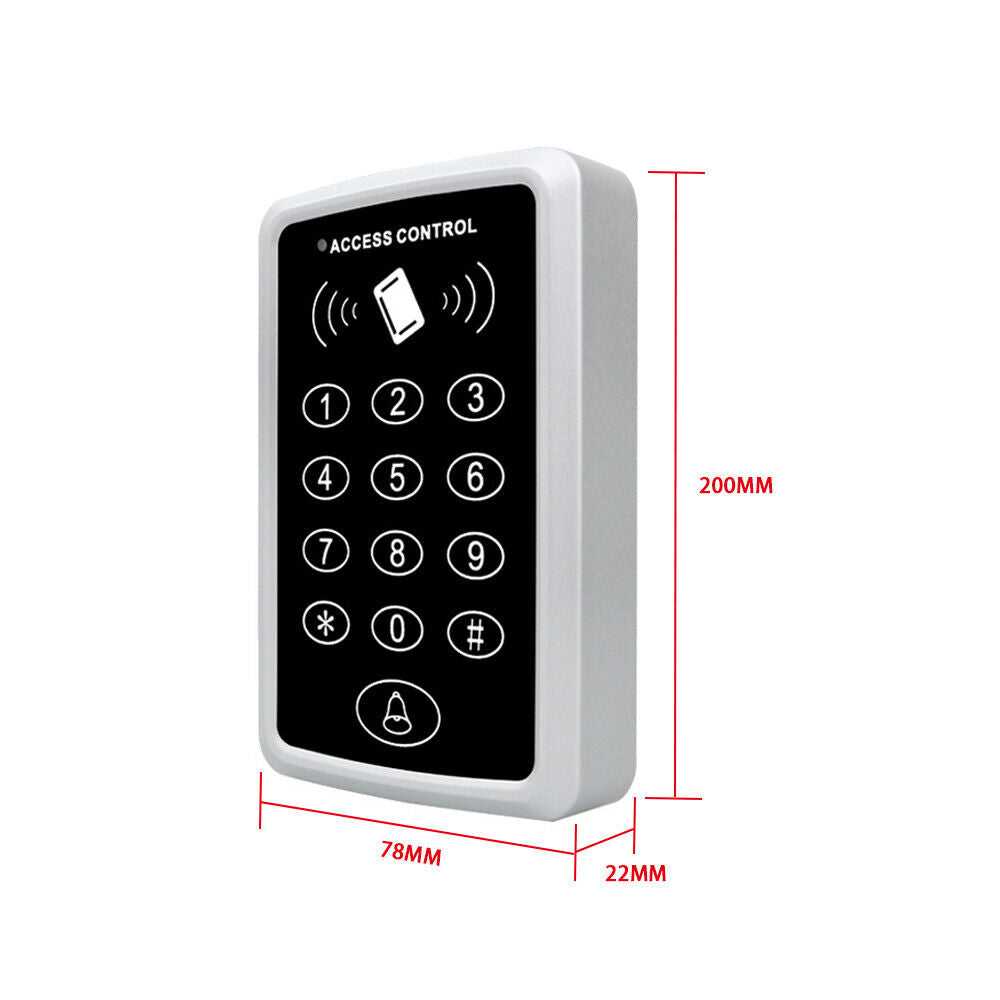

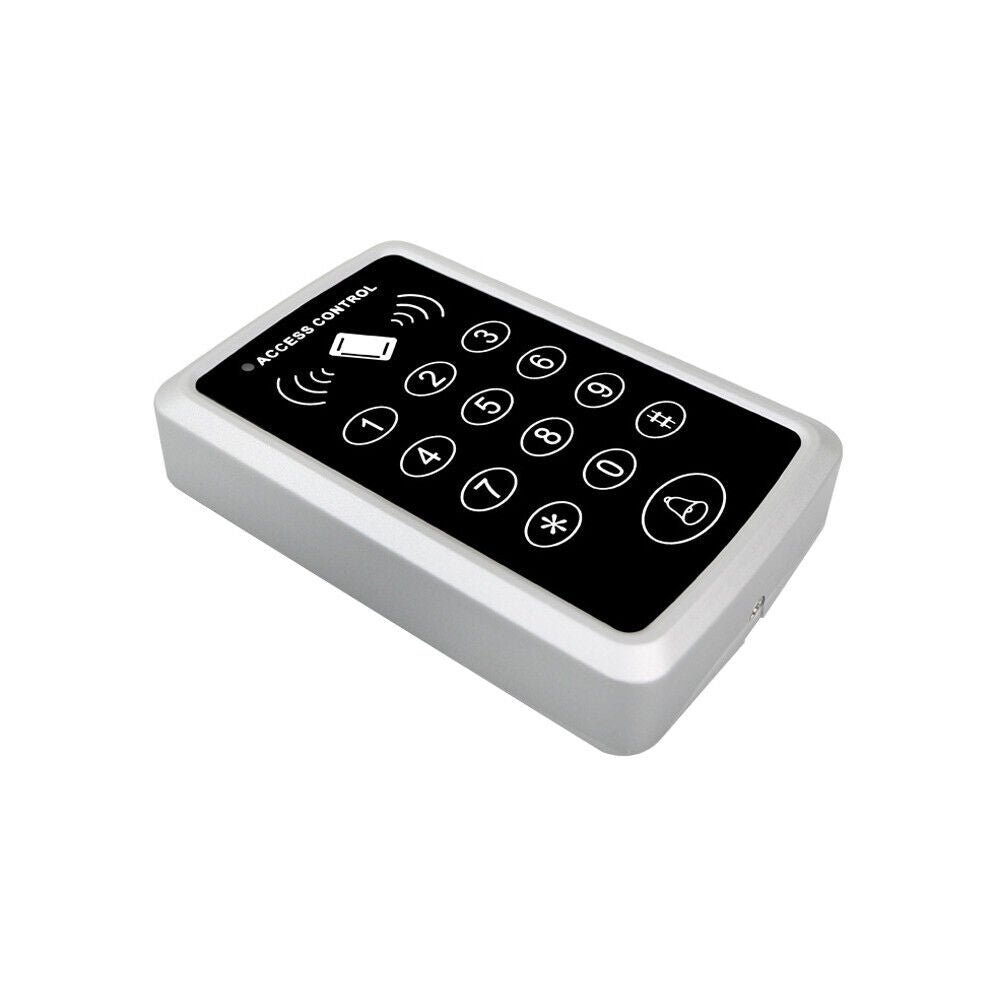

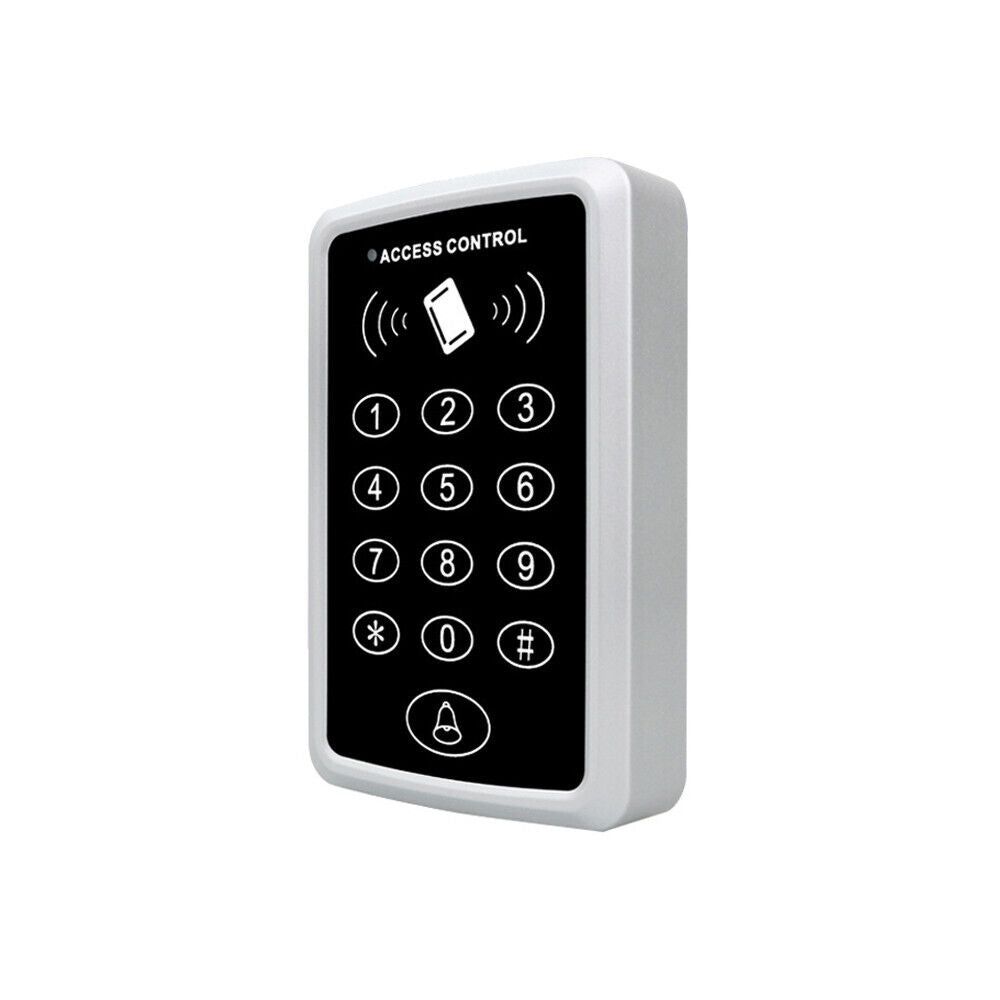

Techincal Parameters
- Operating voltage:DC12V+/-10%
- Operating curren:<100mA
- Ambient tempera:ture:0-60 C
- Relative humidity20%-90%
- Storeage:1000 users
- Card type: EM(ID) Card
- Card reading distance:0-10cm
Factory Default:
- Programming Password:123456
- Common access password:None.
- Relay Unloc:k output:5 seconds
- Open modeCard or access password（ access password include Private Access Password（PIN） and common Access Password.
- Security:OFF
- Backlight(For options):Auto
- WG26 port(For options）)Input
Light and sound indicates:
Light: red and green
|
Light Description |
Indicates |
|
Red light flash every 1 sec(Slow flash) |
Standby state |
|
Green light flash every 0.5sec(Fast flash) |
Pending further action |
|
Red light is always ON. |
Programming state |
|
Green light is always ON within Open time |
Unlocking state |
Sound:Buzz
|
Sound Description |
Indicates |
|
1 short buzz |
Valid input |
|
3 short buzz |
Invalid input |
|
1 long buzz |
Programming success |
|
Continuous long buzz |
Restoring factory programming passwords |

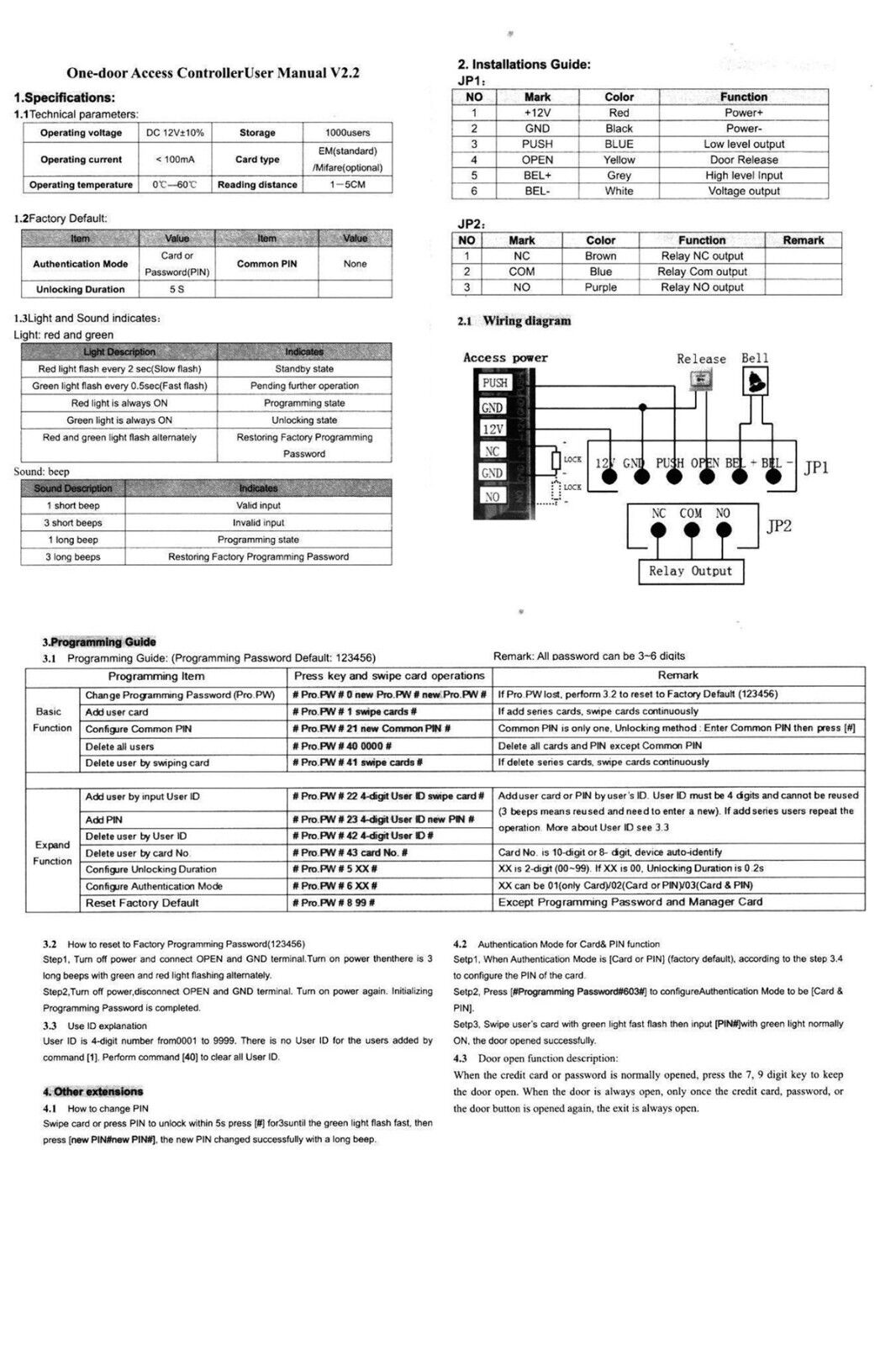

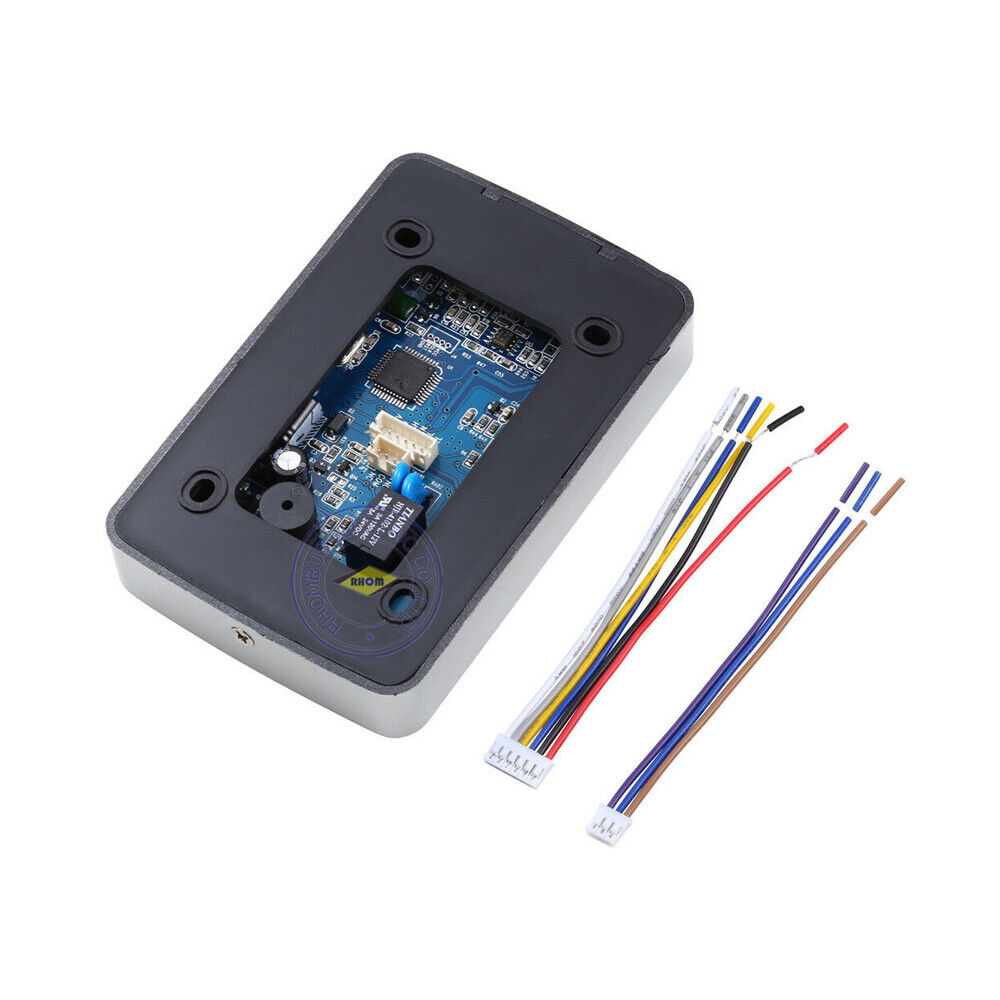

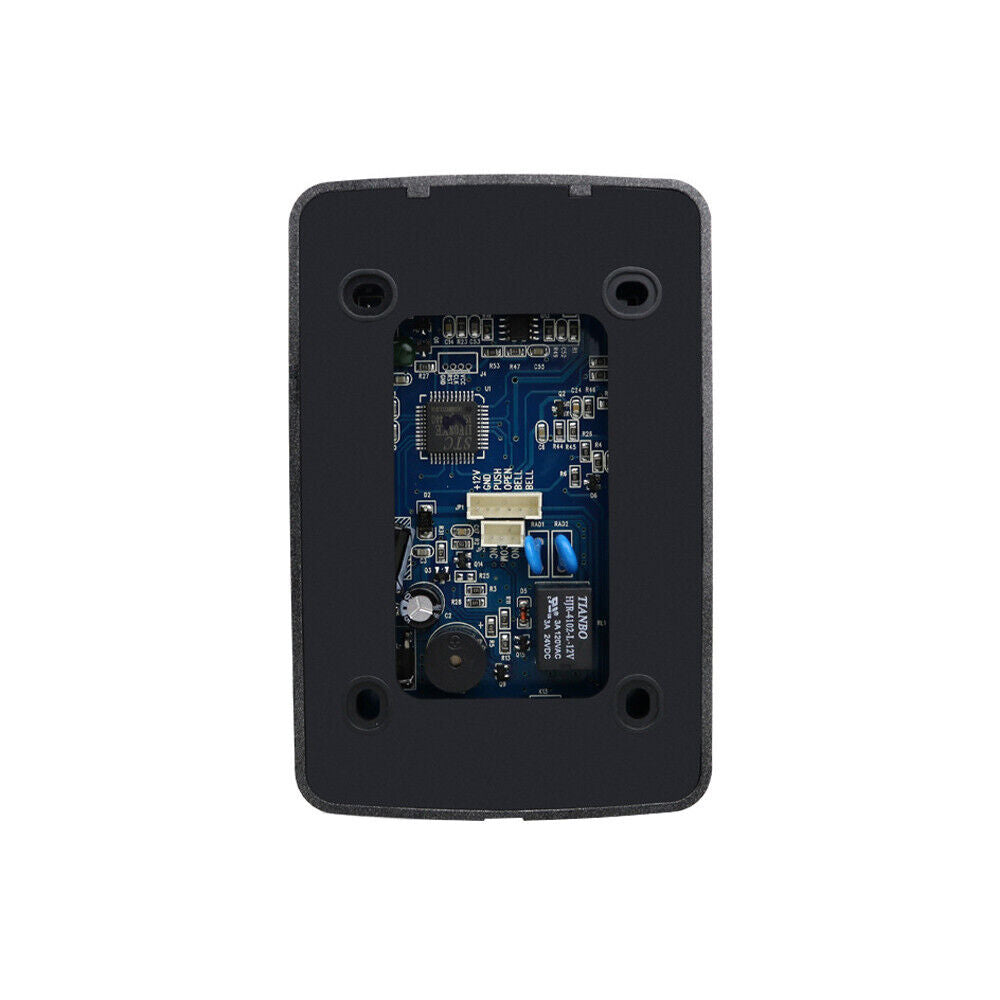

Installations:
JP1 terminal:
|
NO |
Mark |
Color |
Function |
|
1 |
+12V |
Red |
Power+ |
|
2 |
GND |
Black |
Power- |
|
3 |
PUSH |
Blue |
Low level output |
|
4 |
OPEN |
Yellow |
Door Release |
|
5 |
BELL |
Grey |
Bell |
|
6 |
BELL |
White |
Bell |
JP2 terminal:
|
NO |
Mark |
Color |
Function |
Remark |
|
1 |
NC |
Brown |
Relay NC output |
|
|
2 |
COM |
Blue |
Relay COM output |
|
|
3 |
NO |
Purple |
Relay NO output |
