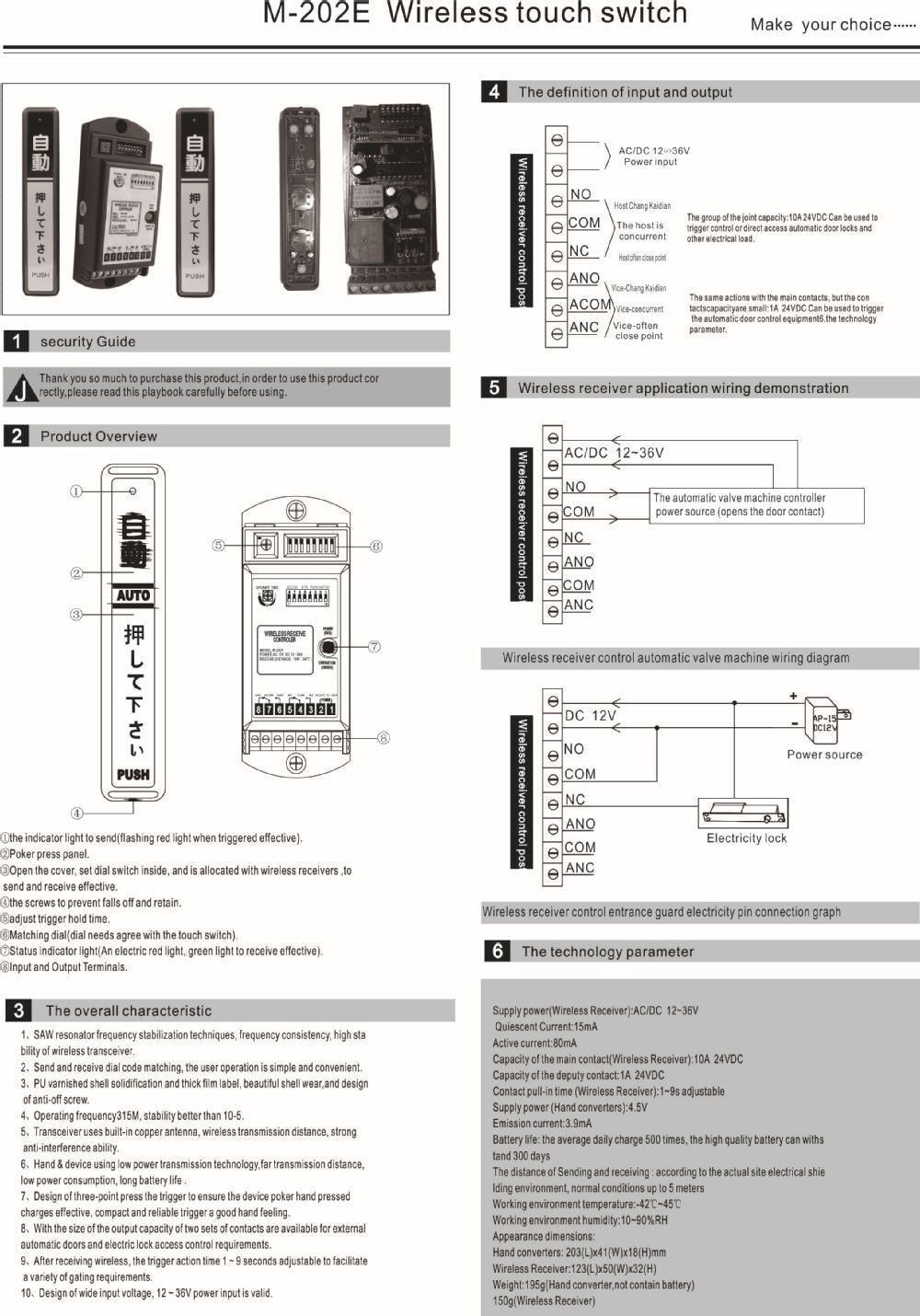

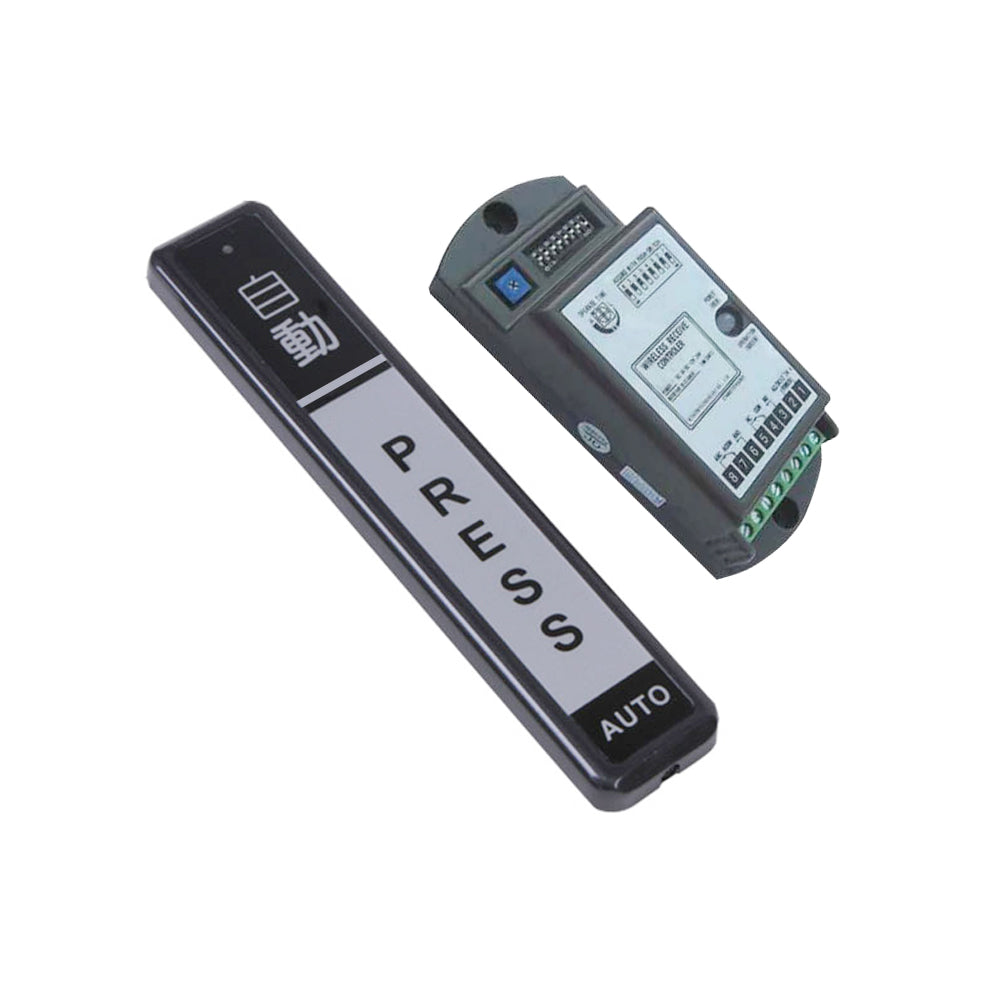

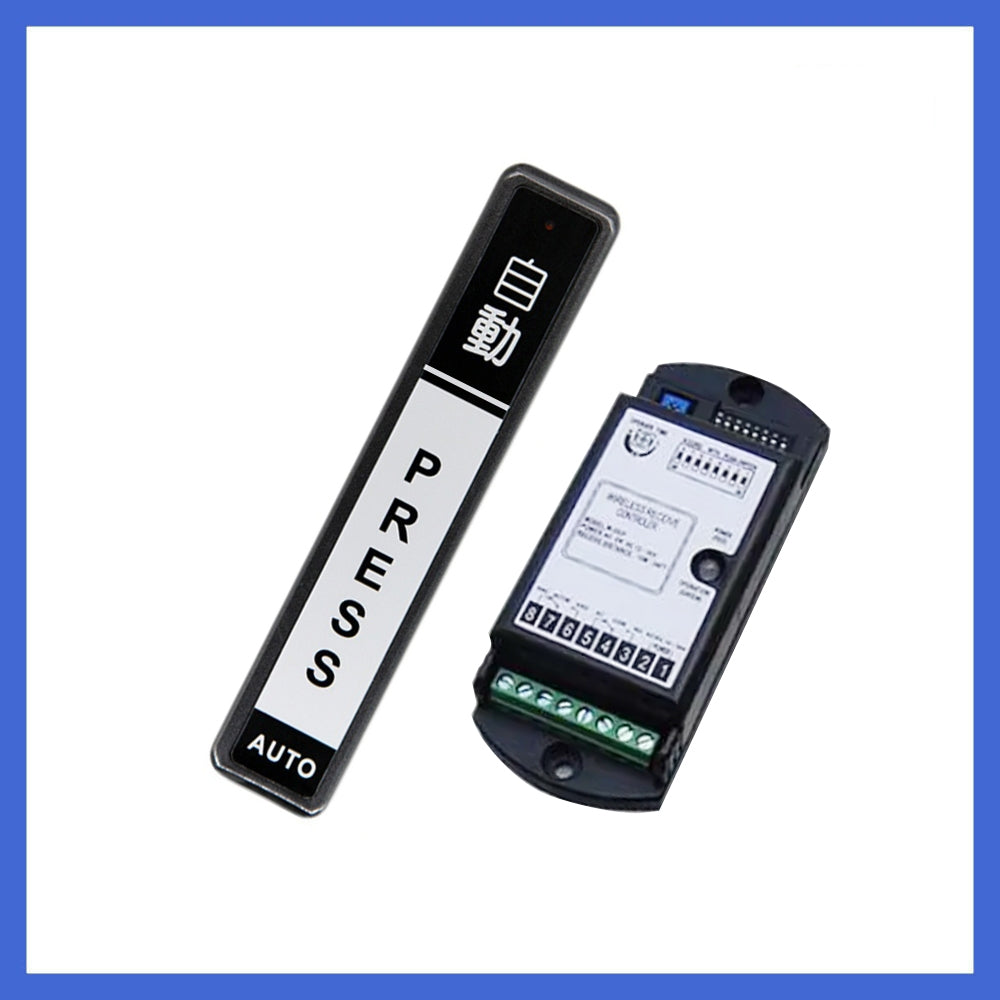

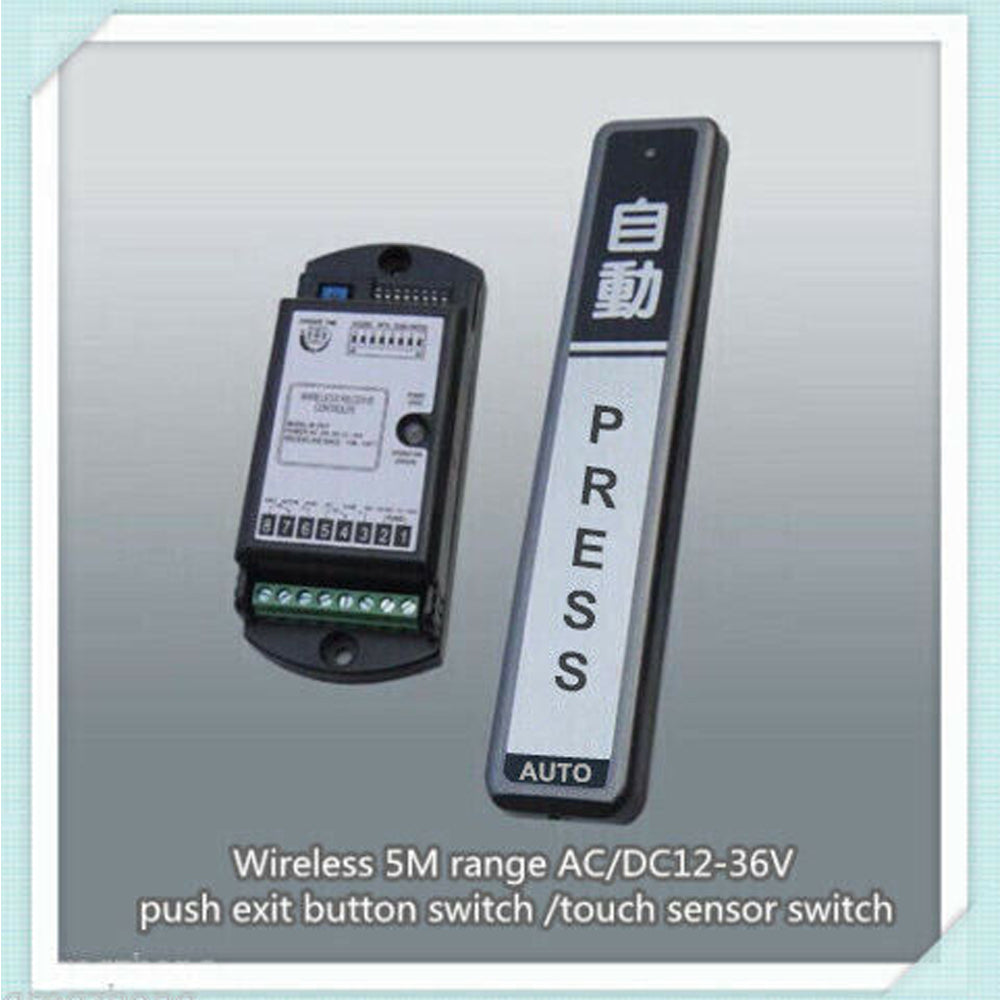

M-202EWireless 5M range AC/DC12-36V push exit button switch /touch sensor switch

Description

Supply power(wireless receiver):AC/DC12-36V
Quiescent current:15mA
Active current:80mA
Capacity of the main contact(wireless receiver):10A 24VDC
Contact upll-in time(wireless receiver):1-9s adjustable

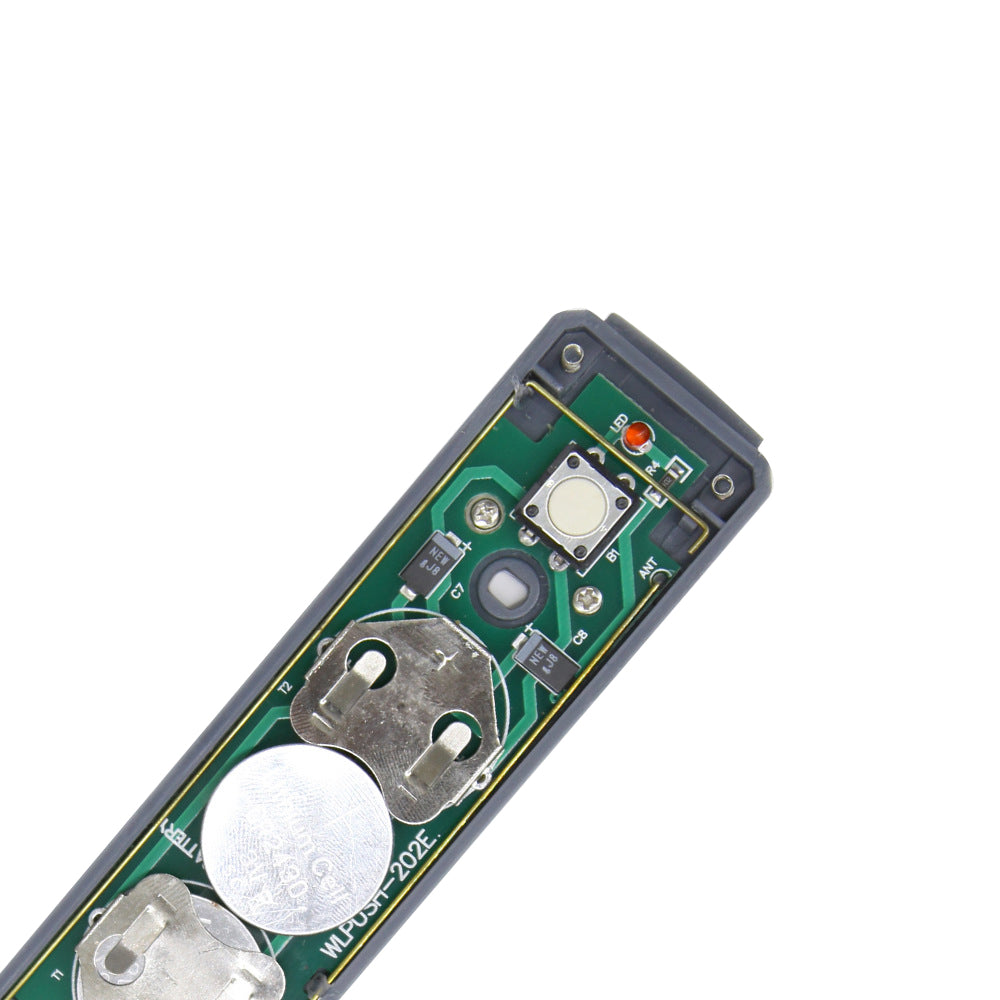

Suppply power(Hand converters):4.5v
Emission current:3.9mA
Battery life:the average daily charge 5000 times, the high quality battery can with stand 300days
The distance of sending and receiving: according to the actual site electrical shielding environment, normal conditions up to 5 meters
Working environment temperature:-42C-45C
Working environment humidity:10-90%RH

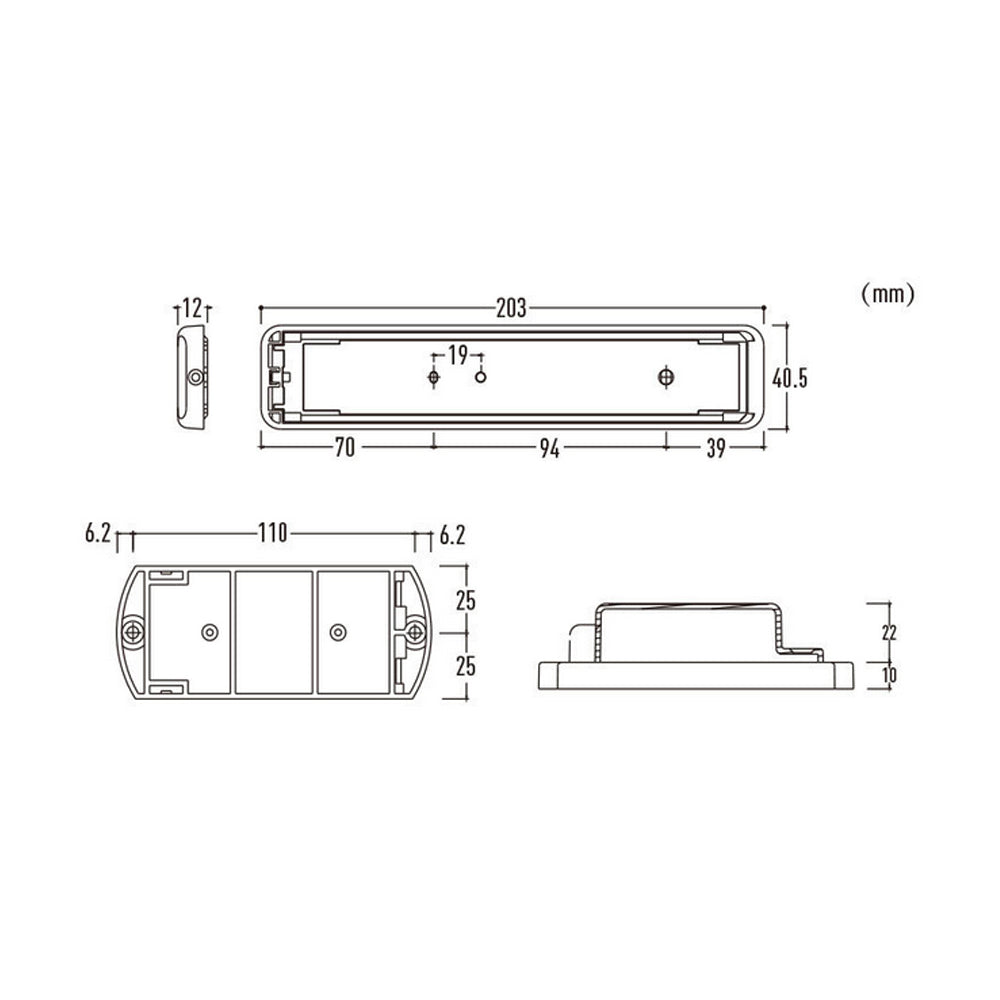

Appearance dimensions:

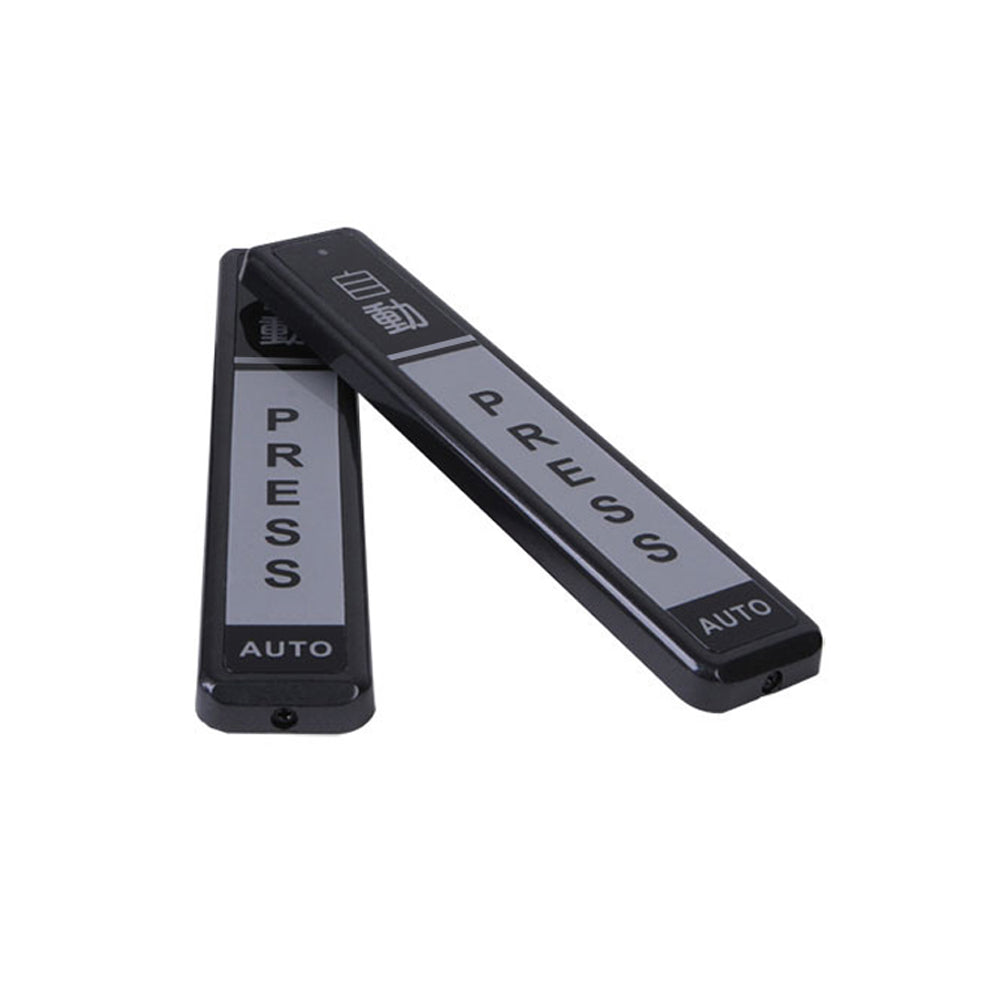

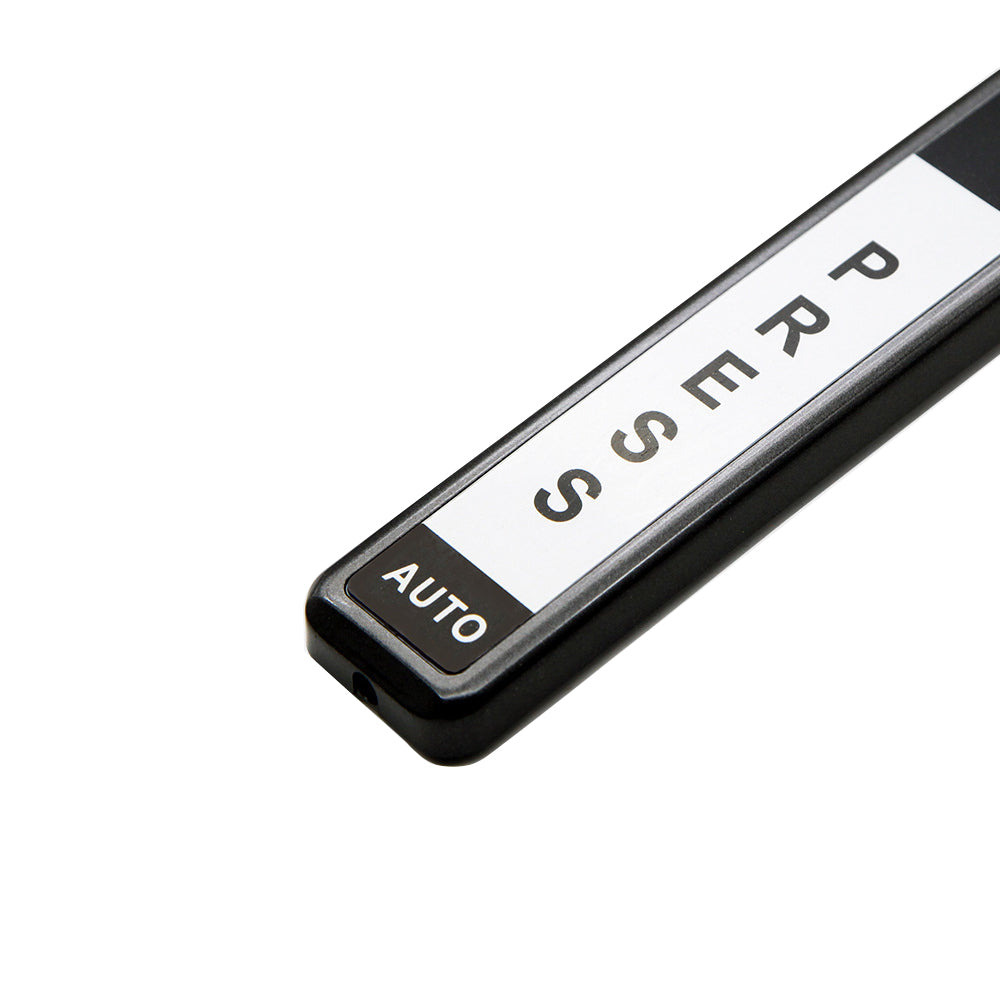

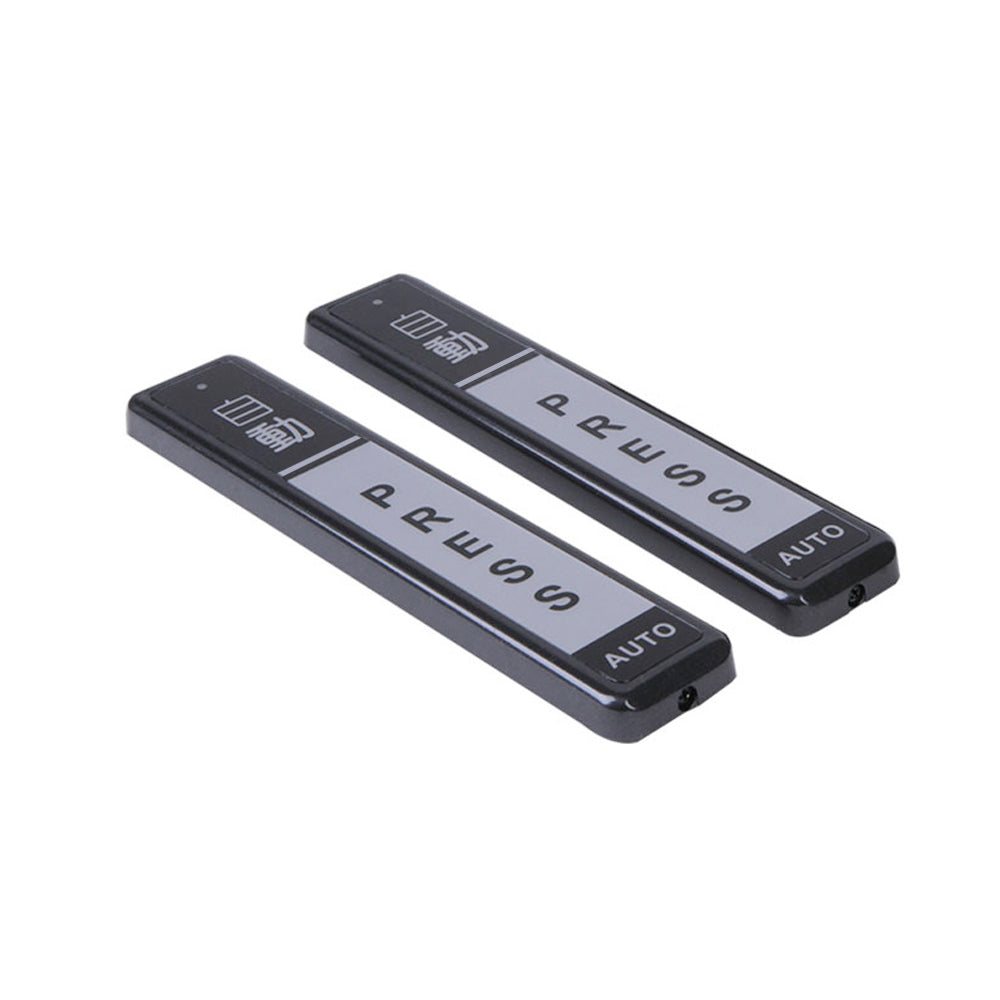

Hand converters:203(L)x41(W)x18(H）mm

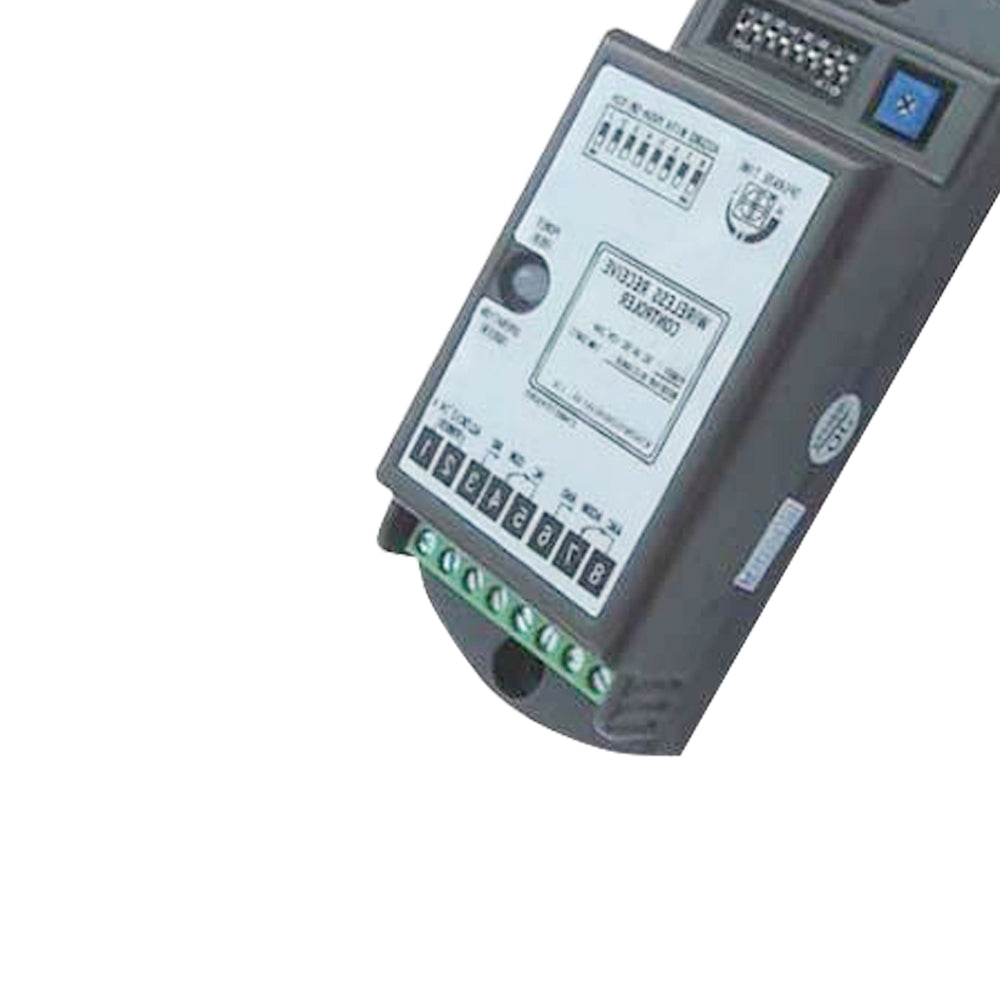

Wireless receiver:123(L)x50(W)x32（H）mm
Weight:195g（Hand converter not contain battery）
             150g（Wireless receiver）
