Description:
This Fingerprint and ID card time clock with TCP/IP function, it can be used as Time Attendance It adopts the latest and accurate industrialized
algorithm which has refined fashion, integrates attendance management software. It could store 800 fingerprint templates and 50,000 transaction
records. You can download the attendance data by the TCP/IP Network port or the USB Flash Drive and the USB Communication.
Key Functions:
- Fingerprint and RFID card reader function Two in One, supports fingerpirnt and RFID card.
- Standard TCP/IP communication, make sure the data transmission between terminal and PC can be easily done within several seconds.
- Set in/out privileges and in/out time via the device directly.
- Max supports 900 fingerprint capacity and 50,000 records.
- Wiegand 26/34 input and output.
- With multi-level validation, lock combination and anti-pass back functions.
- Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development.

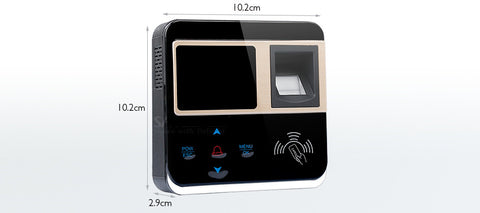

Size：
Key Advantages:
- Strictly follow the national security product standard. Suitable for the entrances and exits of office, factory, hotel, school, etc.
Adopt the Energy-saving fingerprint sensor and power management function, makes the product perfect.
- 2.4 inch Color TFT screen.
- Fingerprint + Password + ID Card.
- The RIMS Software is improving unceasingly and the customers are free to the upgrade ones.
Specification:
|
Model
|
M-F211
|
|
Fingerprint Sensor
|
(Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI)
|
|
CPU
|
ARM926EJ core operating frequency 0 ~ 200MHz
|
|
Identification Angle
|
The whole point of recognition
|
|
Proximity Card
|
125Khz, EM4100 or compatible with its non-contact ID card
|
|
Fingerprint Capacity
|
800
|
|
Log Capacity
|
50000
|
|
Identification
|
Fingerprint, Proximity Cards in any combination
|
|
Record Query
|
Available
|
|
Communication
|
TCP/IP,RS485,USB,U disk download
|
|
Recognition Speed
|
<=1s
|
|
FRR
|
<=0.1%
|
|
FAR
|
<=0.00001%
|
|
Fingerprint Recognition Mode
|
1:1, 1:N
|
|
Operating Mode
|
Off-line/On-line
|
|
Intelligent Learning
|
Available
|
|
Specical Functions
|
FP&ID (125KHz)
|
|
Display
|
2.4 inches color TFT Screen
|
|
Lock Output
|
1 Group
|
|
Door Button
|
1 Group
|
|
Wiegand Protocol
|
1 group input and 1 group output
|
|
Language
|
English
|
|
Voice Prompts
|
Customizable
|
|
Name Display
|
Available
|
|
Ring Features
|
Built-in timing bell
|
|
Self-test Function
|
Available
|
|
External Doorbell
|
Available
|
|
Power Management Features
|
Sleep, Automatic Boot,Countdown Shutdown, Time Off
|
|
Alarm Function
|
Tamper alarm,Linkage (fire) alarm,Out door alarm,Duress alarm
|
|
Other Features
|
Available on the machine operation, self-set access rights
|
|
Operating Temperature
|
0℃- 45℃
|
|
Operating Humidity
|
20%-80%
|
|
Power Adapter
|
DC 12V/2A
|
Software Screenshot:
Package included：
- 1 x Fingerprint Terminal
- 2 x Cables
- 1 x CD (with manual)
- 1 x Pack of srews
|
