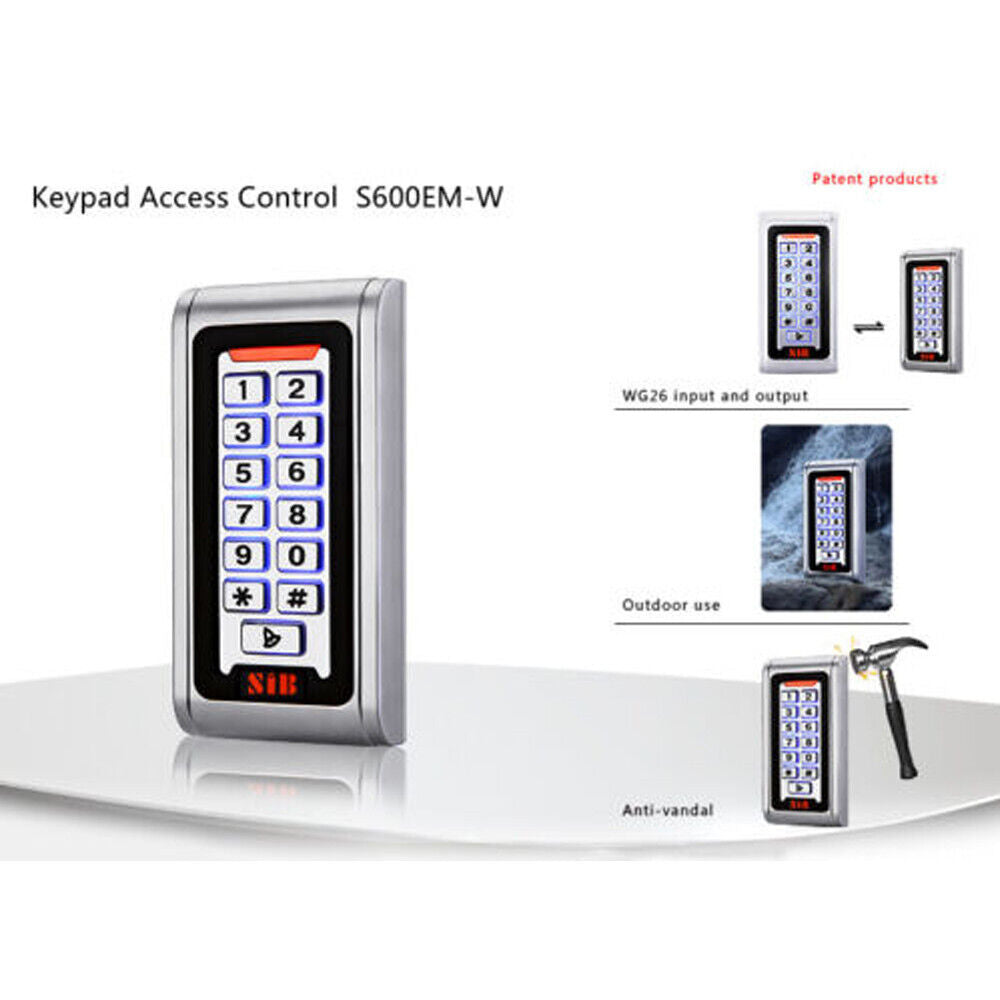

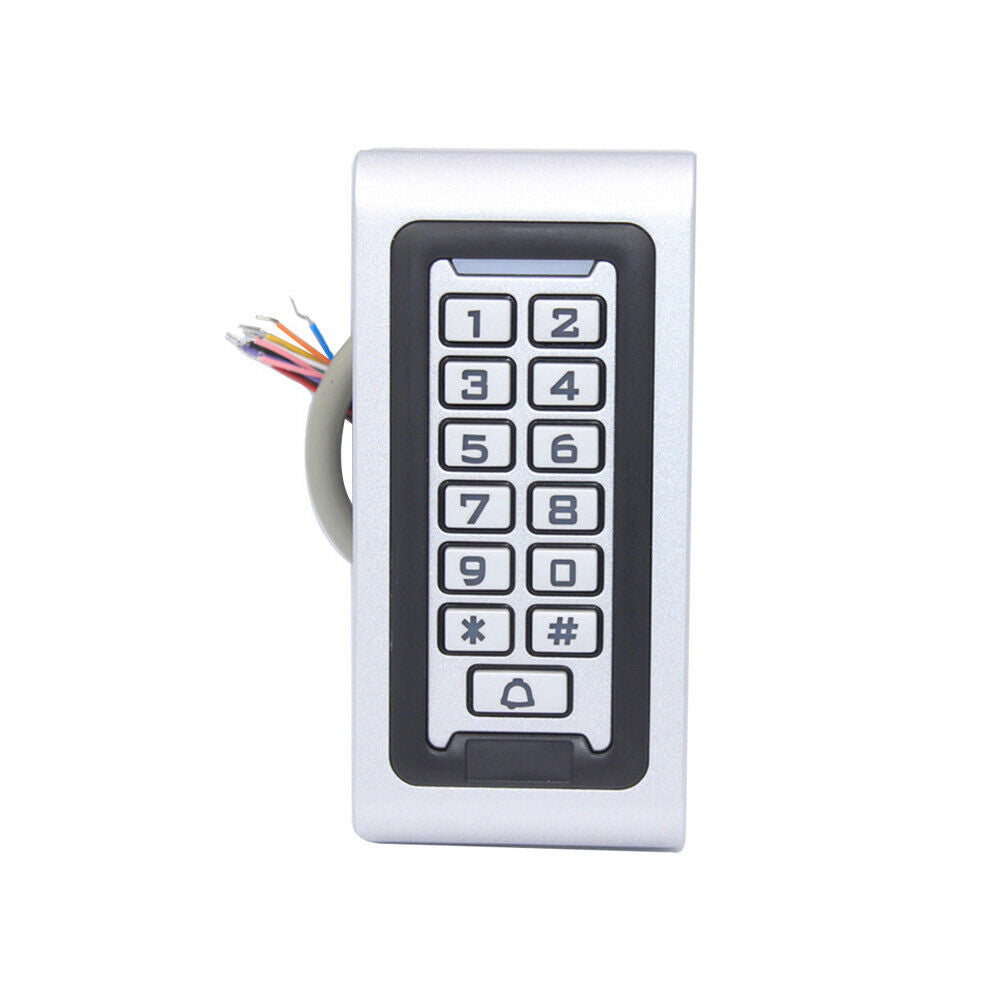

Door Access Control Controller Waterproof IP68
Metal Case RFID Reader Keypad

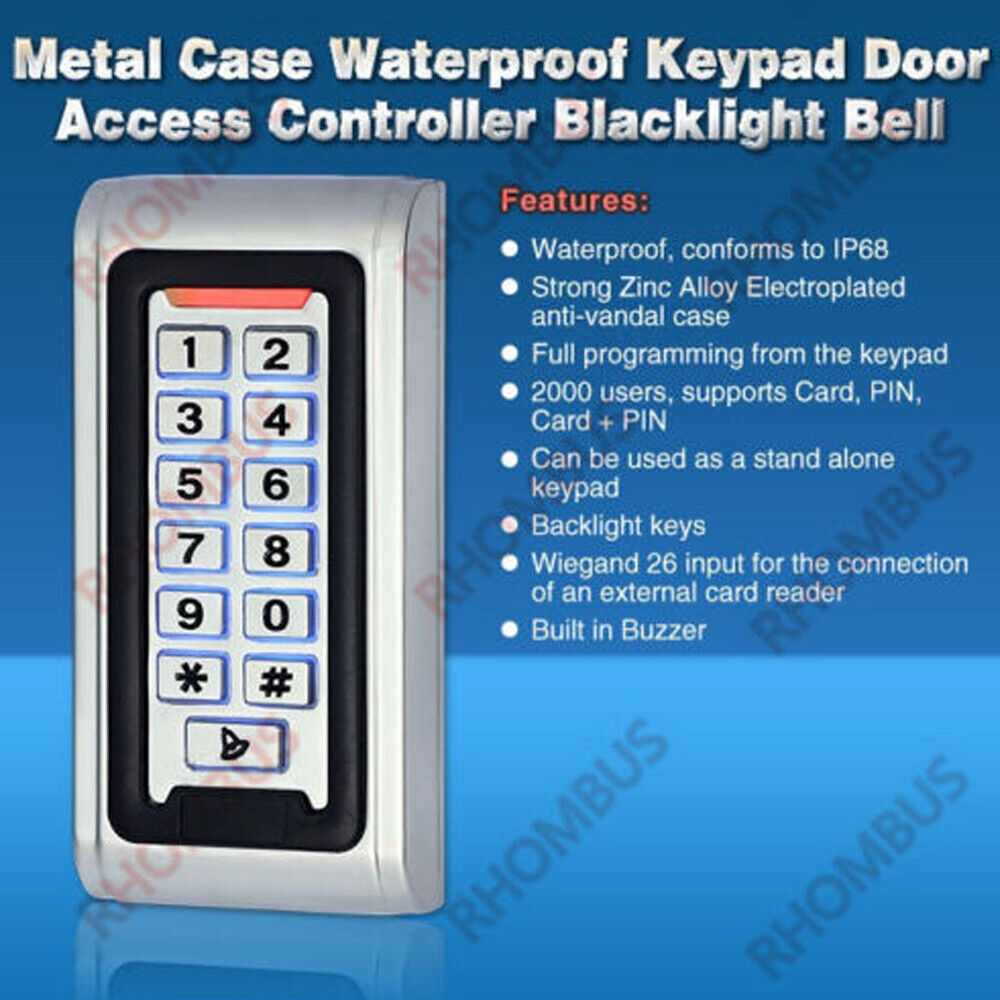

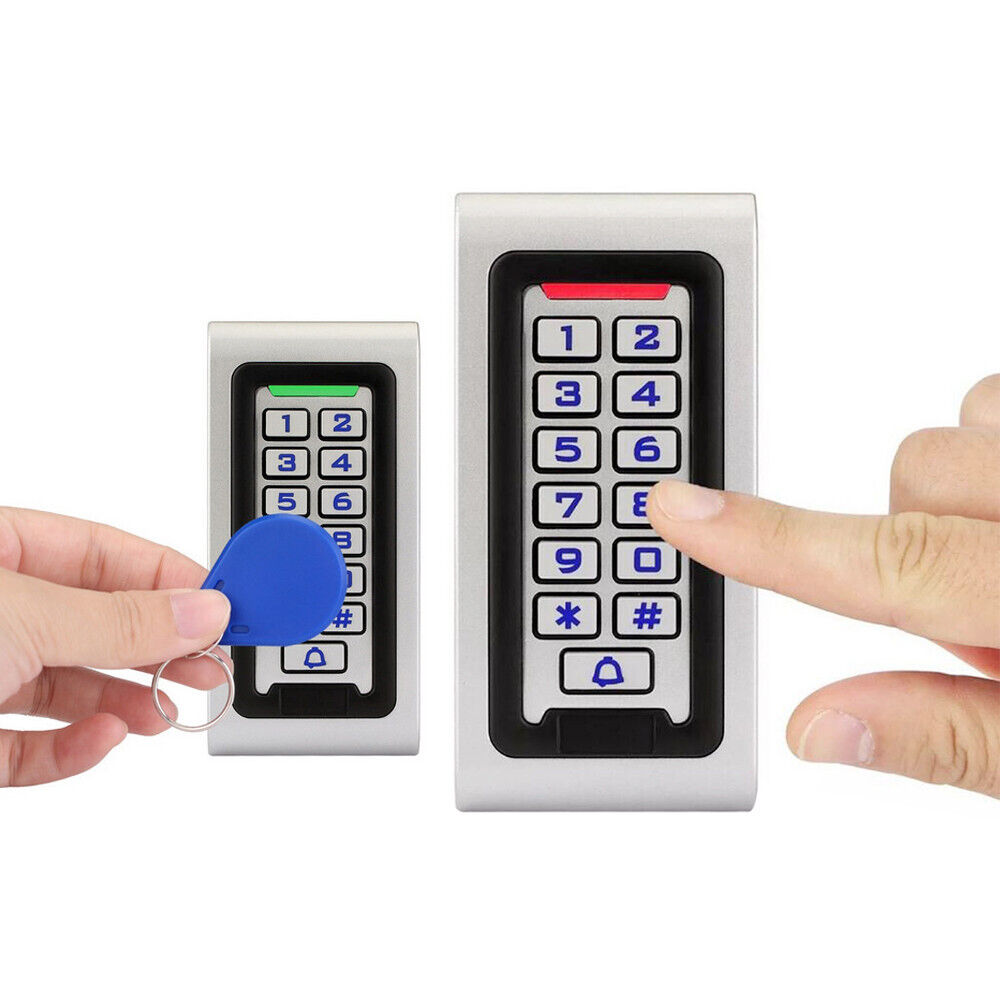

Features
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
Specifications
- Operating Voltage：DC 12V±10%
- User Capacity: 2000
- Card Type: EM4100/4102 Card (125KHZ)
- Card Reading Distance: 3-6 cm
- Active Current: ＜60mA
- Idle Current : 25±5 mA
- Lock Output Load : Max 3A
- Alarm Output Load : Max 20A
- Operating Temperature: -45°C～60°C
- Operating Humidity : 10%- 90% RH
- Waterproof Conforms : IP68
- Adjustable Door Relay time : 0 -99 seconds
- Adjustable Alarm Time: 0- 3 minutes
- Wiegand Interface : Wiegand 26 bit
- Wiring Connections Electric Lock, Exit Button, External Alarm,External reader

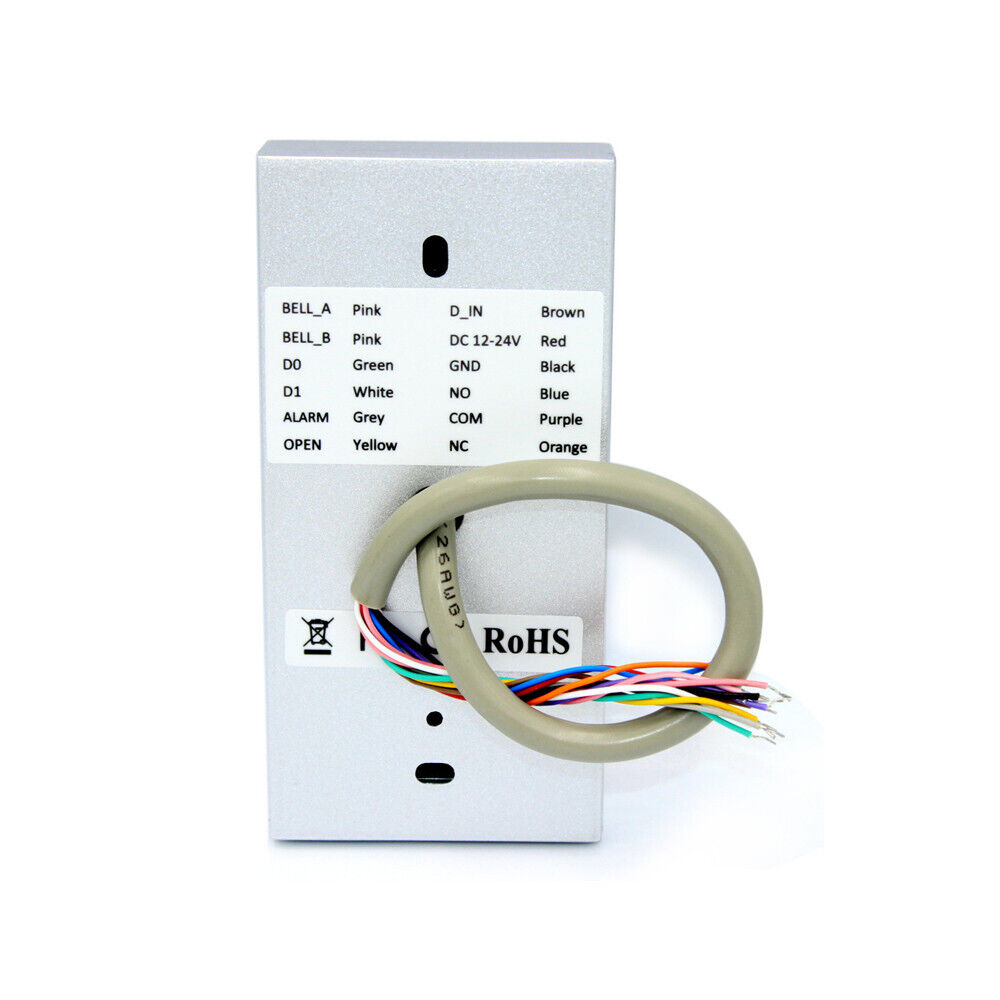

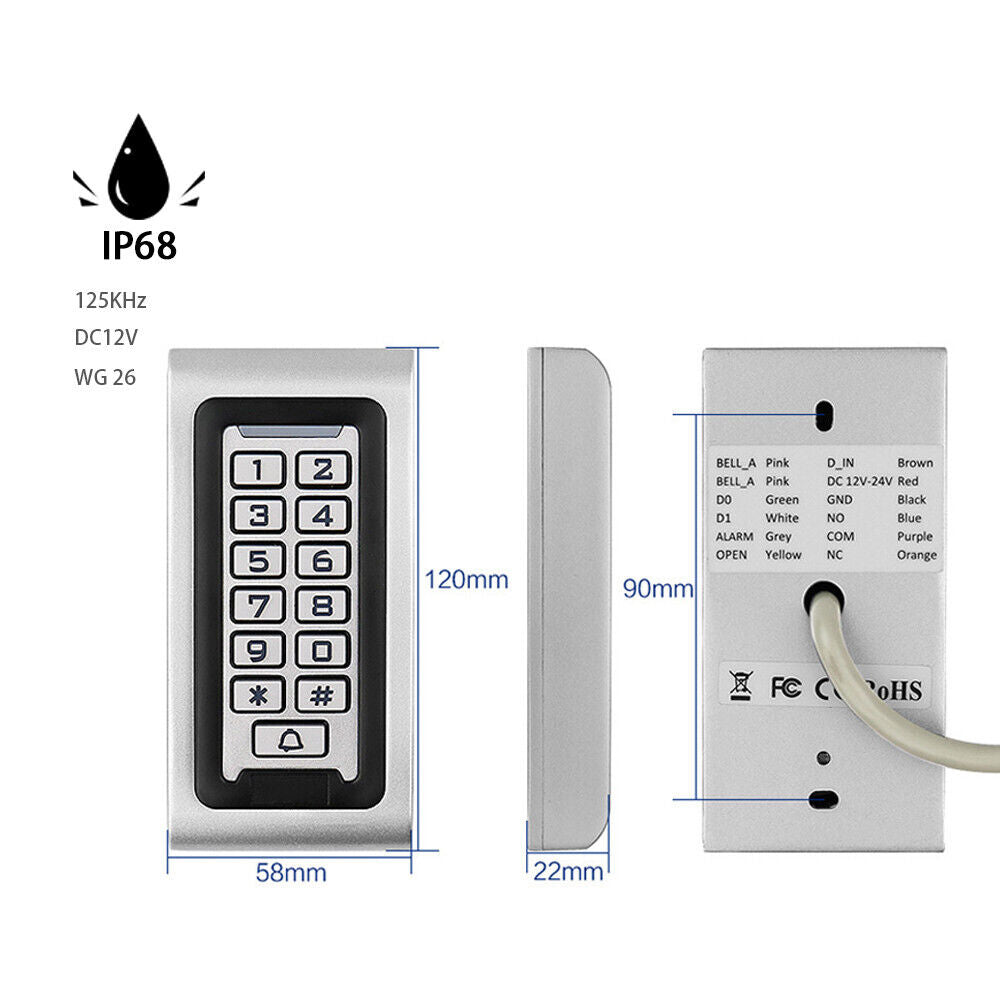

Wiring
|
Colour |
Function |
Description |
|
Pink |
BELL_A |
Doorbell button one end |
|
Pale blue |
BELL_B |
Doorbell button to the other end |
|
Green |
D0 |
WG output D0 |
|
White |
D1 |
WG output D1 |
|
Grey |
ALARM |
Alarm negative(alarm positive connected 12 V+) |
|
Yellow |
OPEN |
Exit button one end(the other end connected GND) |
|
Brown |
D_IN |
Magnetic switch one end(the other end connected GND) |
|
Red |
12V+ |
12V + DC Regulated Power Input |
|
Black |
GND |
12V - DC Regulated Power Input |
|
Blue |
NO |
lay normally-on end(Connect positive electric lock "-") |
|
Purple |
COM |
Relay Public end, connect GND |
|
Orange |
NC |
Relay Closed end(connect negative electric lock "-") |

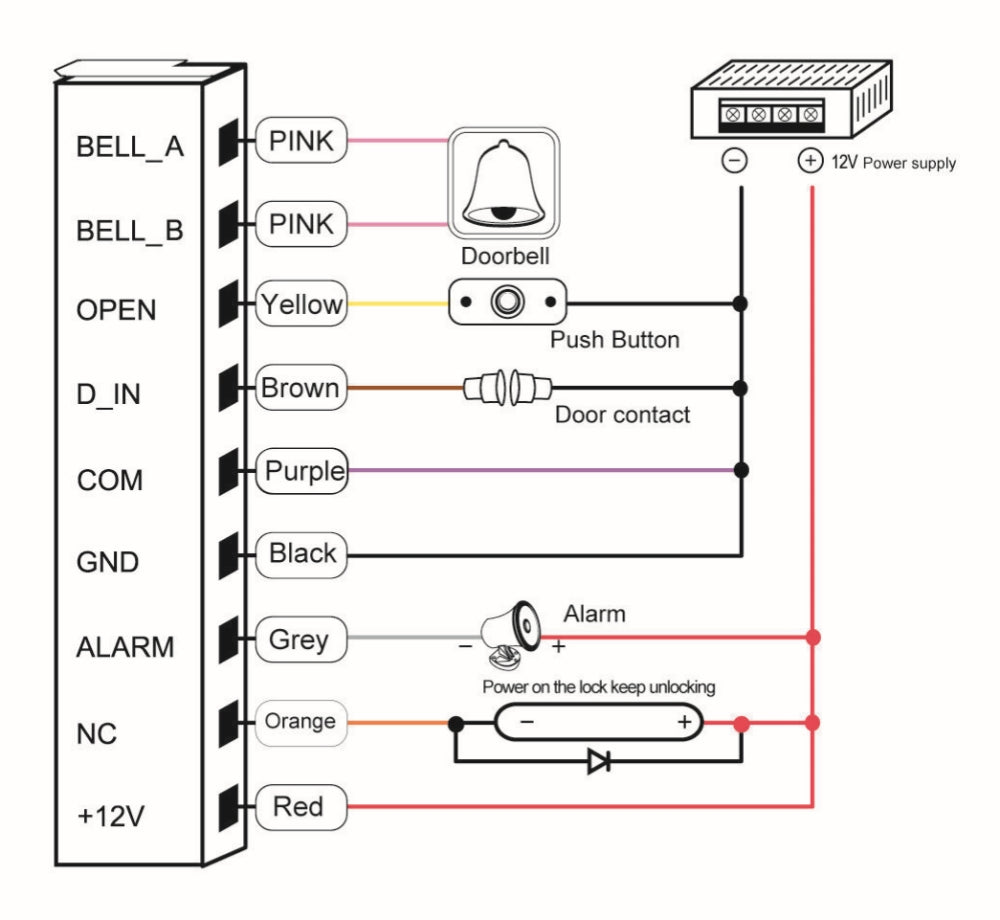

Common power supply diagram:

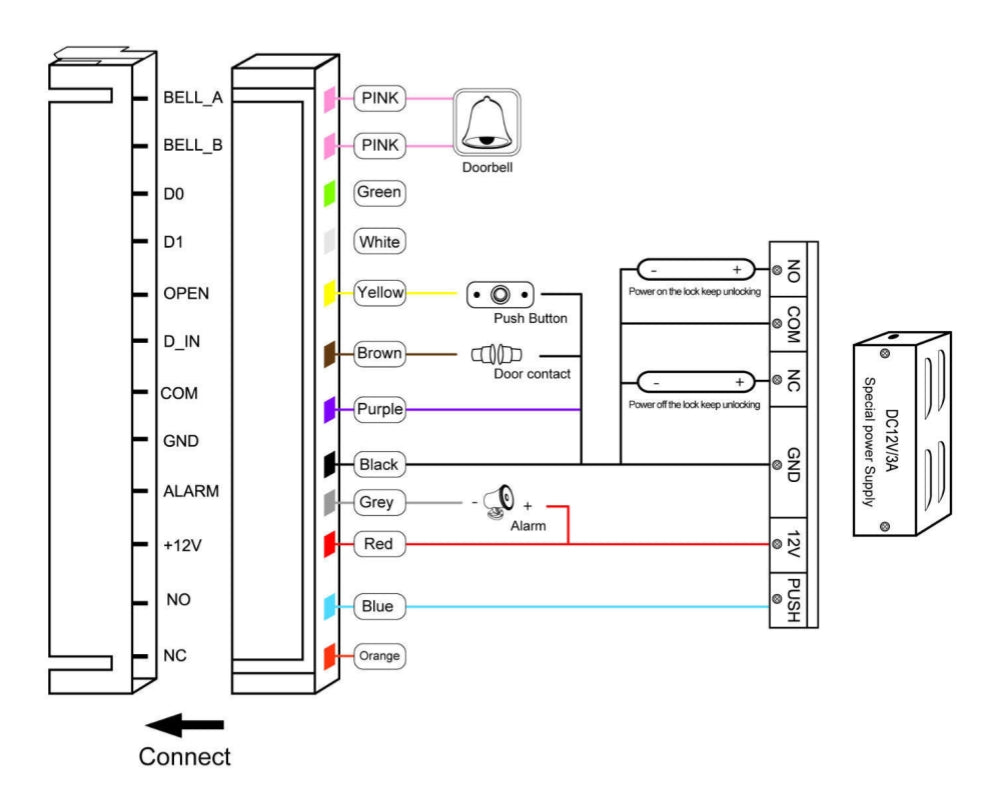

Special power supply diagram:

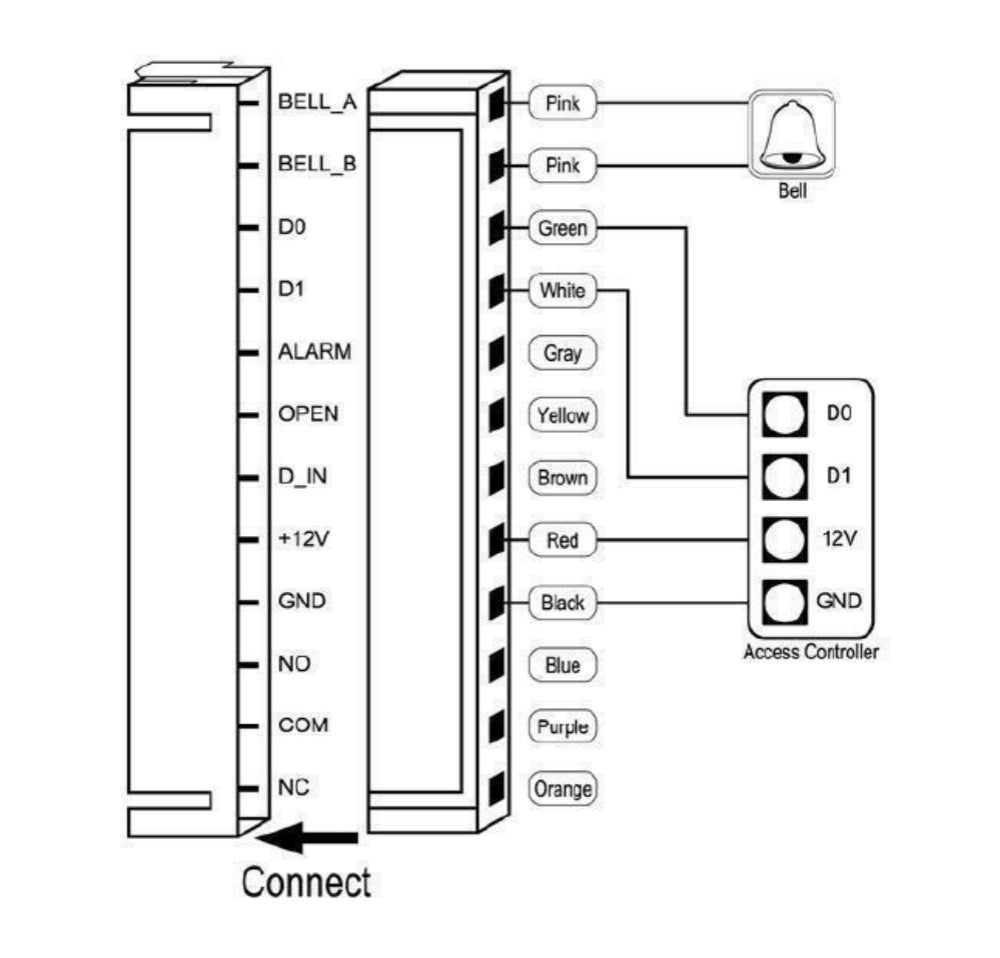

The unit operating as a Wiegand Output Reader:
Important Notice:
Please note that "exit button", "electric lock" and "DC 12V power supply" are not included in this package, please kindly refer to our store
for all available accessories for Access Control.

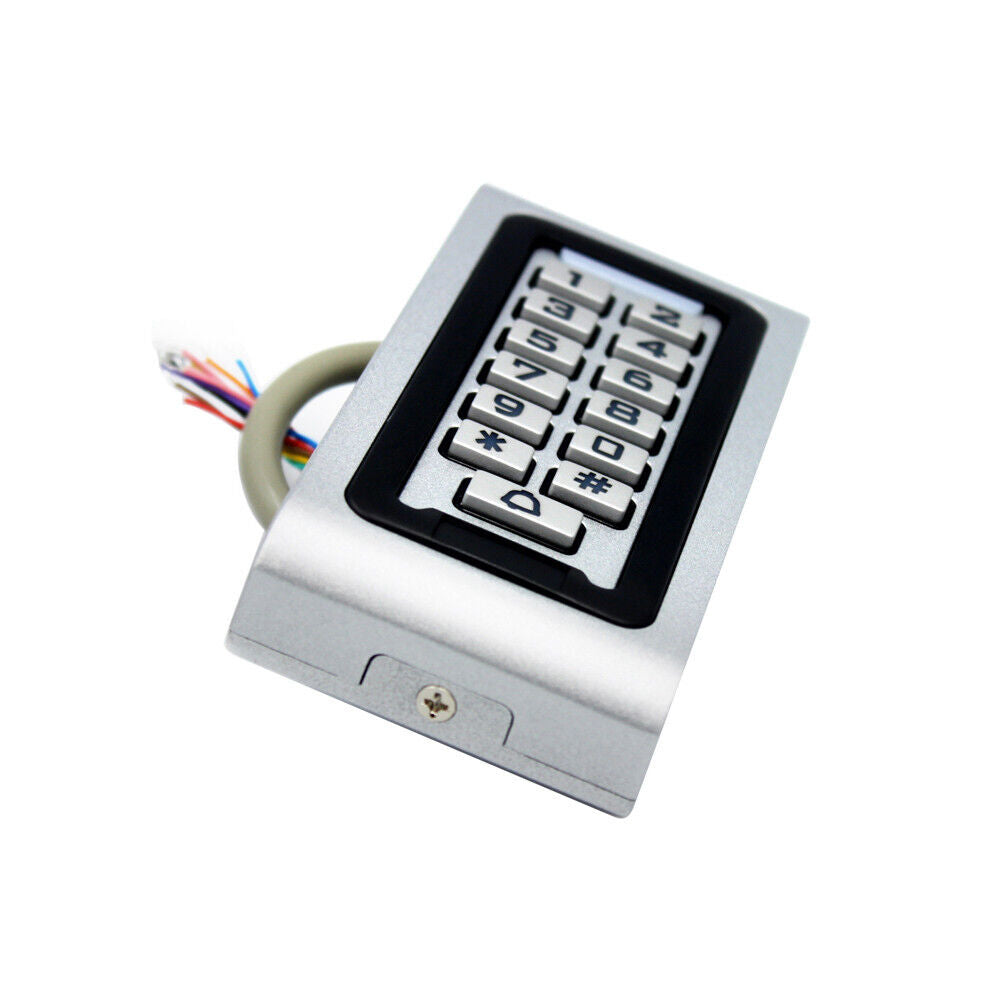

Installation

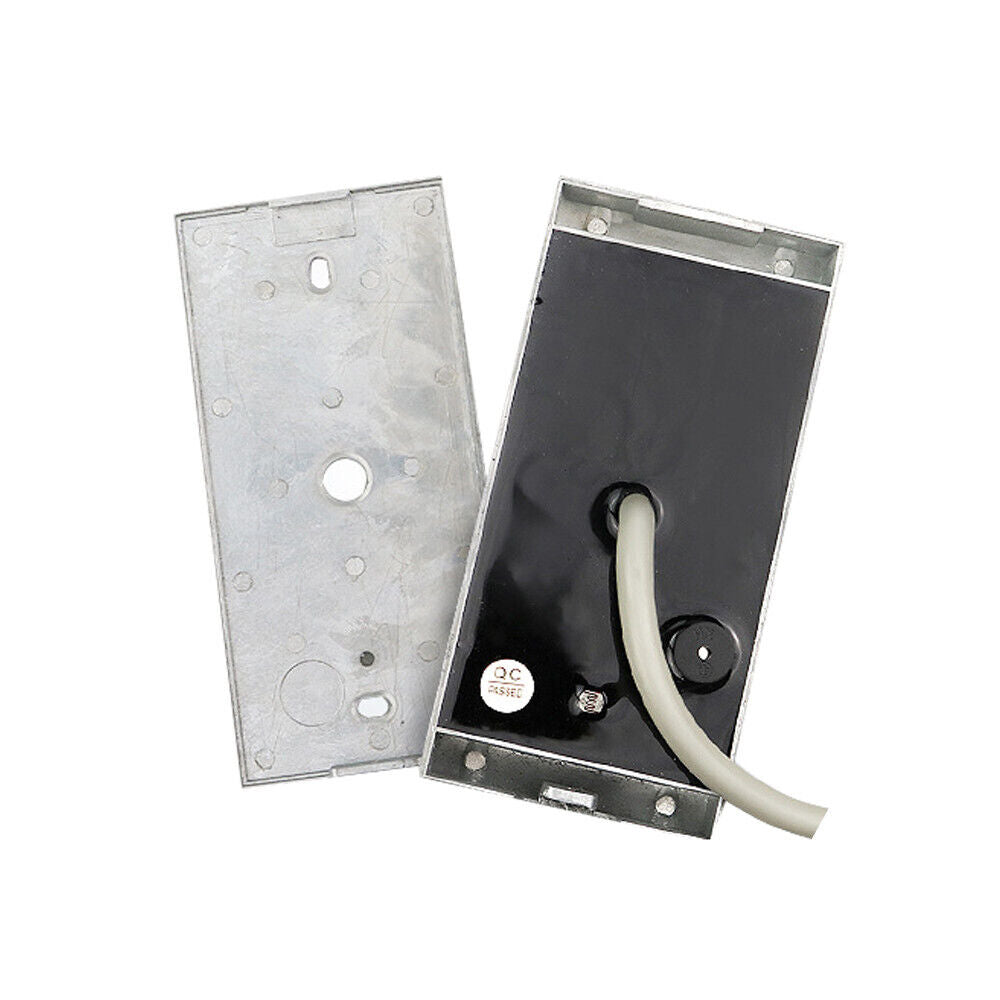

- Remove the back cover from the keypad using the supplied special screw driver
- Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
- Put the supplied rubber bungs to into the two holes
- Fix the back cover firmly on the wall with 2 Self tapping screws
- Thread the cable through the cable hole
- Attach the keypad to the back cover.

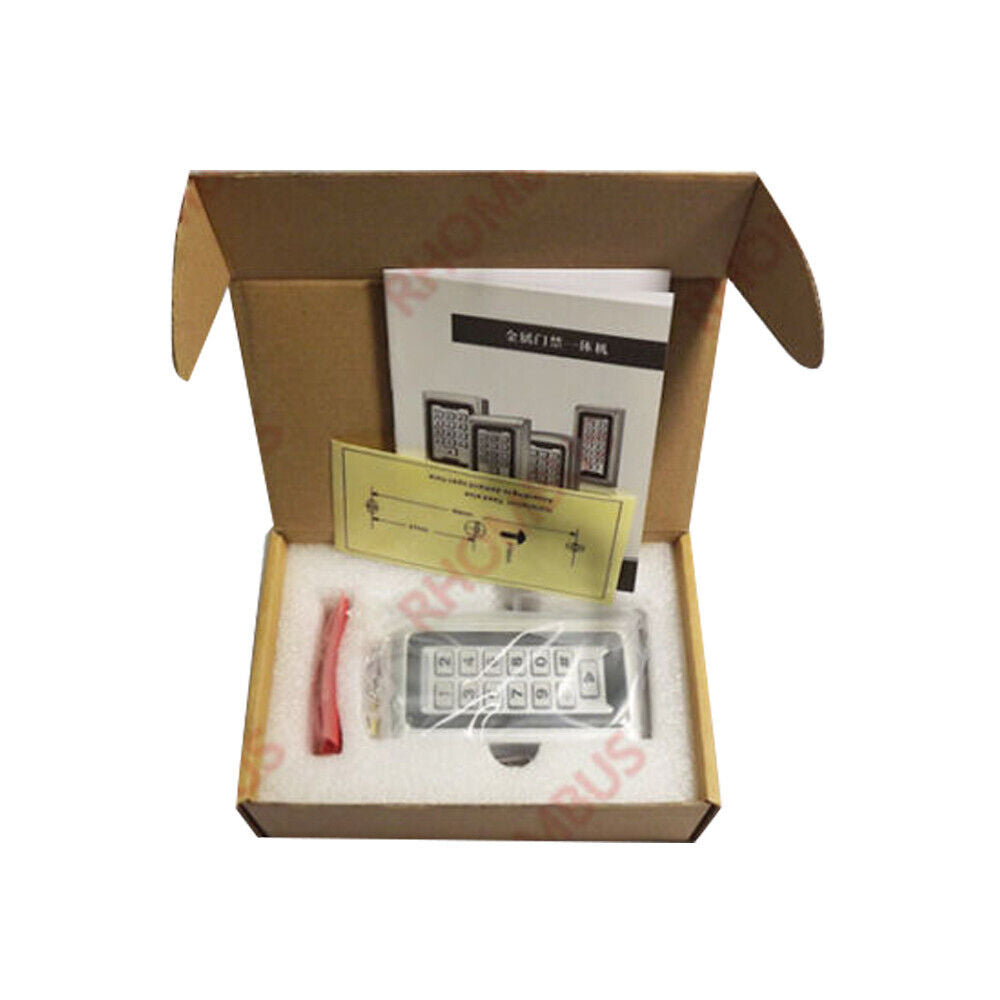

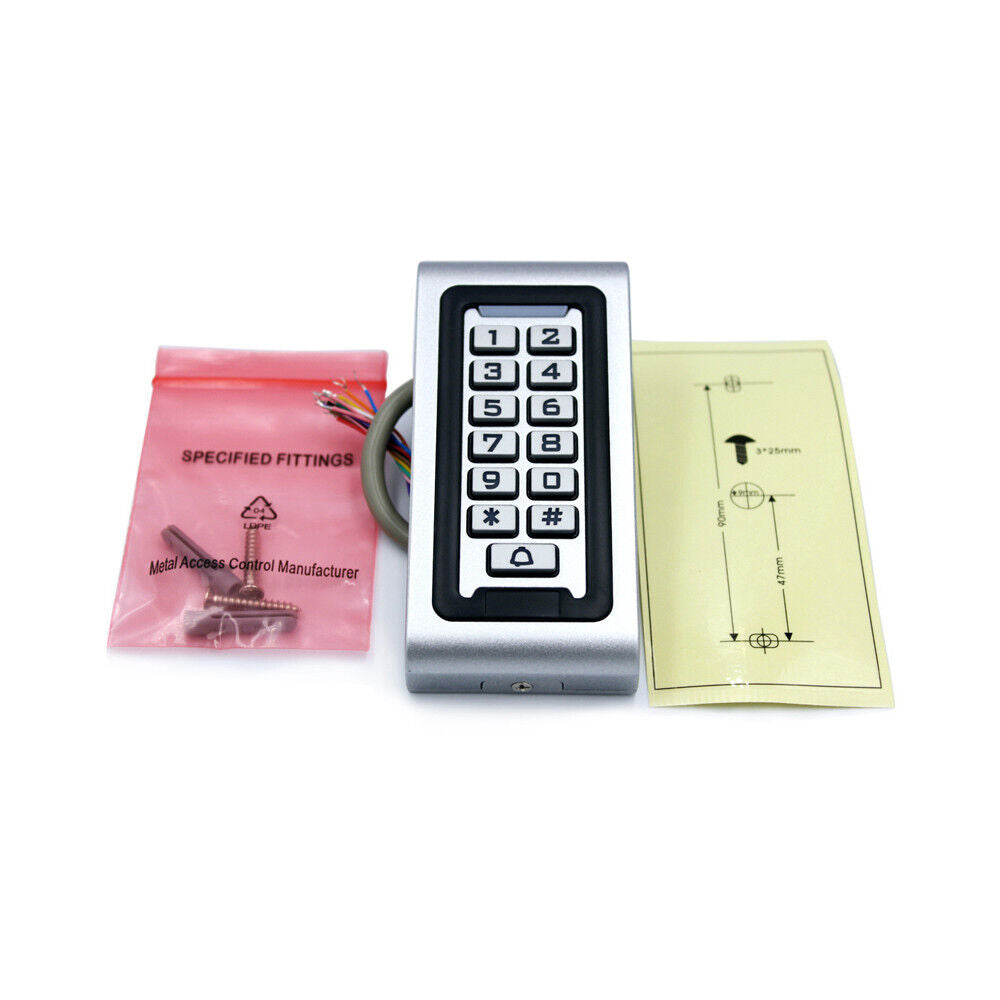

Package includes:
- 1 x Waterproof Door Access Control RFID Reader with Keypad Metal Case
- 1 x Installation Kit
- 1 x Installation Fixed Label
- 1 x User Manual
