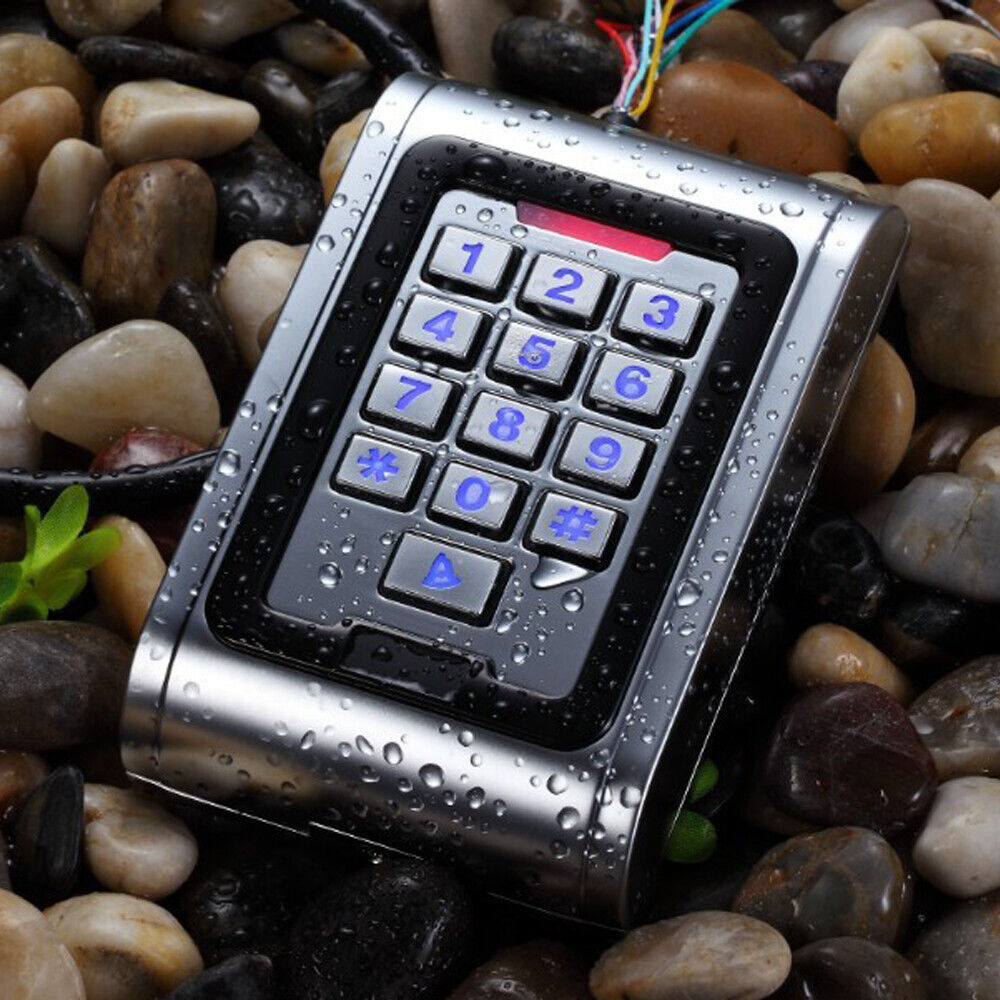

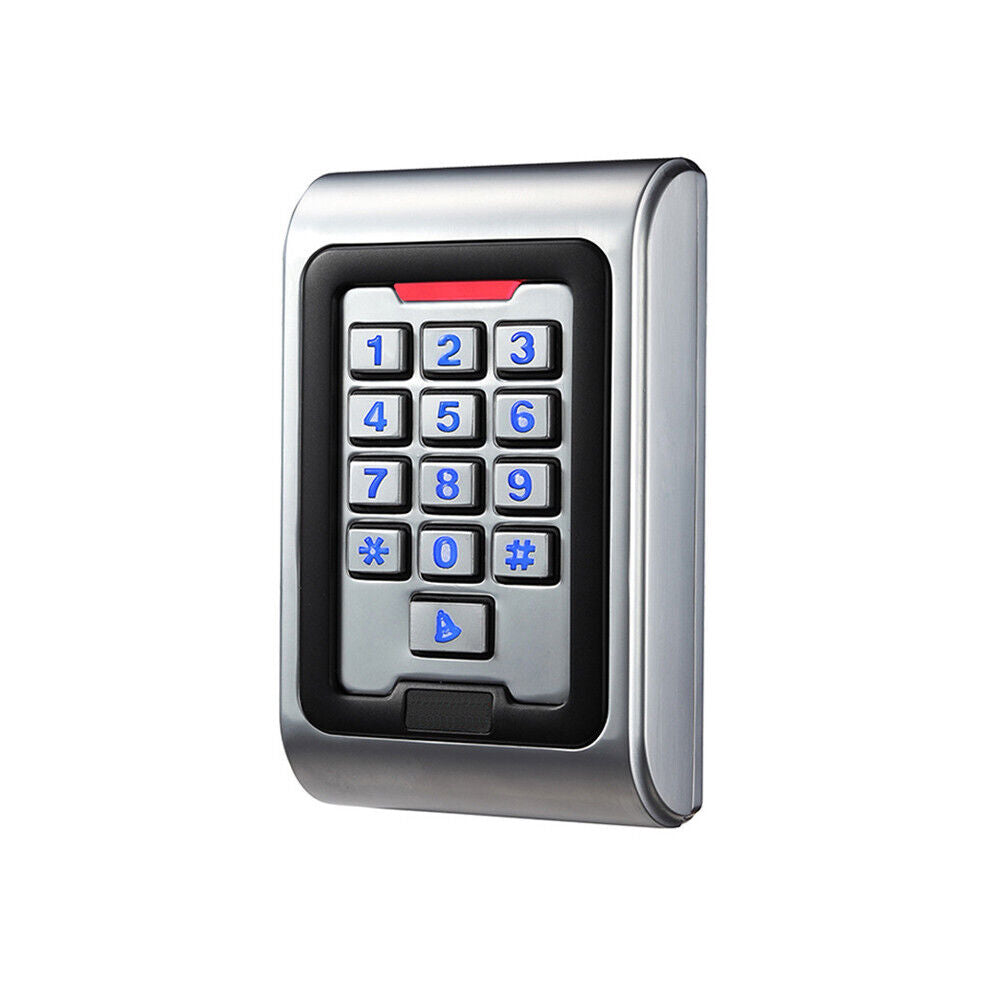

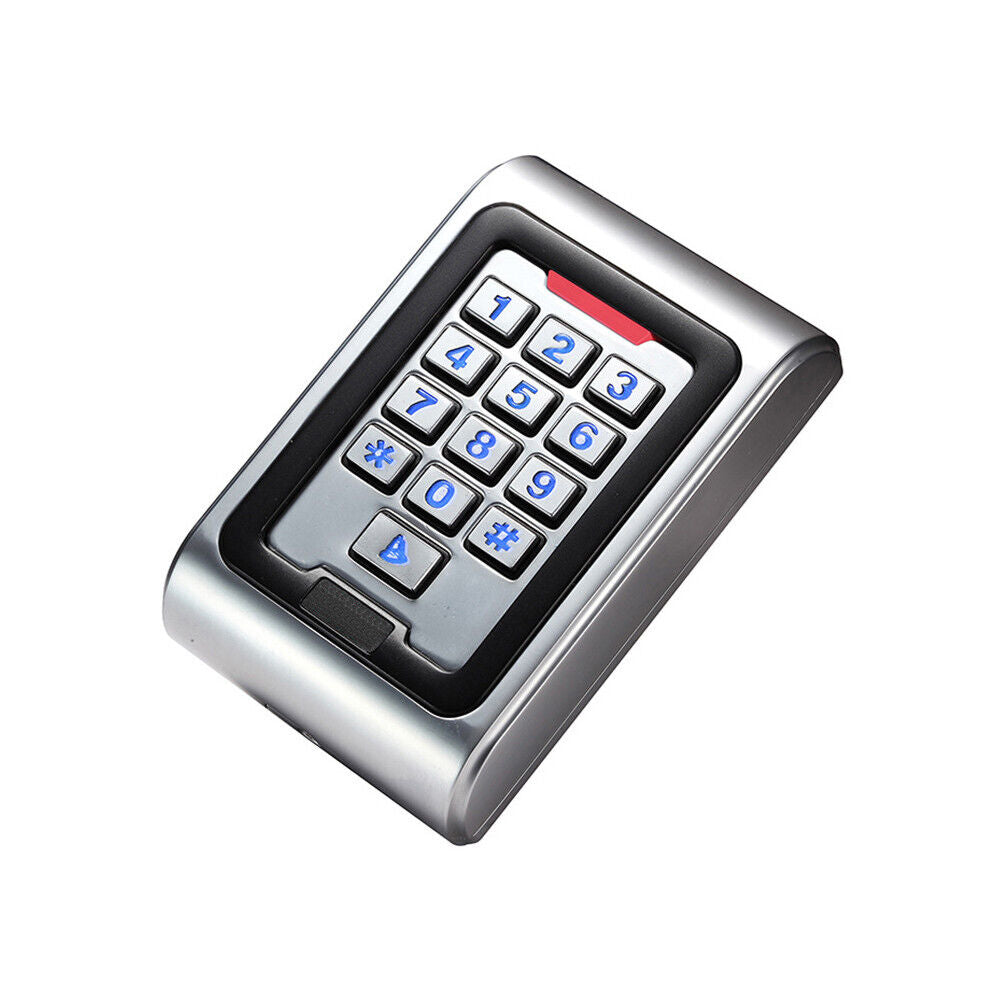

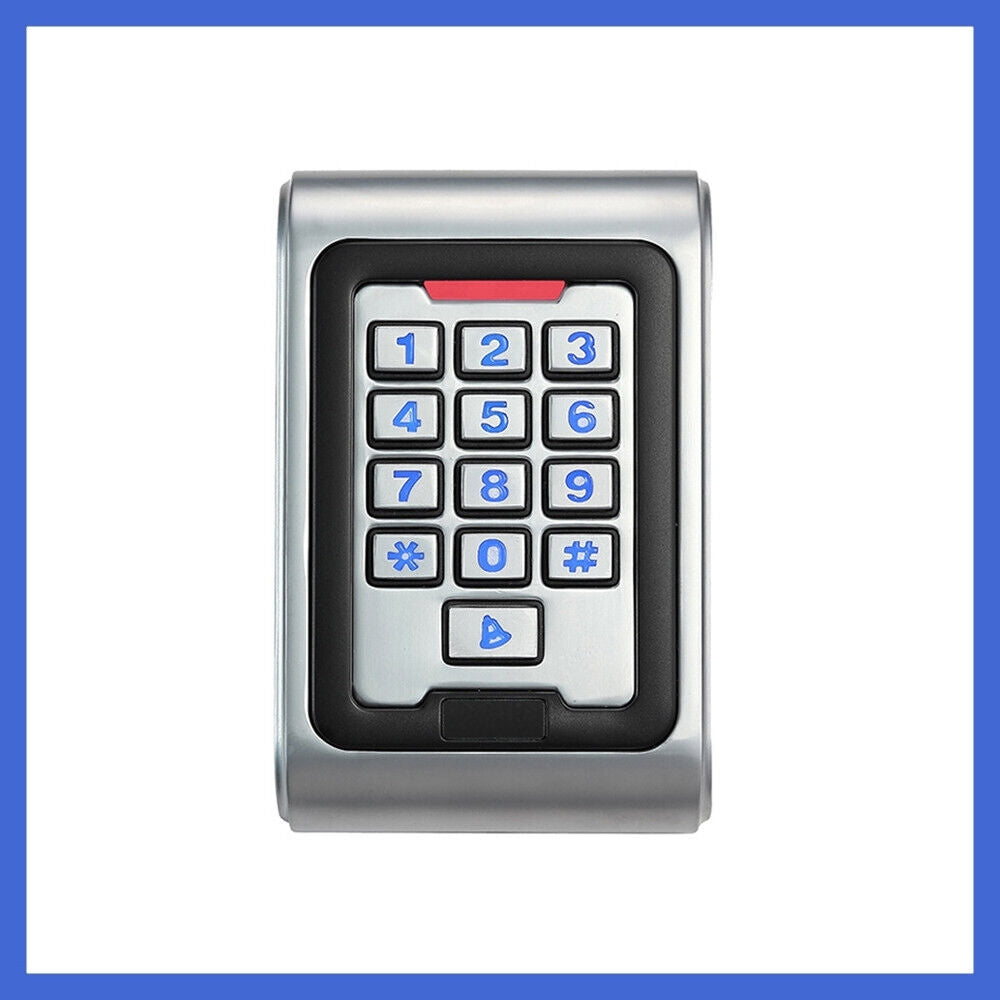

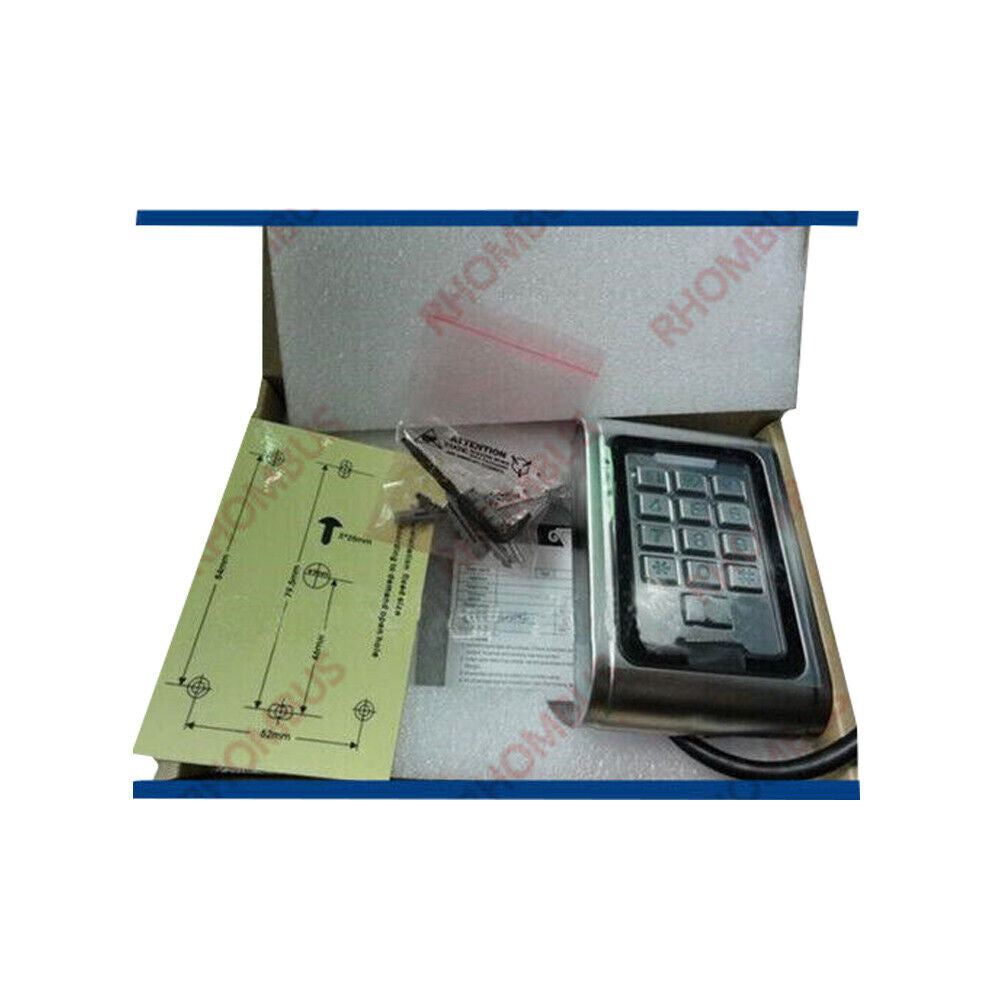

Door Access Control Controller Waterproof IP68 Metal Case RFID Reader Keypad

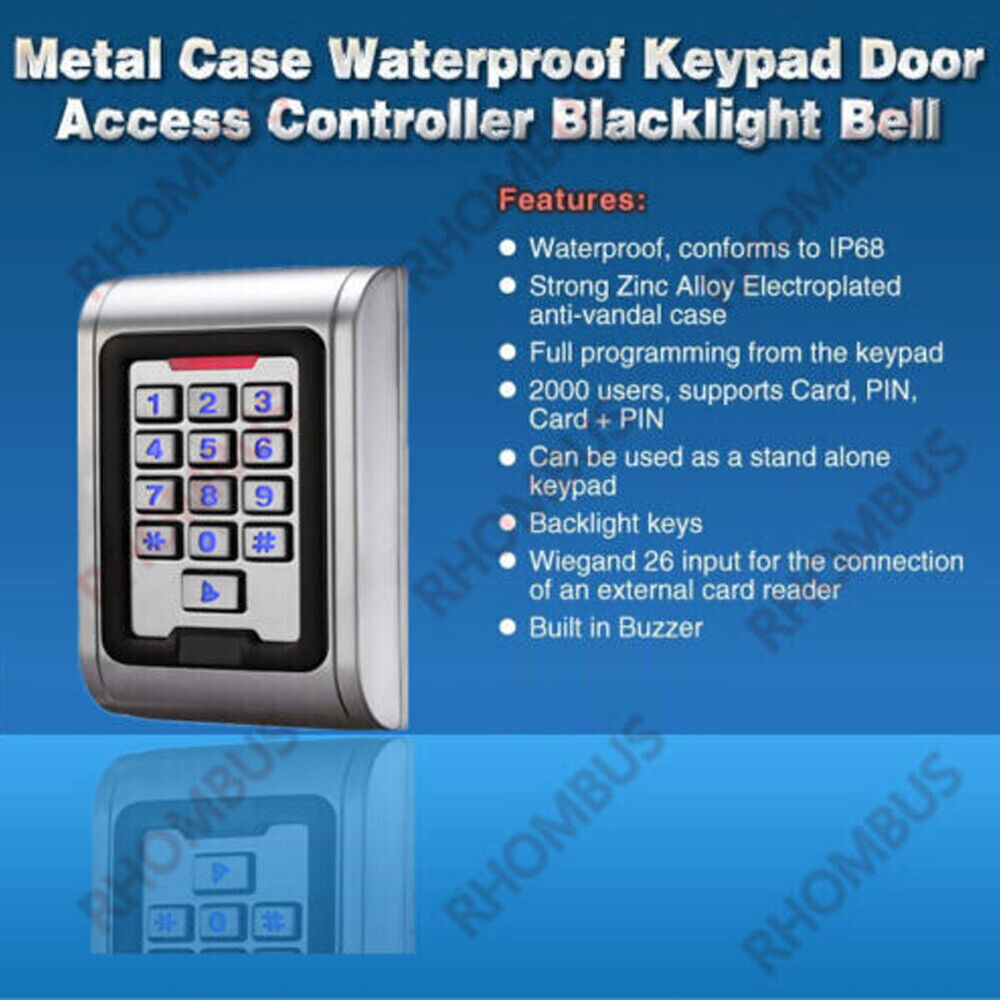

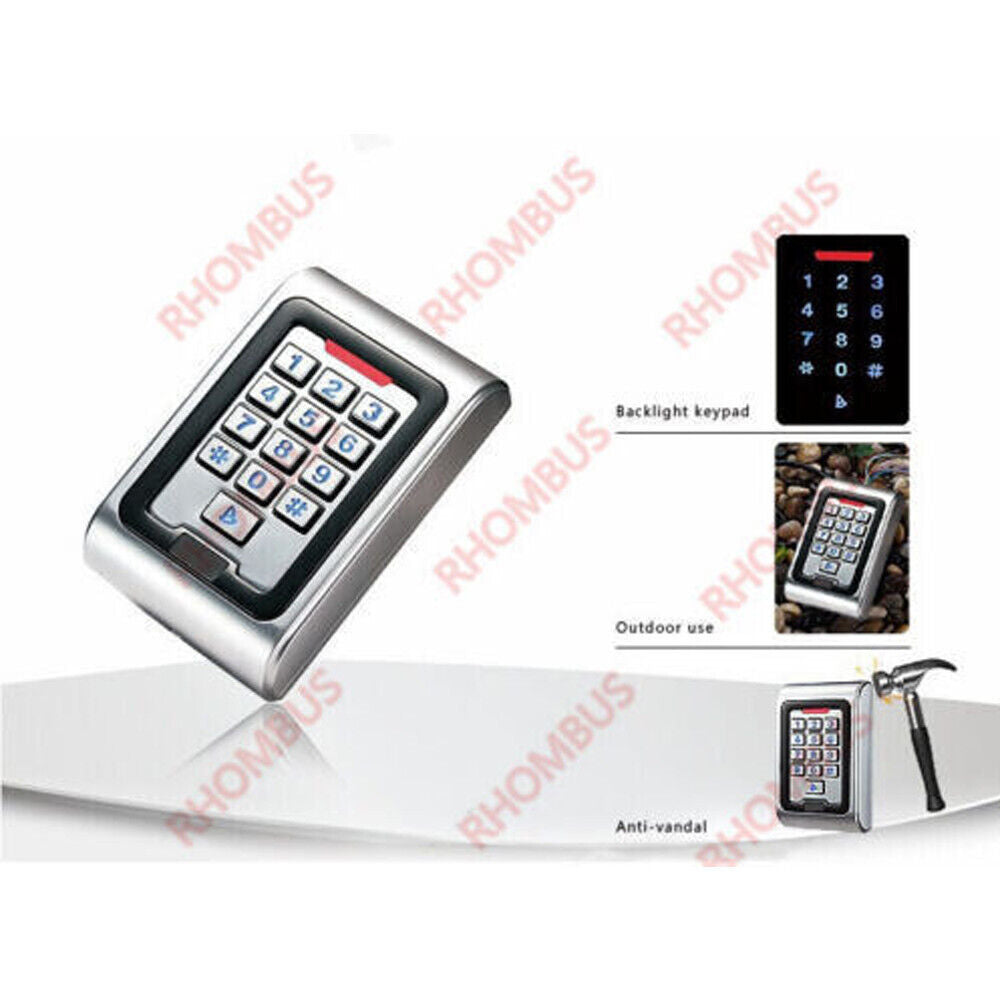

Features

Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 uses, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys
Wiegand 26 output for connection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
Built in buzzer
Red, Yellow and Green LEDS display the working status

Specifications

Operating Voltage	DC12V
User Capacity	2000
Card Reading Distance	3-6 cm
Active Current	＜60mA
Idle Current	25±5 mA
Lock Output Load	Max 20A
Alarm Output Load	Max 20A
Operating Temperature	-45～60℃
Operating Humidity	10%- 90% RH

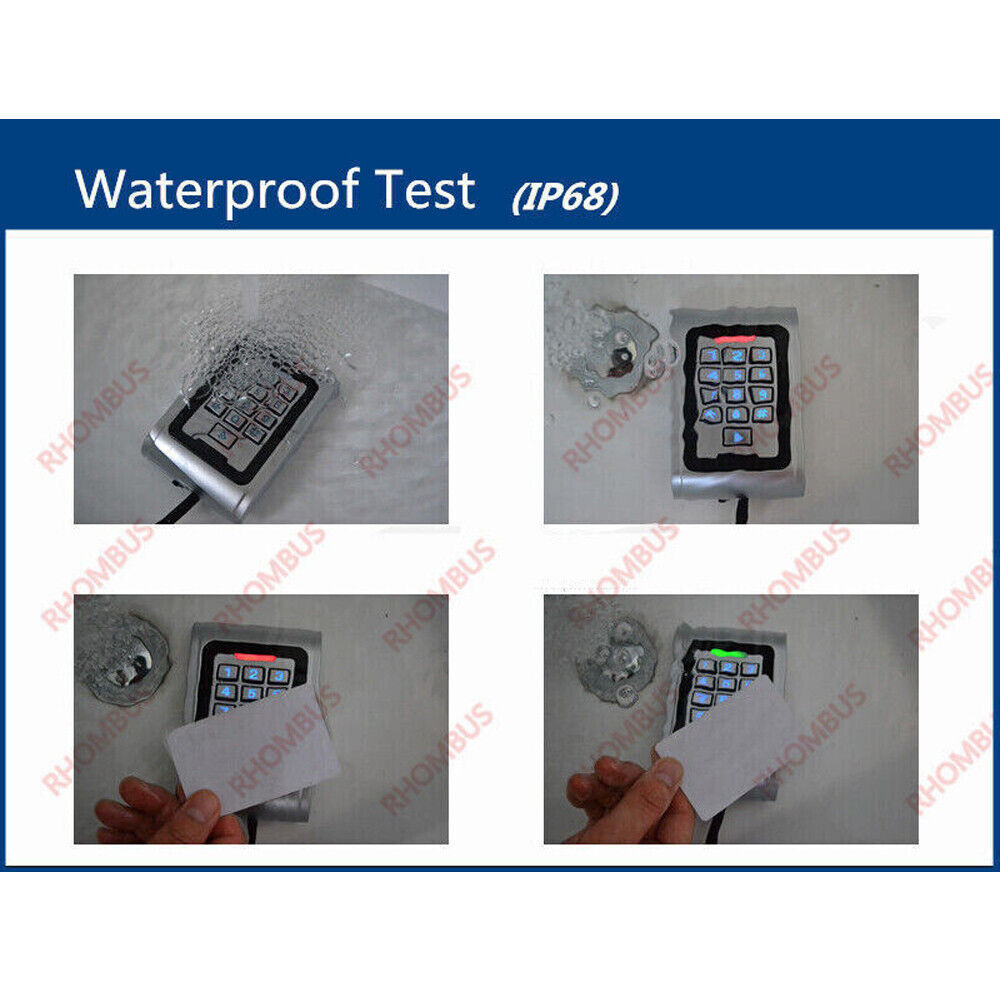

Environment	Conforms to IP68
Adjustable Door Relay time	0 -99 seconds
Adjustable Alarm Time	0- 3 minutes
Wiegand Interface	Wiegand 26 bit
Wiring Connections	Electric Lock, Exit Button,, External Alarm

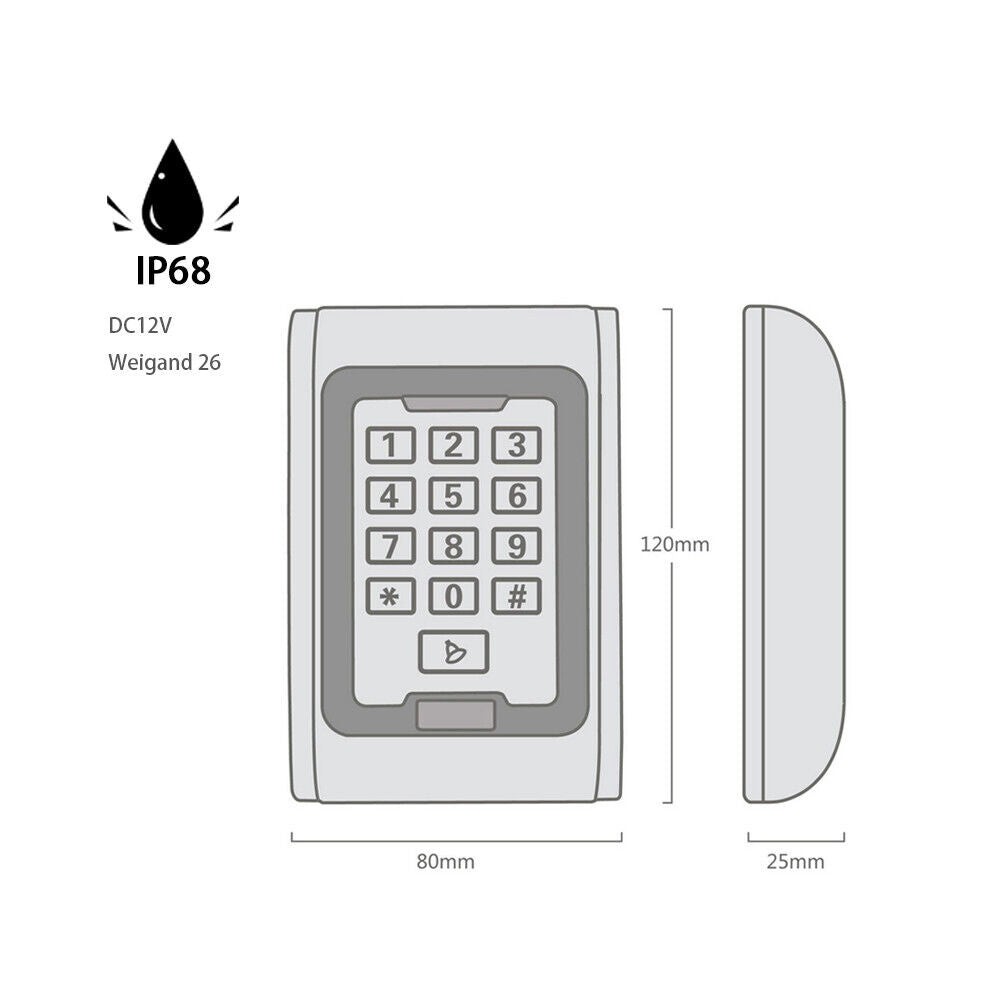

Dimensions	L120 x W80x H25 mm

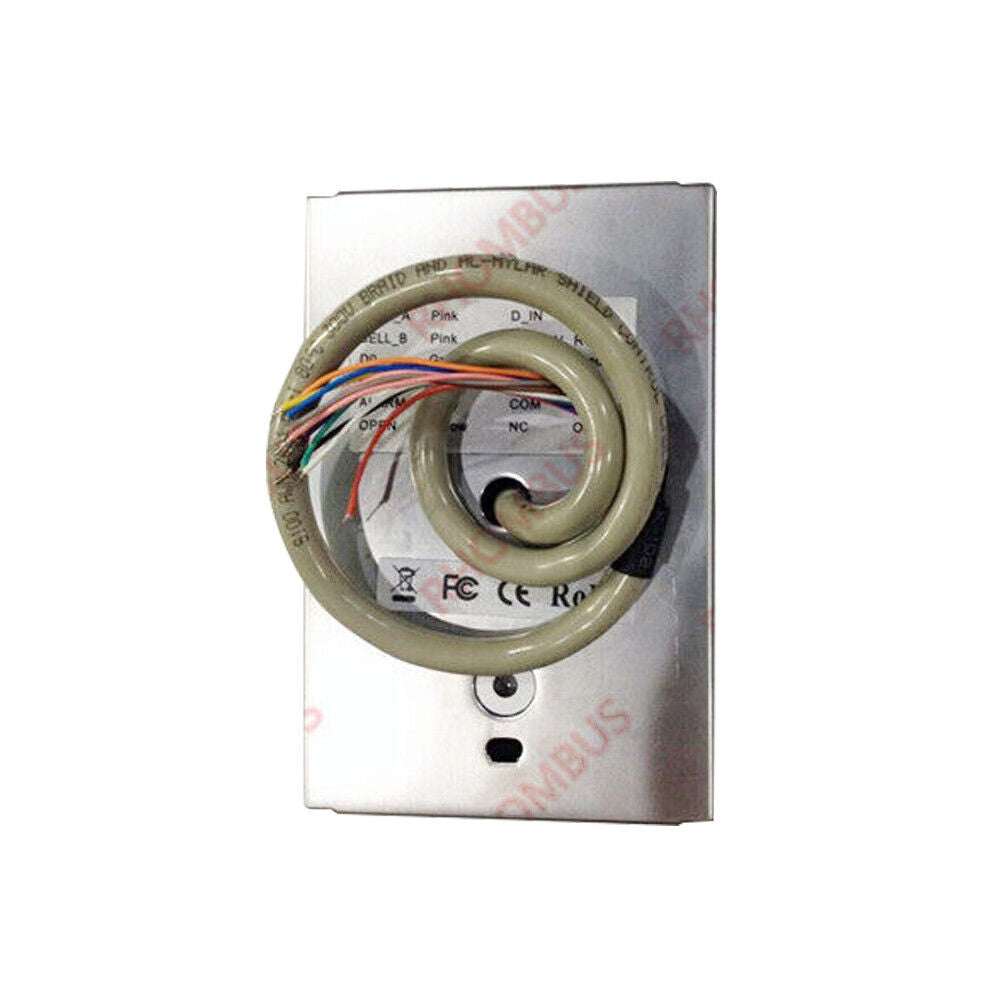

Wiring

Colour	Function	Description
Pink	BELL_A	Doorbell button one end
Pale blue	BELL_B	Doorbell button to the other end
Green	D0	WG output D0
White	D1	WG output D1
Grey	ALARM	Alarm negative(alarm positive connected 12 V+)
Yellow	OPEN	Exit button one end(the other end connected GND)
Brown	D_IN	Magnetic switch one end(the other end connected GND)
Red	12V+	12V + DC Regulated Power Input
Black	GND	12V - DC Regulated Power Input
Blue	NO	lay normally-on end(Connect positive electric lock "-")
Purple	COM	Relay Public end, connect GND
Orange	NC	Relay Closed end(connect negative electric lock "-")

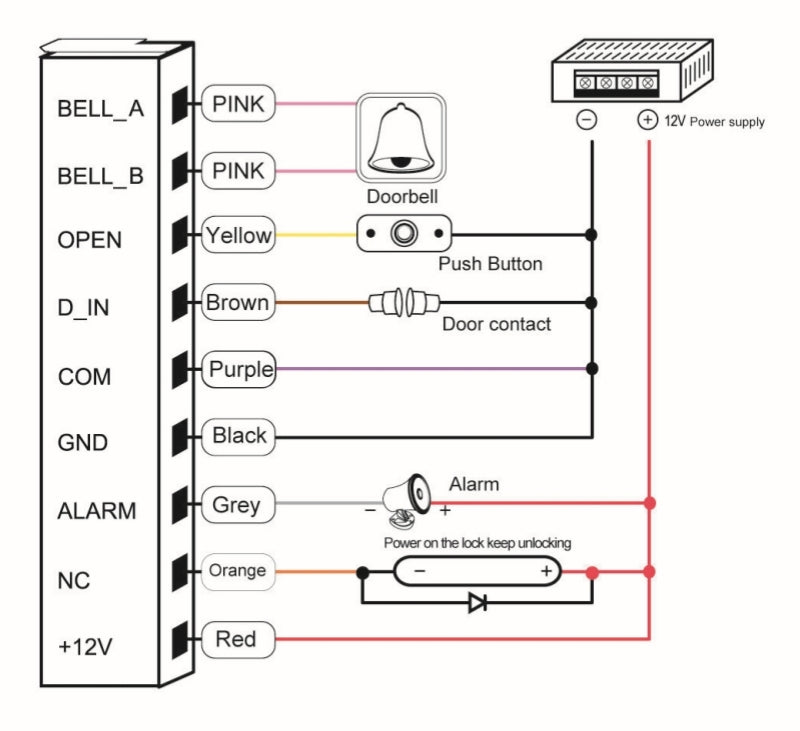

Common power supply diagram:

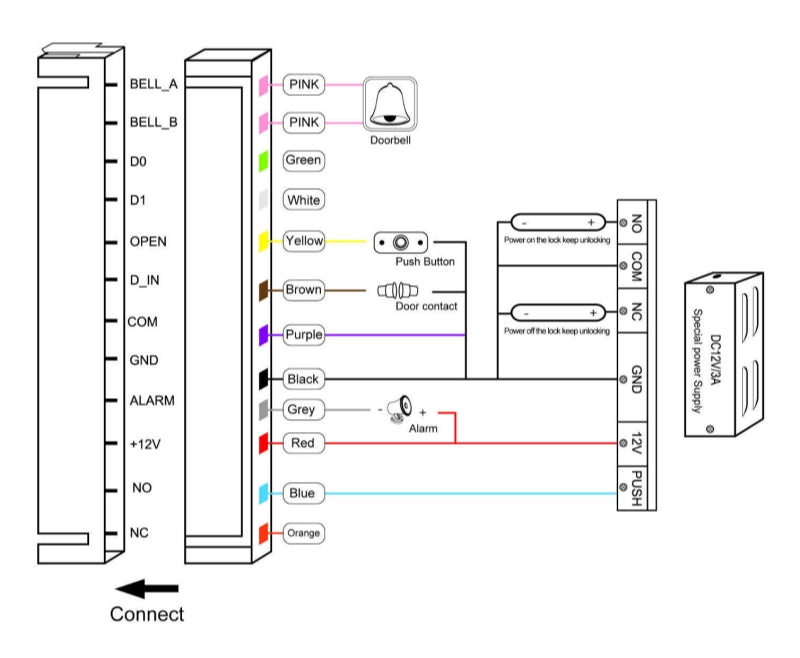

Special power supply diagram:

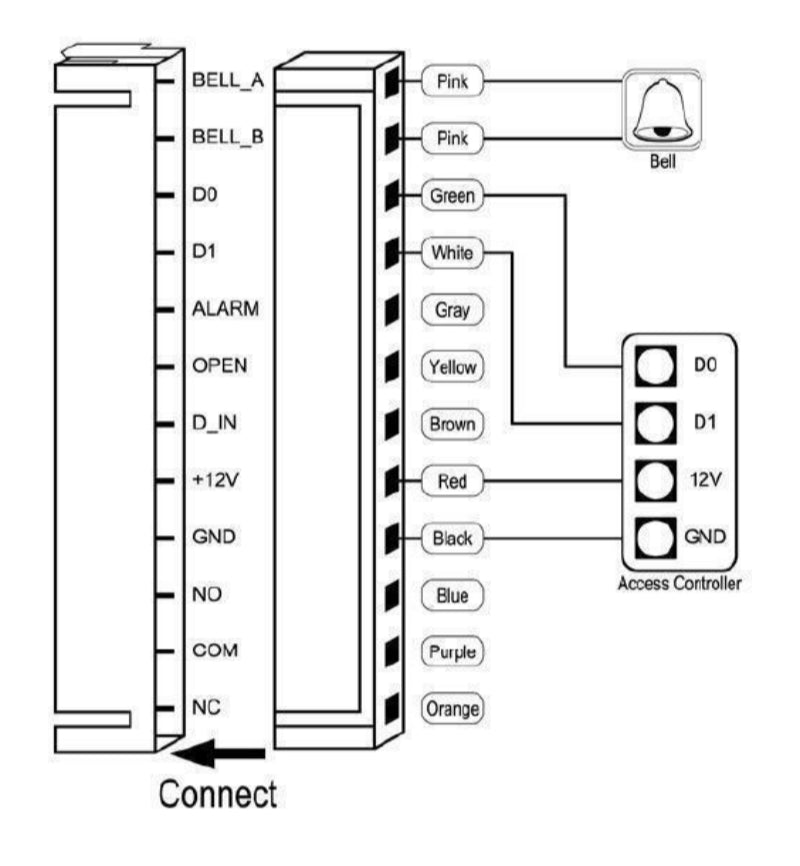

The unit operating as a Wiegand Output Reader:

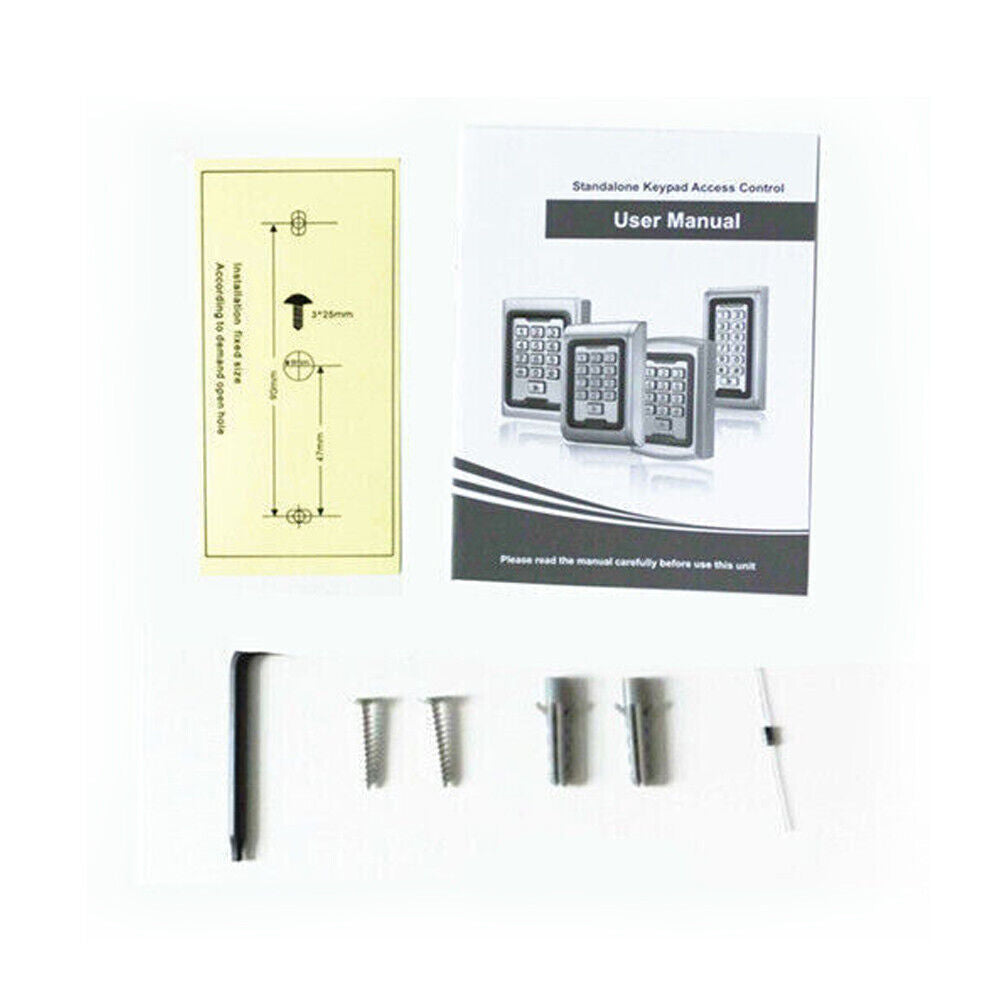

Important Notice:

Please note that "exit button", "electric lock" and "DC 12V power supply" are not included in this package, please kindly refer to our store for all available accessories for Access Control.
