Mini Switching Access Controller Power Supply supplier,12VDC 5A,110-240VAC

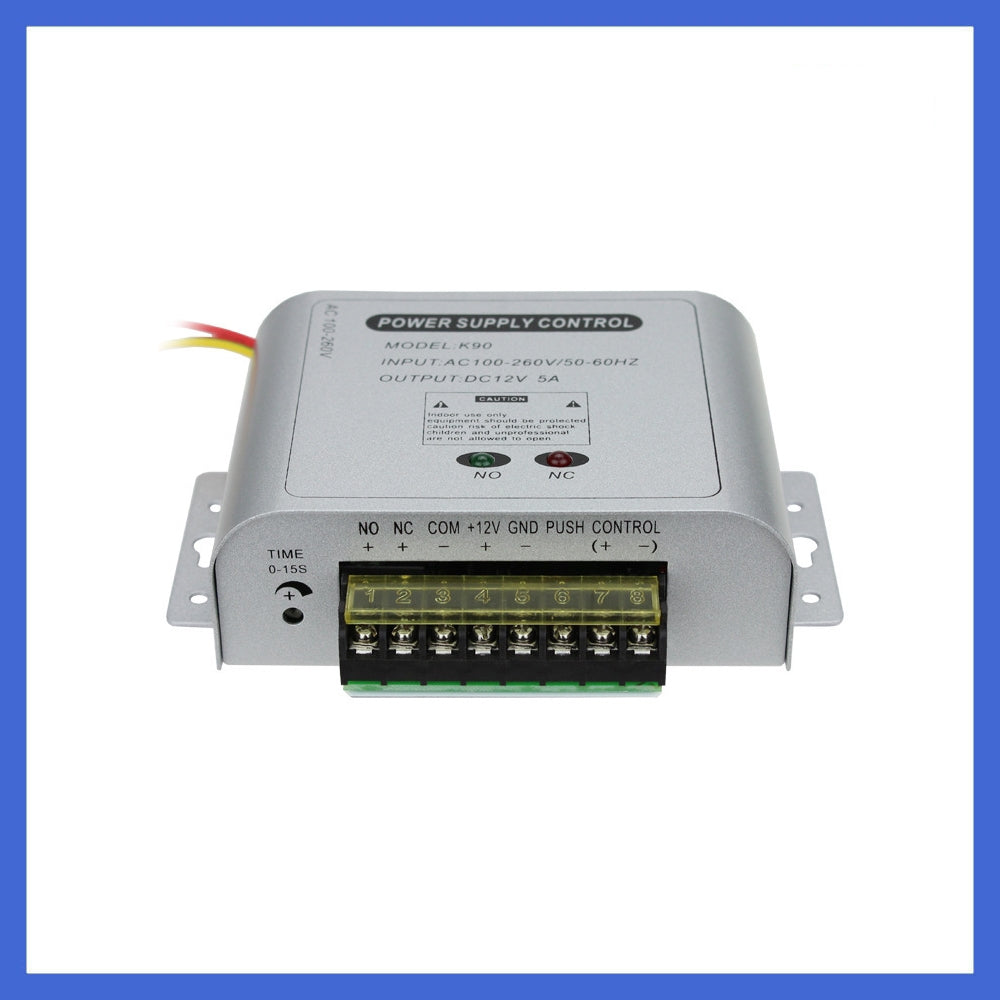

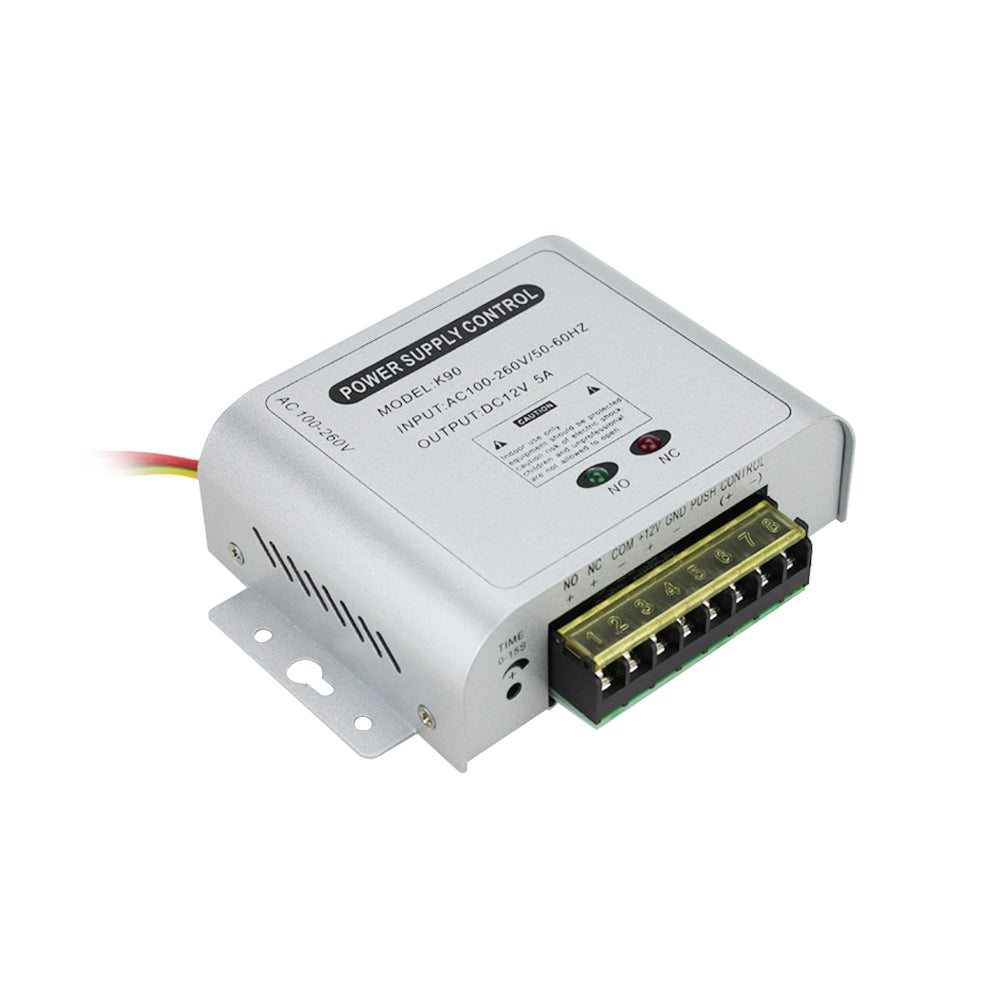

K90 Access Control Power Supply

Input voltage range,small size,high reliability,electromagnetic compatibility,efficiency,protection function,with remote control door,electric lock on the temperaturte (as compared with the ftrquency power) gretly reduced.

Features:

• Input voltage:110-240VAC
• Input Frequency:50-60Hz
• Ouput Voltage:DC12V
• Output current:5A
• Output voltage trim range:-/+10~-/+15%
• Load:1% typical
• Ripple and noise:1%,peak to peak (100mVp_p typical)
• Inslation voltage:Junior/sub-polar inter-1500VAC,primary/shell between 1500VAC,sub-polar/shell between 500VAC
• Hold Time:full load typically 20ms
• Operating temperature:-20~+65^oC
• Overload protection:All outputs in a short circuit,overload are protected;
• Power output of 0-15s delay locks

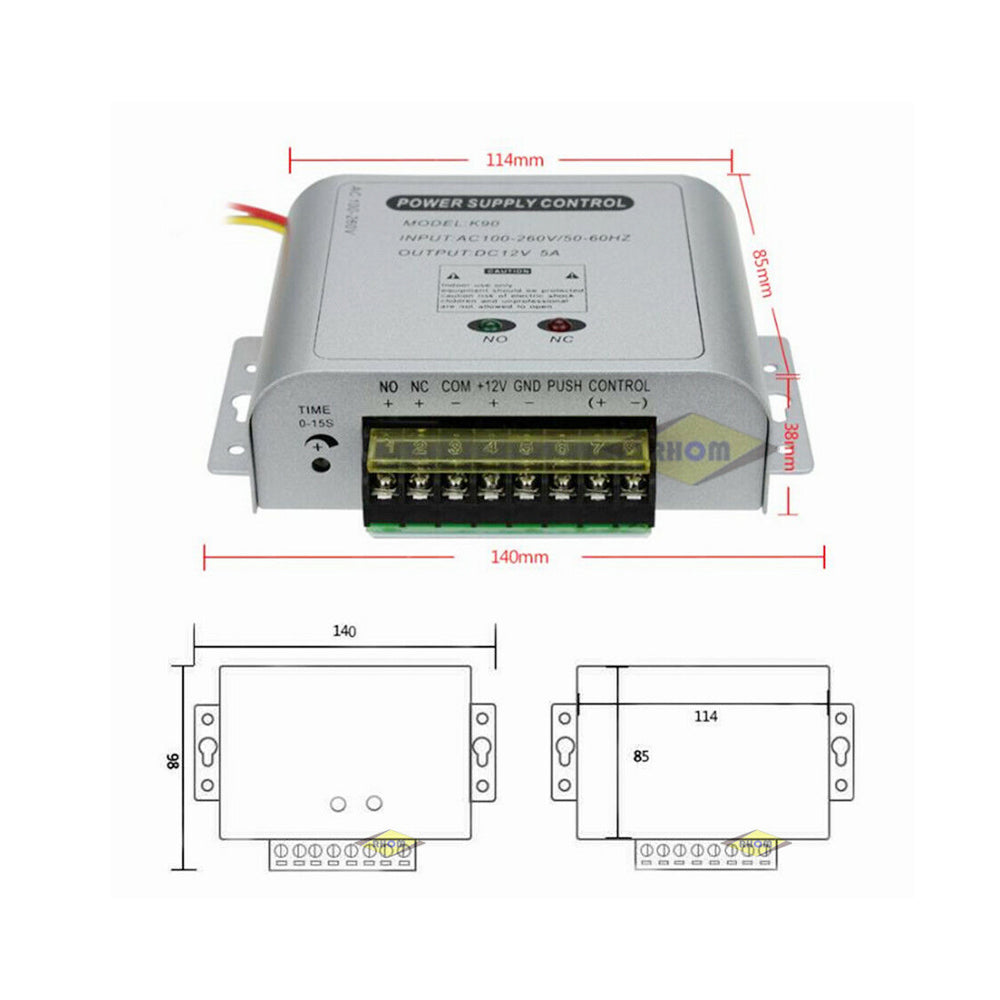

• Outer steel case size:140mm*98mm*38mm
• Weight:420kg

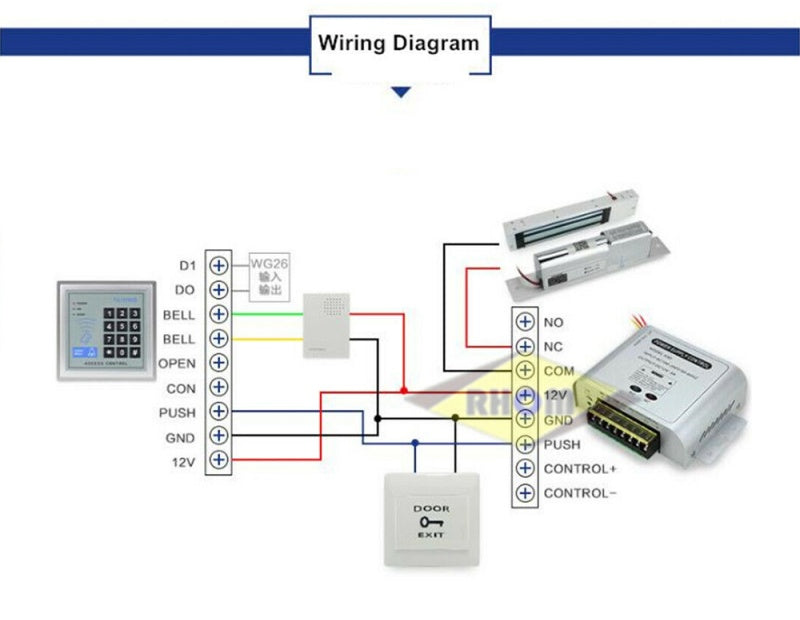

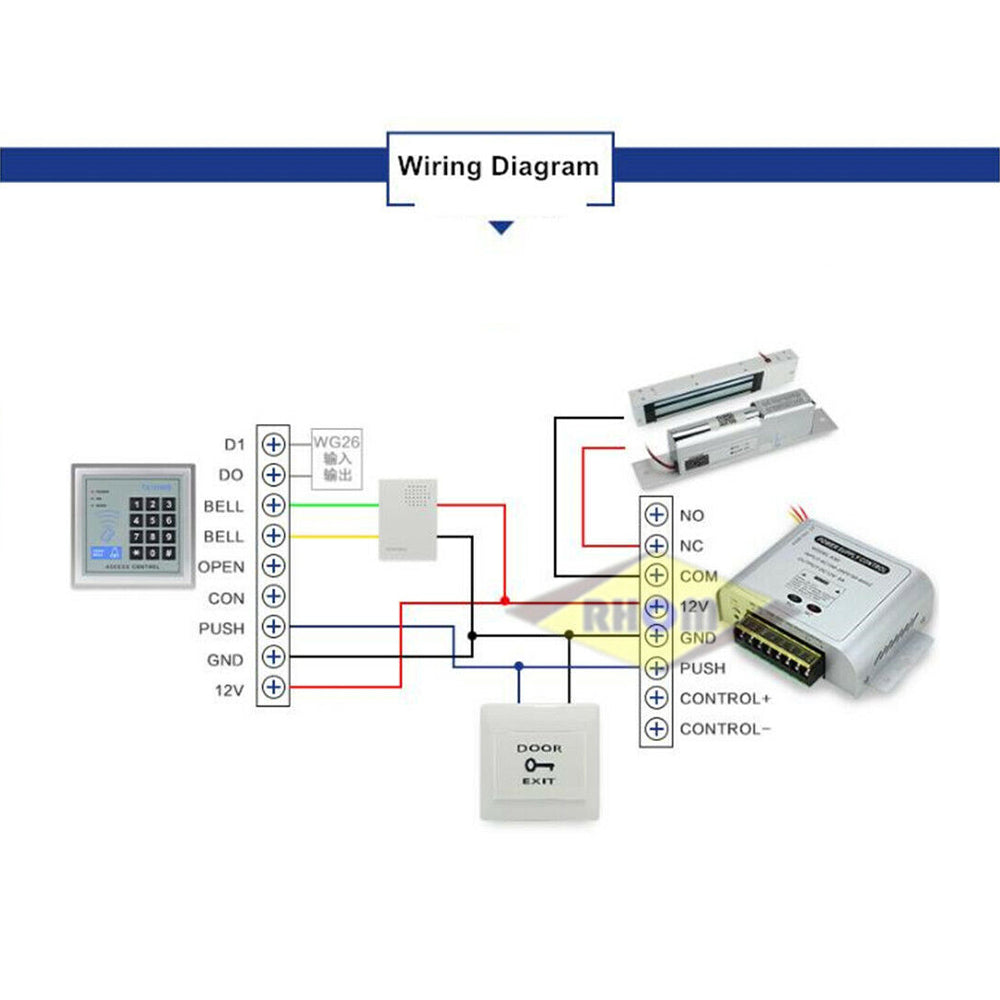

Wiring Diagram

Package：

1 x power supply controller
