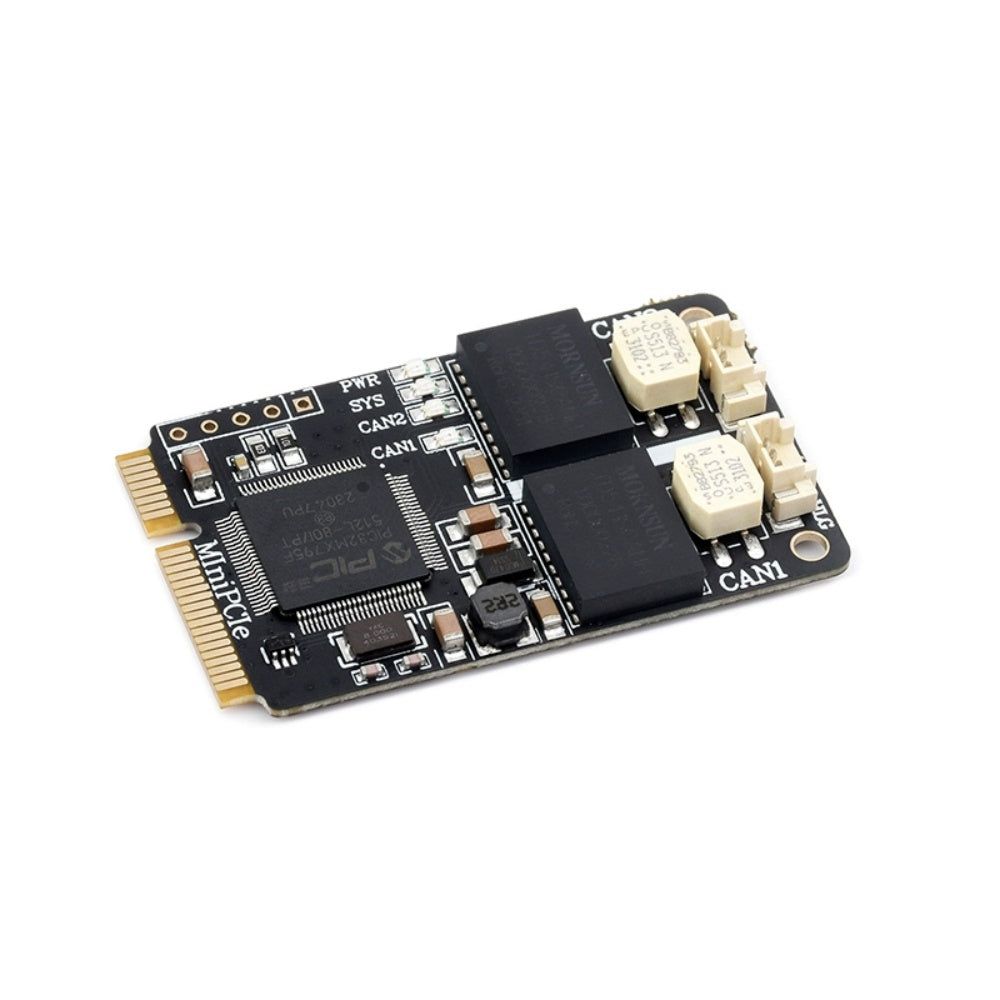

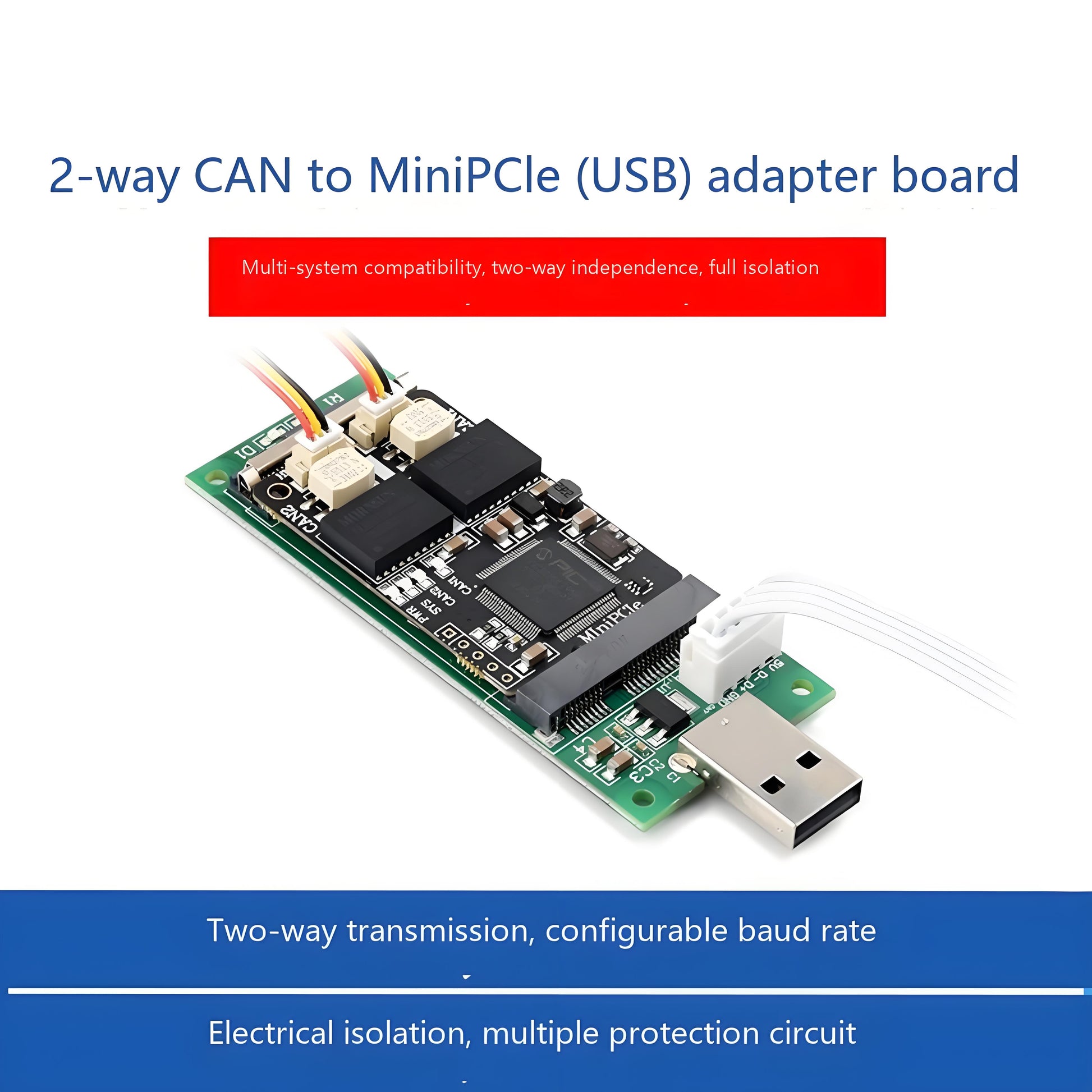

Product Introduction

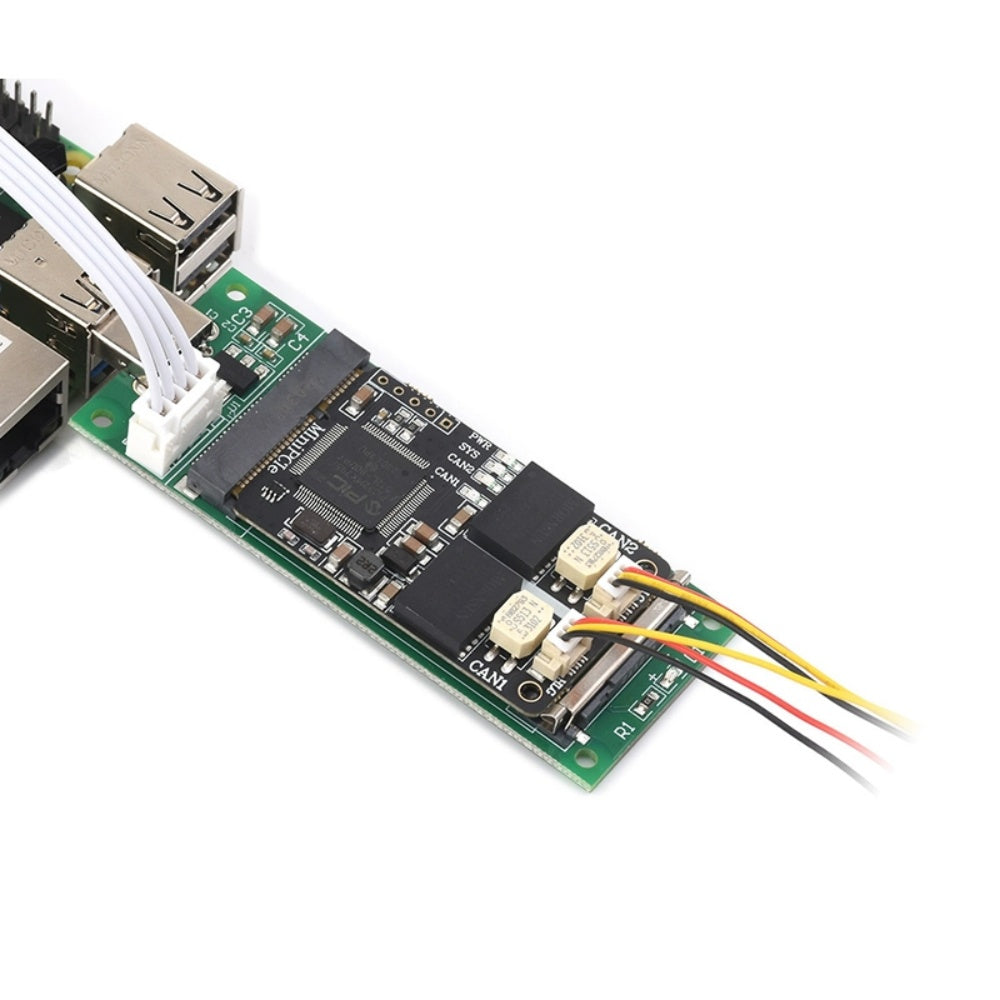

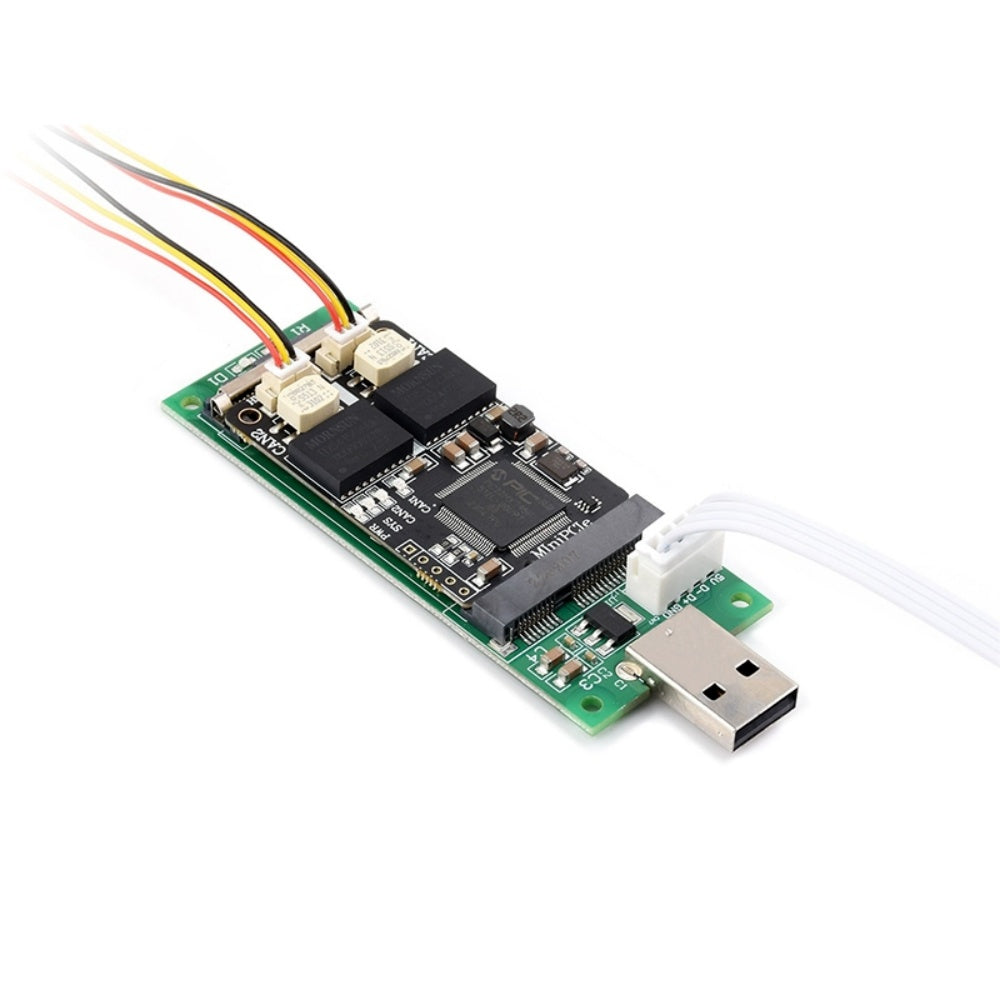

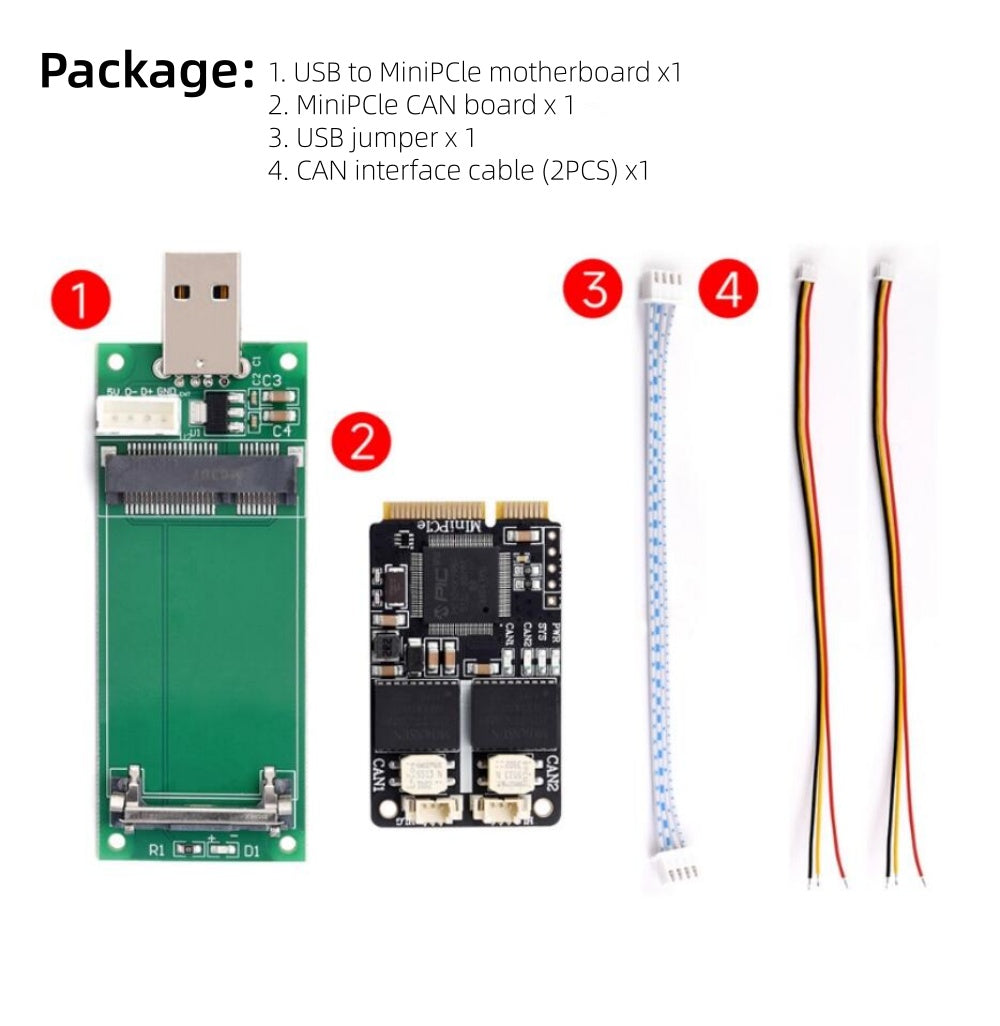

The 2-CH CAN MiniPCIe card extends two CAN interfaces, adopts a standard MiniPCIe board size, and can be easily installed on laptops or industrial computers with MiniPCIe interfaces. It integrates two complete CAN isolation interface circuits. It supports Windows and Linux systems and provides drivers, CANTools related software, secondary development call examples, and tutorials. When used with the accompanying USB TO MiniPCIe adapter board, it allows for the control of CAN bus network transmission and reception, data analysis and acquisition, and monitoring through USB access to PCs or industrial control hosts. This product is compact and easy to use, suitable for both introductory learning and debugging of CAN bus, as well as for secondary development and integration into various application scenarios requiring CAN bus communication.
Product Parameters
Model：2-CH CAN MiniPCIe
|
Category |
Item |
Details |
|
Product Type |
- |
MiniPCIe Interface CAN Card |
|

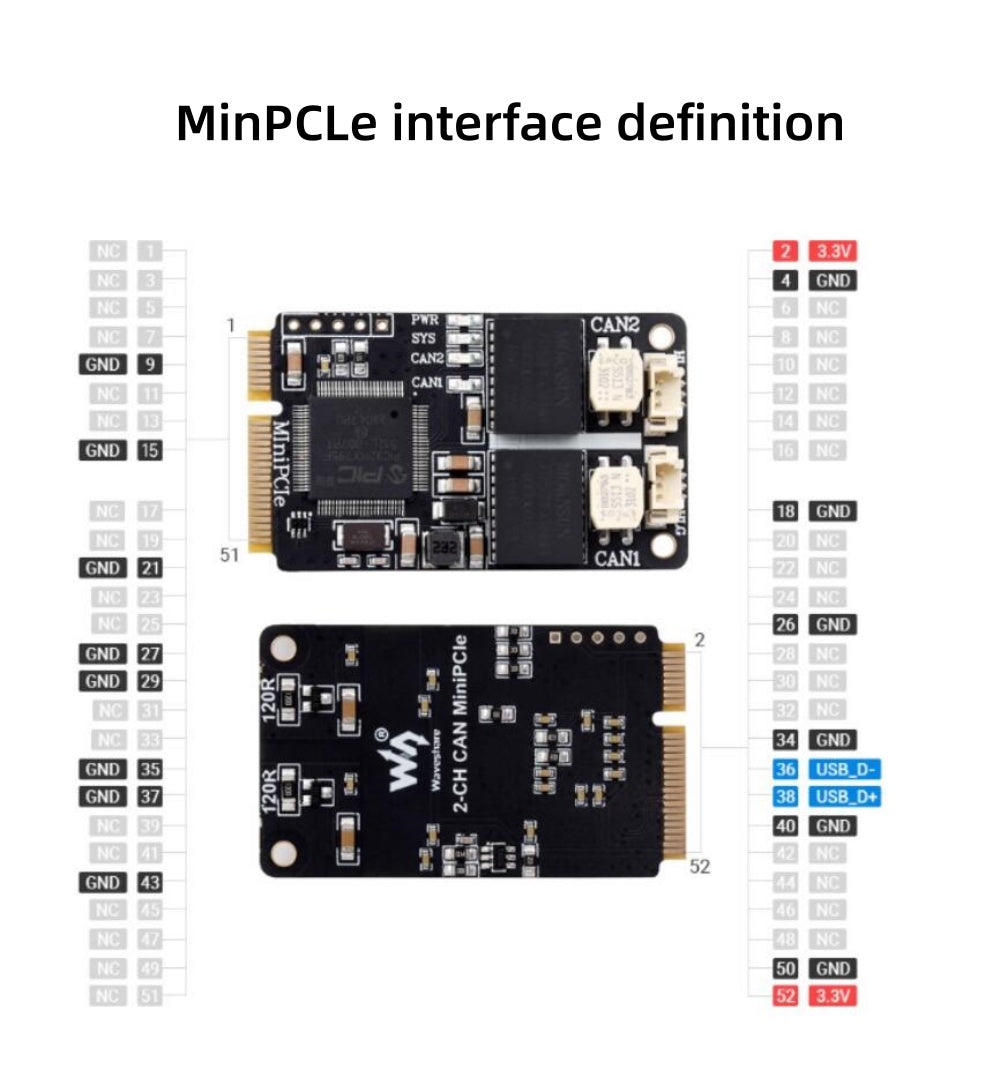

MiniPCIe Interface |
Operating Level |
3.3V |
|
Communication Method |
USB2.0 Pins of MiniPCIe Interface |
|
|
CAN Interface |
CAN Channels |
Two Channels: CAN1 and CAN2 (Mutually Independent, No Interference, Fully Isolated) |
|
Interface Form |
Terminal Interface (Standard Pitch 1.25mm) |
|
|
Matching Resistor |

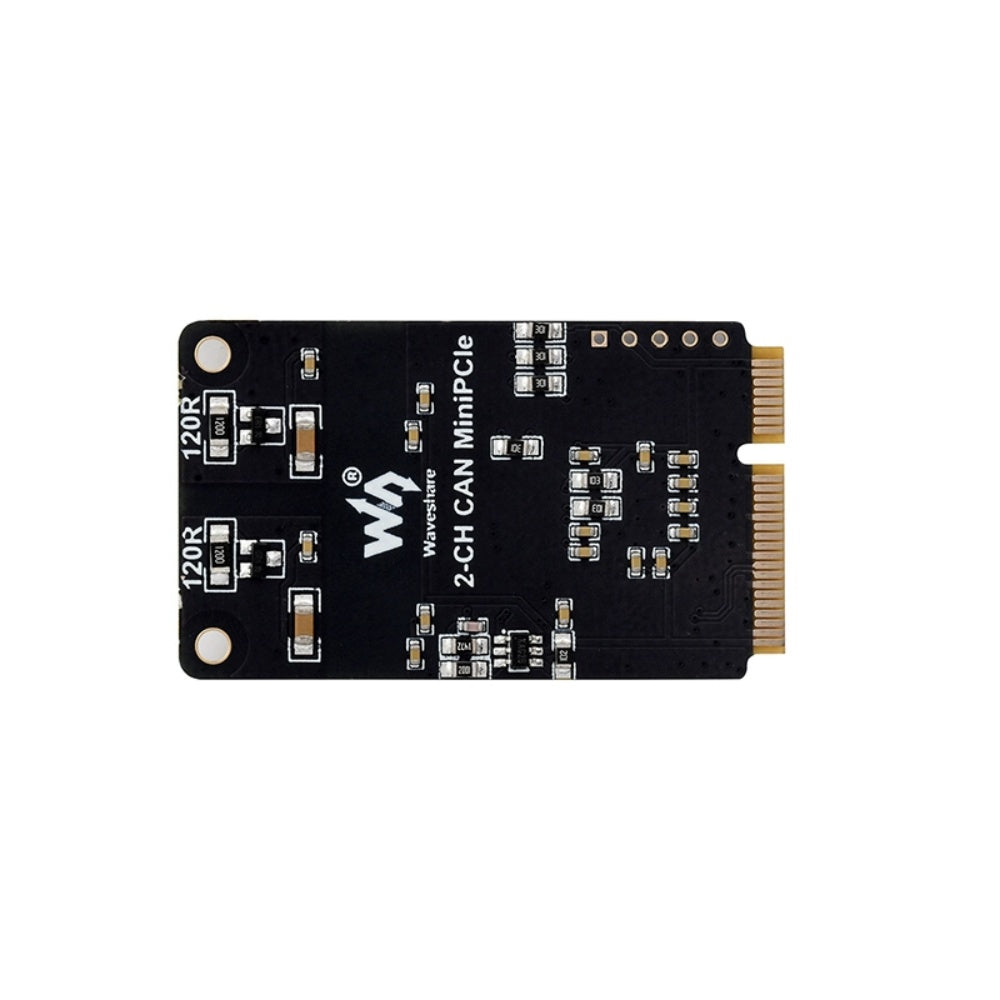

Each CAN Channel is Welded with a 120Ω Terminal Resistor |
|
|
Communication Rate |
10Kbps~1Mbps (Configurable via Software) |
|
|
Protocol Support |
Supports CAN2.0A and CAN2.0B Protocols Simultaneously, Compliant with ISO/DIS11898-1/2 Standards |
|
|
Hardware Support |
High-Speed CAN |
|
|
Data Transceive Capability |
Each CAN Channel Can Achieve 8500 Frames per Second for Both Reception and Transmission |
|
|
Data Transceive Buffer |
Each CAN Channel Has a Reception Buffer of 2000 Frames and a Transmission Buffer of 1000 Frames (Automatic Retransmission on Transmission Failure) |
|
|
Indicators |
PWR |
Power Indicator Light |
|
SYS |
System Status Indicator, Normally Off Under Normal Conditions; Constantly On When There is a Bus Error |
|
|
CAN1 |
CAN1 Channel Indicator Light (Blinks When Transmitting/Receiving Data) |
|
|
CAN2 |
CAN2 Channel Indicator Light (Blinks When Transmitting/Receiving Data) |
|
|
Supported Systems |
Windows |
Windows XP/7/8/10/11 (32-bit and 64-bit) |
|
Linux |
Raspberry Pi OS (Raspberry Pi), Ubuntu (Jetson Nano, VMware Virtual Machines, and Other Linux Systems) |
|
|
Operating Temperature |
- |
-40 ~ 85℃ |
|

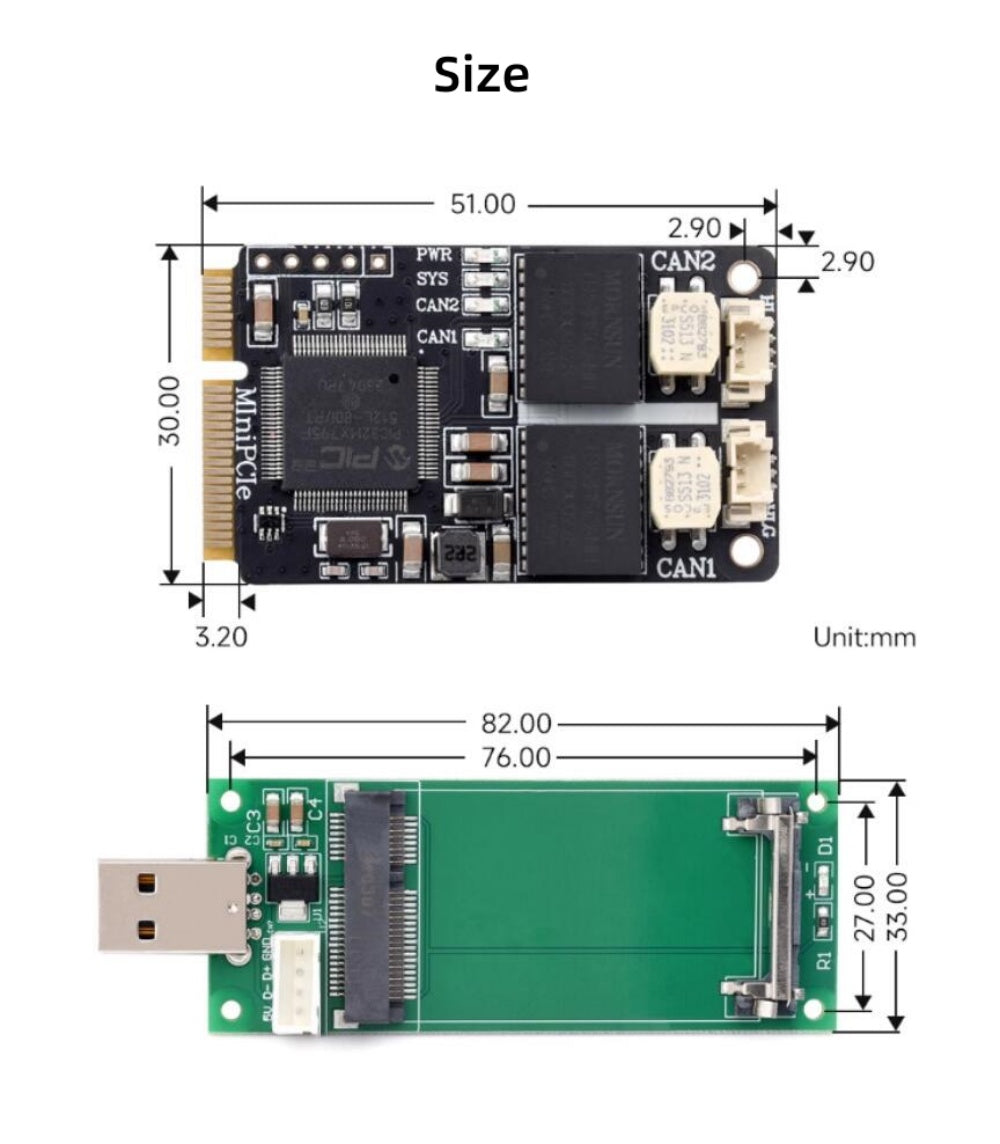

Installation Method |
- |
Standard MiniPCIe Slot, Compact Size, Easy to Use |
