Rhombus Access Control System
Rotatable Human Figure Recognition Sensor /AI Intelligent detection/Dual Relay output/ flexible adjustment/surface mounted
Rotatable Human Figure Recognition Sensor /AI Intelligent detection/Dual Relay output/ flexible adjustment/surface mounted
Обычная цена
$138.95 USD
Обычная цена
Цена со скидкой
$138.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Technical parameters:
- Detection function: human figure activated, safety
- Camera pixel:HD 1080P
- Response speed: 100ms
- View angle adjustment: ±20°
- LED indicator: standby in BLUE, activated in RED, safety in RED light flashes
- Power supply: AC/DC 12-30V
- Current: Standby 95mA, action 130mA
- Working temperature: -20°C~60°C
- Working humidity: 10%~90%RH
- Installation height(max): 5 meters

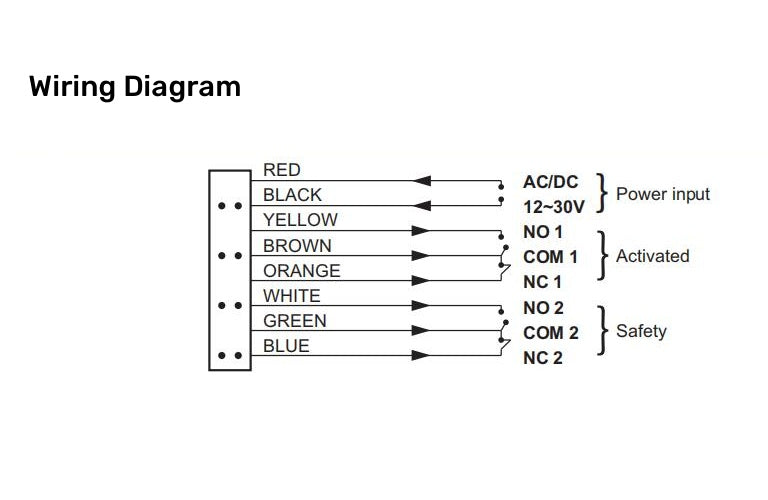

- Dual Relay output

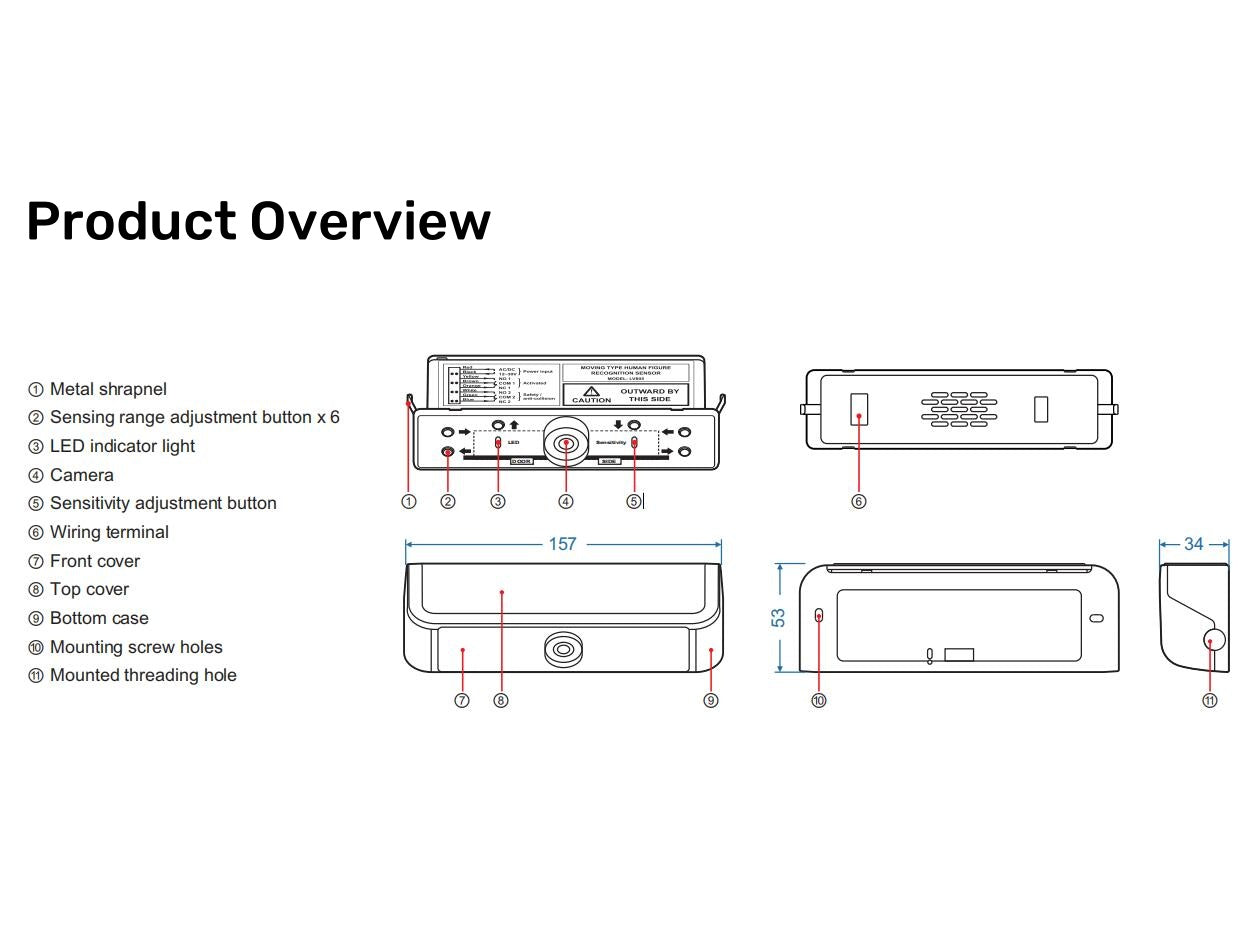

- Dimension: 157(L)x53(W)x34(H)mm
Packing list
- Sensor *1
- 8-Pin cable*1
- Wire pipe*1
- Exposed installation bracket*2
- Screws bag*1

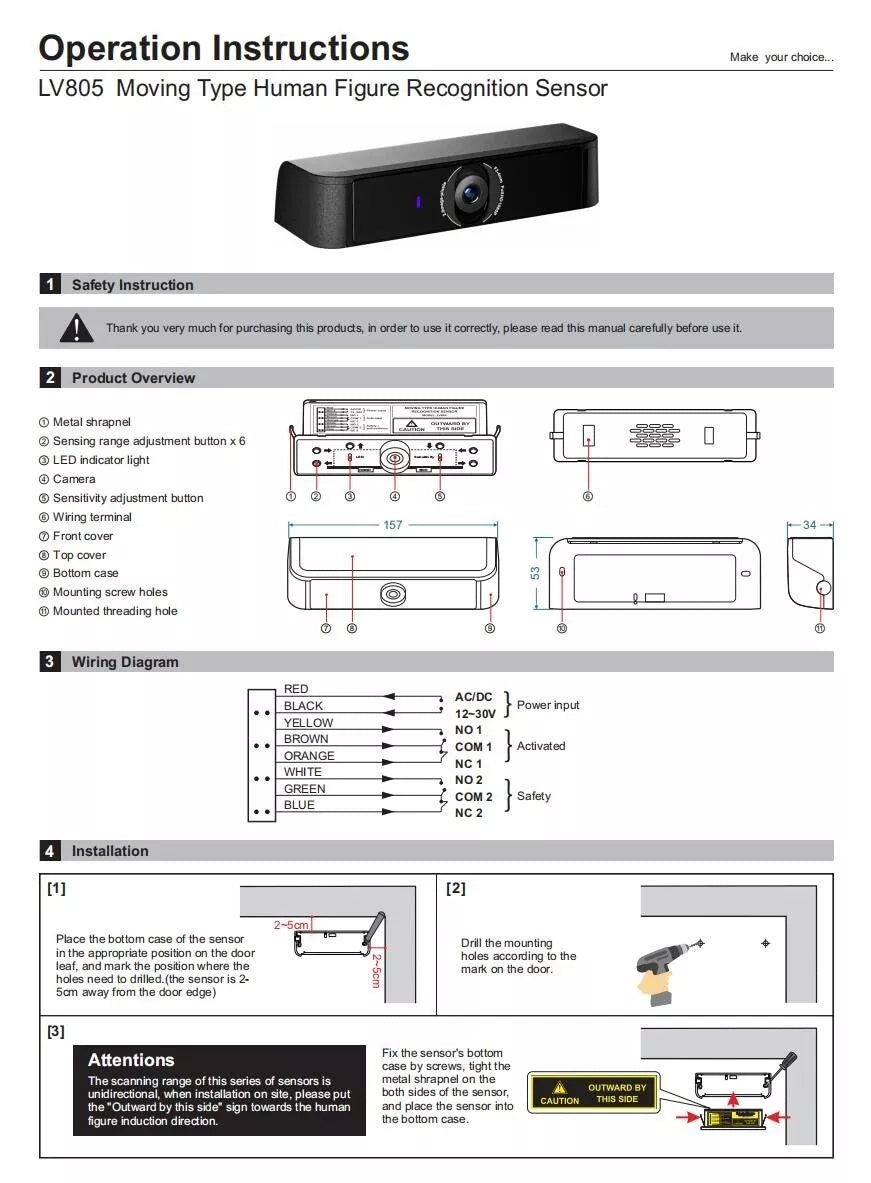

- Installation instructions*1

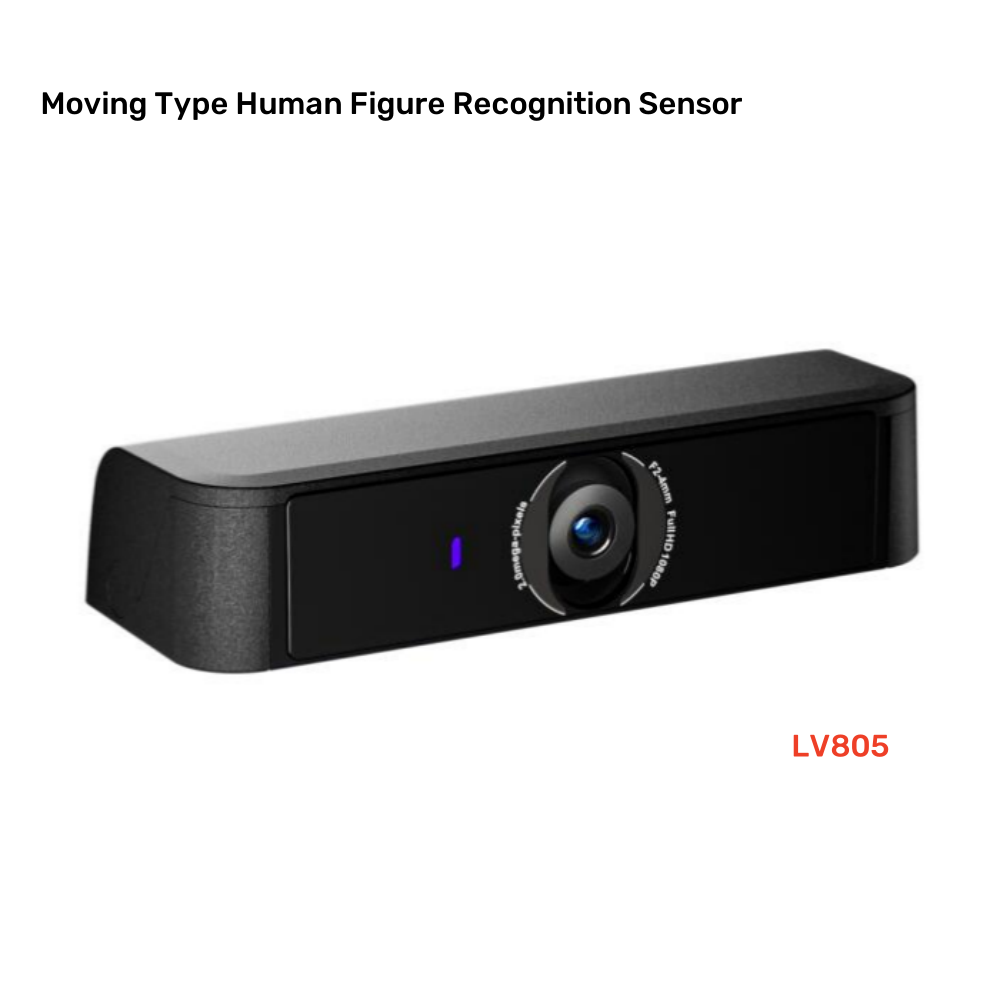

![Moving Type Human Figure Recognition Sensor,AI Intelligent detection,Dual Relay output,flexible adjustment,surface mounted](http://rhombusacs.myshopify.com/cdn/shop/files/2_88a5858e-bbab-4831-88c7-c119b3078f28.png?v=1702449897&width=1445)

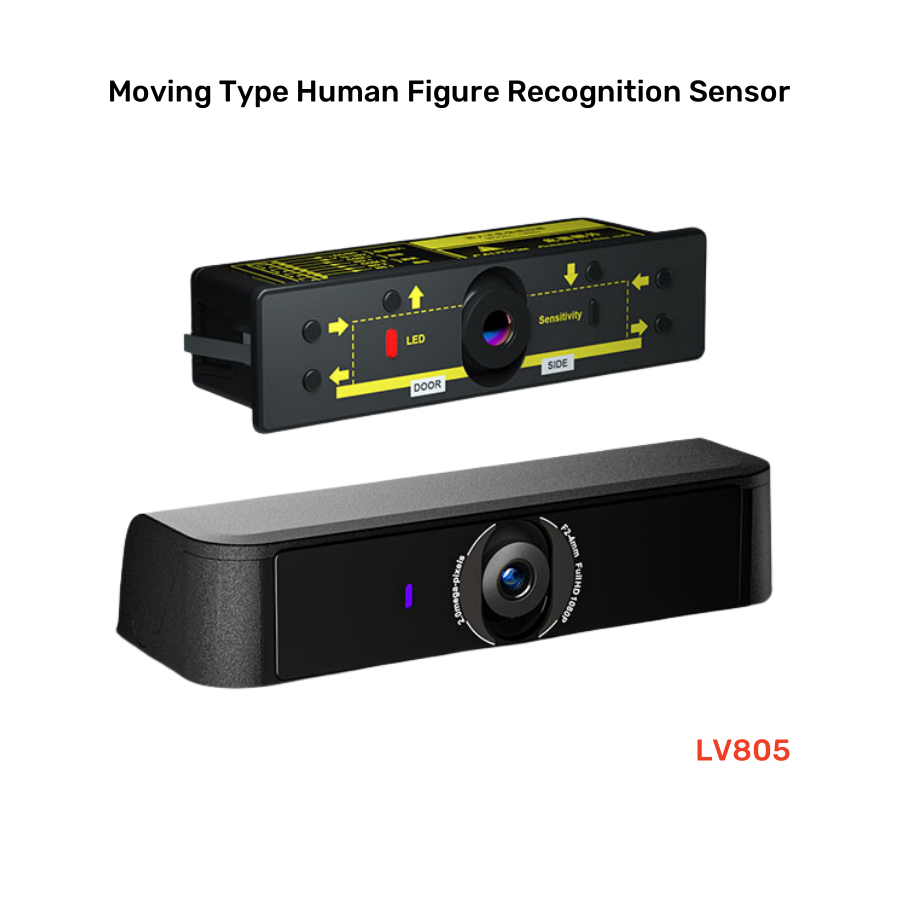

![Moving Type Human Figure Recognition Sensor,AI Intelligent detection,Dual Relay output,flexible adjustment,surface mounted](http://rhombusacs.myshopify.com/cdn/shop/files/1_62f41d9d-8458-4a67-9795-562568e80561.png?v=1702449902&width=1445)
![Moving Type Human Figure Recognition Sensor,AI Intelligent detection,Dual Relay output,flexible adjustment,surface mounted](http://rhombusacs.myshopify.com/cdn/shop/files/3_5edfd427-0a84-41bc-9075-f4fc203ec111.jpg?v=1702449907&width=1445)
![Moving Type Human Figure Recognition Sensor,AI Intelligent detection,Dual Relay output,flexible adjustment,surface mounted](http://rhombusacs.myshopify.com/cdn/shop/files/4_86f25aea-41bf-43fe-9ea2-b0bceacc9b33.jpg?v=1702449921&width=1445)
