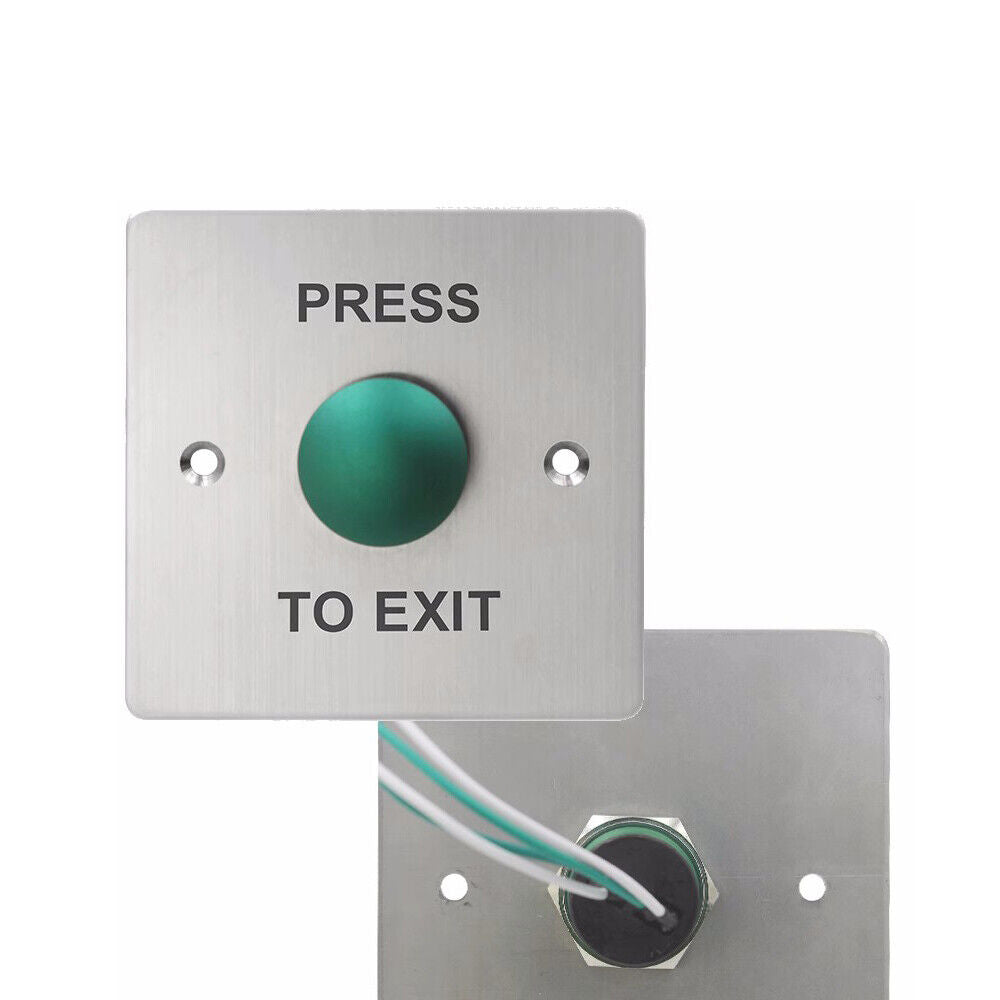

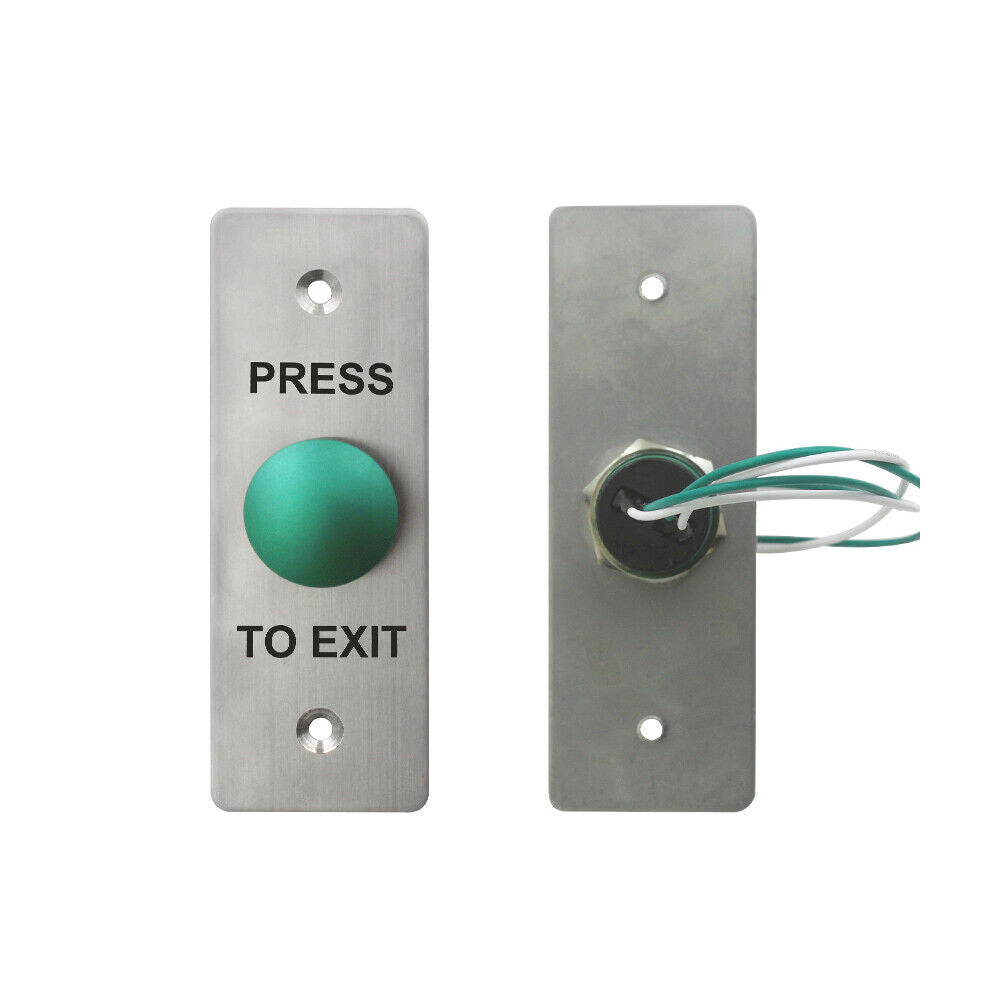

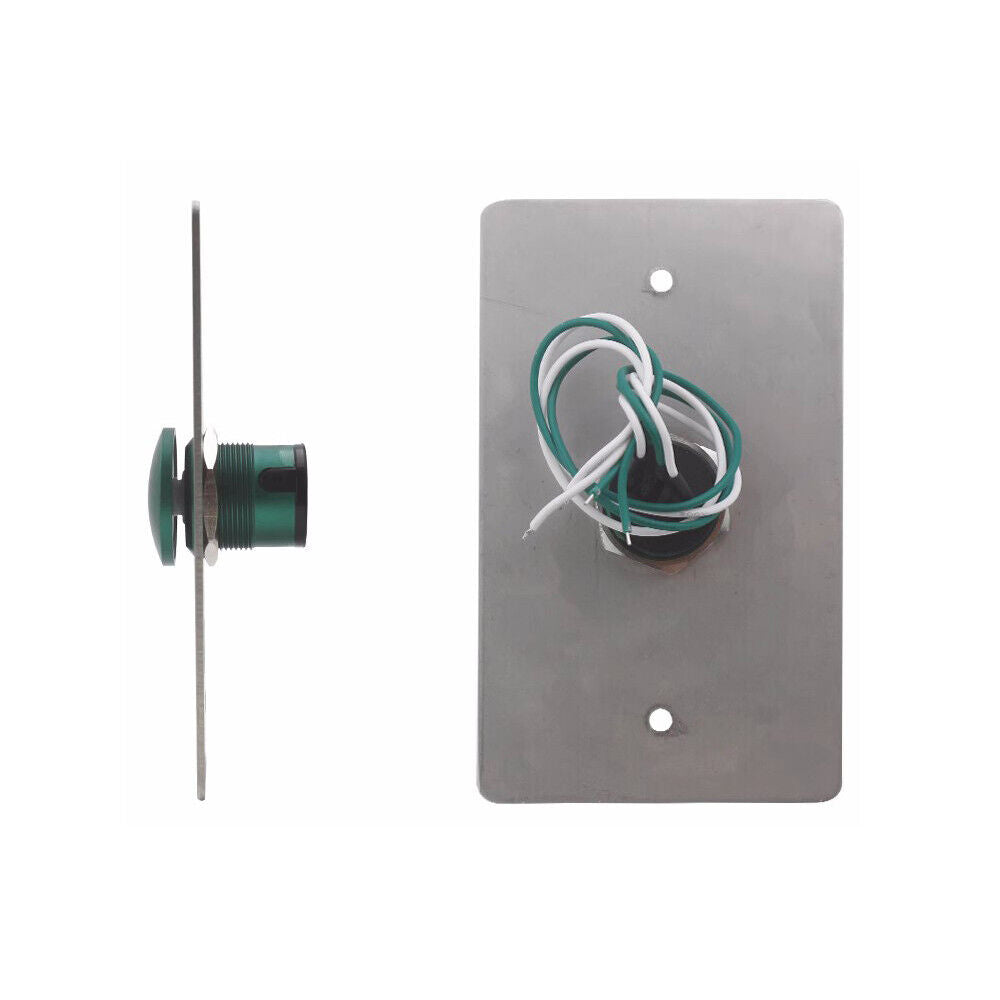

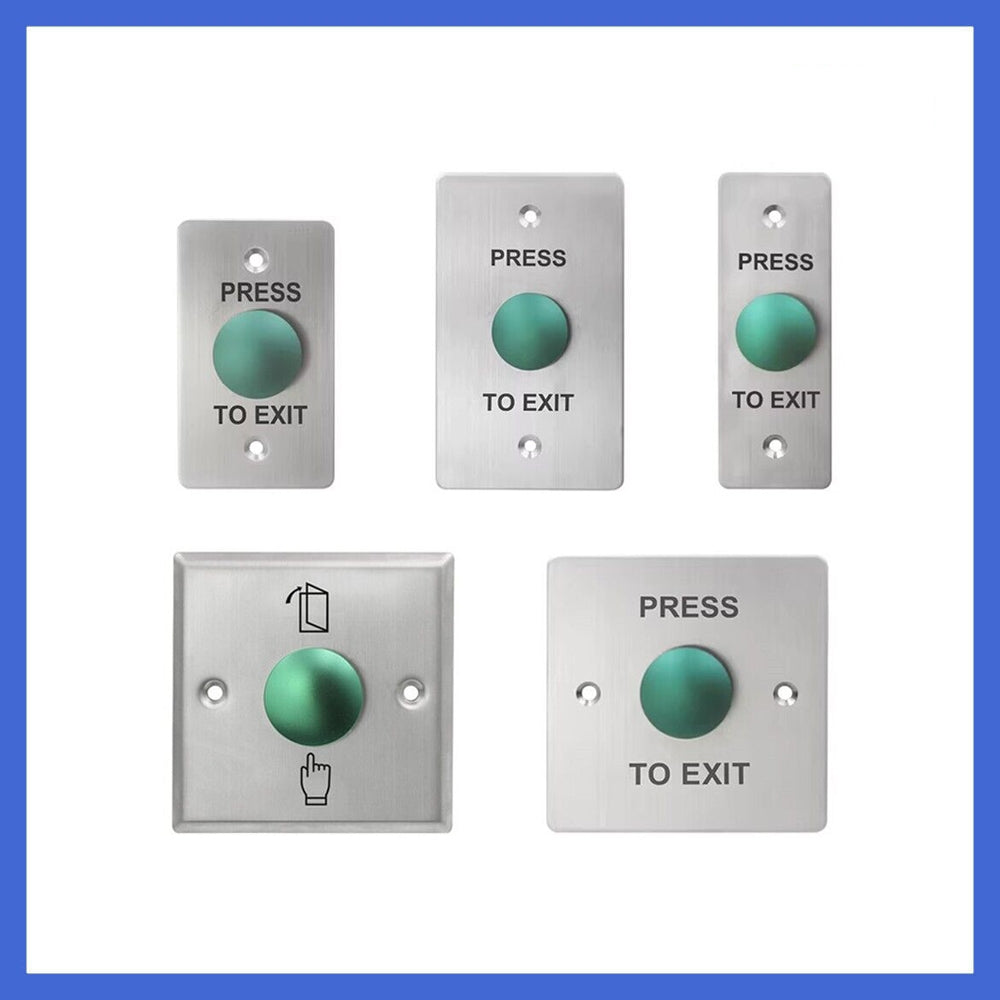

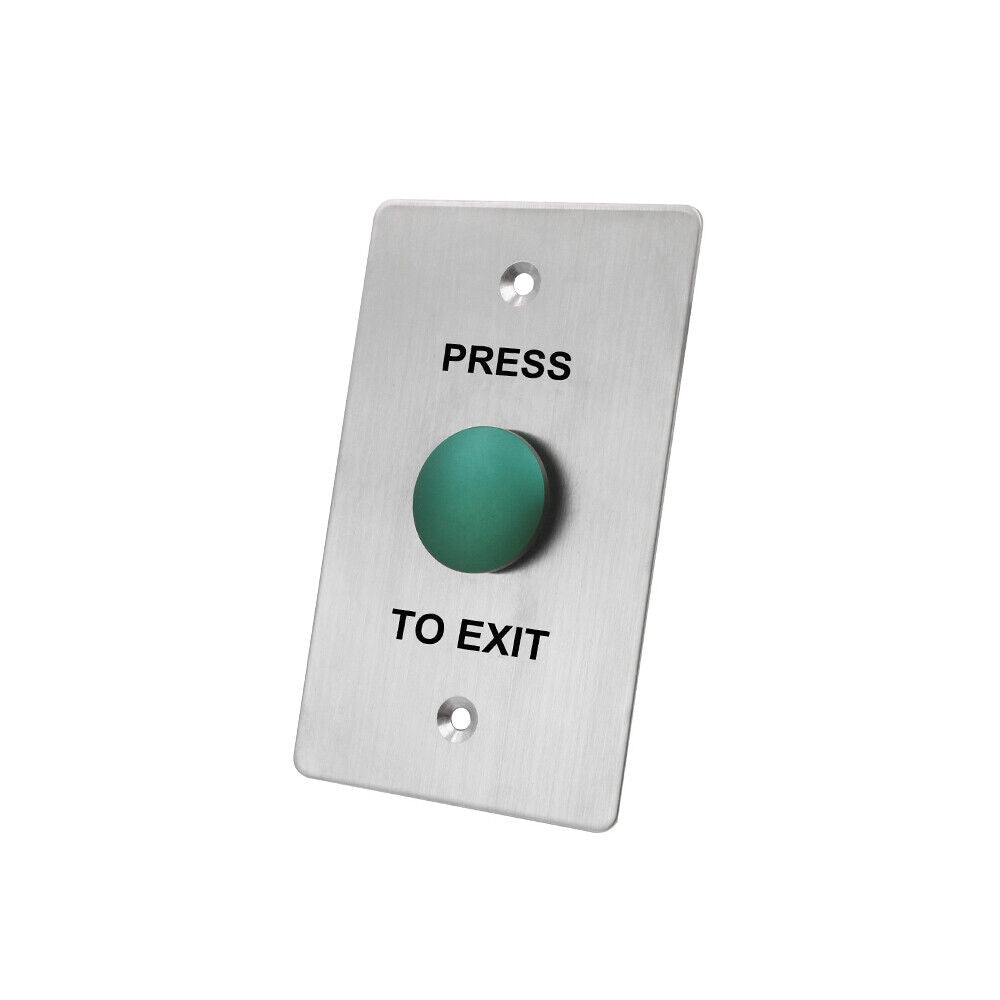

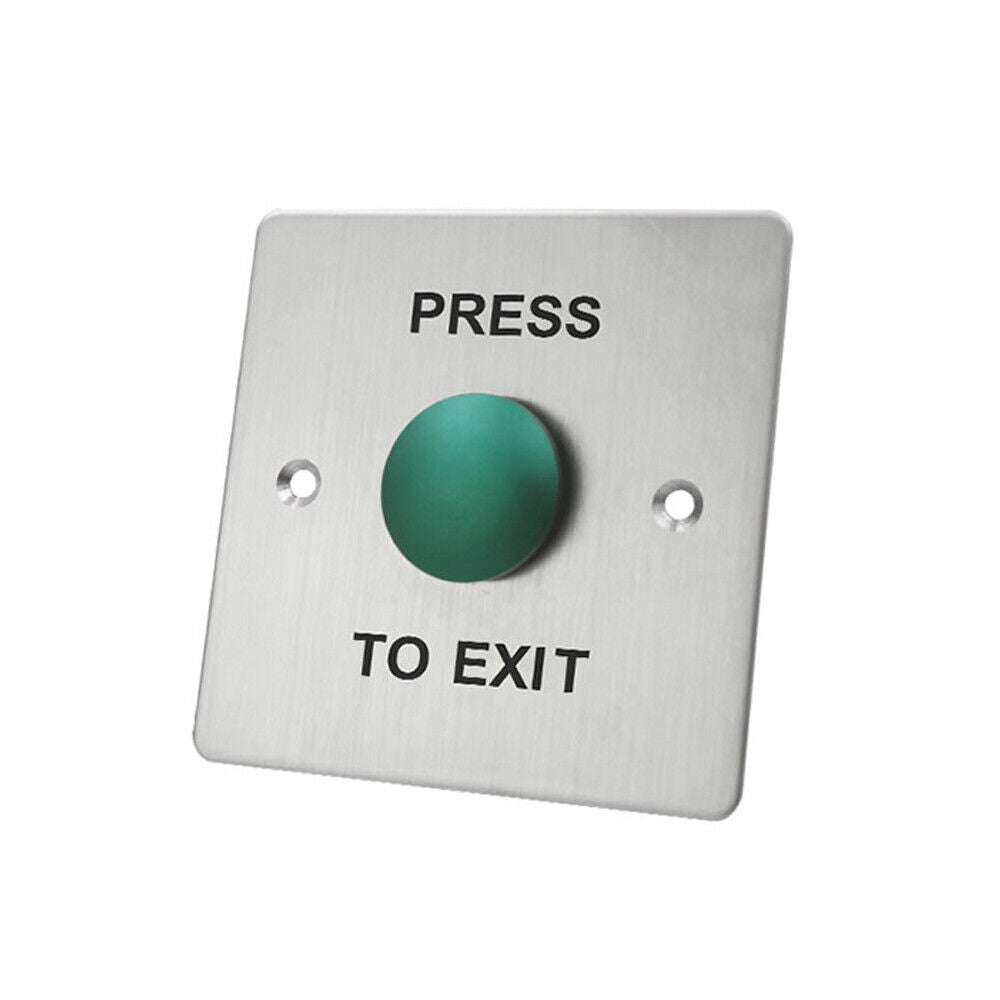

Mushroom Head Self Resetting 86 type Stainless Steel Access Control Switch Panel
Mushroom Head Self Resetting 86 type Stainless Steel Access Control Switch Panel
Не удалось загрузить сведения о доступности самовывоза
Description:

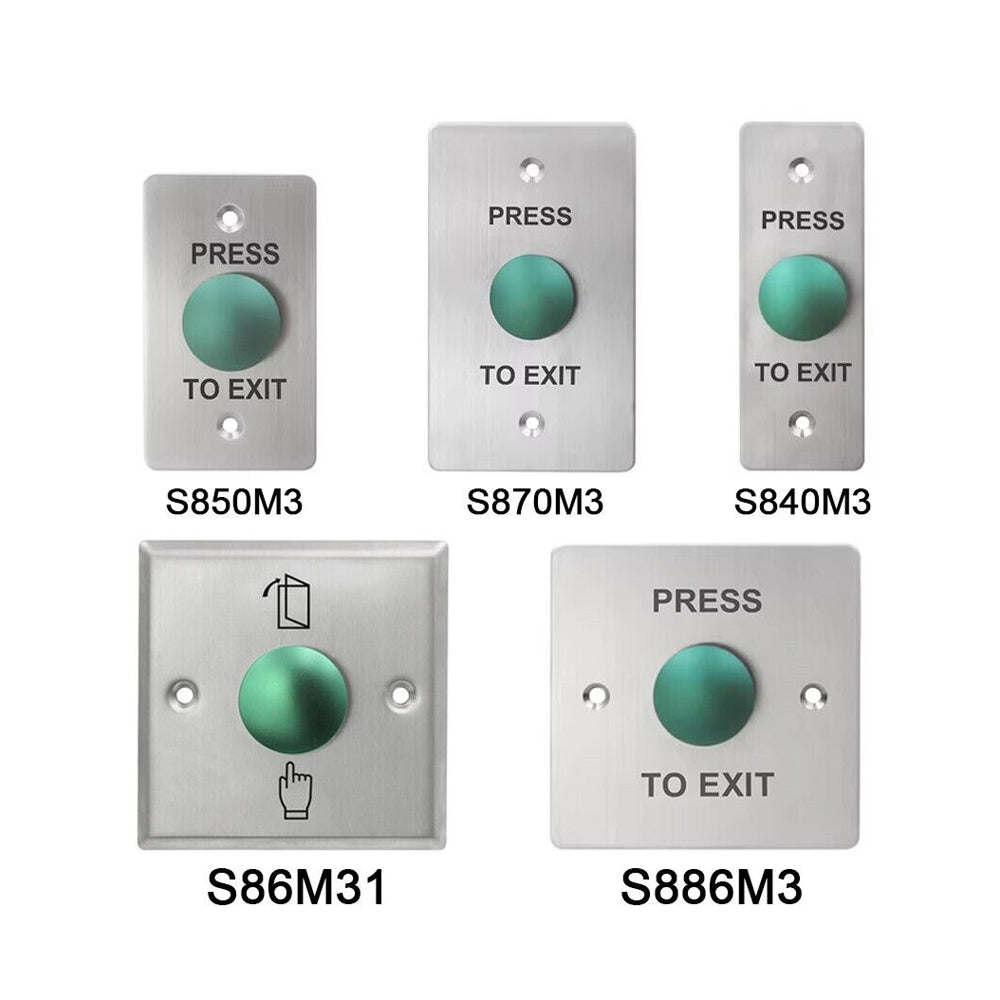

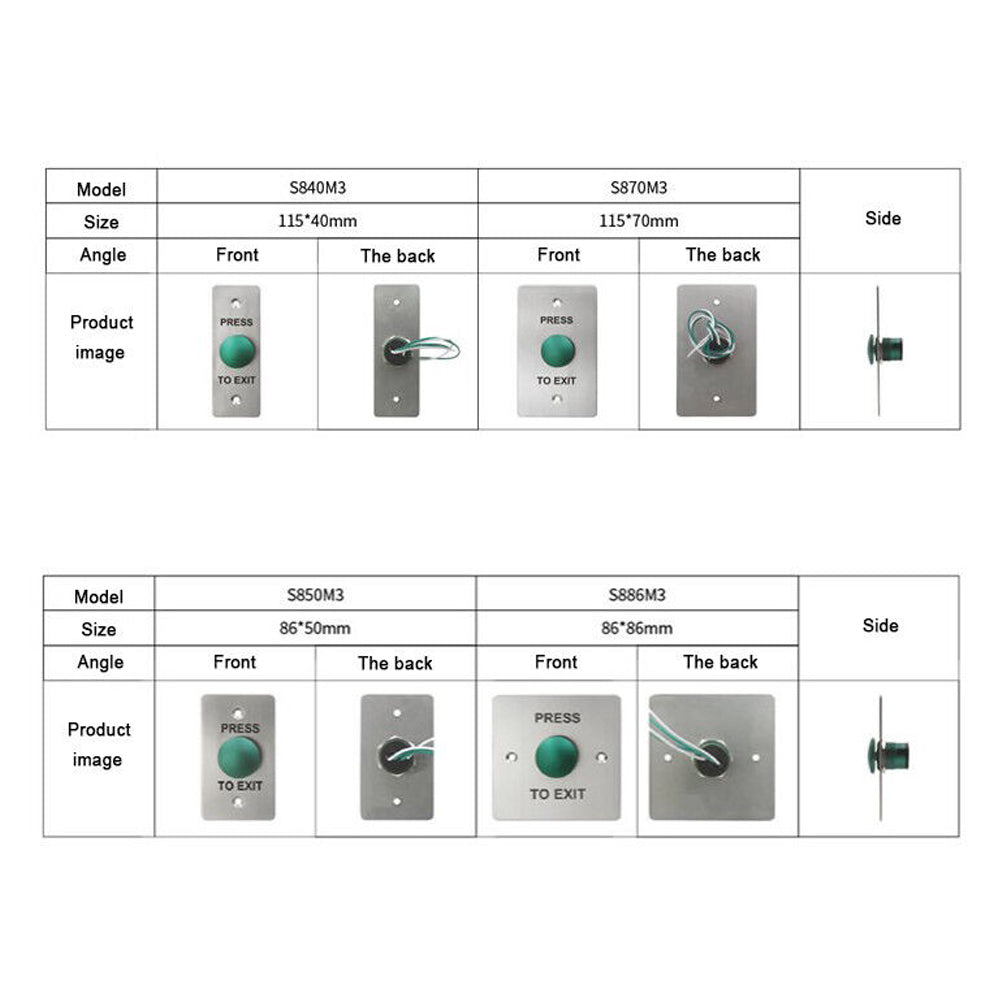

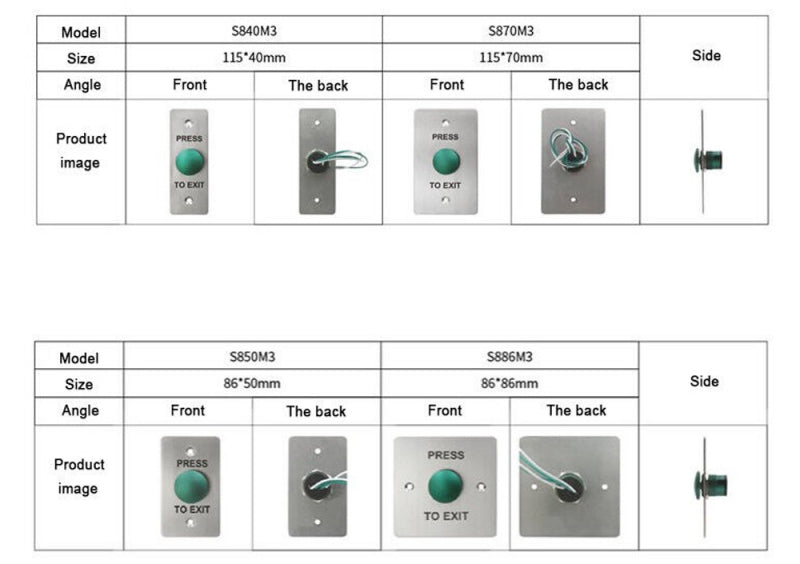

Product model |
S840M3 |
S850M3 |
S870M3 |
S886M3 |
S86M31 |

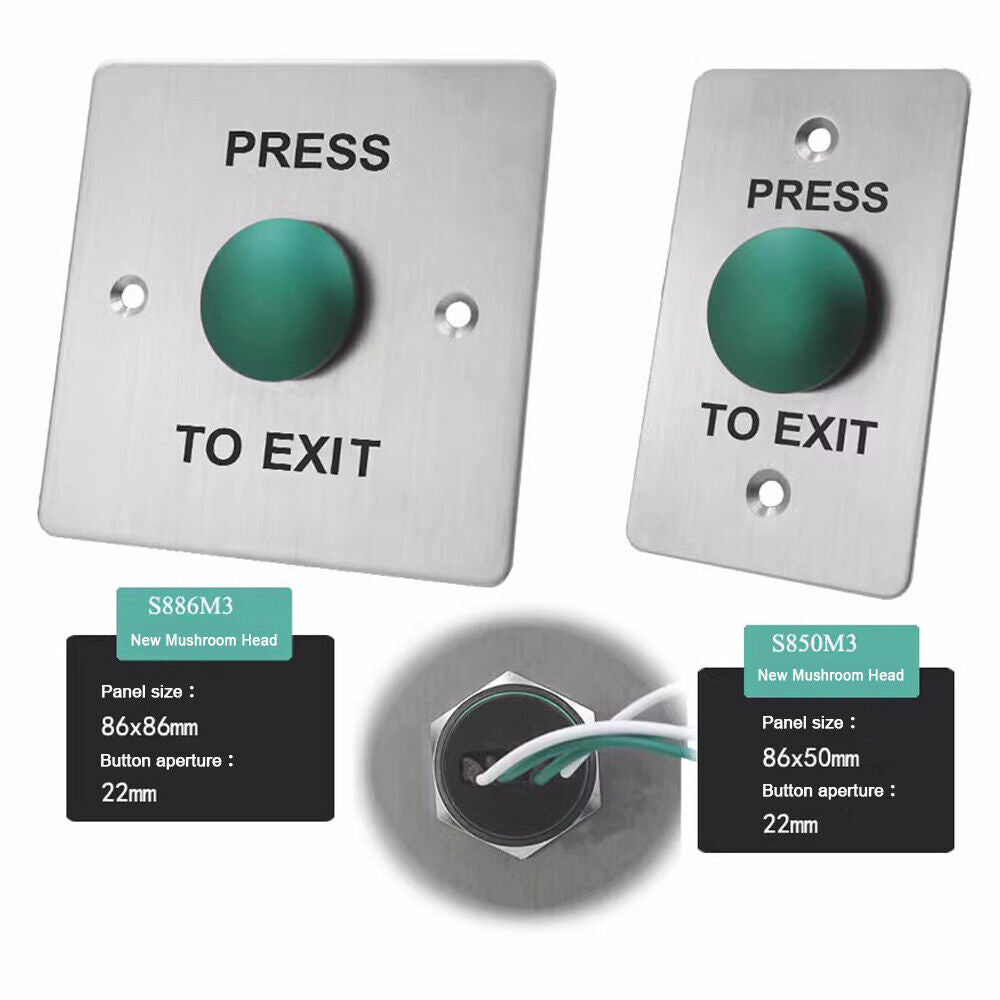

Product size |
115L*40W*25H |
115L*50W*25H |
115L*70W*25H |
86L*86W*25H |
86L*86W*25H |
Weight (KG) |
0.09 |
0.09 |
0.135 |
0.135 |
0.135 |
Supply voltage |
DC12V |
||||

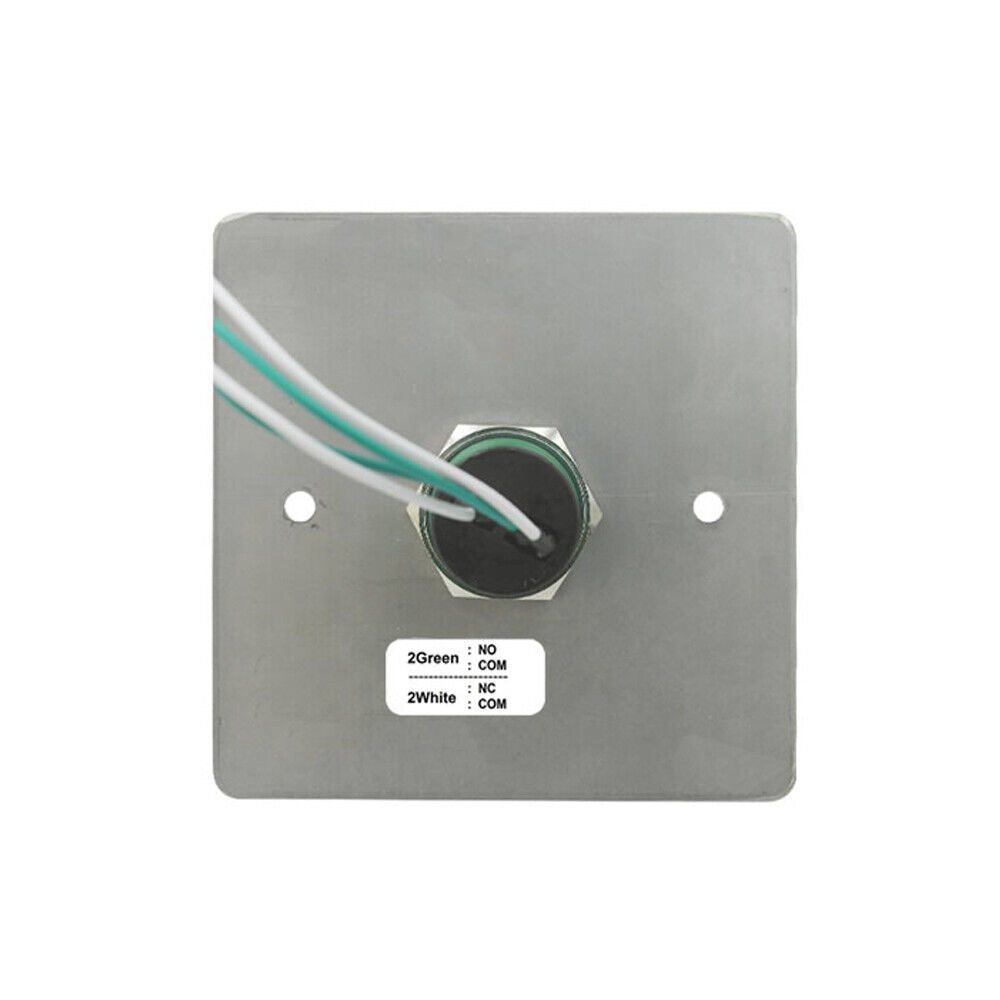

Contact output |
NO/NC/COM |
||||
Panel material |
1.8mm thick 304 stainless pot panel |
||||
Durability testing |
Passed 500000 aging tests |
||||
Surface mounted accessories |
Can be manufactured with a bottom box for open installation |
||||
Applicable temperature |
-20°C~+55C(-4-131F) |
||||
Applicable humidity |
0-95% relative humidity |

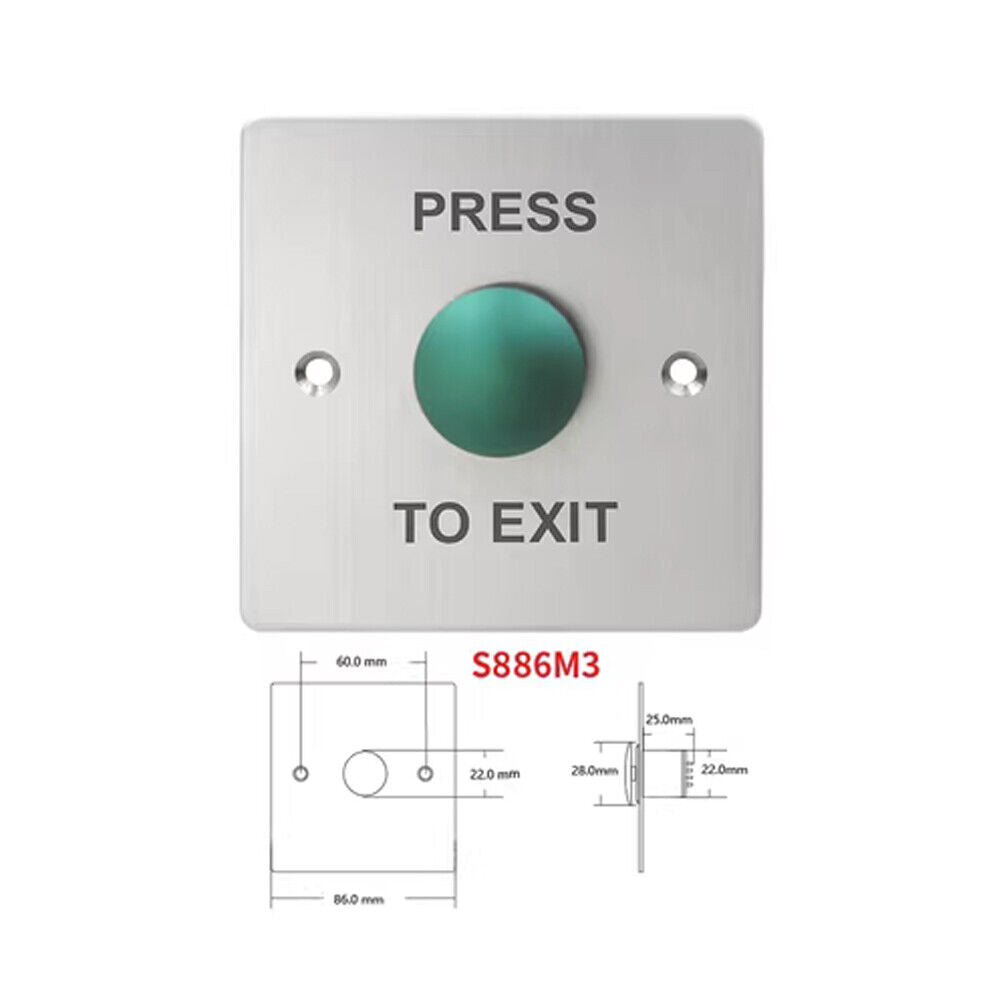

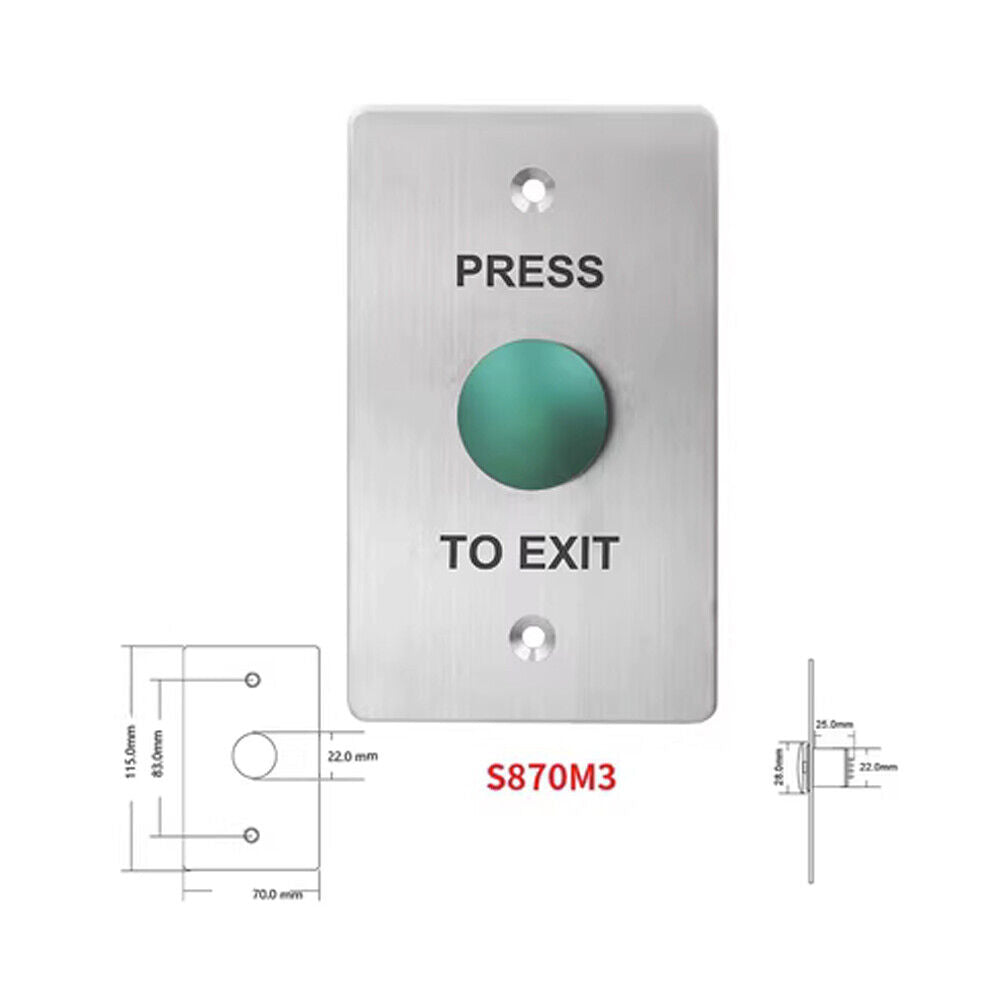

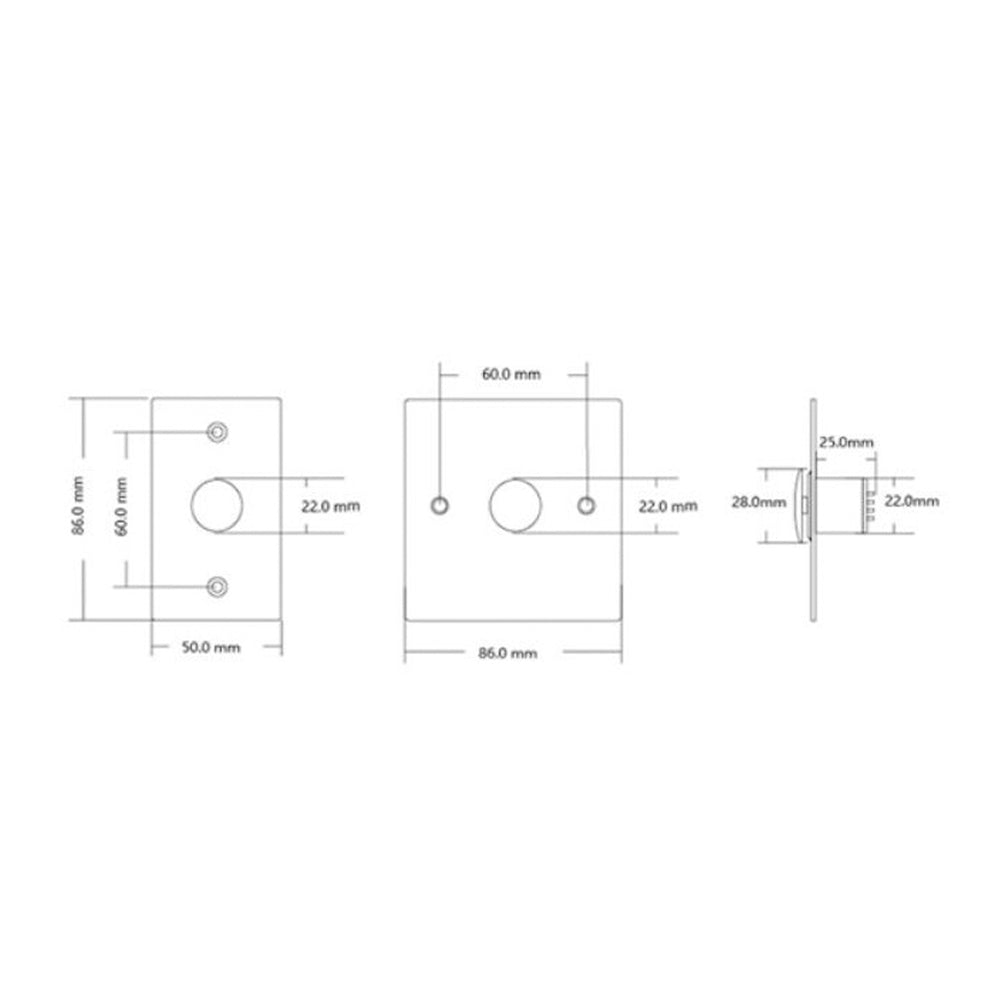

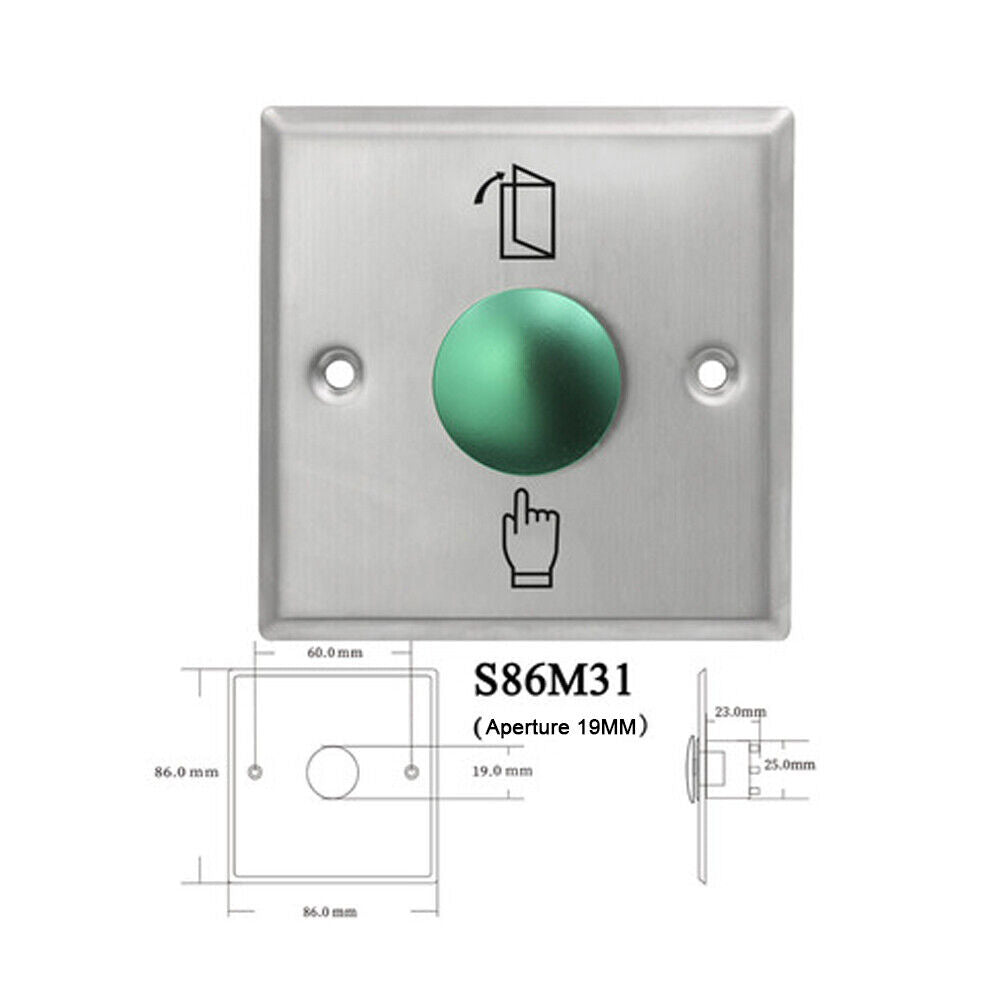

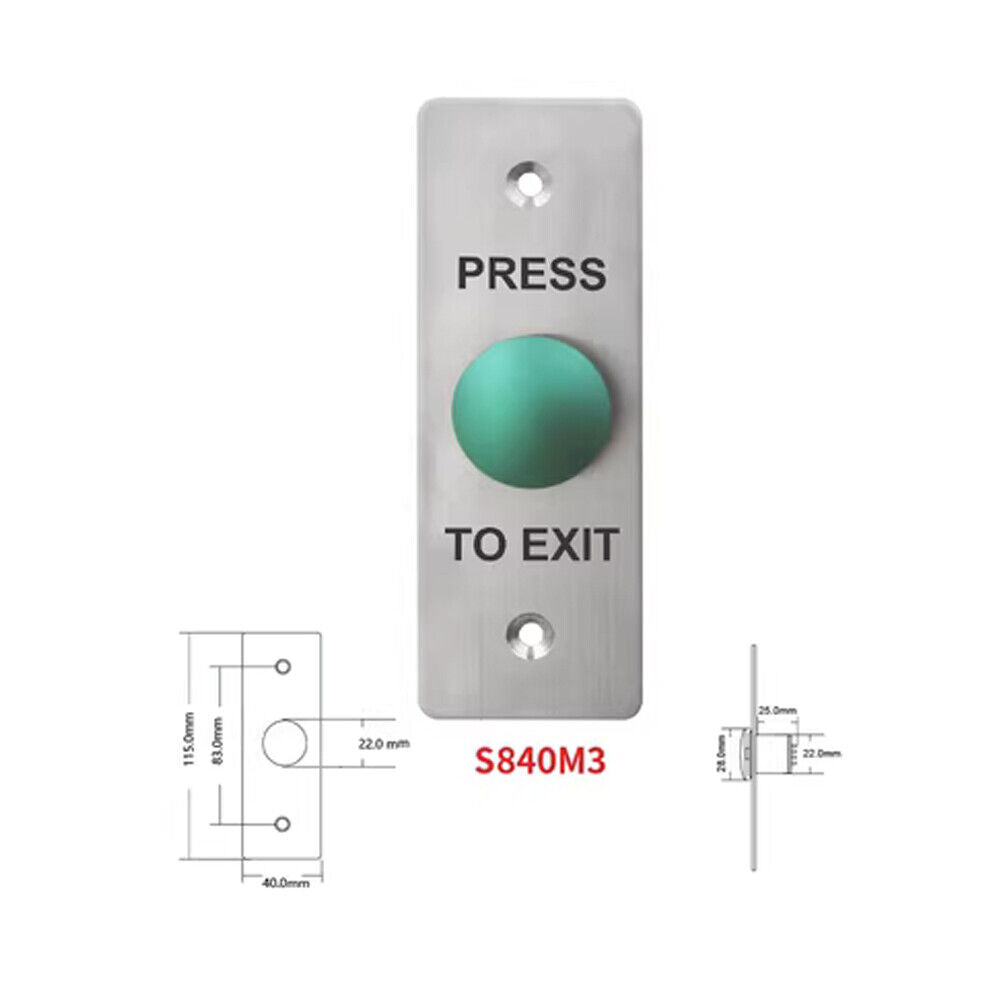

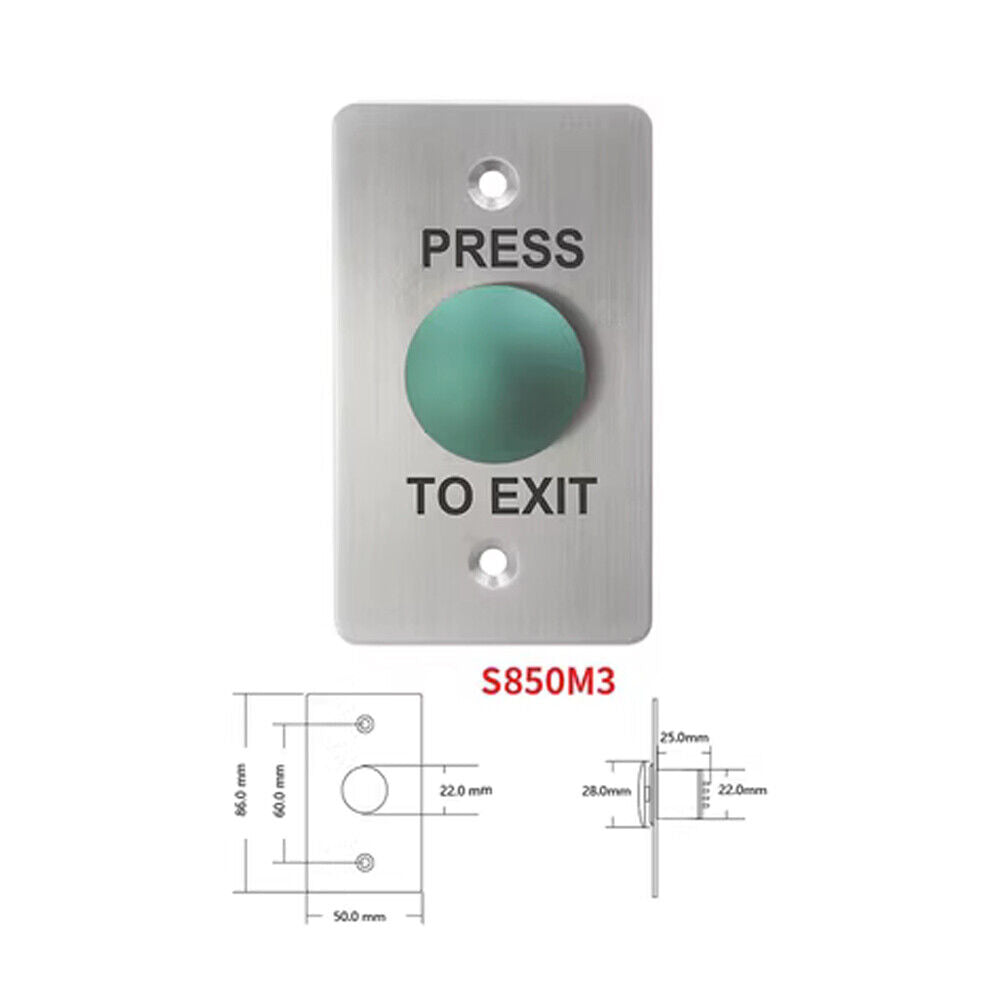

Plane size:
(Detailed dimensions refer to the corresponding image of the product.)
Package:
1 x exit button
