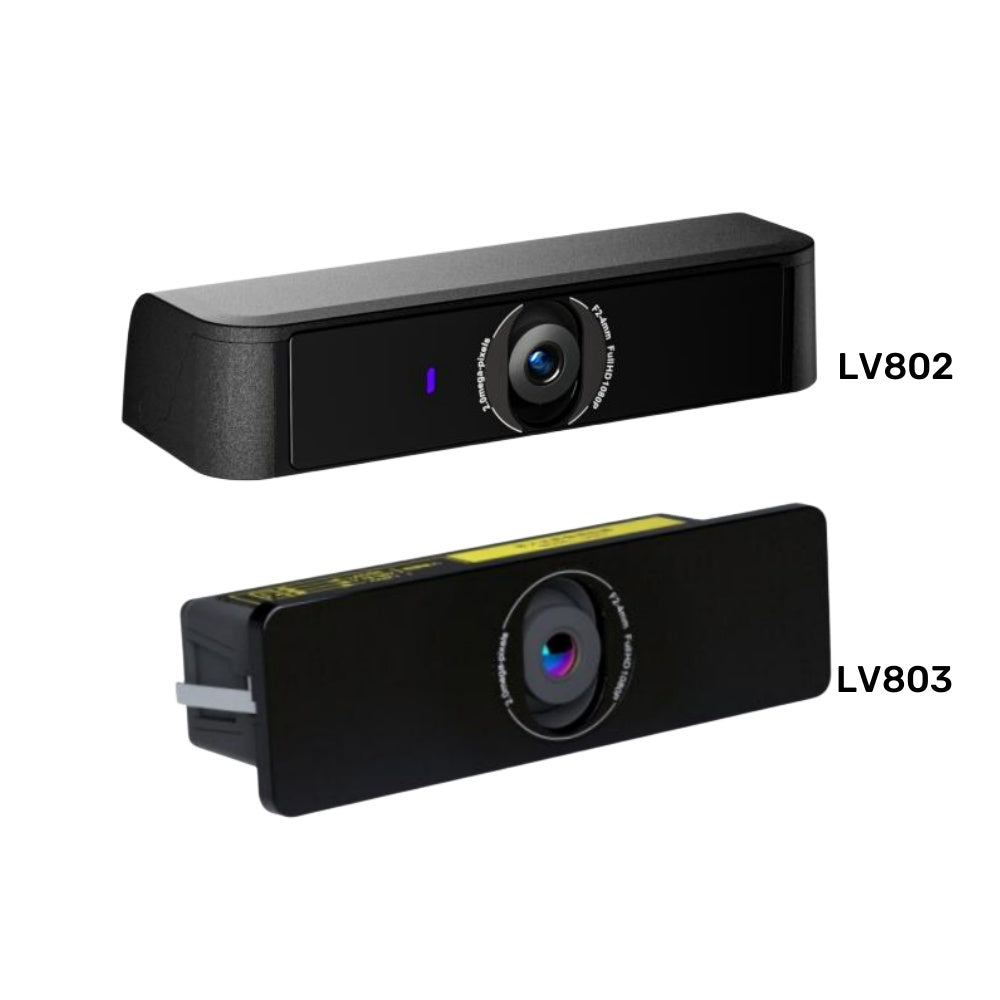

Human Figure Recognition Sensor/anti-interference/flexible adjustment/night vision

Technical parameters

• Detection function: human figure activated, safety

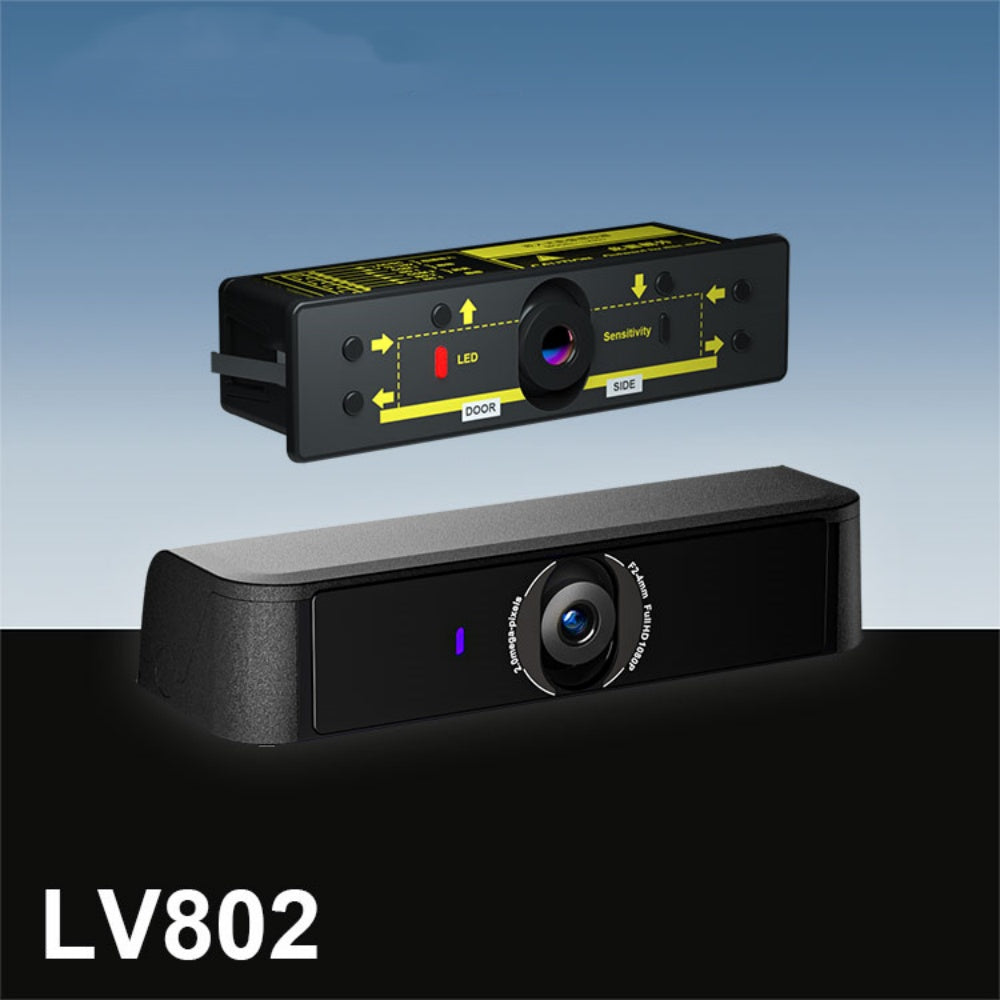

• Model:LV802(Exposed Installation)

• Camera pixel: HD 1080P
• Response speed: 100ms

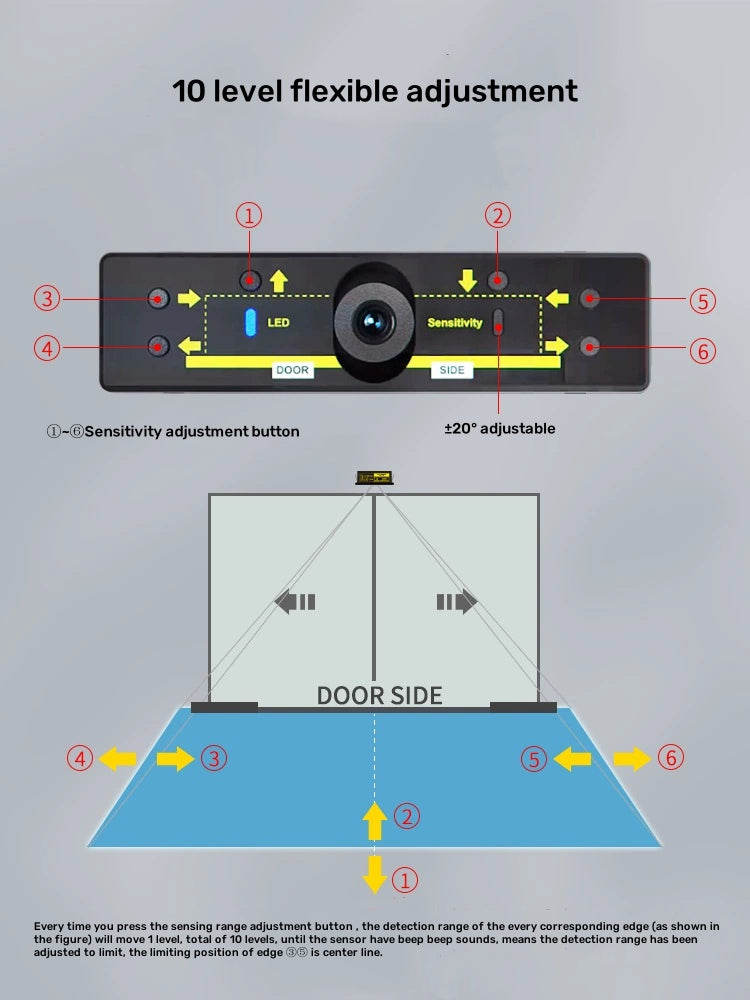

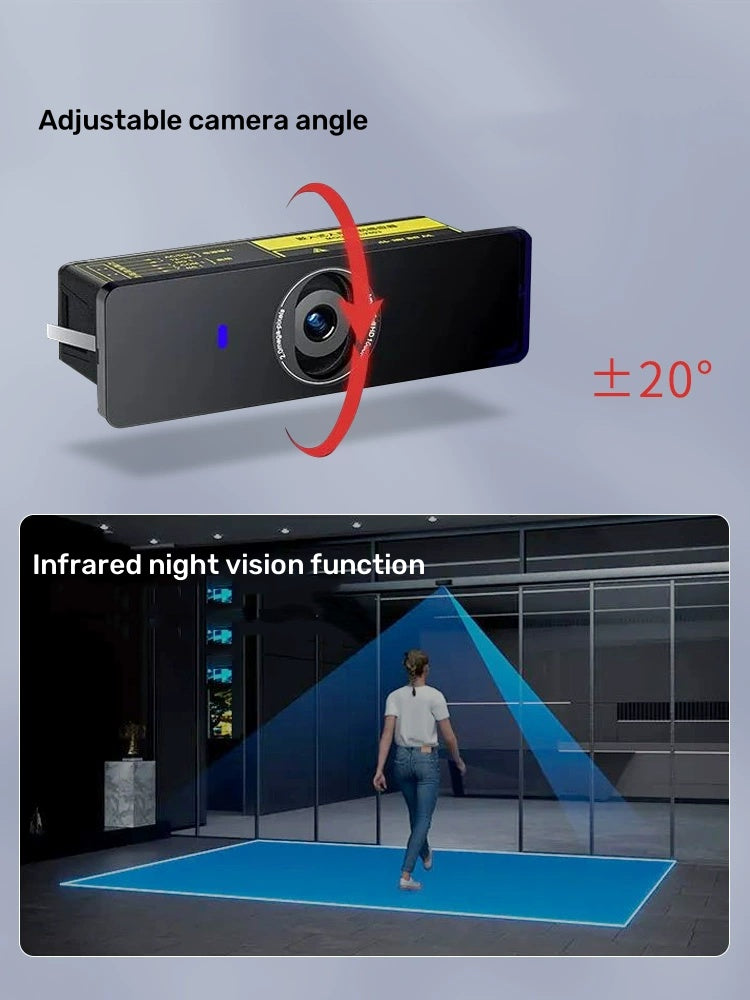

• View angle adjustment: ±20°
• LED indicator: standby in BLUE, sensing in RED
• Power supply: AC/DC 12-30V
• Current: Standby 95mA, action 110mA
• Working temperature: -20°C~60°C
• Working humidity: 10%~90%RH
• Installation height(max): 5 meters

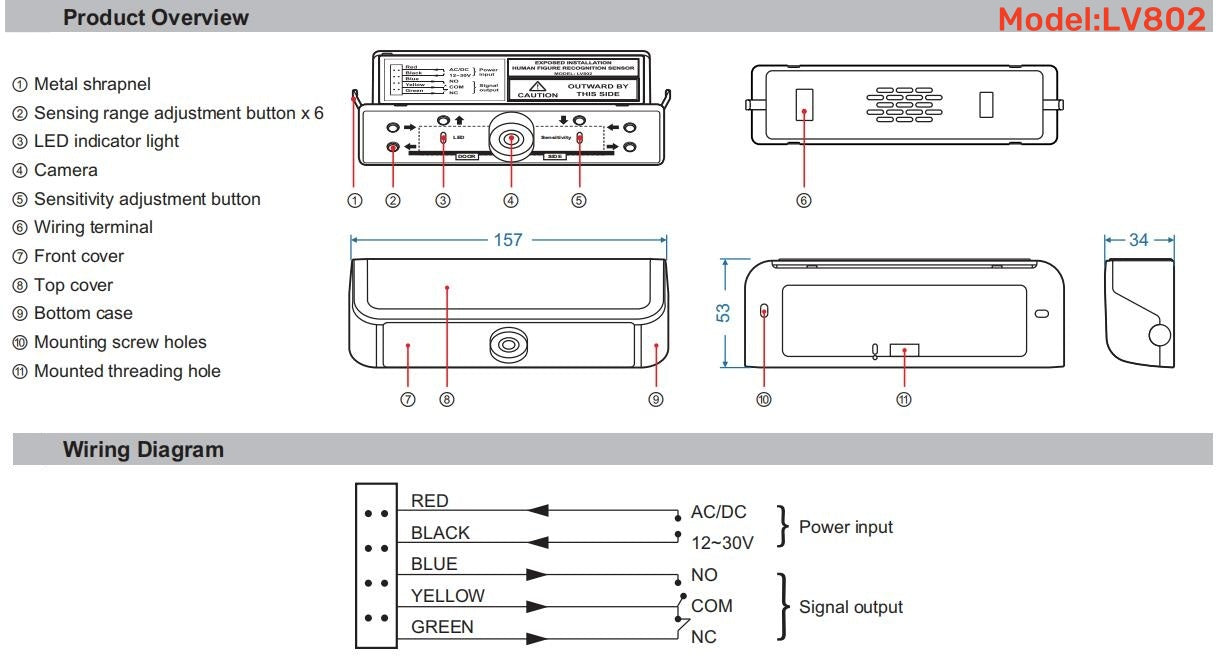

• Dimension: 157(L)x53(W)x34(H)mm

Packing list

LV802:

• Sensor *1
• 5-Pin cable*1
• Screws bag*1

• Installation instructions*1

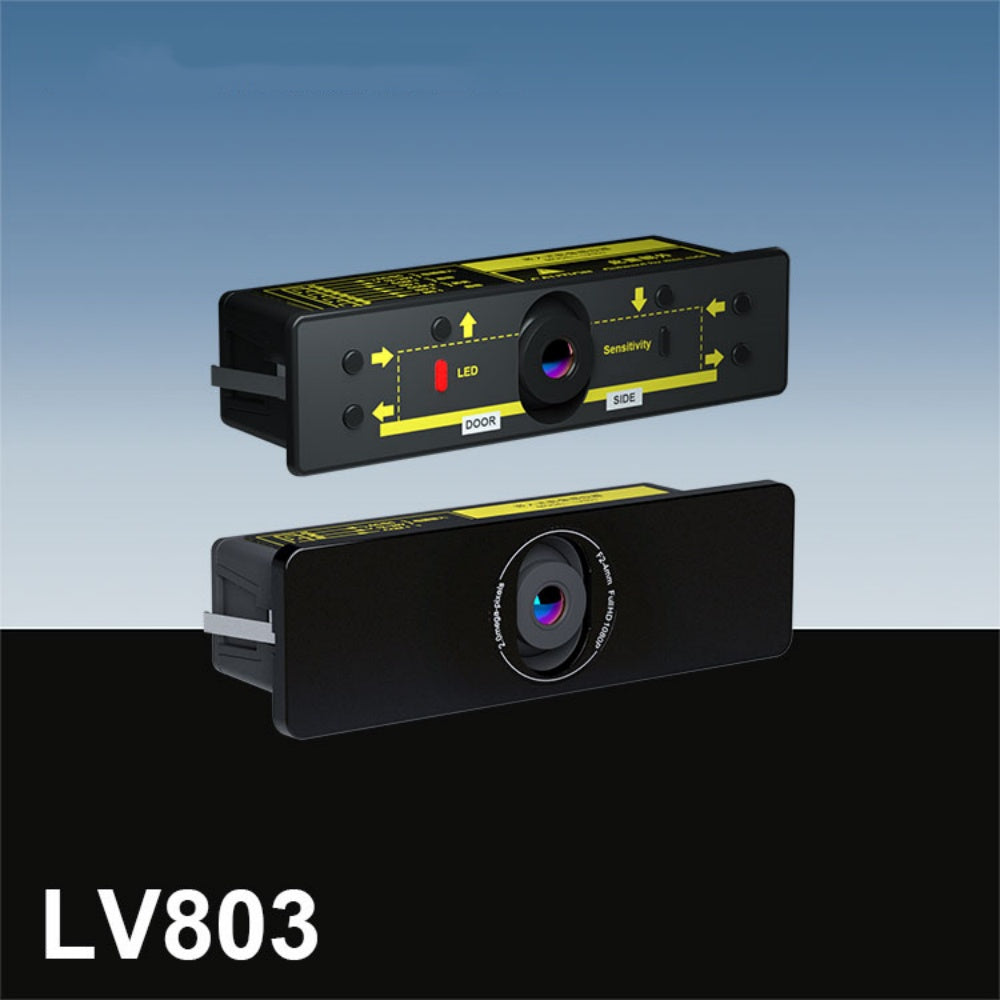

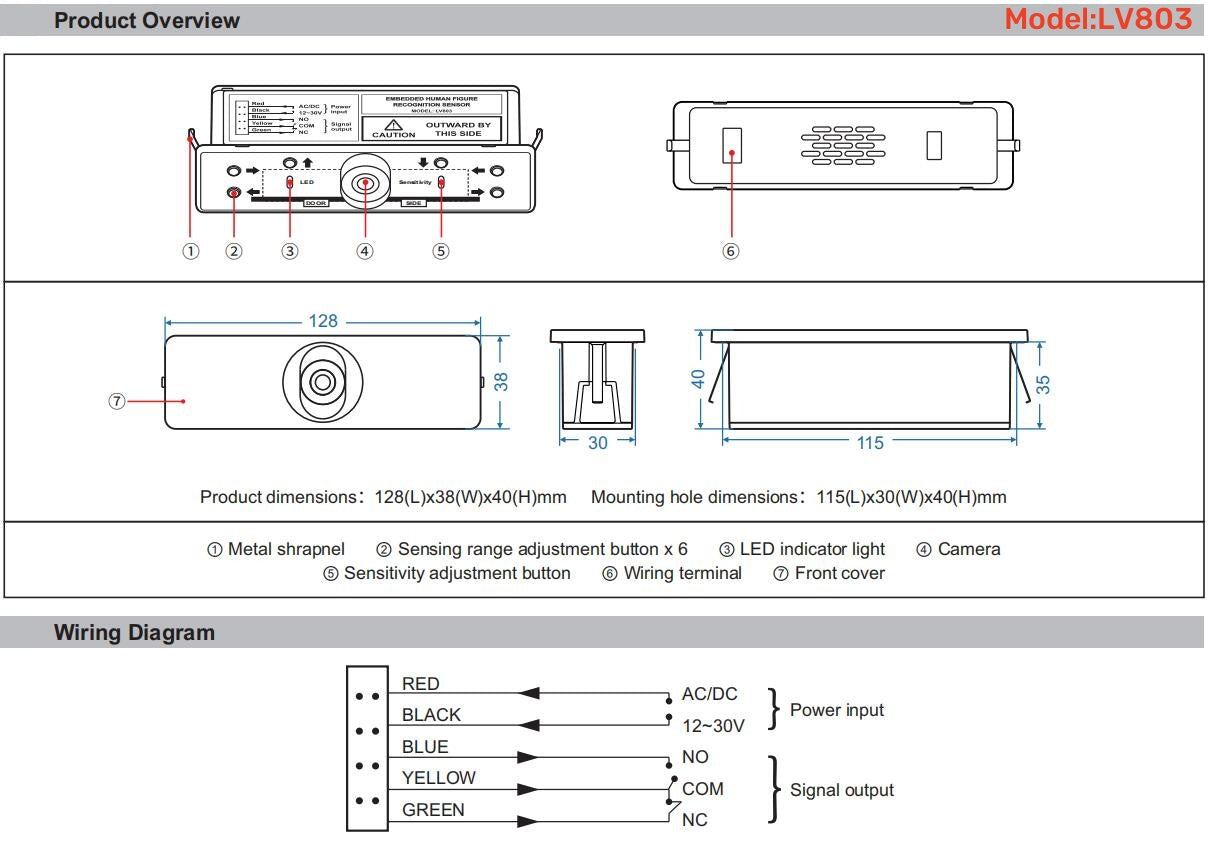

LV803:

• Sensor *1
• 5-Pin cable*1
• Installation instructions*1
