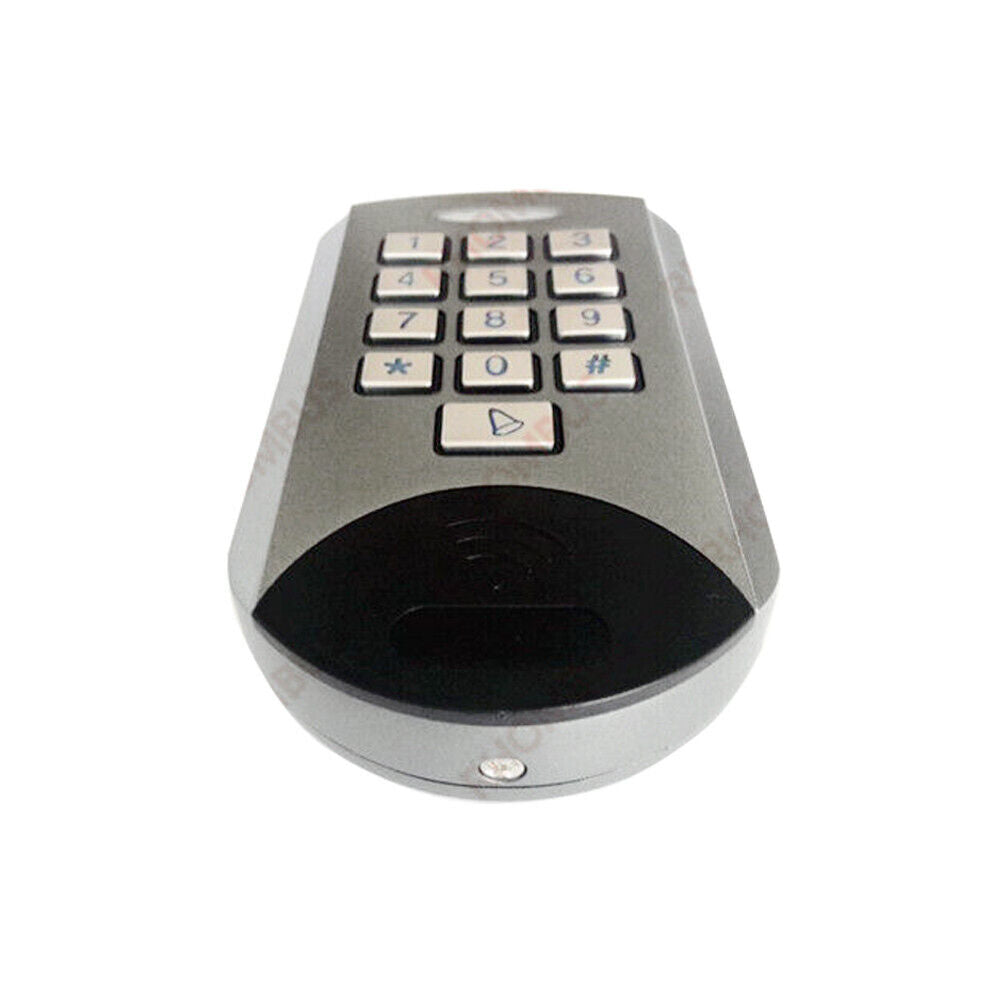

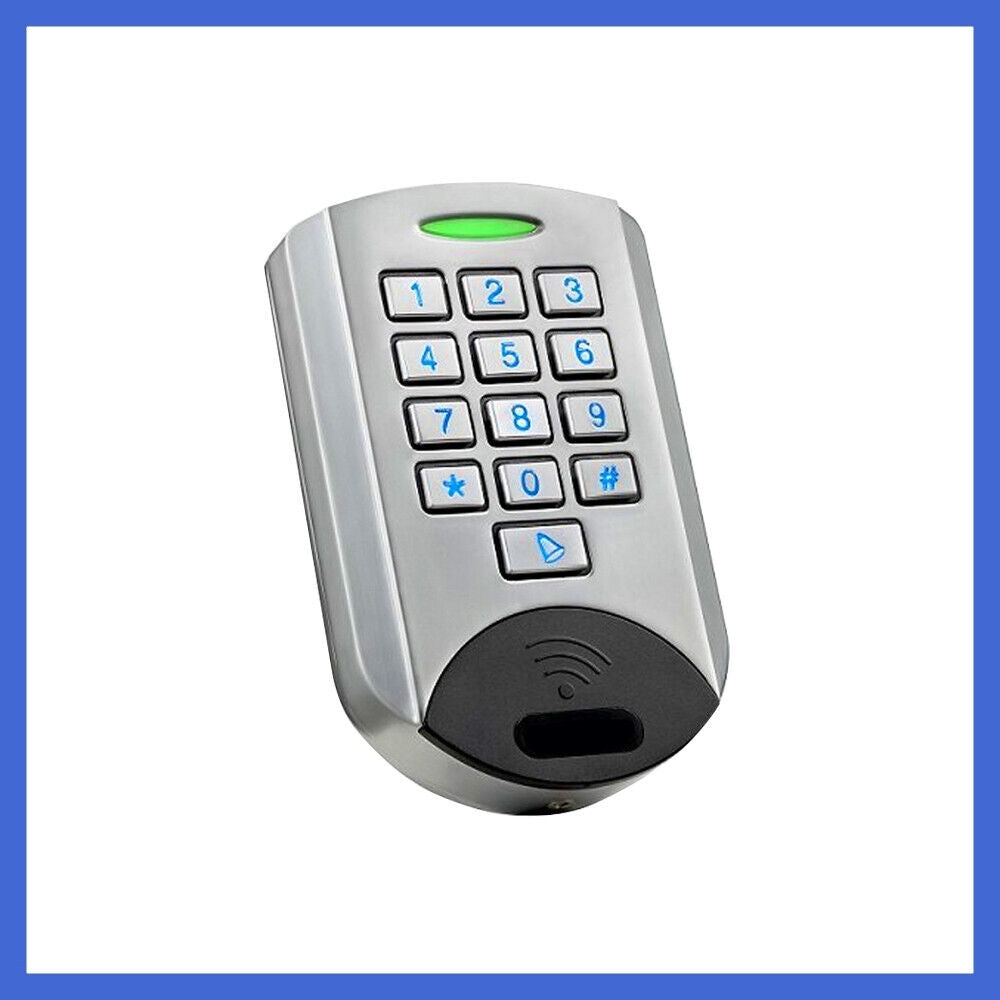

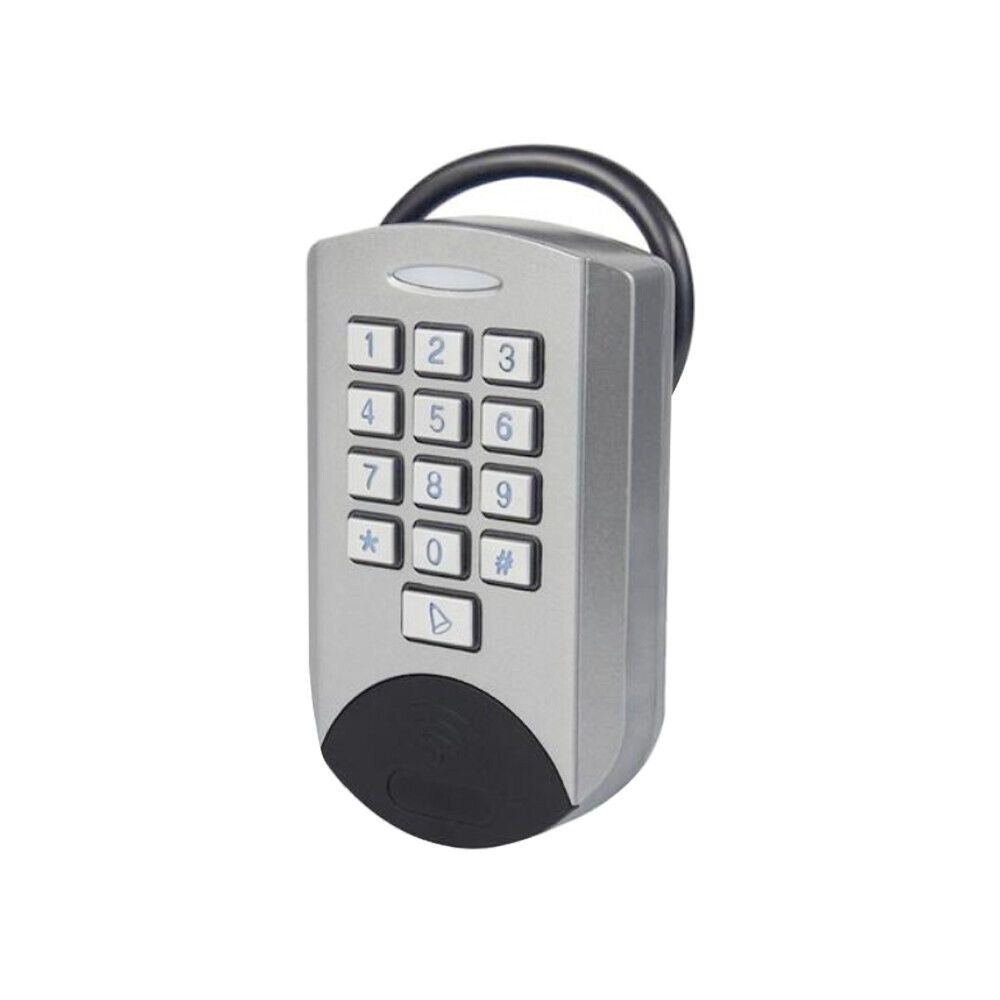

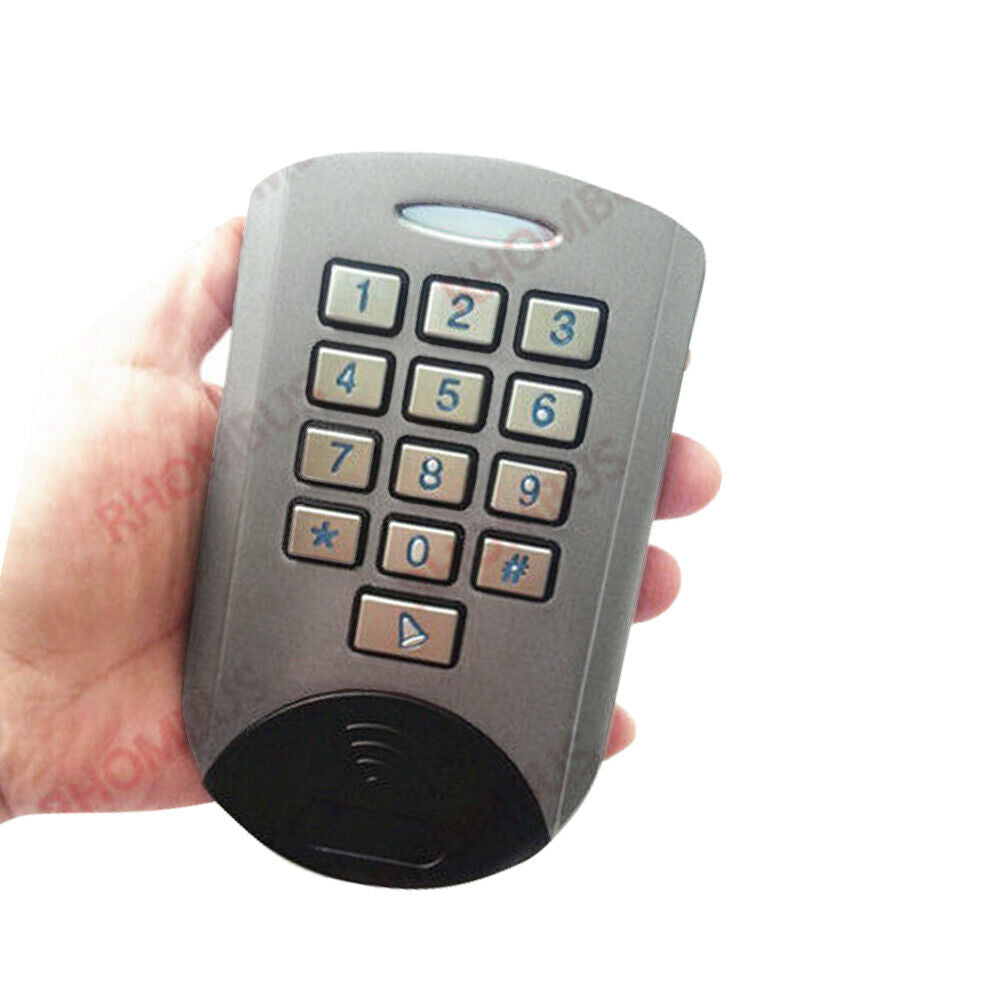

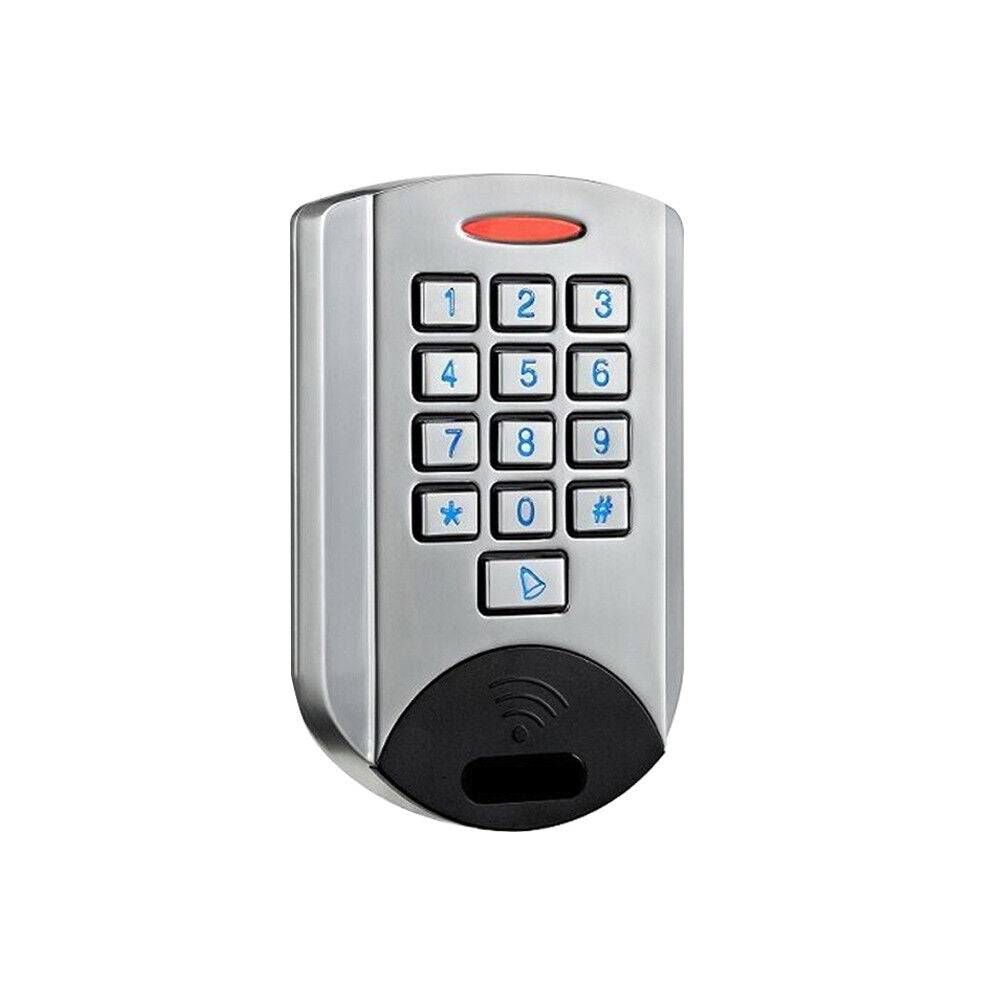

Stainless Steel Metal Case Waterproof EM ID Keypad Standalone Access Control

Main Features:

Metal structure, anti-vandal, more secure , waterproof design .
Protective properties: IP65 fully-potted.
Backlight keypad.
Up to 2,000 users, Support 3 Modes Access: Card, PIN, Card+PIN
Card Type: 125KHz EM
Can be used as a standalone keypad, Pin length 4 Digits
Operating Voltage: 12-24V DC.
One programmable Relay output,NO,NC,COM
Adjustable Door output time, Alarm time,Door open tiem.
Very low power consumption ( ≤60mA)
Built in light dependent resistor(LDR) fro anti tamper
Built in buzzer
Block enrollent, can enroll maxiumu 2000 consecutive card within 2 minutes.

Specifications:

Operating Voltage:12-24V DC
User Capacity:2000
Keypad: 12 keys+1 bell key
Card Type: 125KHz EM
Card Read Rang: 3-6cm
Active Current:<80Ma
Ldle Current: <40Ma
Lock Output Load: 2A
Alarm Output Load: 1A
Operating Temperature: -20-60 Centigrade
Operating Humidity: 0-95%
Environment: Conform to IP65
Adjustable Door Relay Time: 1-99s
Alarm Time:3 minutes

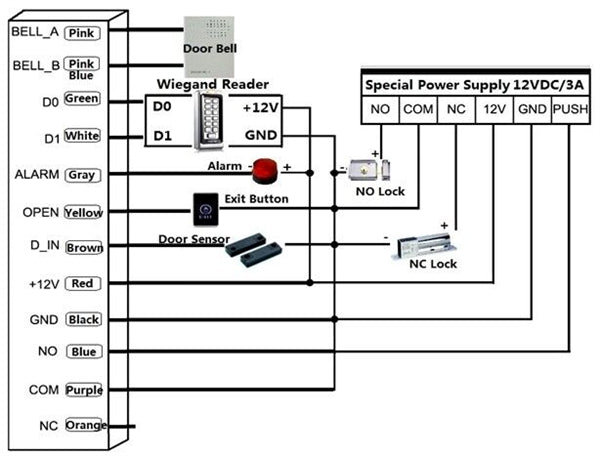

Wiegant 26 Interface: Input & Output
Wiring Connections: Eletric Lock,Exit Button,Alarm, Bell,Door sensor

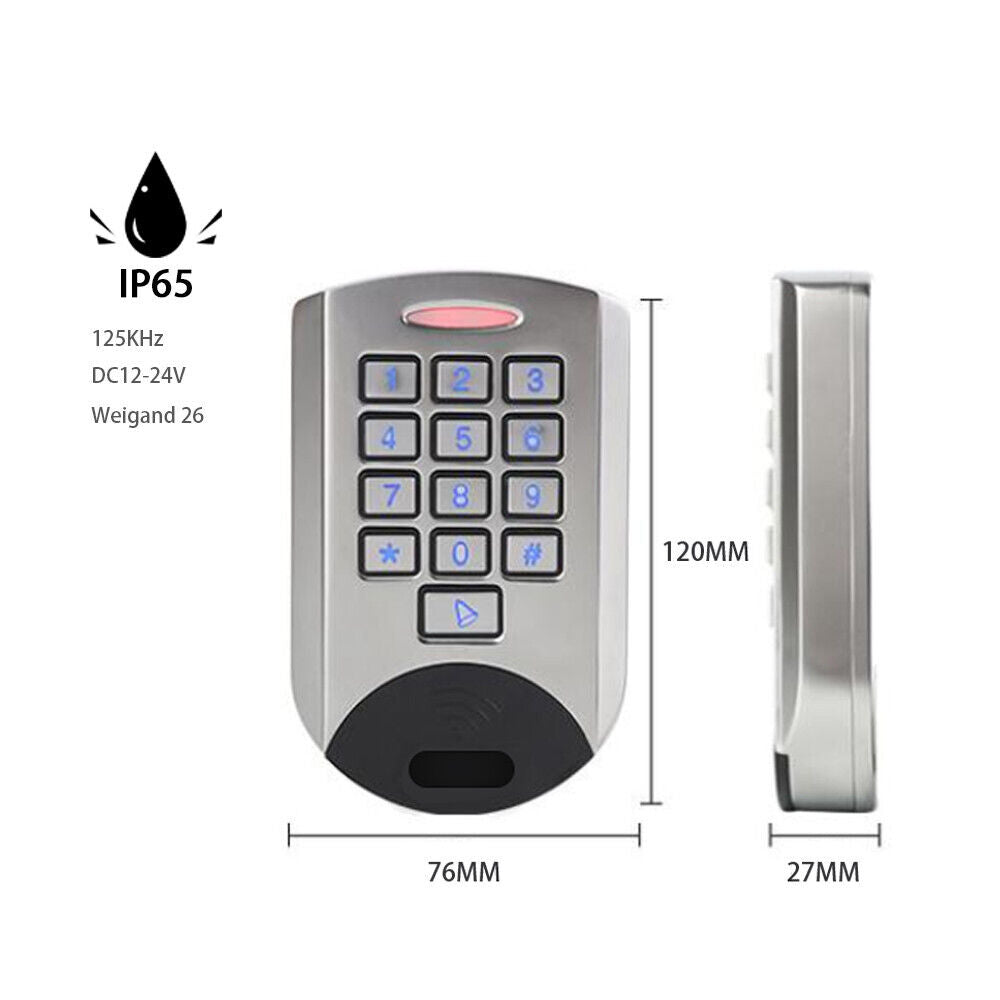

Dimension: L120mm×W76mm×H22m

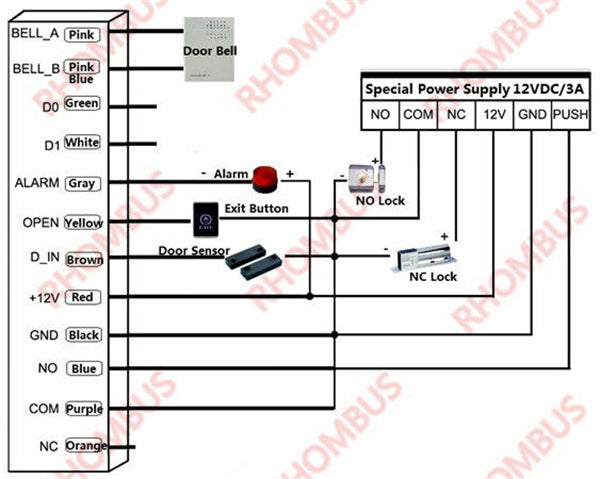

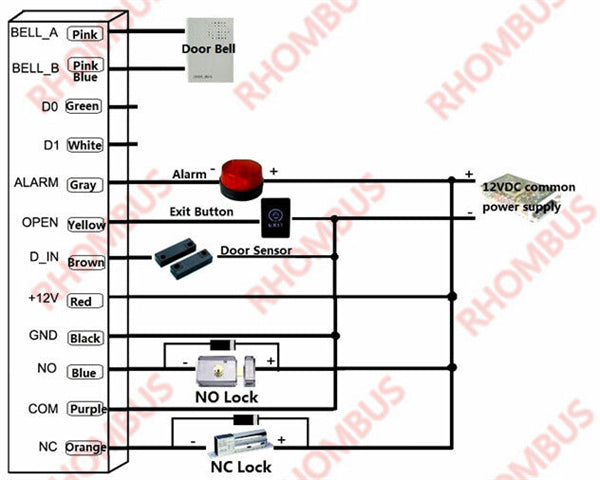

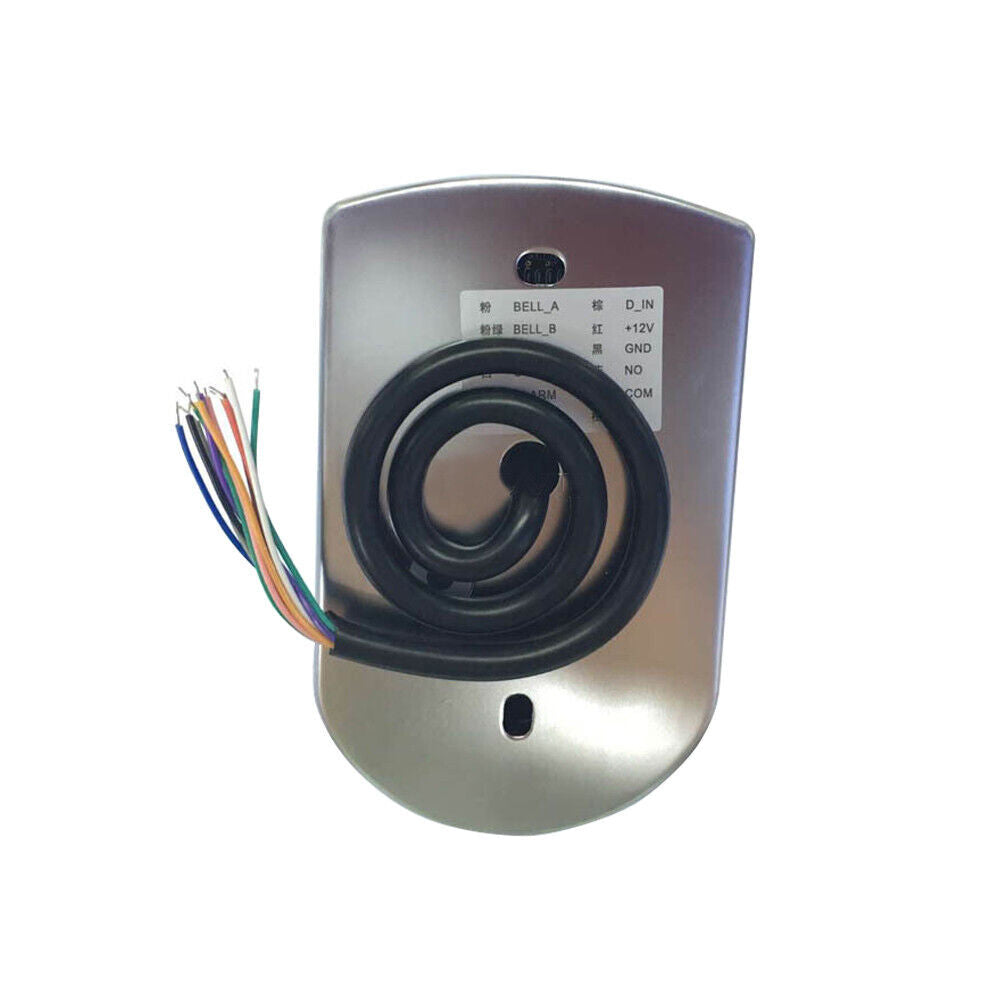

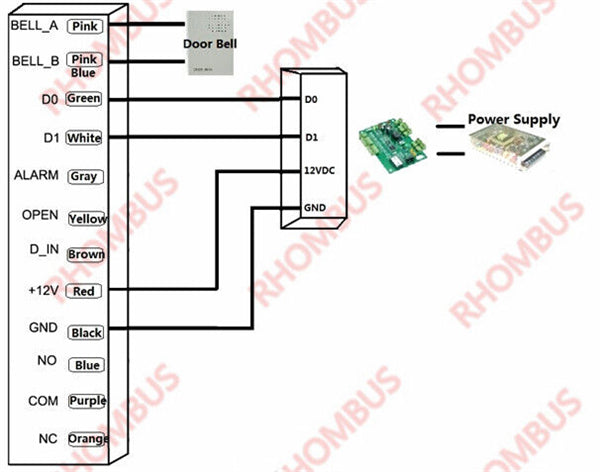

PIN description

Pink:BELL_A
Light green:BELL_B
Green:Data0
White:Data1
Grey:ALARM
Yellow:OPEN
Brown:D_IN
Red:+12V
Black:GND
Blue:NO
Violet:COM
Orange:NC
