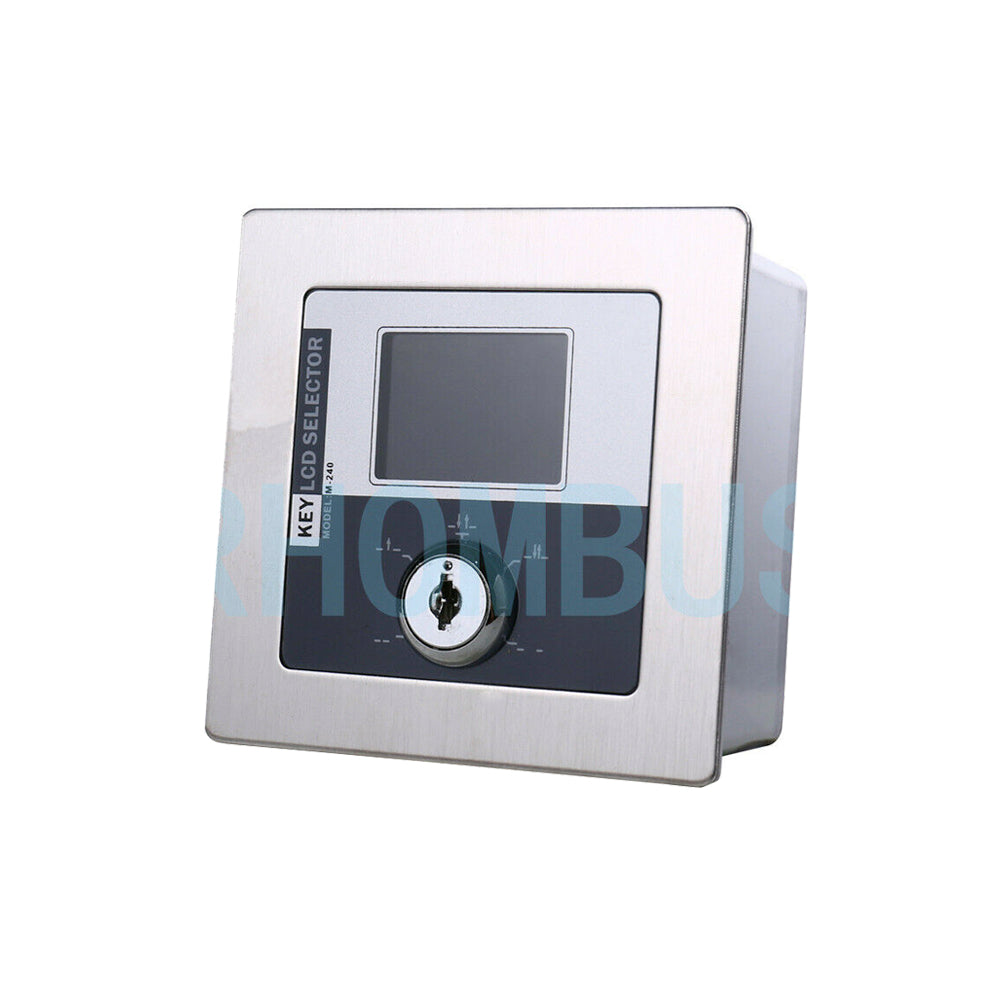

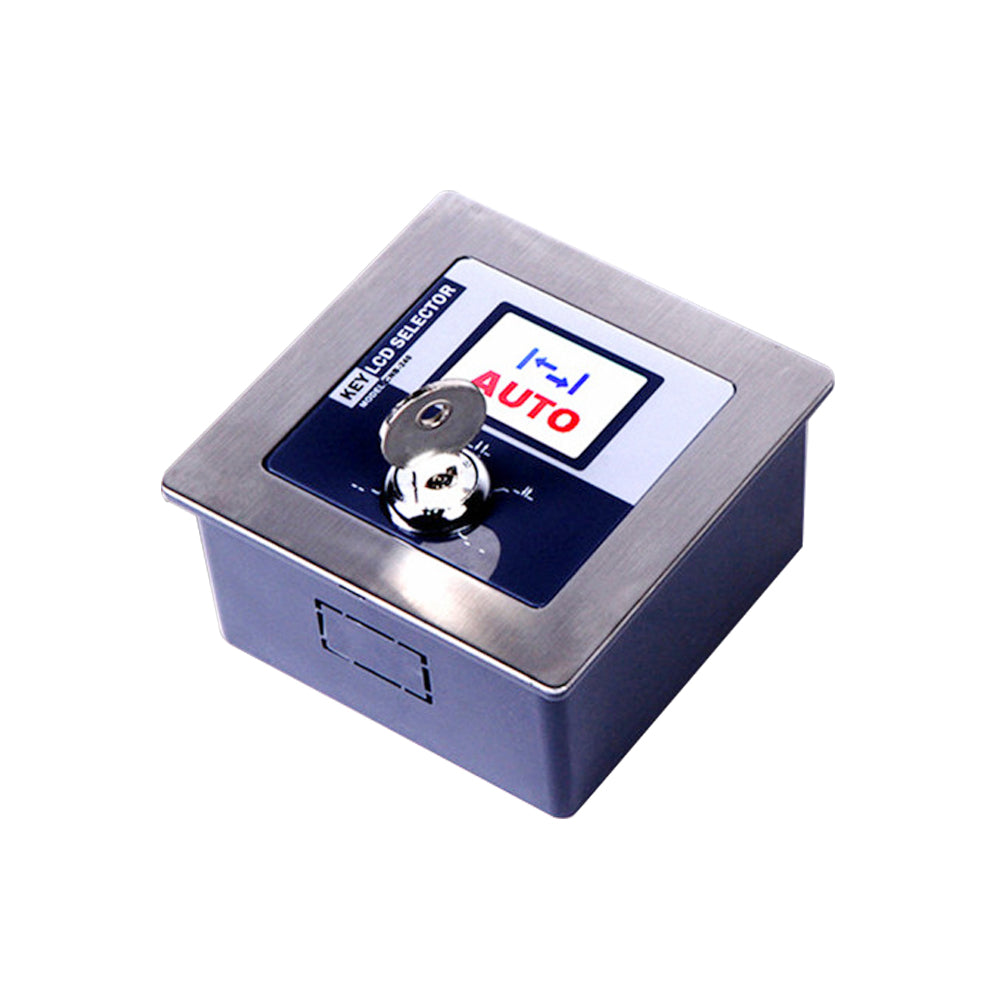

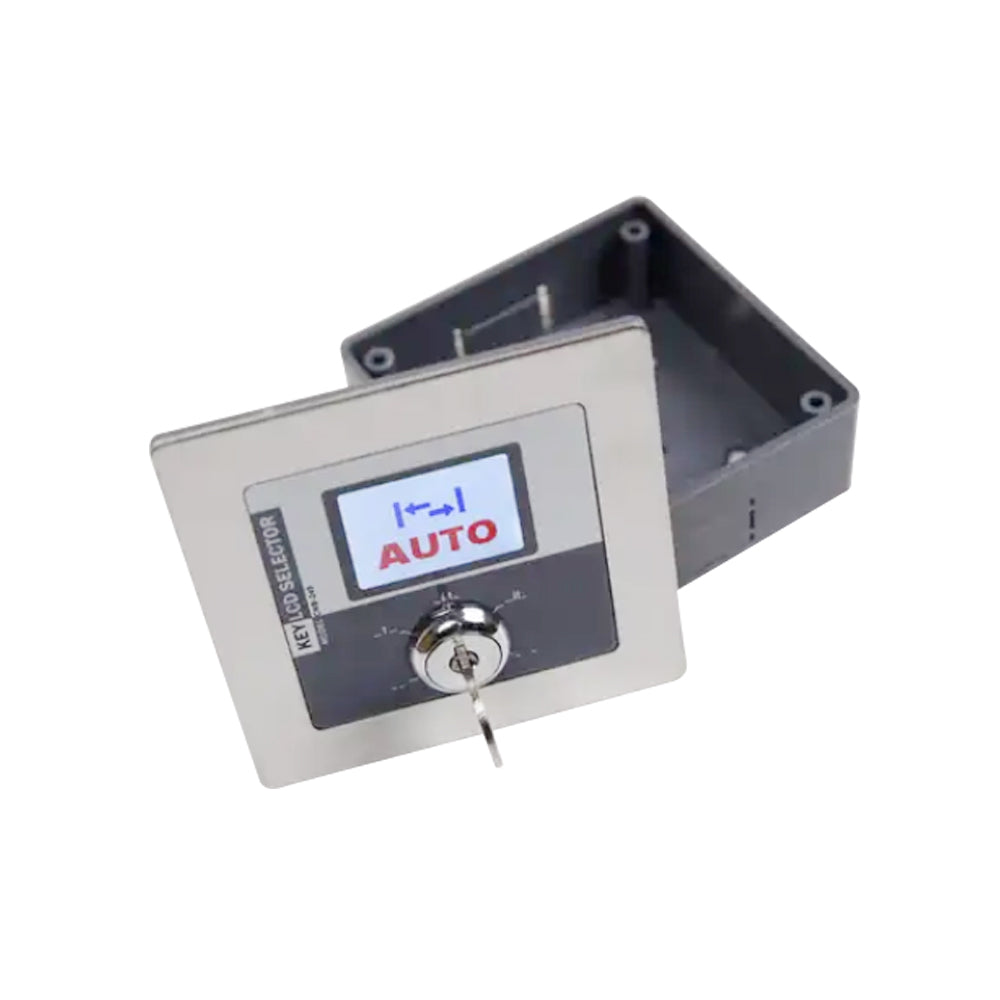

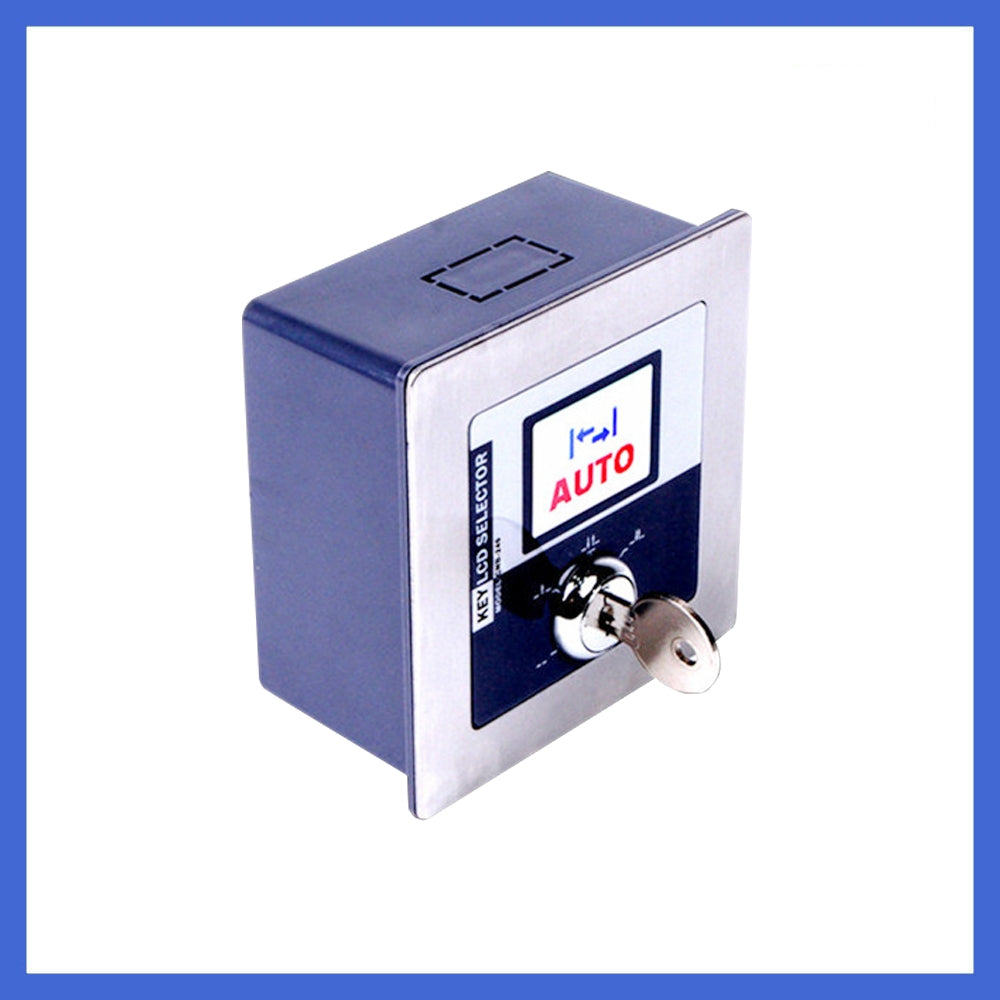

Stainless Steel Panel 5-Range LCD Key Selector Switch For Access Auto-Door

Feature:

• This product is unidirectional command switch for automatic door accessory using. Manually issue automatic/exit/lock/open/partial instructions to switch functions.
• Displaying corresponding instruction visually on different occasion.
• With TFT true color liquid display, special design with bottom panel, convenient for different installation.
• Adopt wide voltage to connect different power supply with outdoor controllers.

Function:

• AUTO: Internal and external probe are effective.Working hours with normal business
• EXIT: External probe is lose effectiveness and electric lock locked,automatically while external access controller and internal probe are available. Only insider can get in by swiping card. Internal probe is effective,people can get out. Be used for clearing up a gathering place.
• Partial: External and internal probes are effective. Door maintains half-open and shut back. Working hours with normal business.
• LOCK: All probe and access controller are lose effectiveness,electric lock locked automatically. People inside and outside can not enter in. Be used for preventing thieves at night or on holidays periods.
• OPEN: All probe and access controller are lose effectiveness. Door keeps fully open. For emergency using.

Technical Parameters:

• LCD Language: Chinese / English
• Input Power: AC/DC 18V-36V
• Mechanical working time: over 75000 times
• Function: 5 ranges
• Display Screen: TFT 34x25mm
• Dimension: 92(L)x92(W)x46(H) mm / 3.6(L)x3.6(W)x1.8(H) inch
• Hole Dimension: 85(L)x85(W)x43(H) mm / 3.3(L)x3.3(W)x1.7(H) inch
• Package weight: 290g

Package:

• 1 x LCD Key Switch
• 2 x Keys
