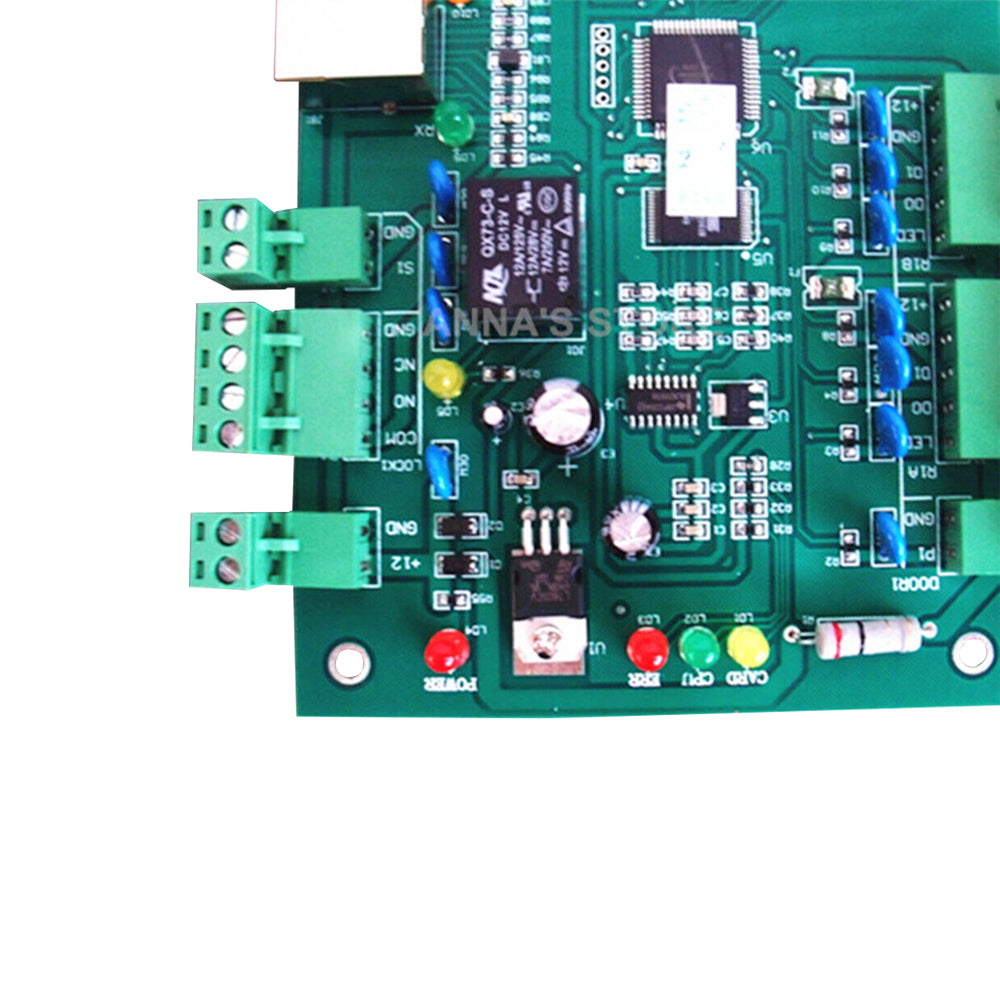

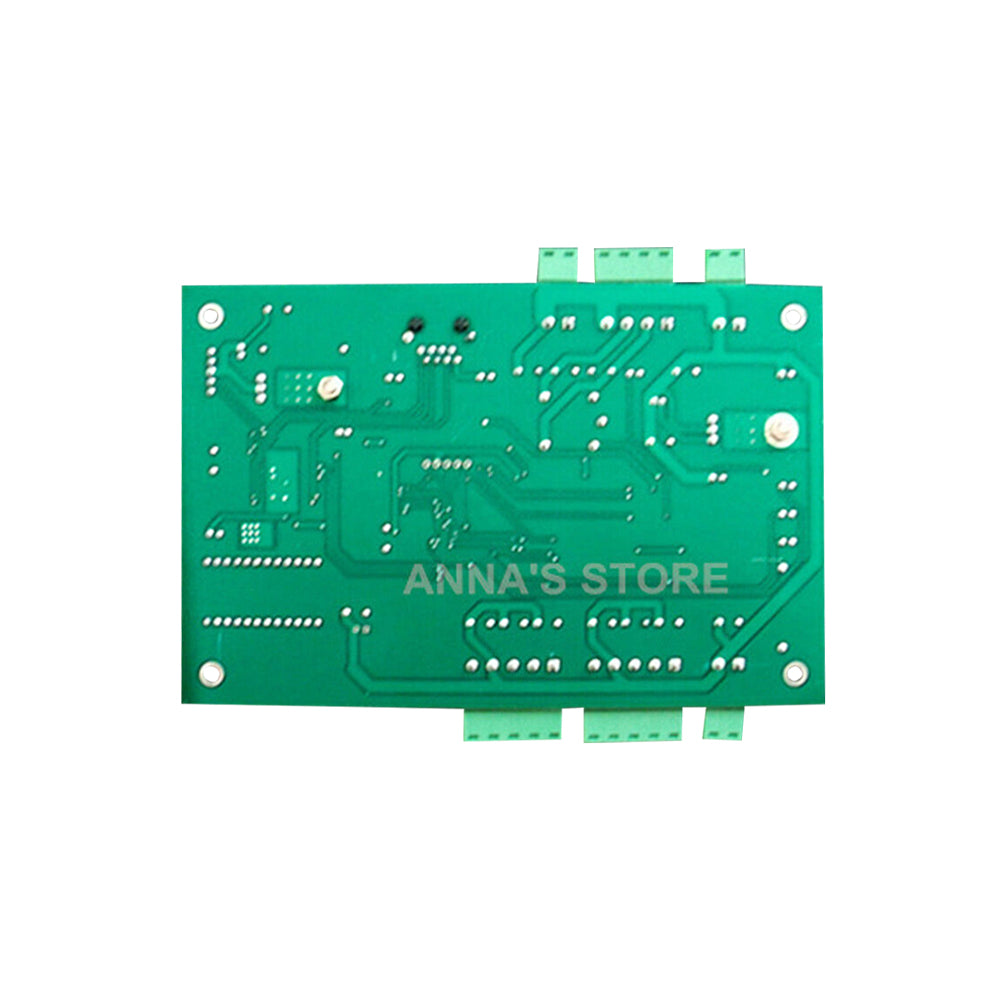

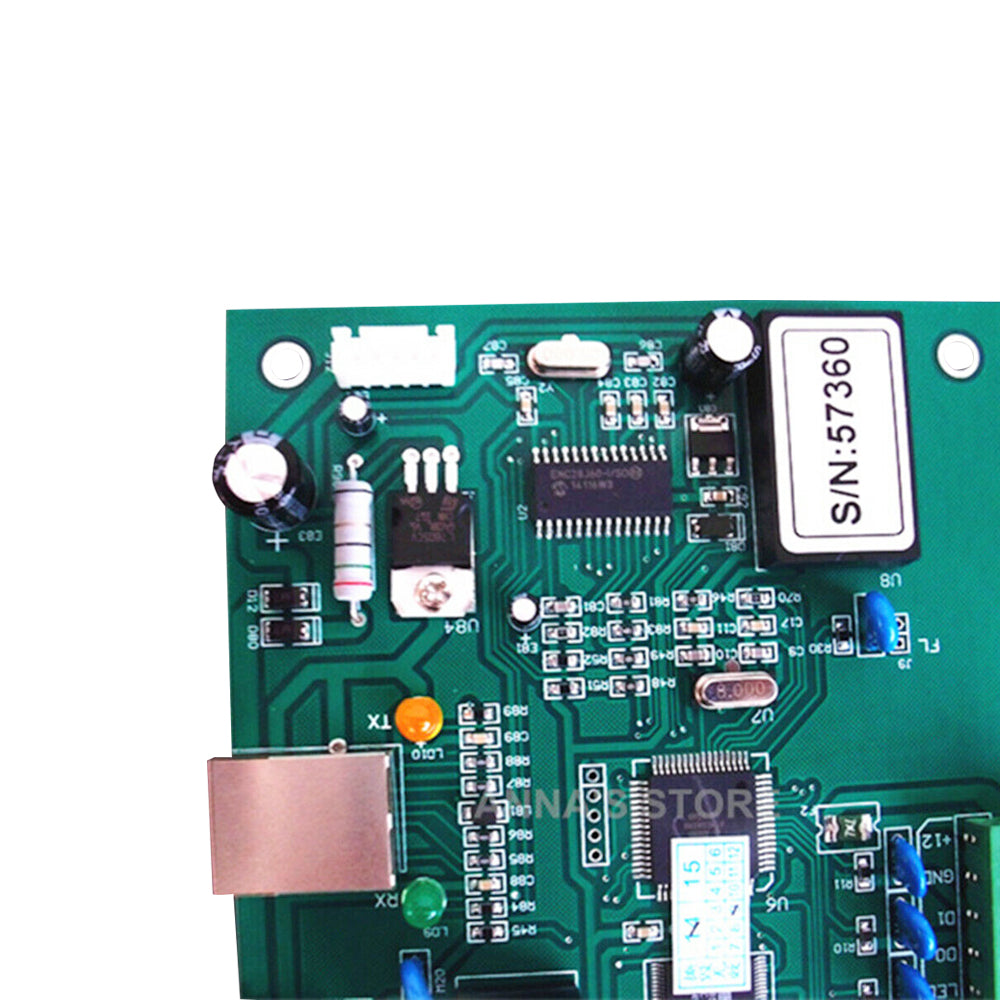

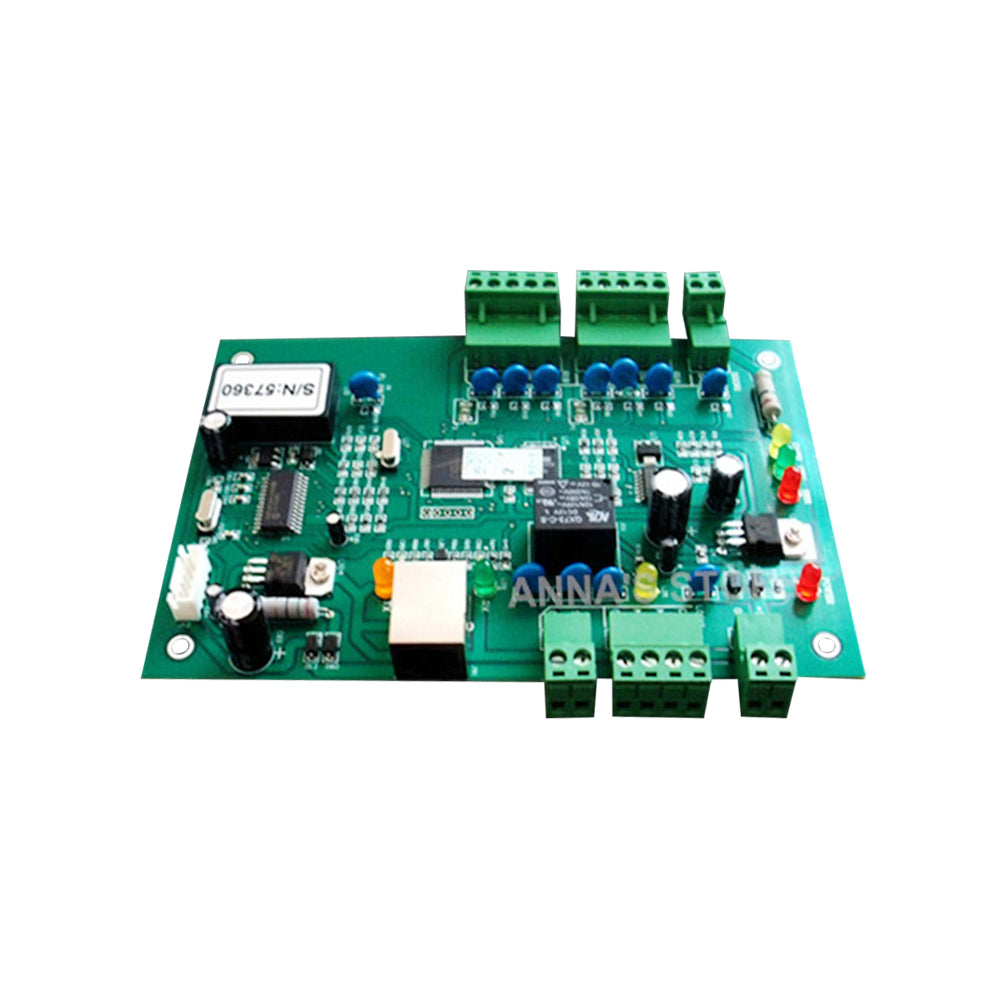

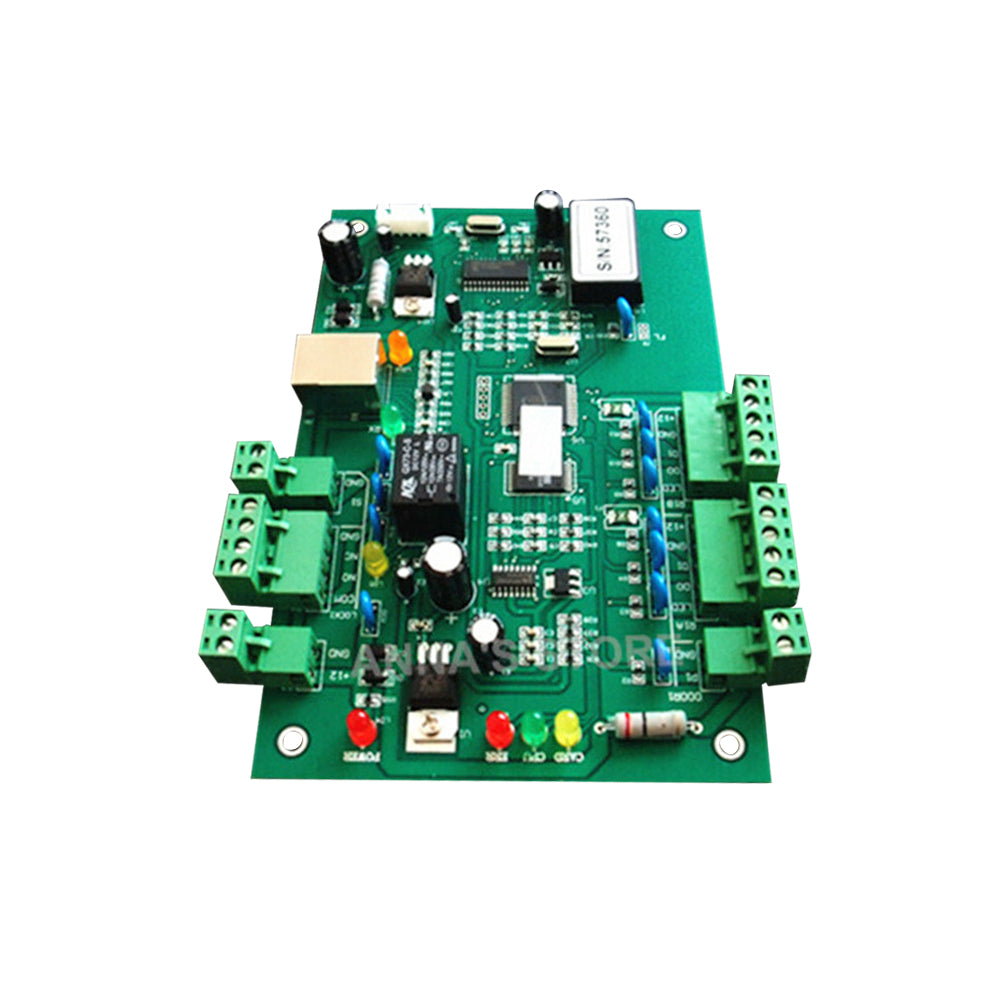

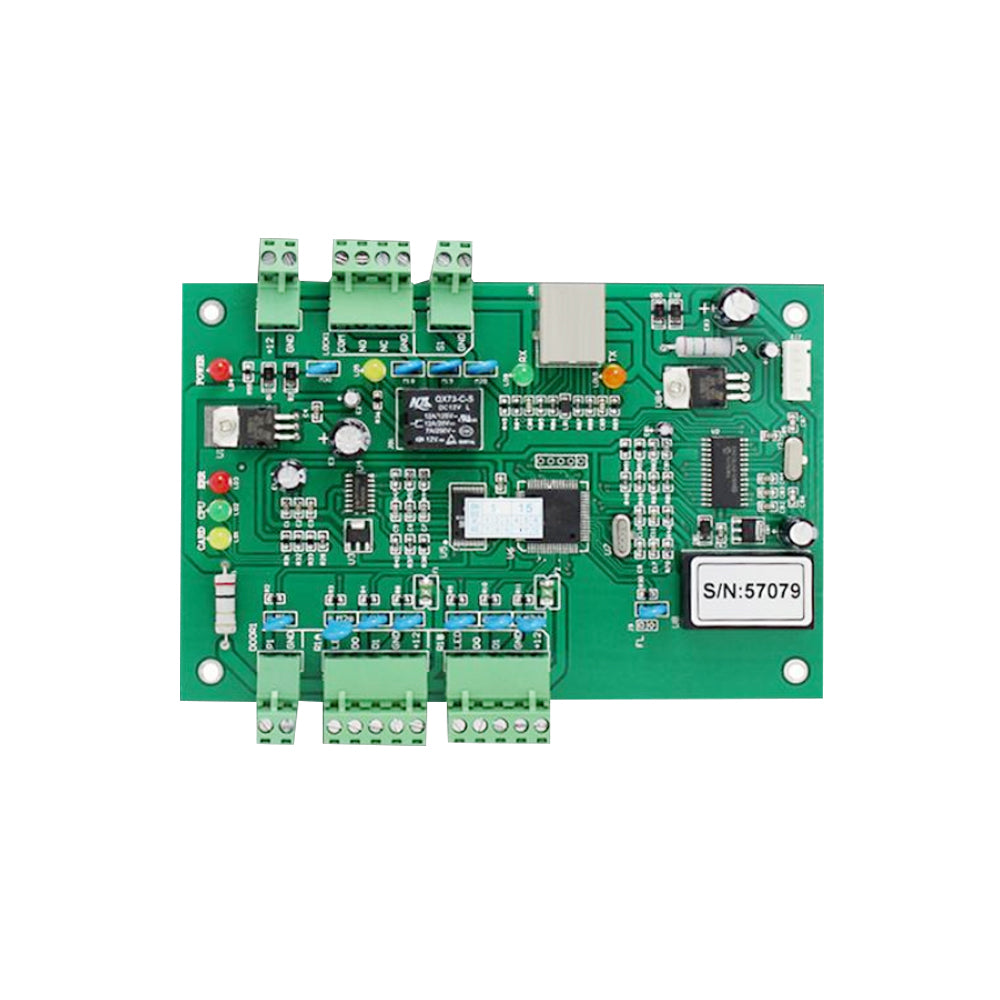

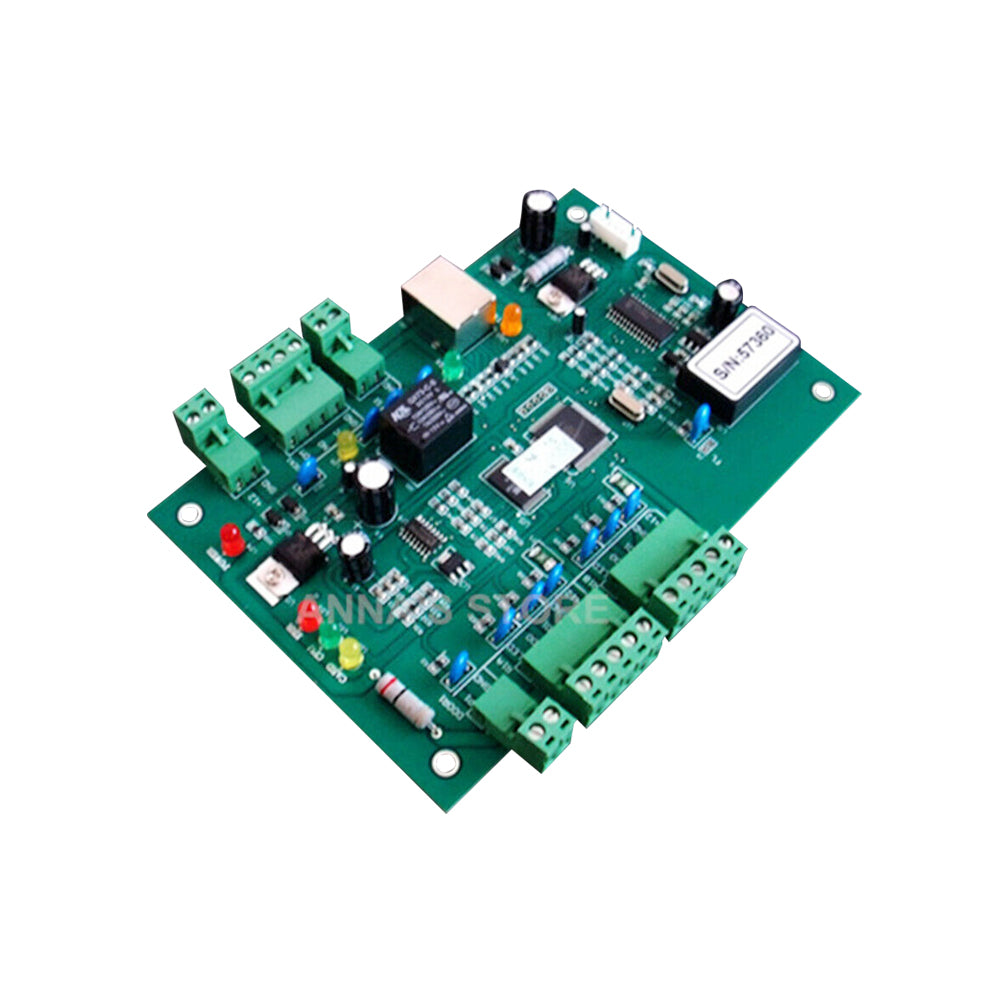

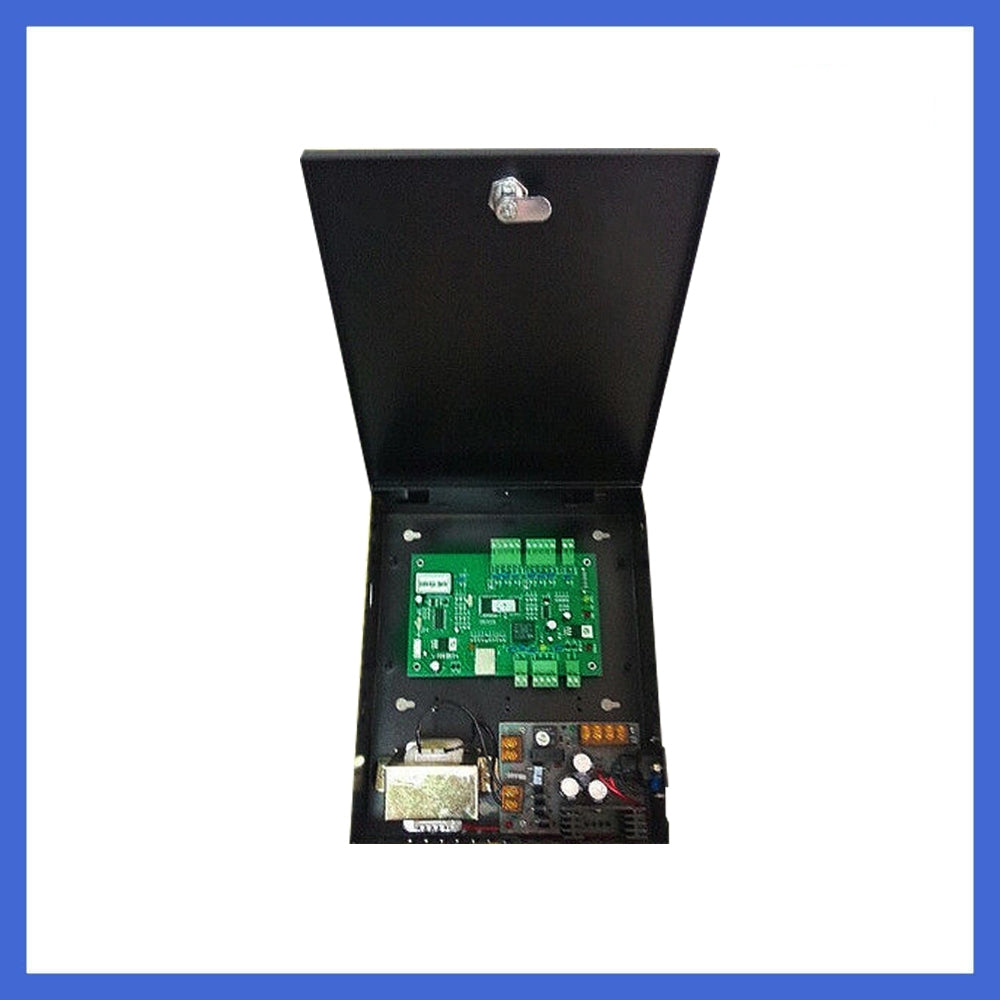

TCP/IP 1 Door 20K-Users 100K Records Access Controller w/iron box power supply
TCP/IP 1 Door 20K-Users 100K Records Access Controller w/iron box power supply
Обычная цена
$69.95 USD
Обычная цена
Цена со скидкой
$69.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Specification
| Preferences | Single Door/Bidirectional Controller | 2-Door/Bidirectional Controller | 4-Door/Unidirectional Controller |
| Model | WG2001.NET(This is it) | WG2002.NET | WG2004.NET |
| Software Download | Double click “setup.exe”.Username:ABC,Password:123 | ||
| Registration code:2004 | |||
| Extended functions password:5678 | |||
| Communications | TCP/IP 10M/100M Self-adaptive | TCP/IP 10M/100MSelf-adaptive | TCP/IP 10M/100MSelf-adaptive |
| Description | One door,Card enter,Card or button exit | 2 doors,Card enter,Card or button exit | 4 doors,Card enter,Button exit |
| PCB Dimensions | 160mm *106mm | 160mm *106mm | 160mm*106mm |
| Iron Box Dim | 273mm*228mm*65mm | ||
| Power Supplier | 12VDC 4-7A | ||
| Current | <100mA | ||
| Acceptable Card Readers' Format | Wiegand 26bit or 34bit(optional by hardware switch,default is 26bit) | ||
| Extensible Card Readers | 2 | 4 | 4 |
| Door(s) for control | 1 | 2 | 4 |
| Delay | 1-600 seconds adjustable | ||
| Max units online | Unlimited | Unlimited | Unlimited |
| Note:"N" means quantity of Com ports or RS485 Hub's ports | |||
| Working Temperature | -40 ~70 Centigrade | ||
| Working Moisture | 10-90%RH | ||
| Max Users Quantity | 20,000 | ||
| Event records quantity | 100,000 | ||
| Power off Protection | High speed flash memory,keep data safe without power | ||
| Max Distance from Reader to Controller | Max to 100M | ||
| Max Distance from Controller to PC | RS485:Max to 1,200M,Reliable value 1,000M,can be extended up to 3000 M by RS485 relay. | ||

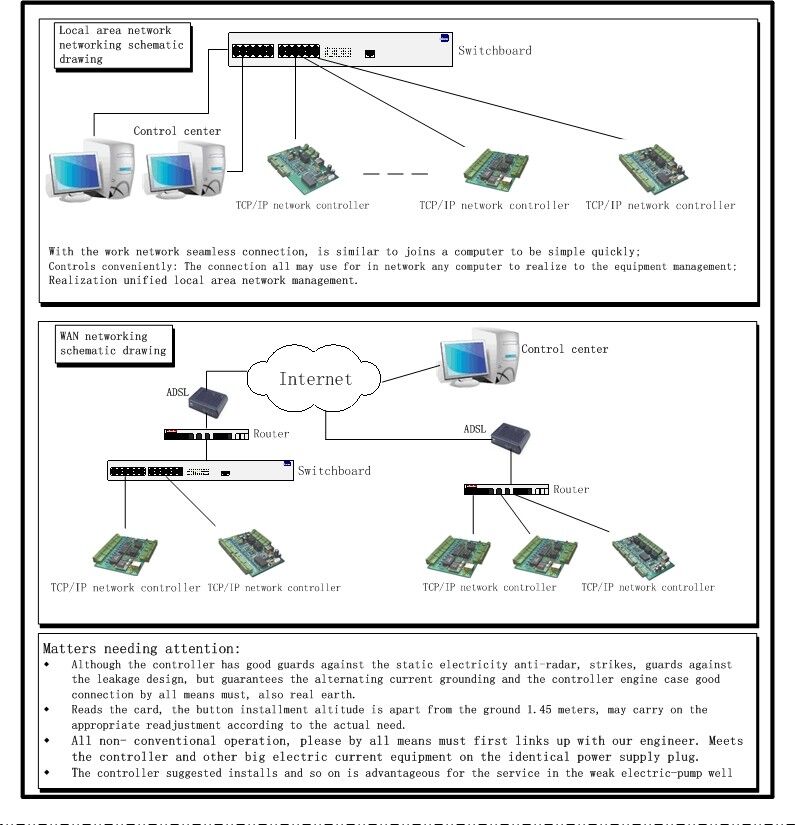

| TCP/IP:According to the network coverage | |||
| Accessories | PCB*1pcs,CD*1pcs,Manual*1pcs,Certificate*1pcs,Carton * 1pcs | ||
| Alarm when:Door un-closed overtime,unlawful entry or being Threatened | yes | yes | yes |
| Fire protection &Alarm Trigger | If theft or fire occurs,the software can alarm by PC's speaker.If the controller contact to "alarm external | ||
| module",it can also drive the alarm Siren, | |||
| Hold the door open/closed by software | yes | yes | yes |
| Remote open by software | yes | yes | yes |
| Programmable Interrelation of doors condition(open/closed) | yes | yes | |
| Note:you can setup the interrelation between the doors Arbitrarily,such as "only when door A is open &door B is closed,Door C can be openned" | |||
| Anti go back convertly,Anti followed | yes | yes | |
| Note:This function means if a card has already exited,it can not exit again without enter. | |||
| Multi-card open | yes | yes | yes |
| Note:A door can be openned only when 2 or more cards are read(multiple persons are present). This function maybe useful for very important place. | |||
| programmable time of hold open | yes | yes | yes |
| Note:can setup the door hold open at a specified time,maybe useful during the period of going to work every morning | |||
| Electrical Map | yes | yes | yes |
| Note:Can easily know your doors' condition vividly from the software. | |||
| Urgently close Both enter&exit | yes | yes | yes |
| Note:The door(s) can be hold closed,refuses both enter and exit in case of theft or other accident occurs. | |||
| Initial Card | yes | yes | yes |
| Note:If Initial Cards was activated,Only after Initial card is read,Other user cards can be available. | |||
| validate from both side | yes | yes | yes |
| Note:Door can be set to openned only when card reading from both outside and inside of the door. | |||
| Extensible pin code RFID reader | yes | yes | yes |
| (card+pin code/super password) | Note:Door can be set to openned only when both card reading and pin code pressed. | ||
