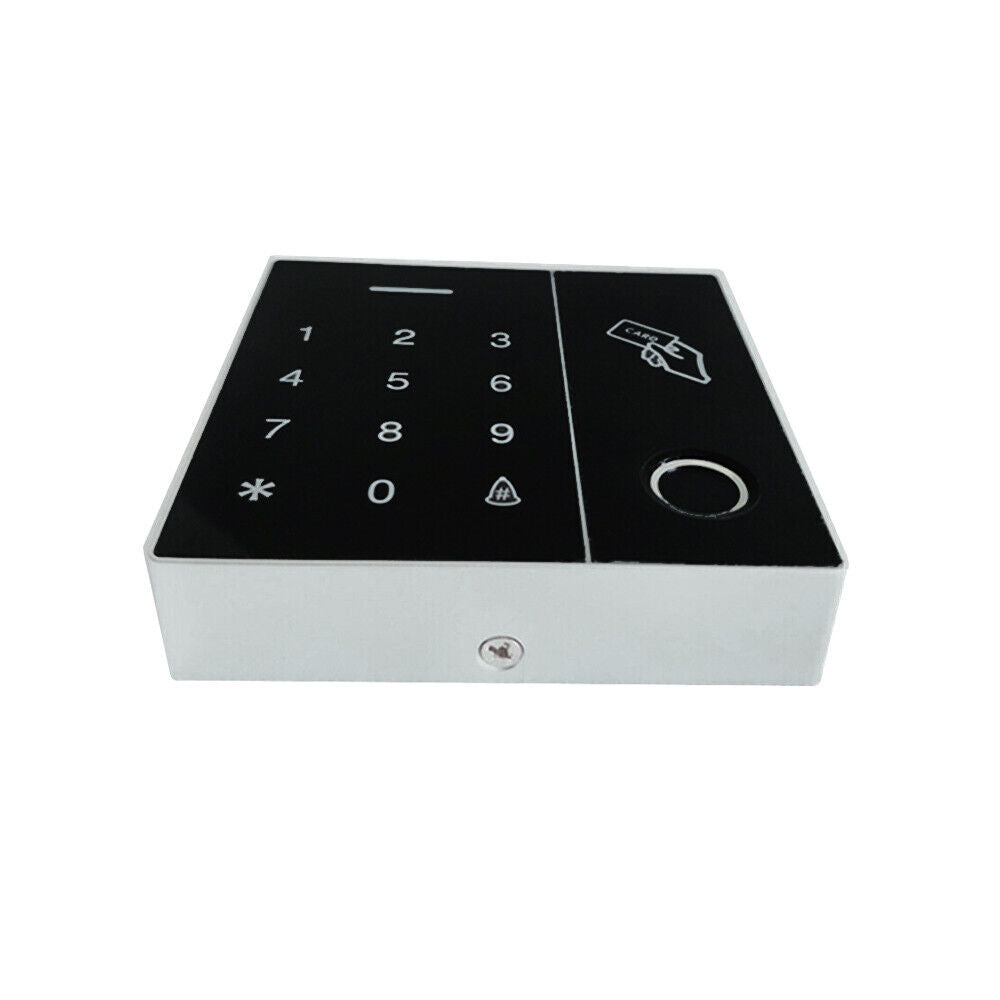

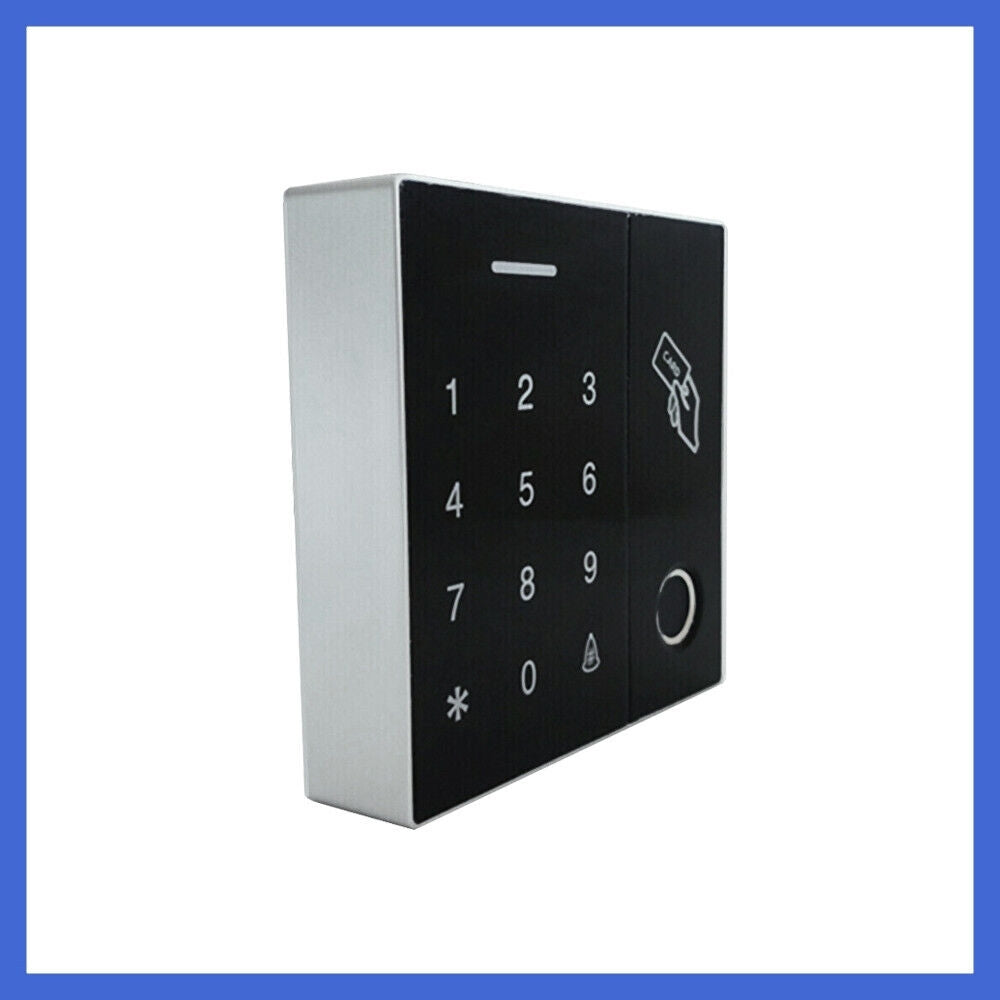

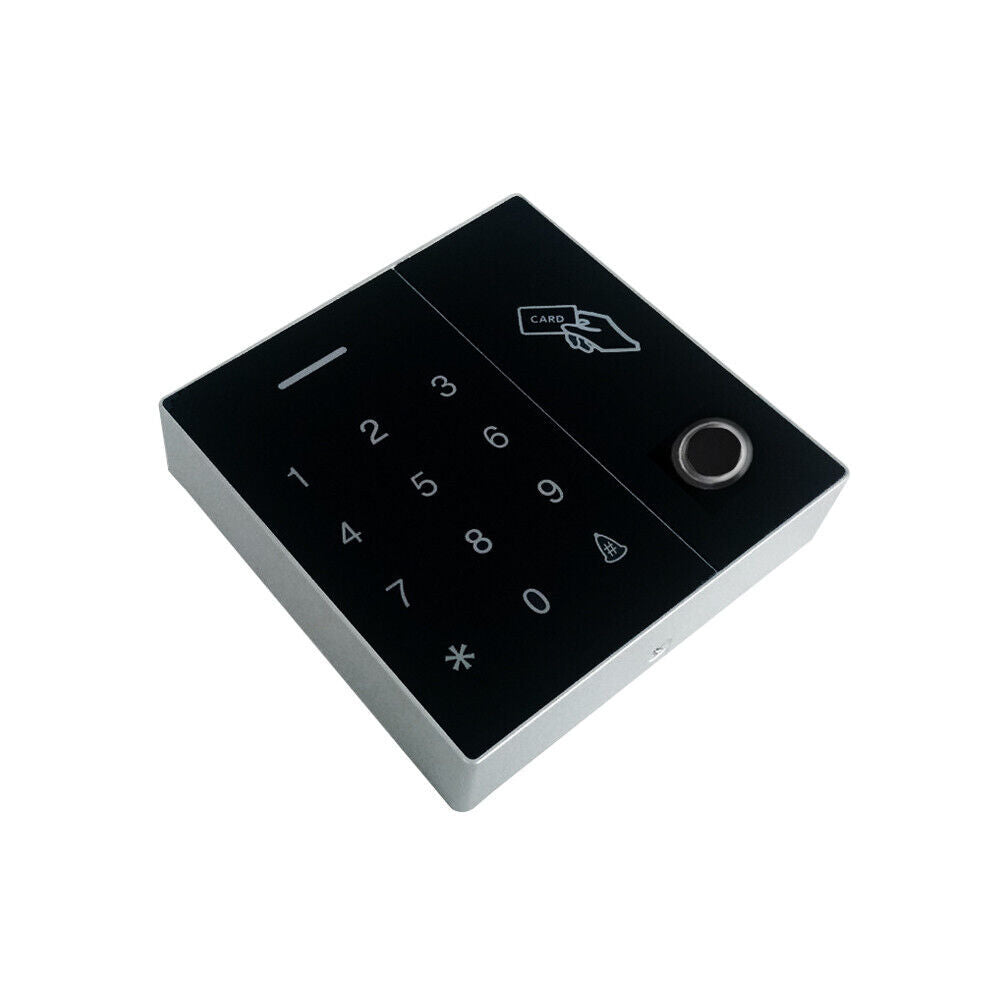

Touch Keypad Fingerprint EM4100 125Khz reader Ext Standalone Access Control
Touch Keypad Fingerprint EM4100 125Khz reader Ext Standalone Access Control
Обычная цена
$29.49 USD
Обычная цена
Цена со скидкой
$29.49 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Techincal Parameters
- Operating Voltage：DC12V ;
- Stand-by current：≤30mA;
- Frequency：125KHz
- Card type:EM 4100/4102 125Khz ID CARD
- Reading distance:3～9cm;
- User storage:2000;
- Fingerprint user:230
- Ambient temperature:-35℃～60℃;
- Electric lock output:≤2A;
- Alarm Output:≤1A;
- Opening time:0～99s adjustable (factory default is 5 seconds);

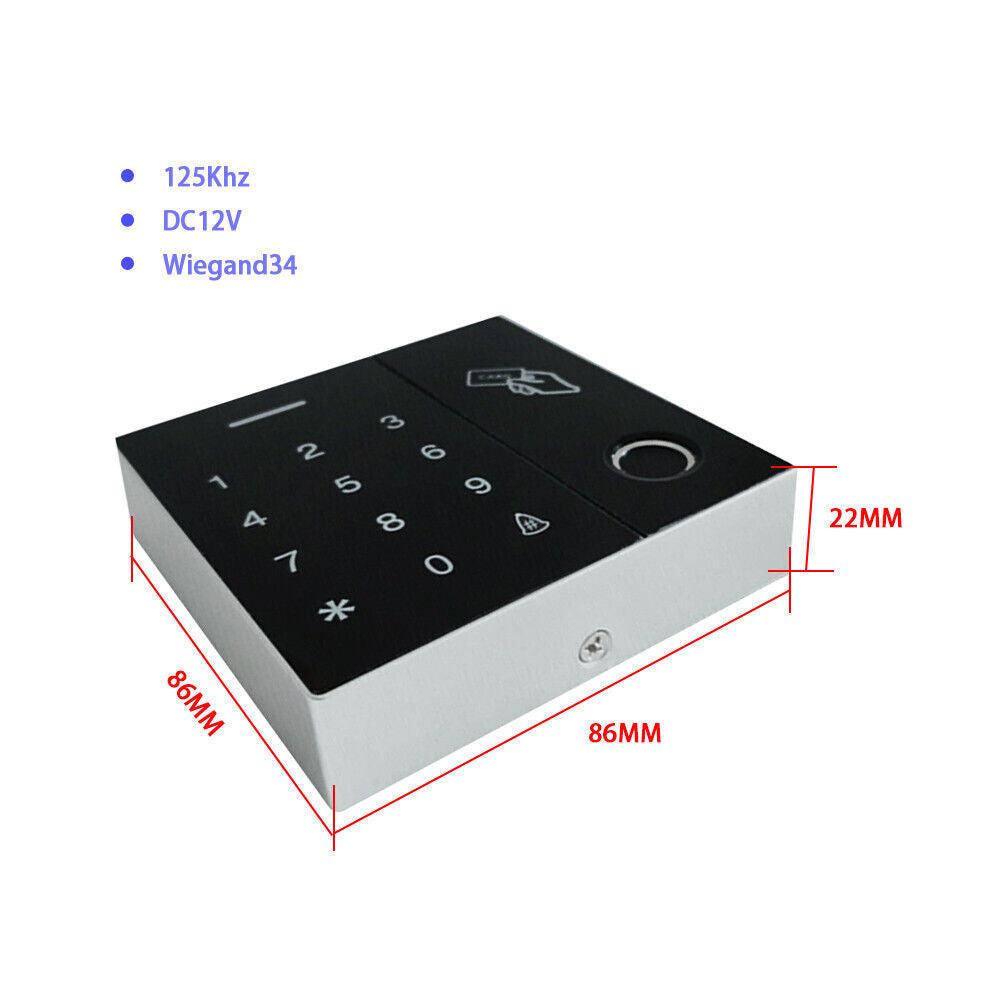

- Size:86*86*22mm ;

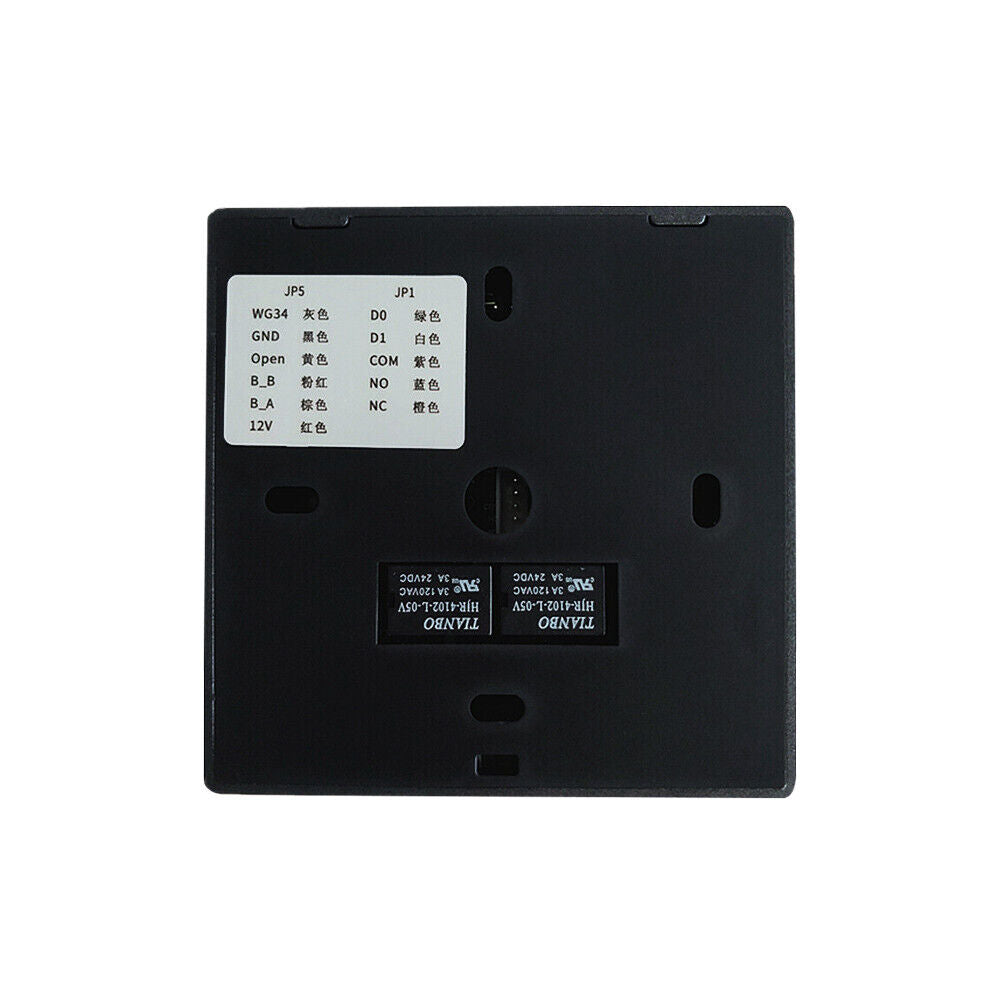

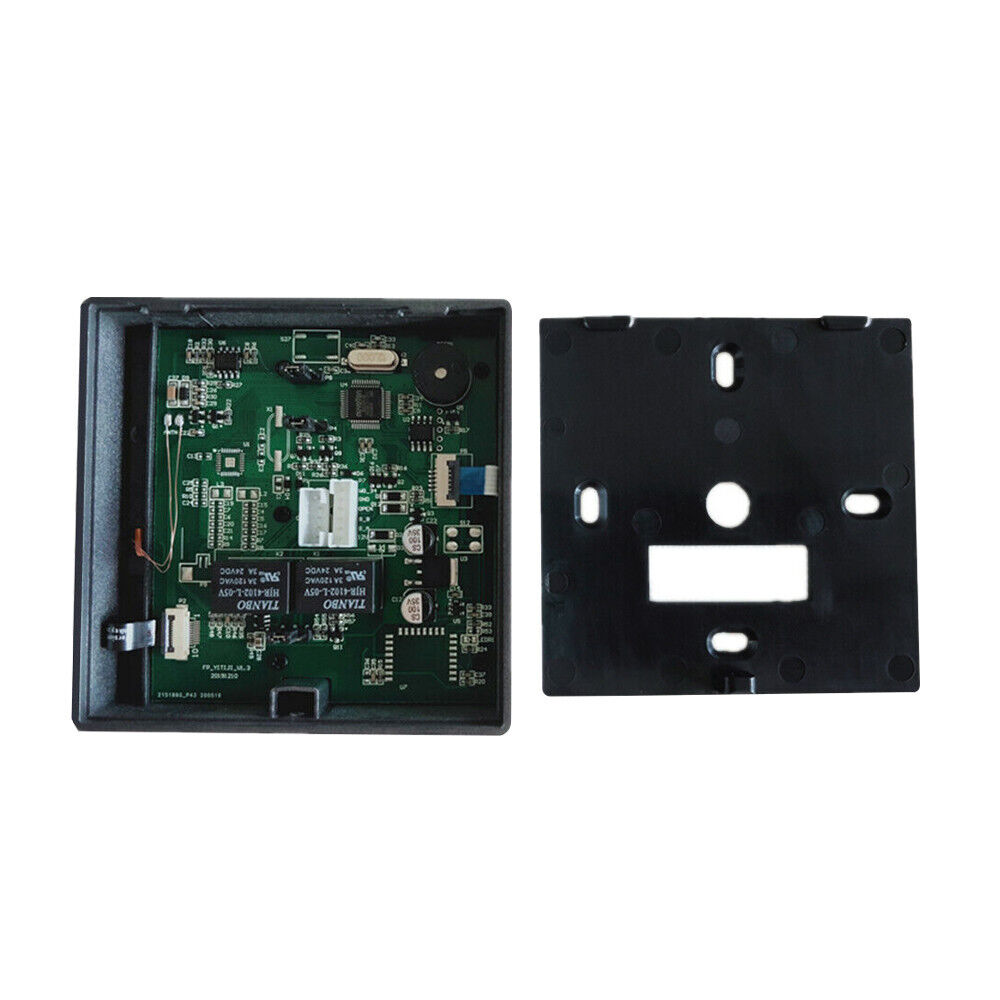

PIN description
|
NO |
Line |
Mark |
Color |
Function |
|
P5 |
||||
|
P5
|
1 |
WG34 |
gray |
WG34 |
|
2 |
GND |
black |
GND |
|
|
3 |
OPEN |
yellow |
EXIT Button GND |
|
|
4 |
B_B |
Pink |
Bell |
|
|
5 |
B_A |
brown |
Bell |
|
|
6 |
12V |
red |
DC12V-24VDC |
|
|
P1 |
||||
|
P1 |
1 |
D0 |
green |
D0 |
|
2 |
D1 |
white |
D1 |
|
|
3 |
COM |
purple |
COM |
|
|
4 |
NO |
blue |
NO |
|
|
5 |
NC |
Orange |
NC |
|
Wiring diagram

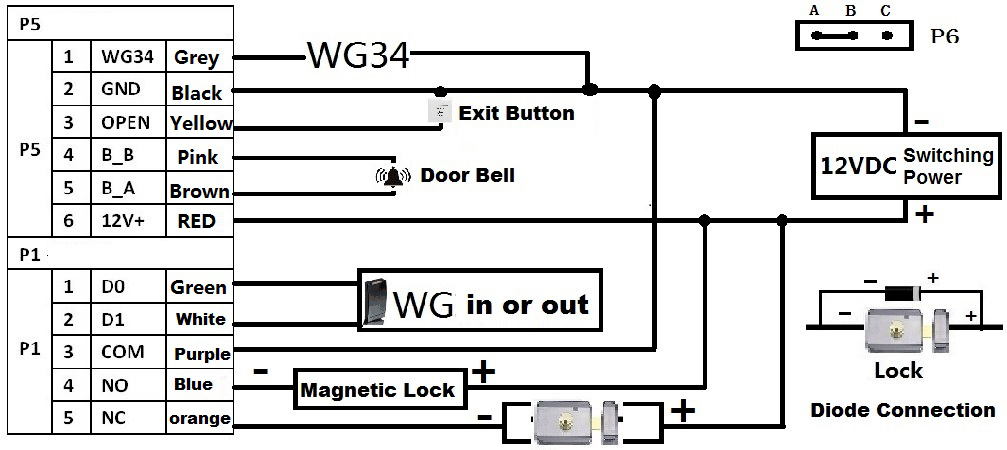

Switching power supply wiring diagram (Note: The relay signal setting motherboard P6 jumper end A and B feet are connected with jumper cap)
Access control special power wiring diagram (Note: The level output settings of the mainboard P6 jumper end B and C are connected with a jumper cap)

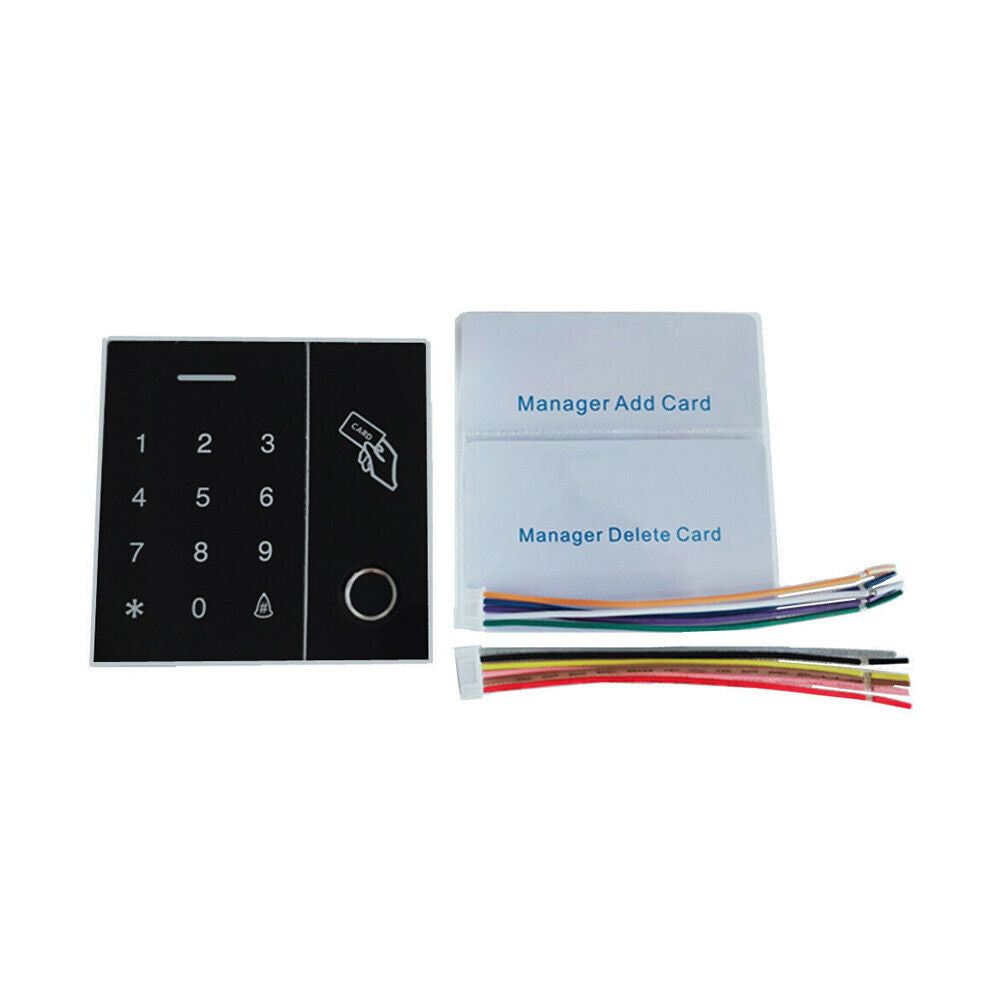

Package：
- 1 x standalone access control
- 1 x 5pin cable
- 1 x 6pin cable
