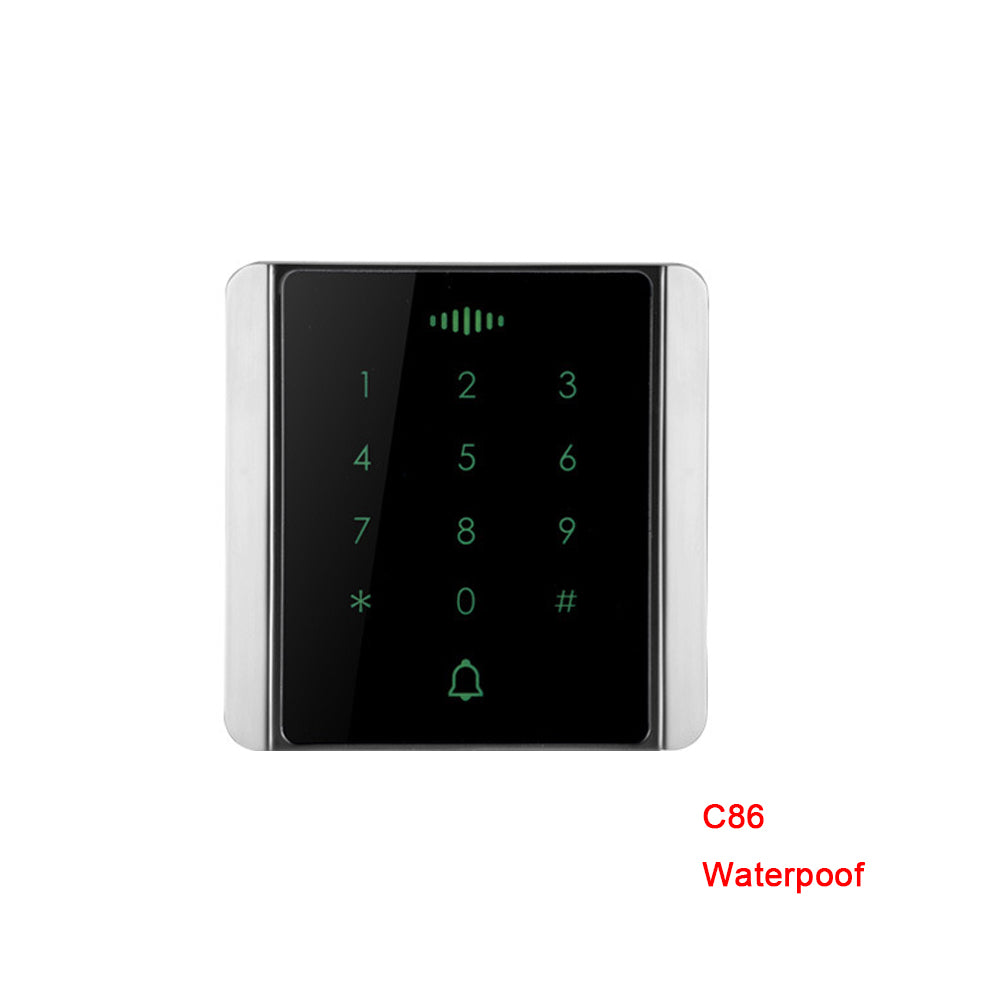

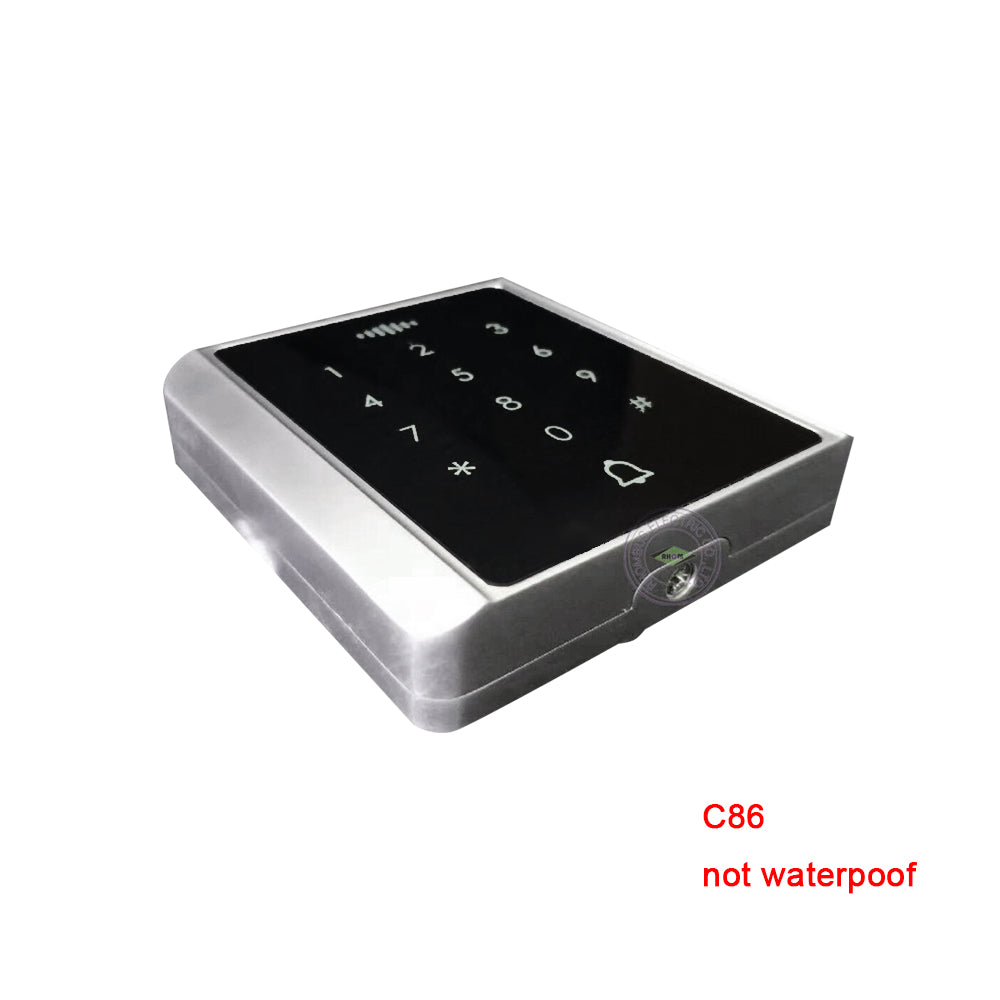

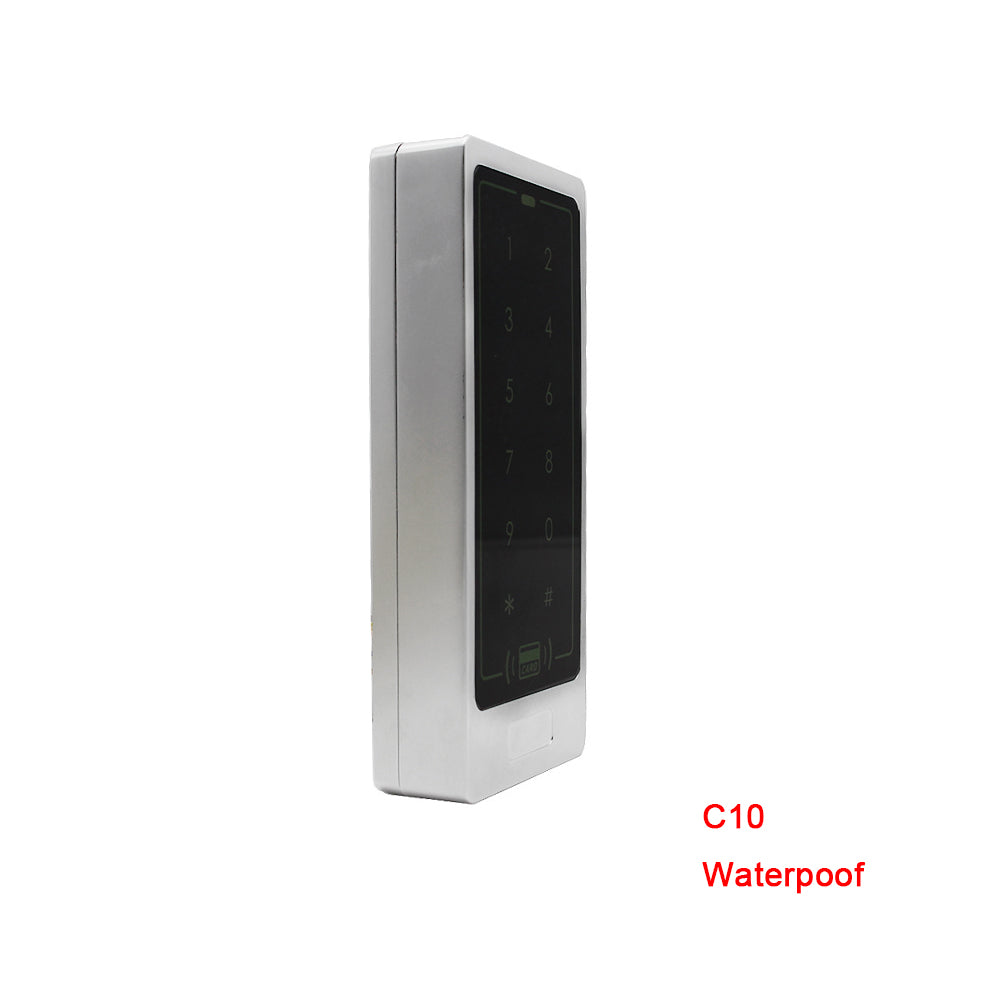

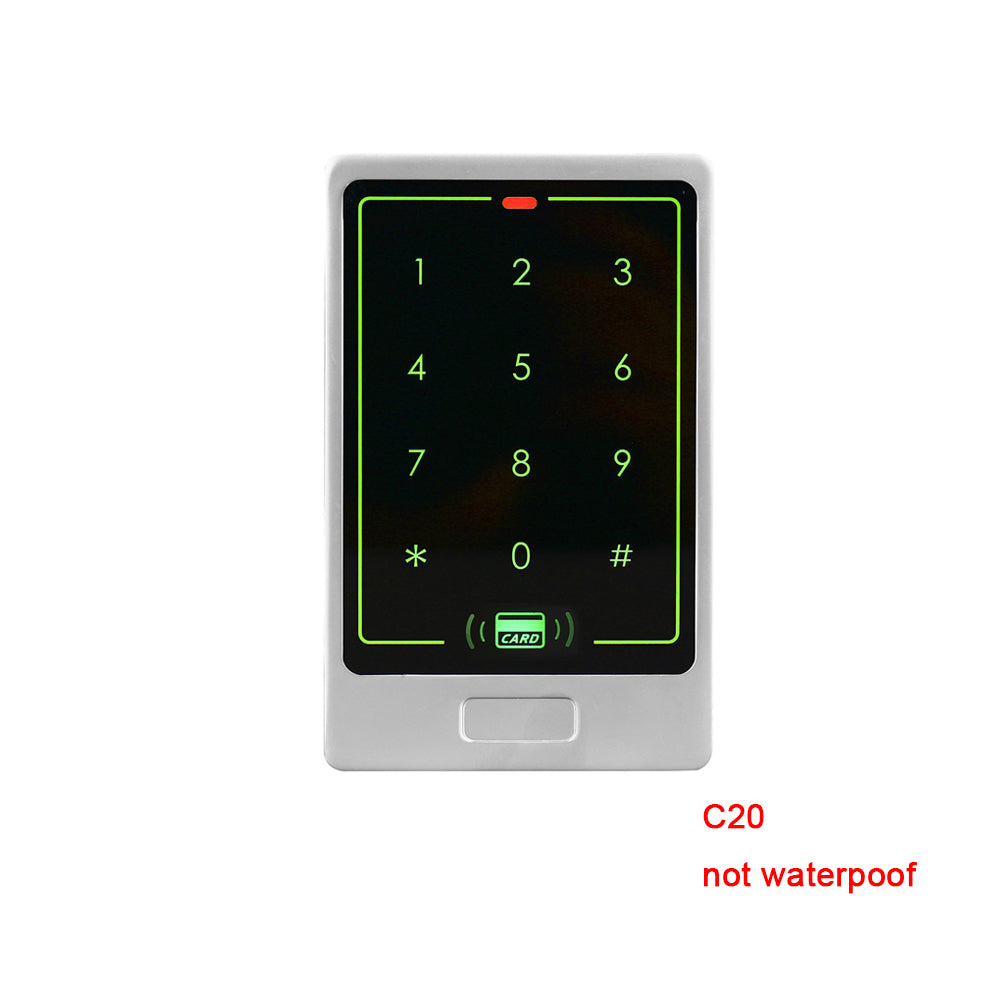

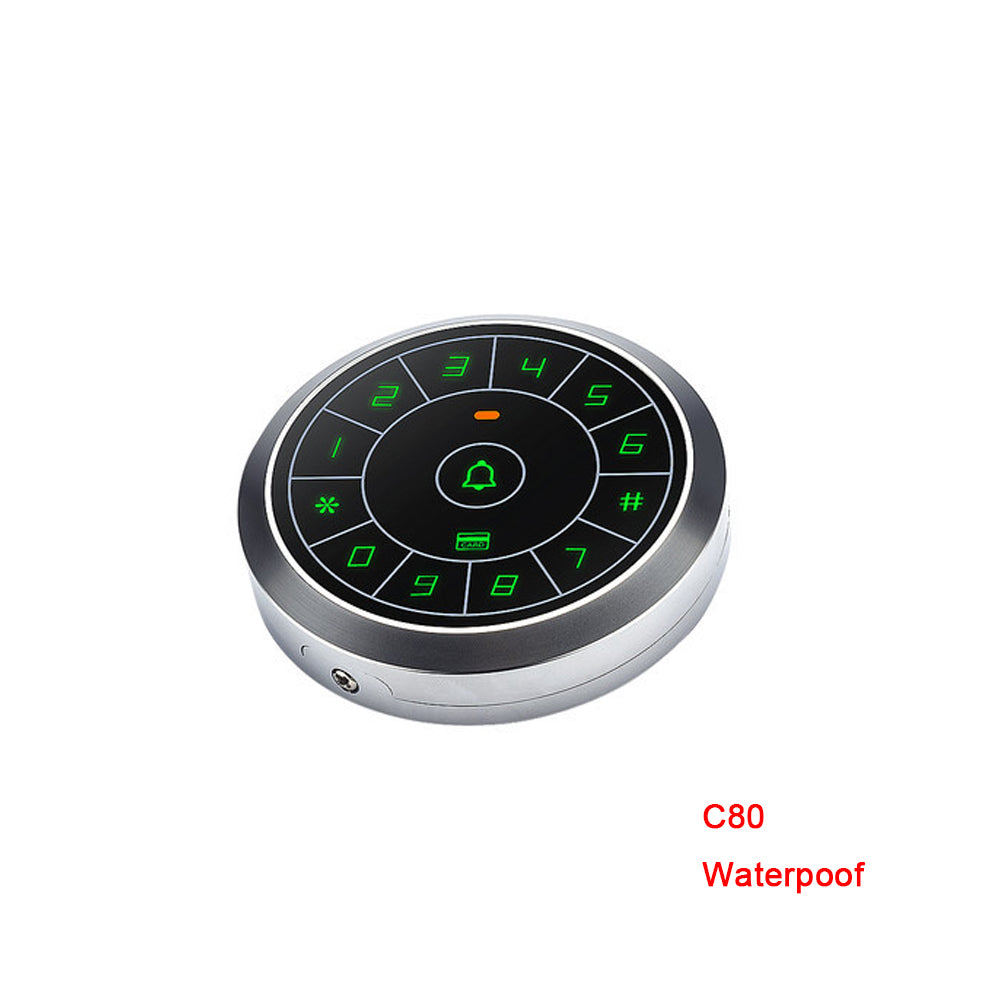

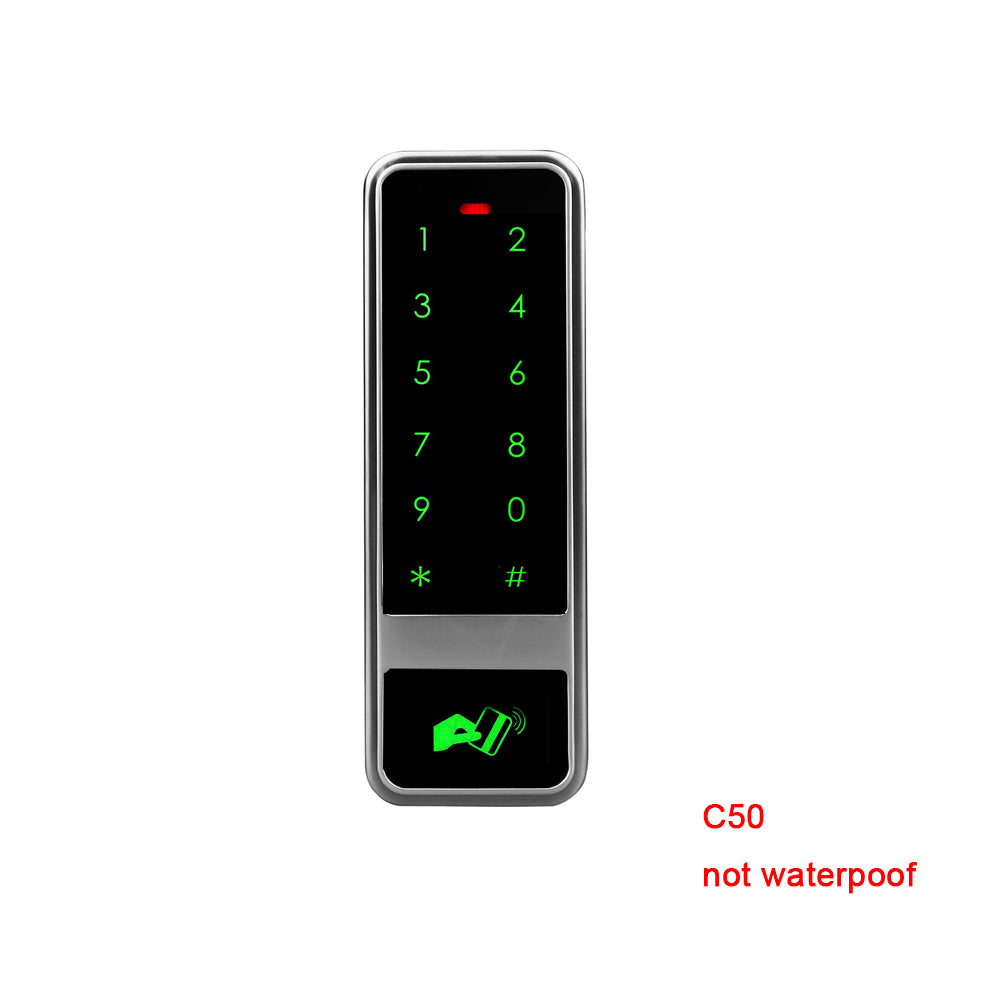

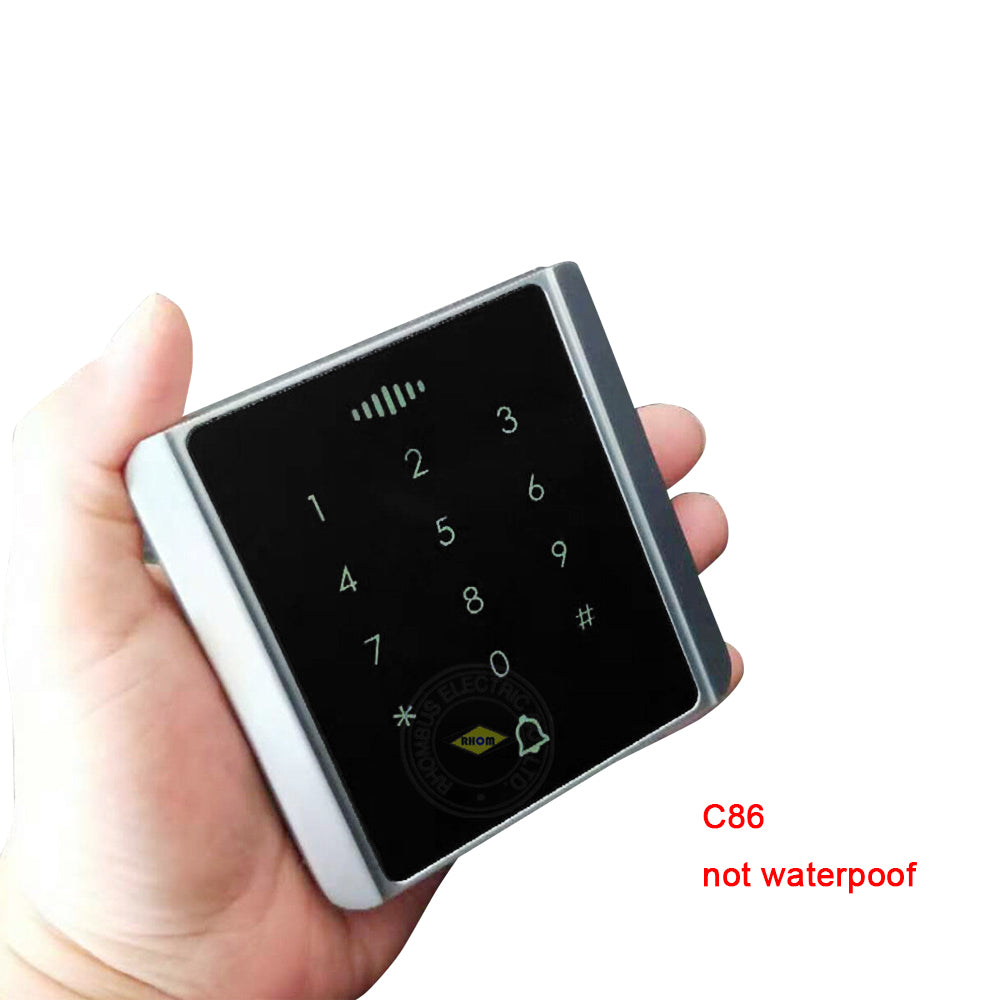

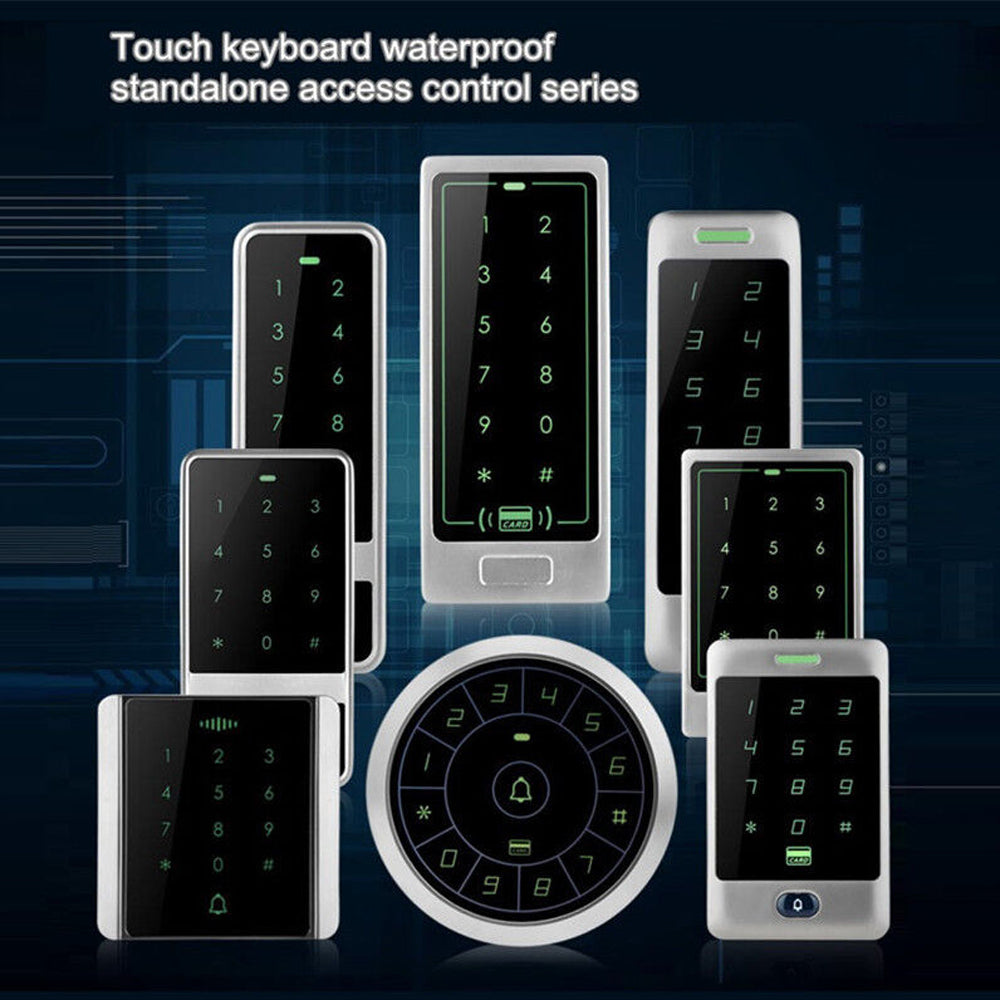

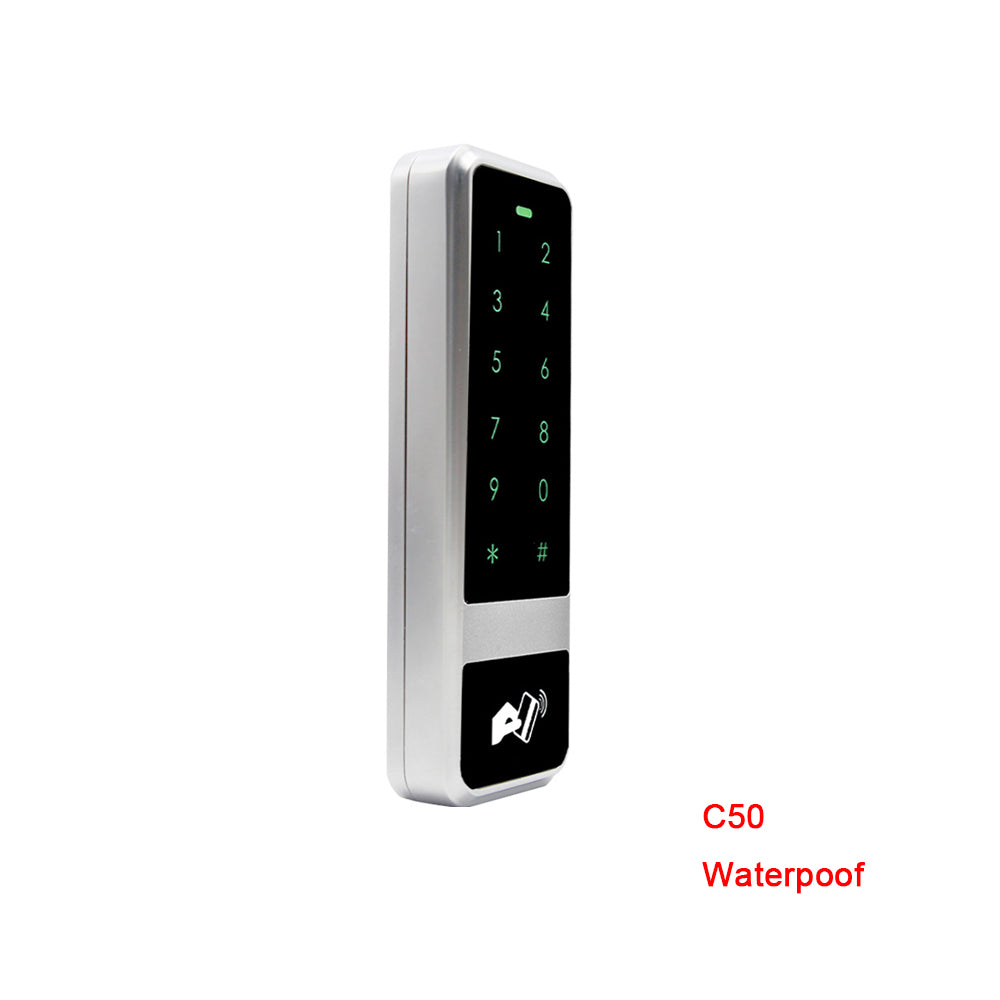

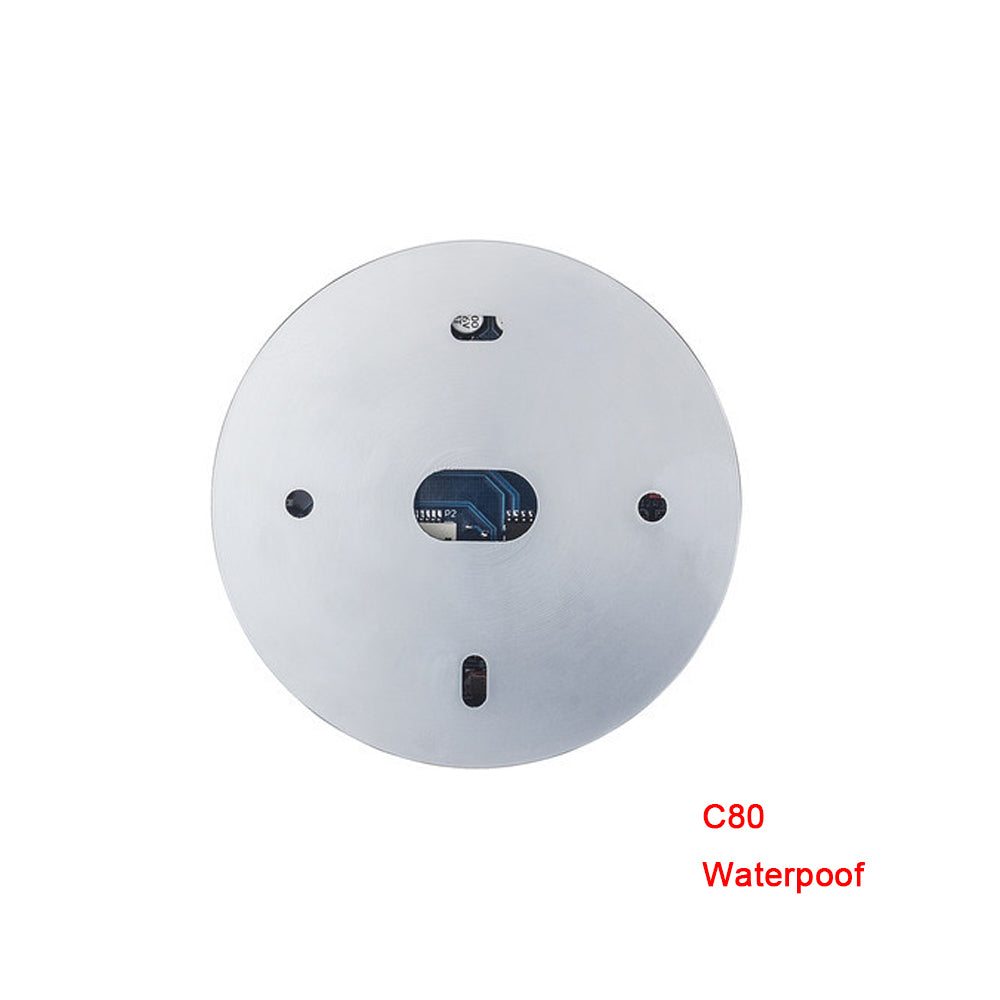

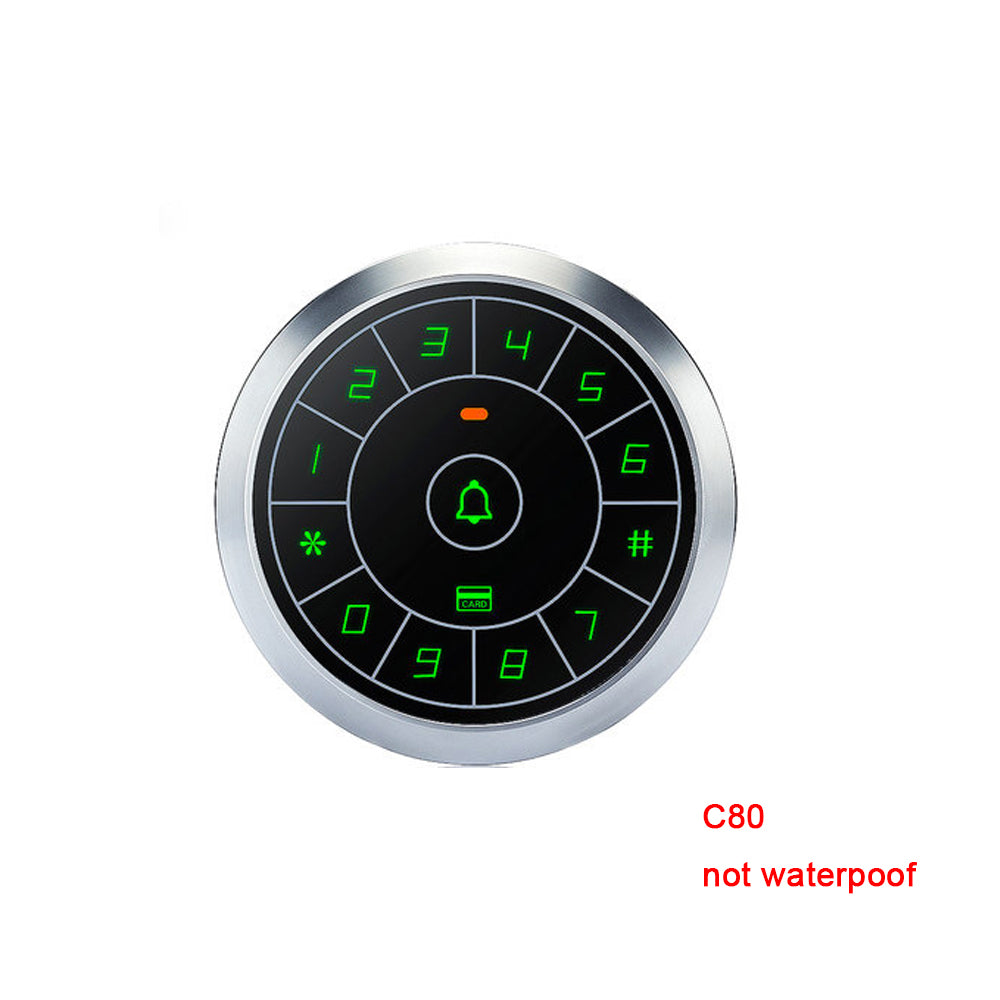

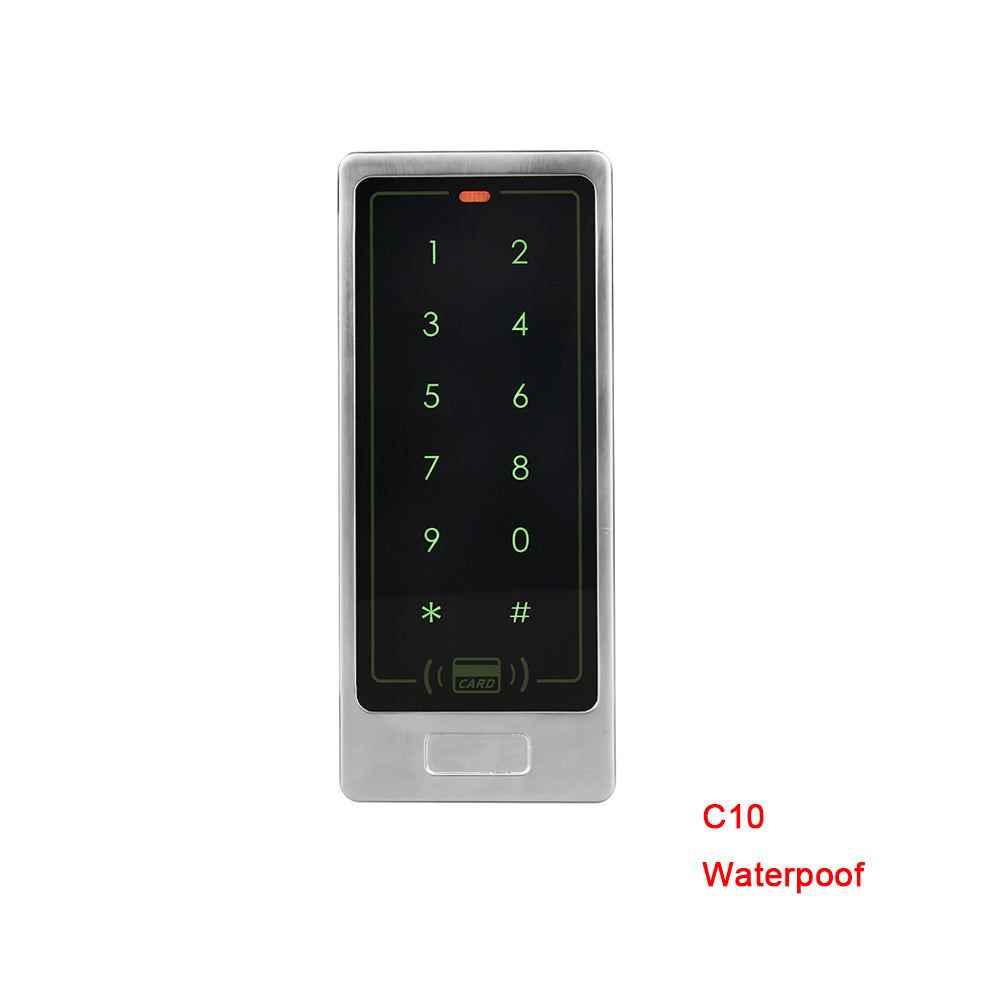

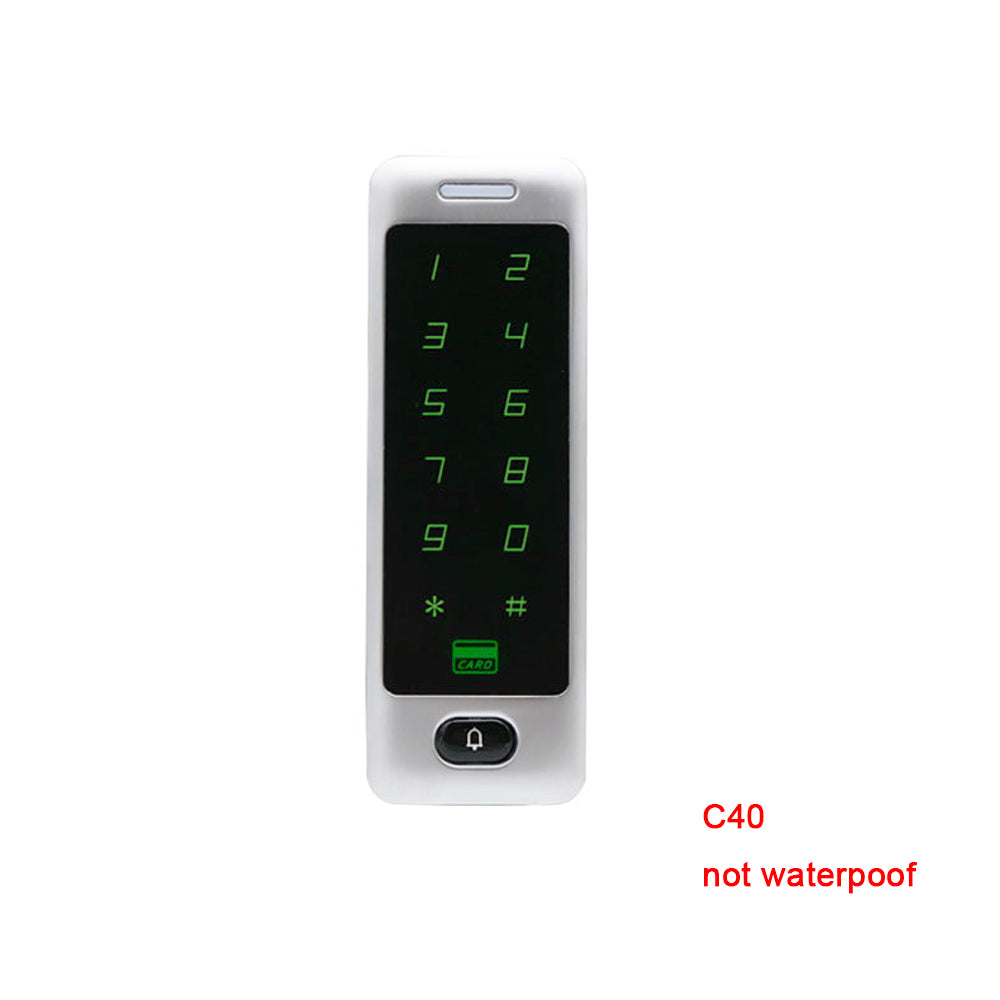

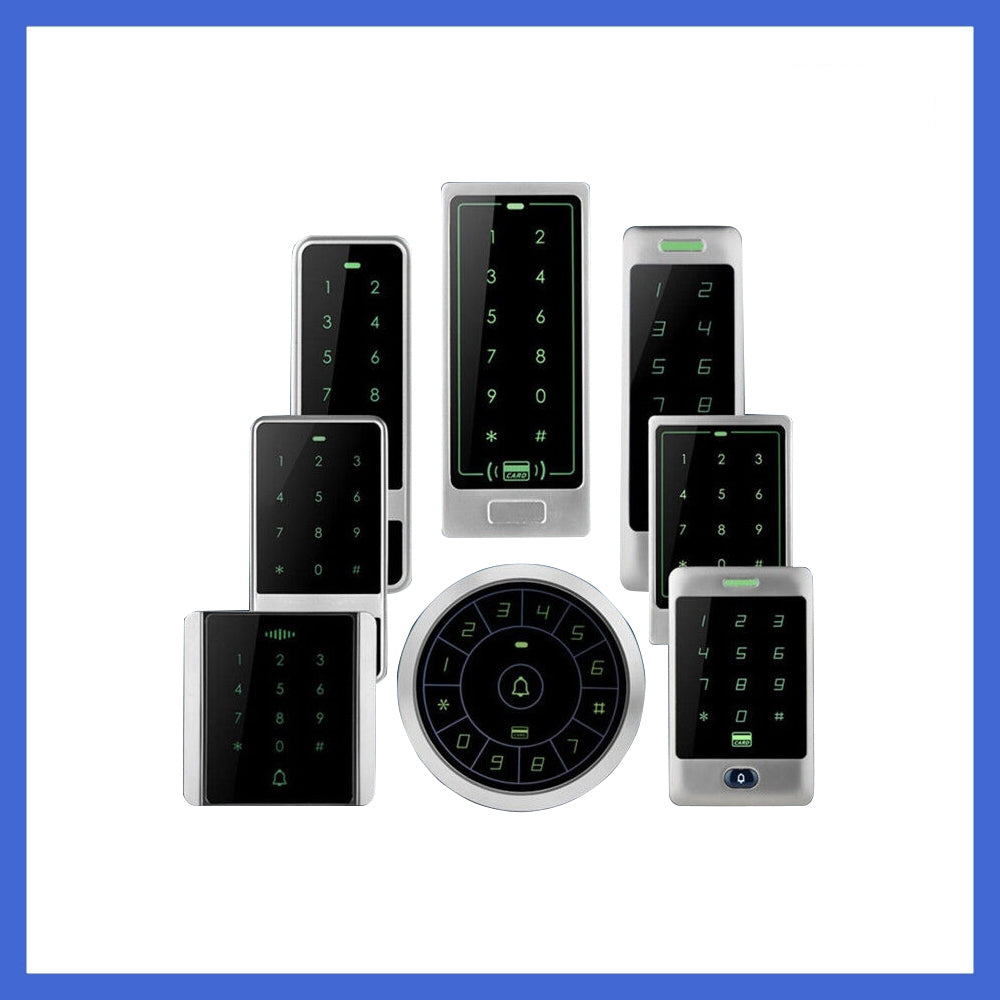

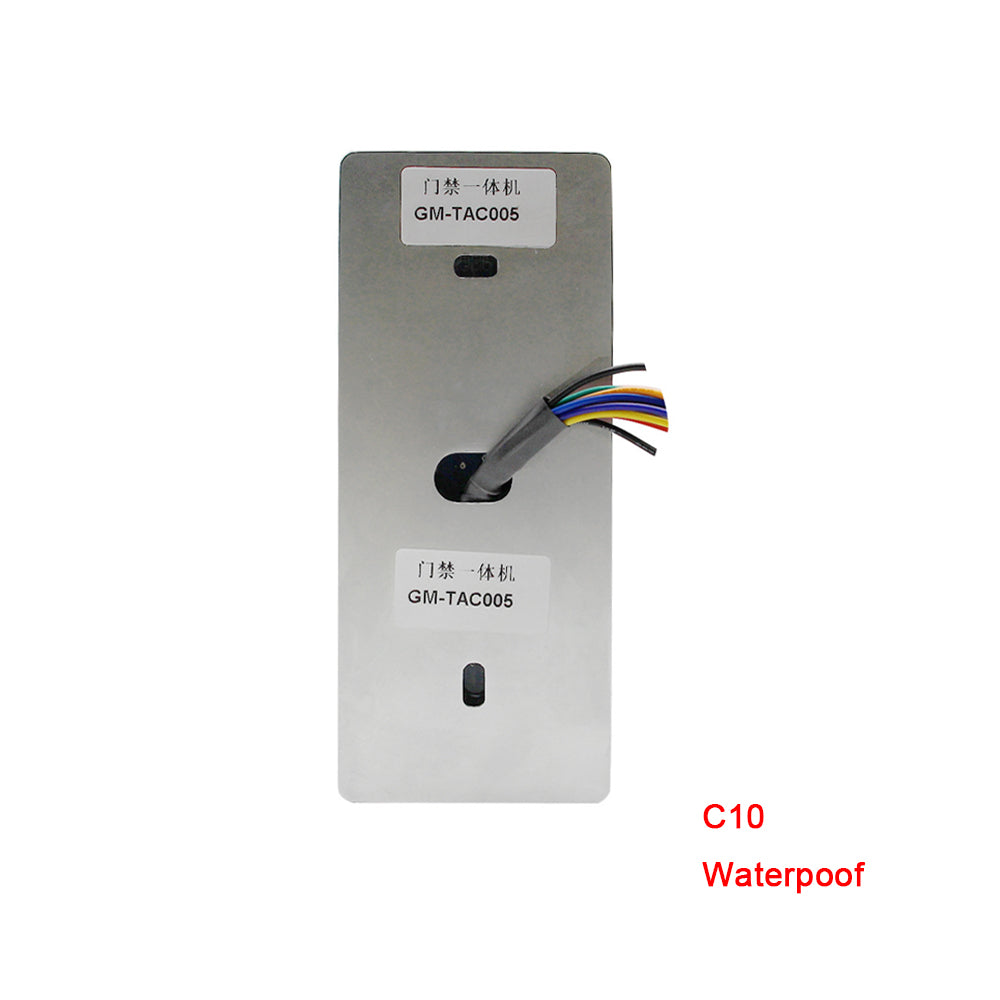

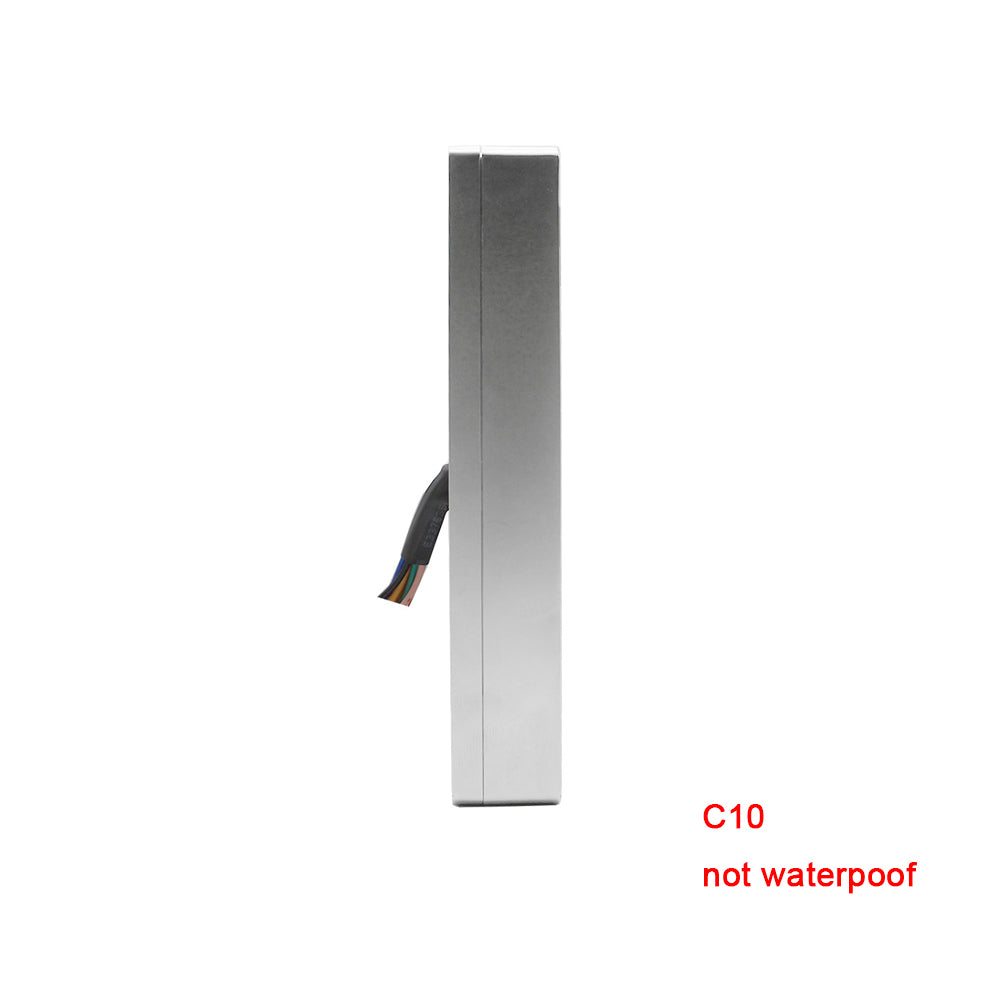

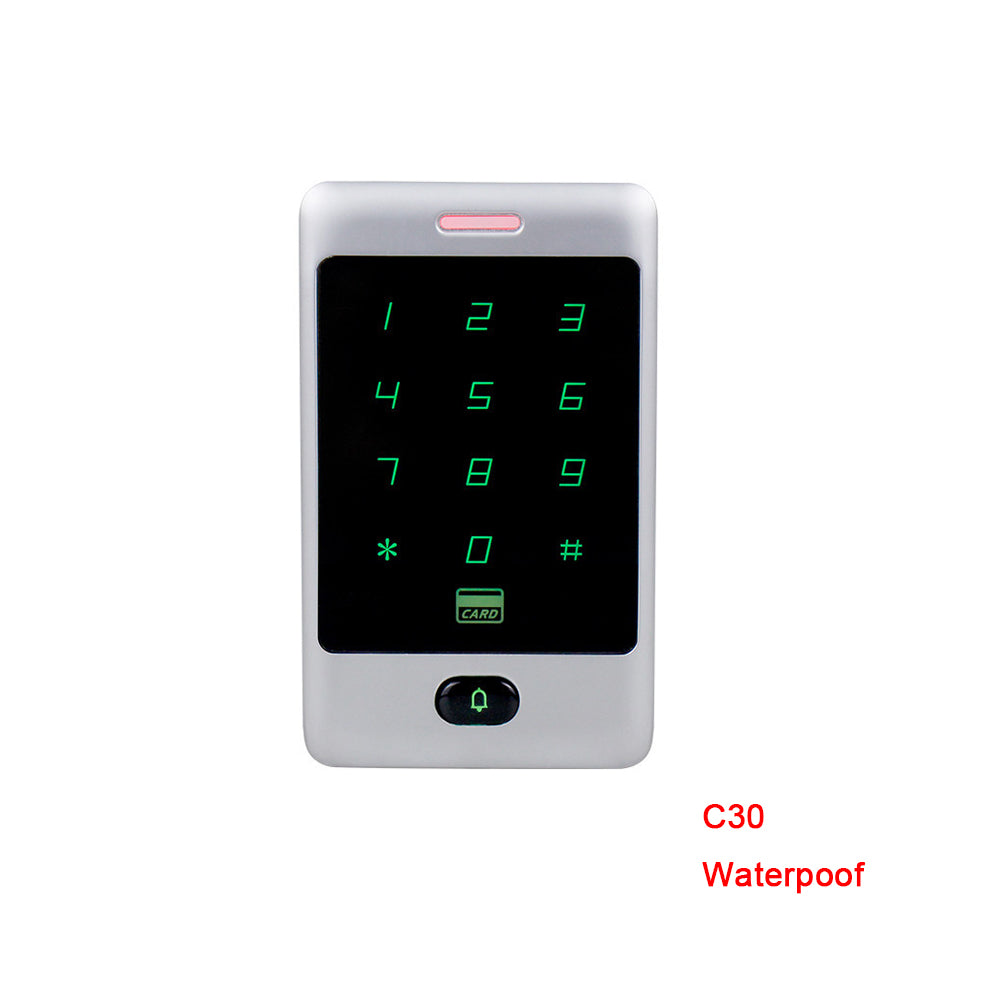

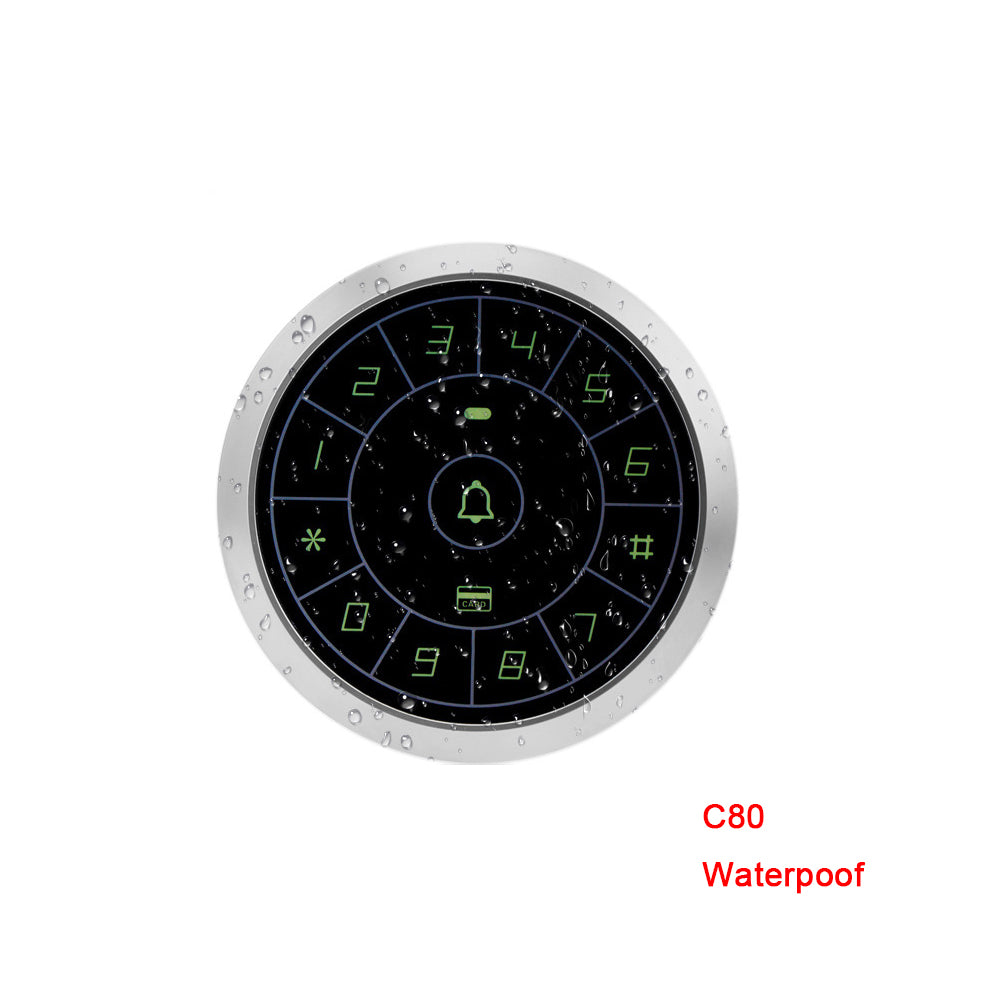

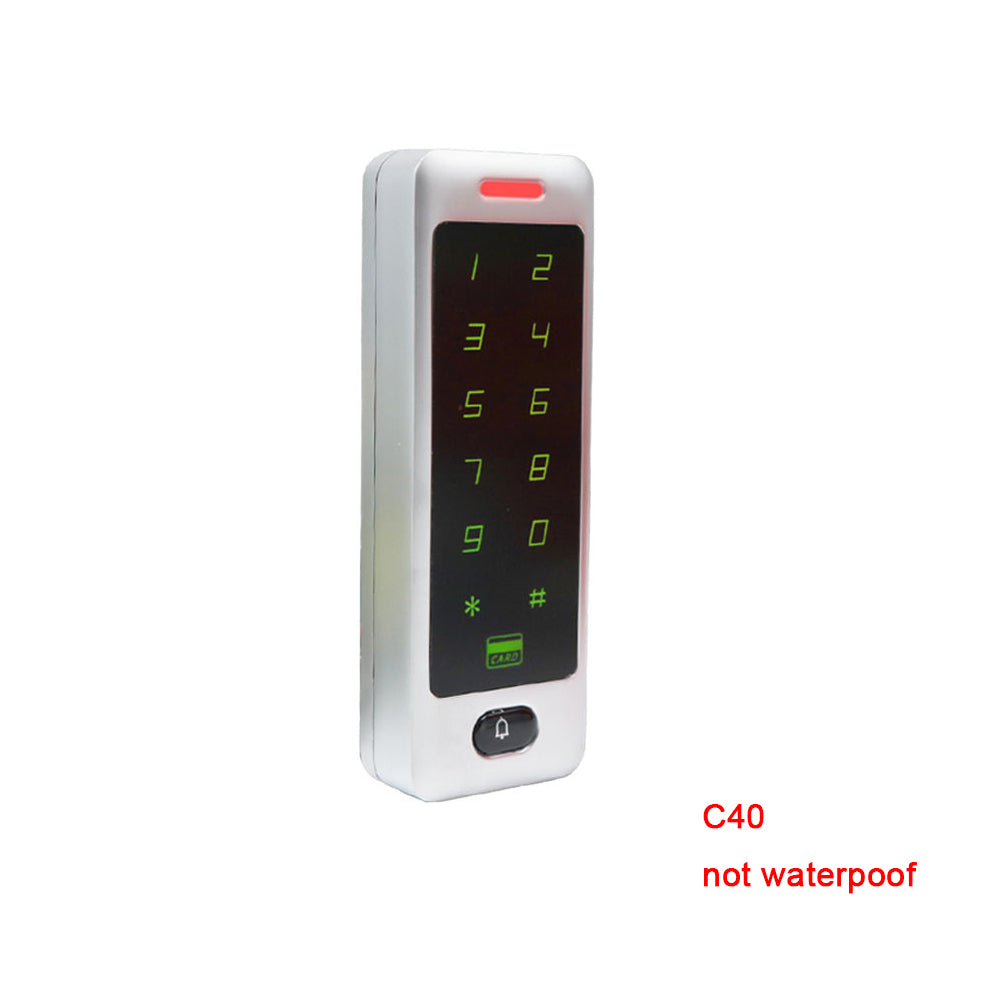

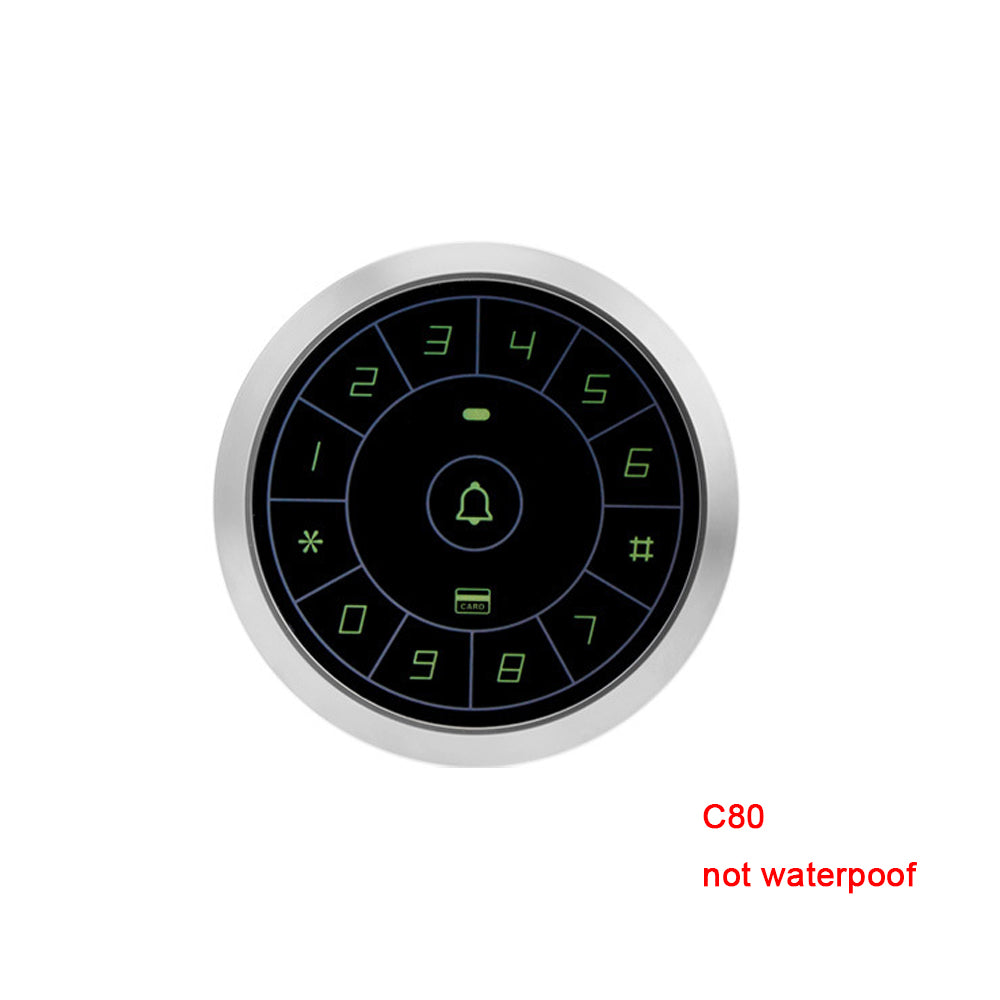

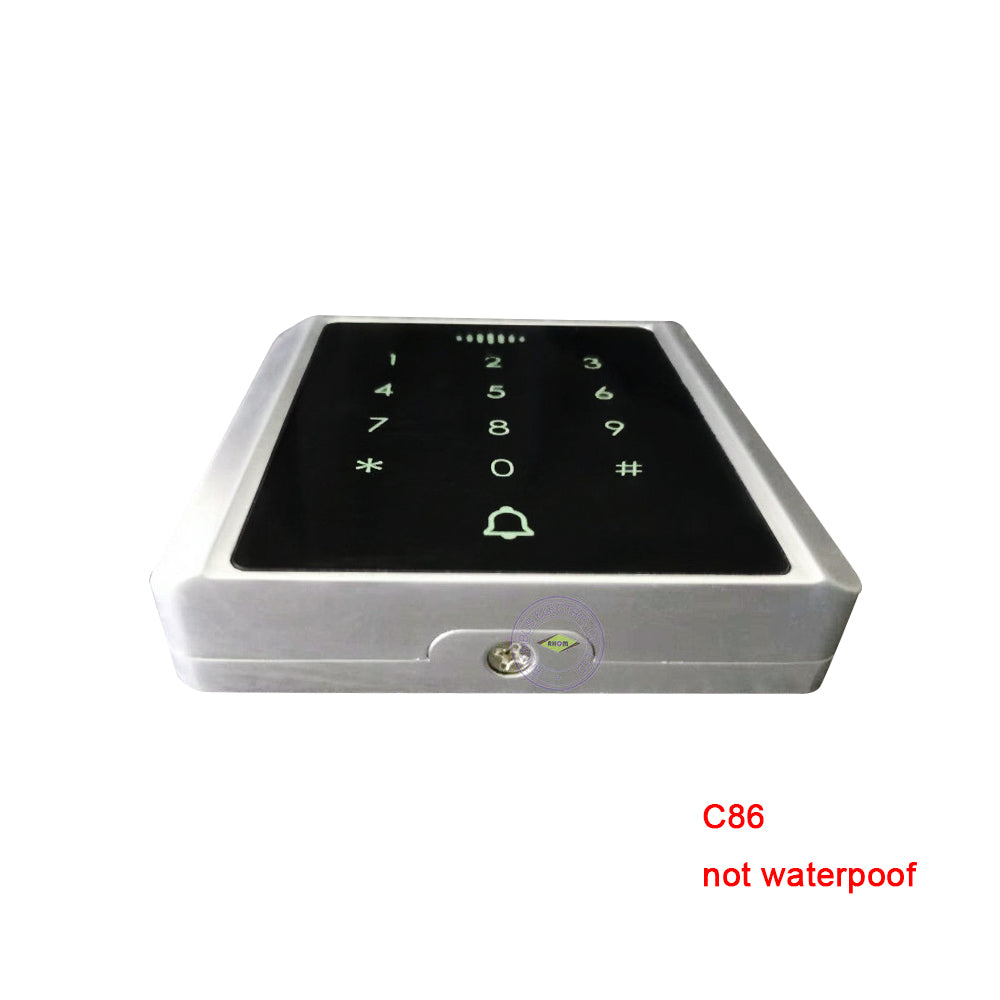

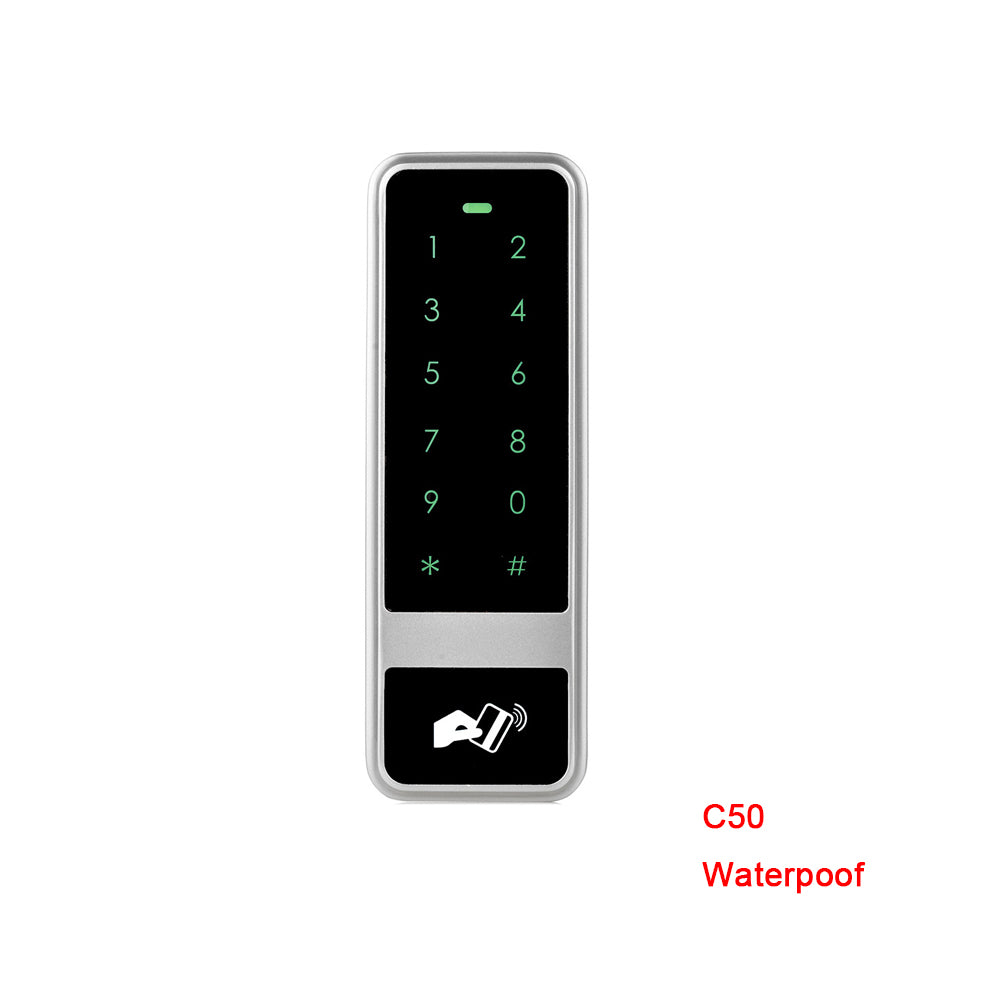

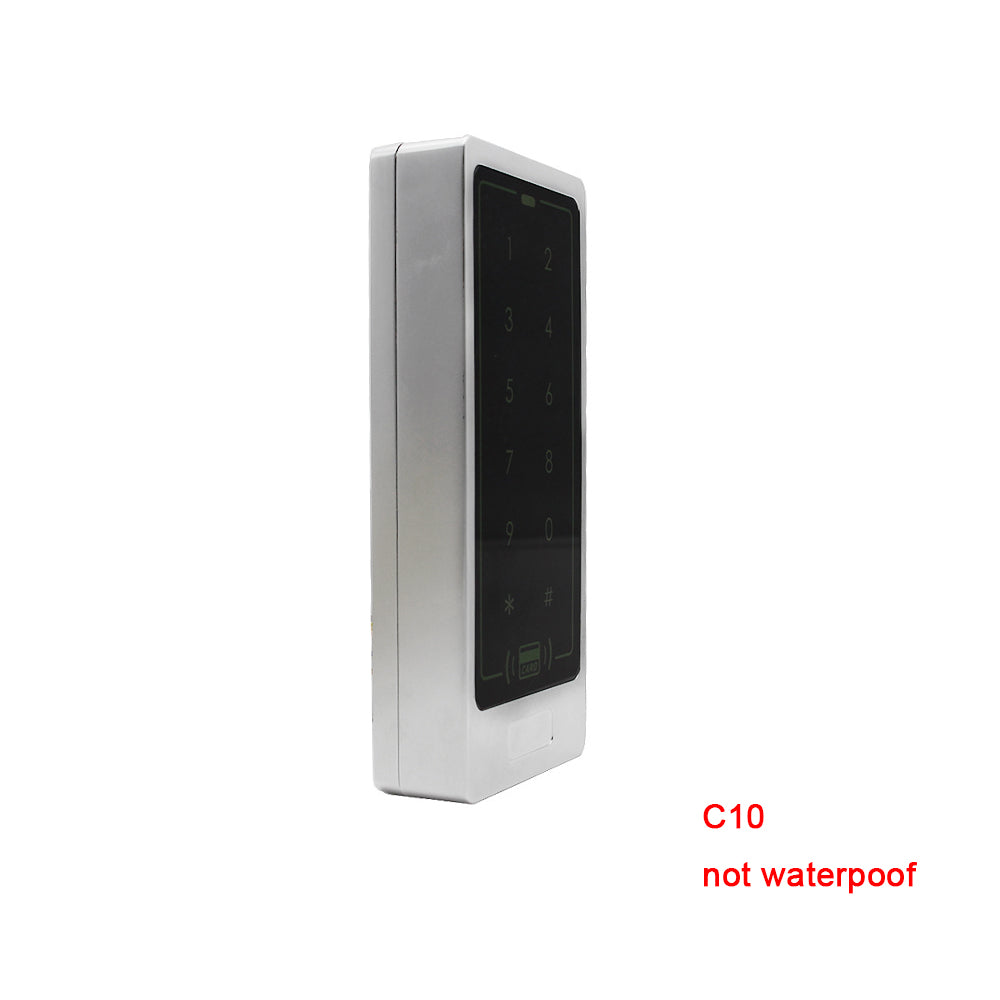

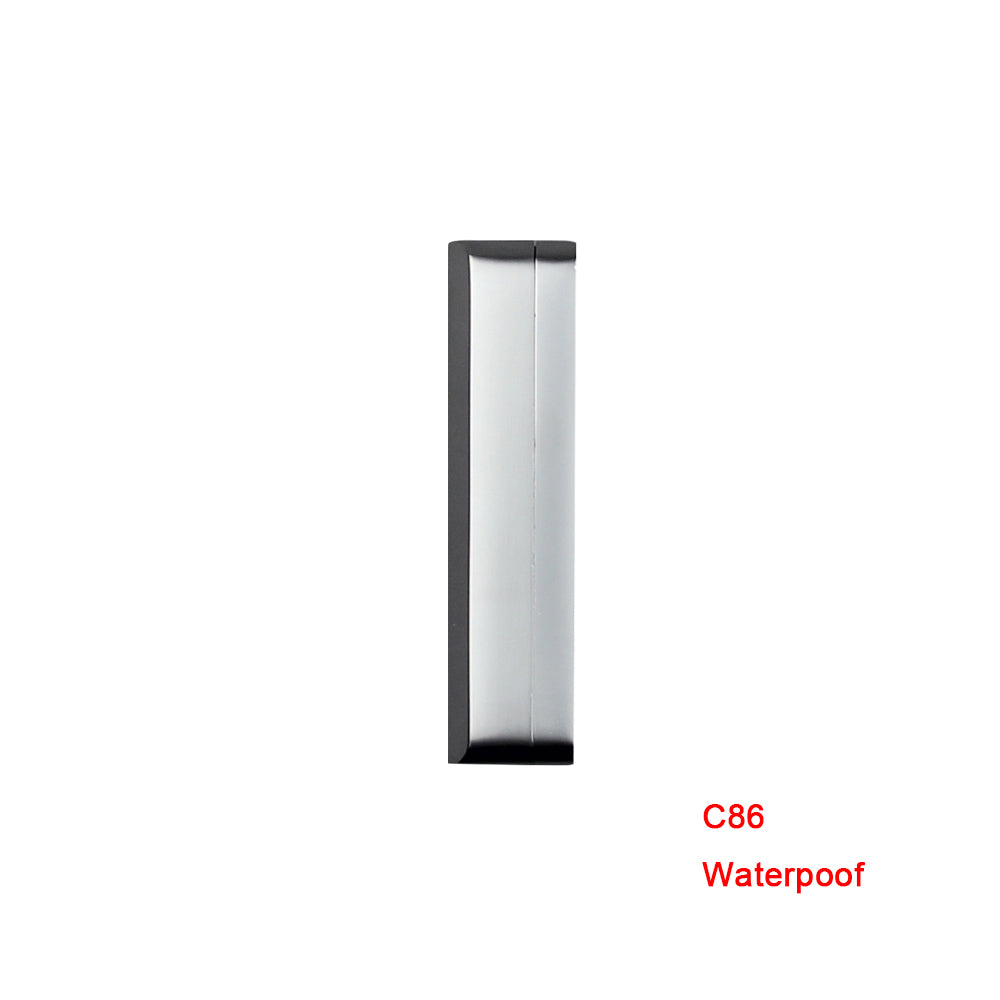

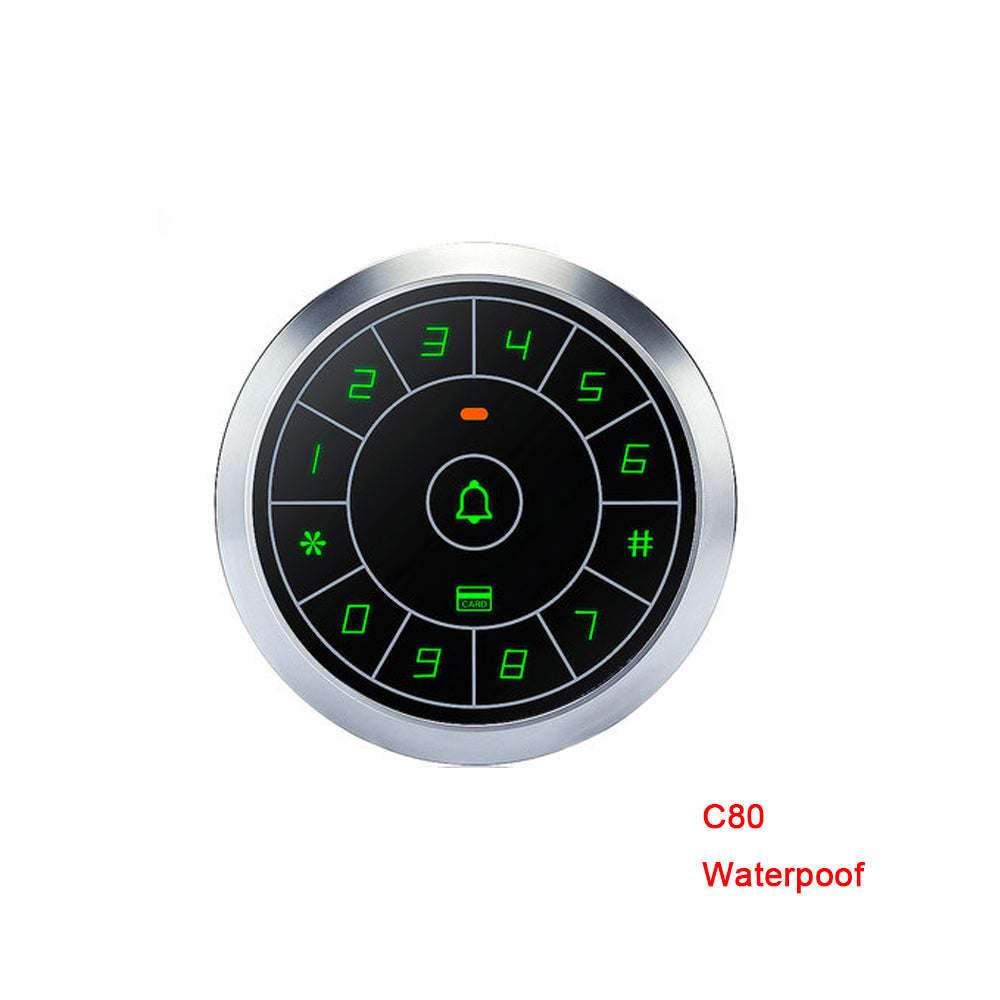

Touch Keypad Metal Case EM4100 125Khz rfid reader Ext Standalone Access Control

Features:

Can be used as card reader or standalone access controller

Waterproof touch panel, doorbell button

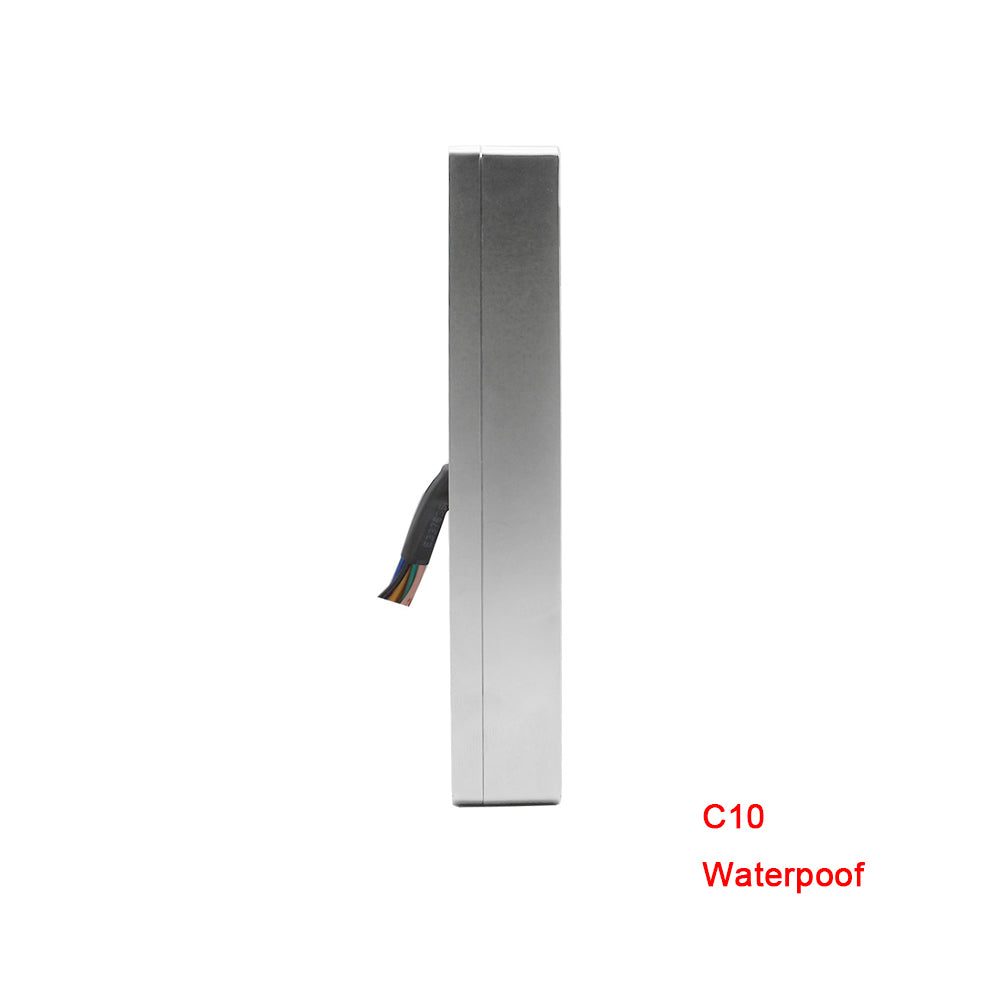

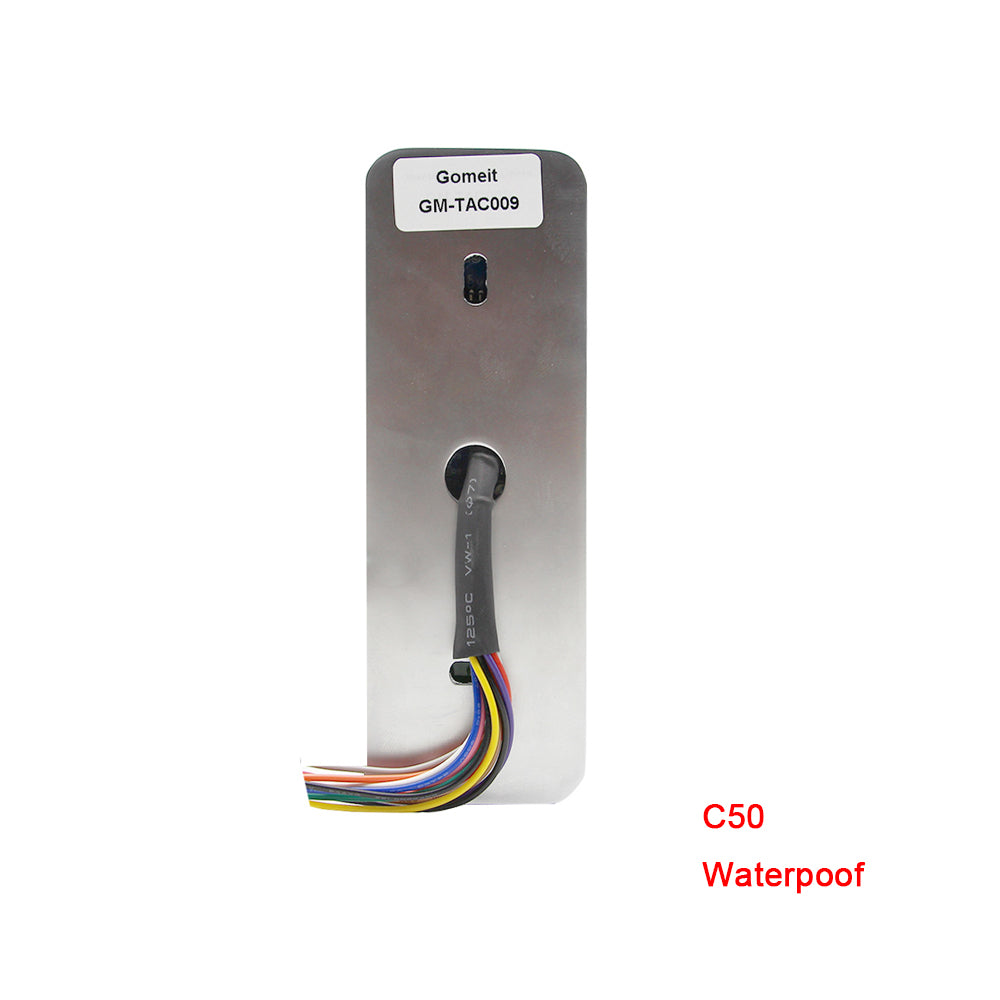

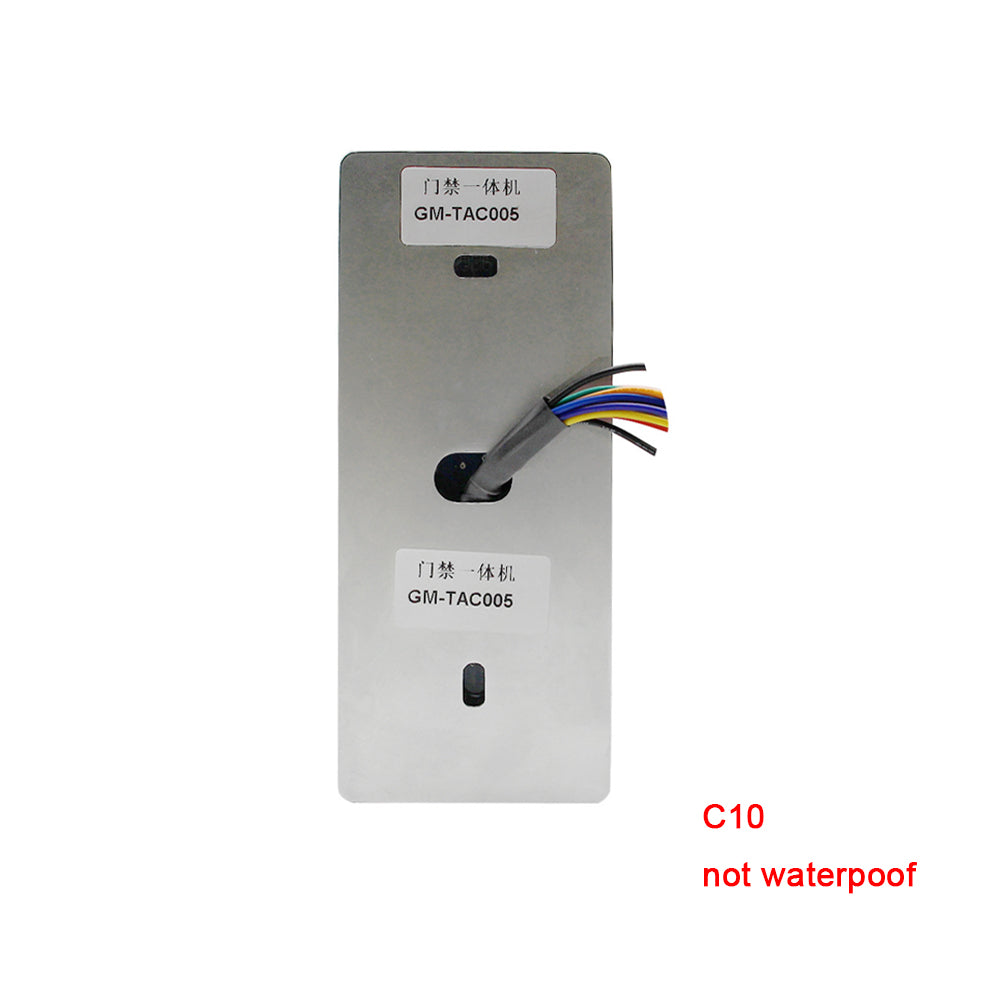

Metal case with backlight

WG26/34 input/output

Support Card, Password, Card + Password,

Full programming from the keypad

Humanized tamper alarm function

Can set up a management card

Active and passive lock signal output

Imported double point relay output signal

Contactless for RFID transponder technology

Connection for external release button (Exit button)

Memory capacity: 8000 user cards and 1 passwords

Does not need to connect on computer, it can works alone

The same series of access control support data copy and backup

Can be used when the password read head and one machine

Specifications:

Working voltage: DC12V

Unlock relay: 12VDC/2A

Quiescent current:</=50mA

Effective Cards:8000

Ambient temperature: -20Celsius-70Celsius

Ambient humidity: 0%-95%

Built-in proximity card reader identify the frequency:125KHz

Induction card identifying the type: EM or compatible

Card reader from: 5-10CM

Opening time: 0-255 seconds (adjustable)

Electric locking interface: Relay output or input of optional

Add-in Reader Interface: 1 WG26 interface

Size：

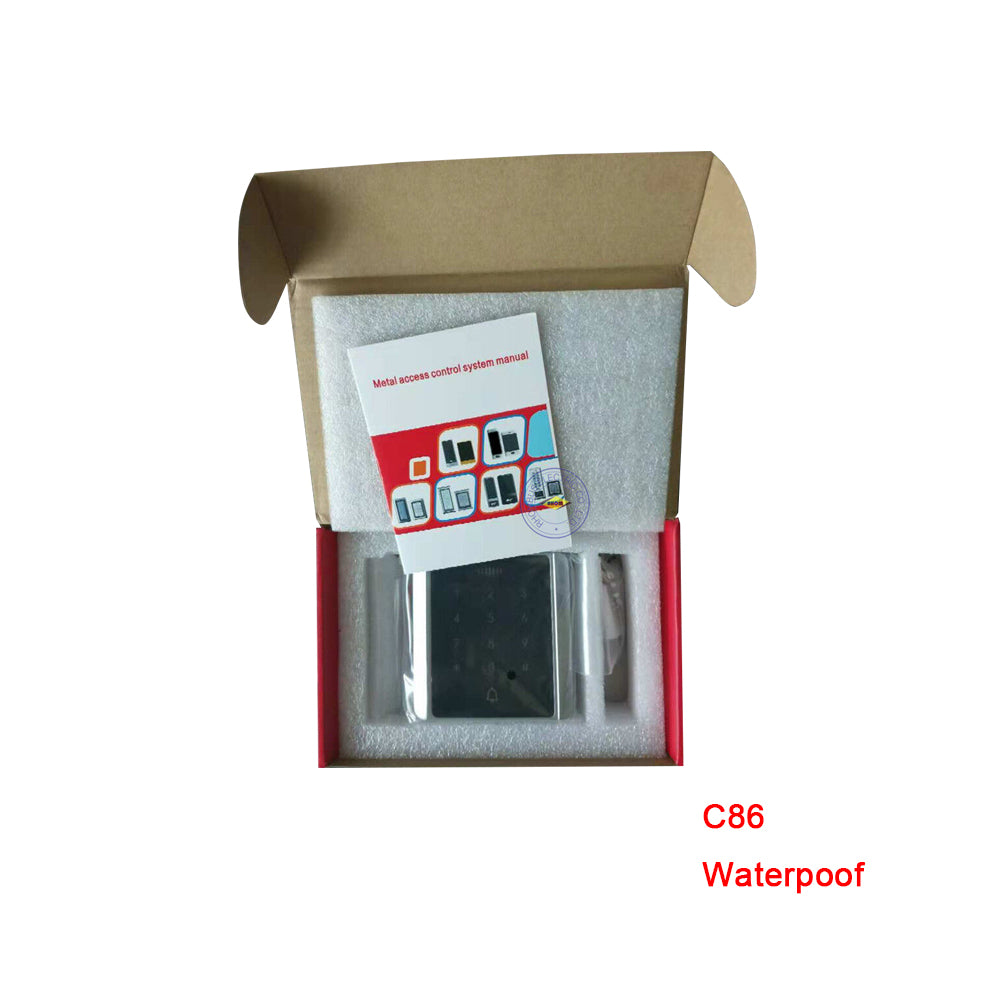

Package Include:

· 1 * Door Access Control

· 1 * English User Manual
