TTL to RS232 electrical isolation module Serial port converter Guide rail type 3.3V/5V With shell
TTL to RS232 electrical isolation module Serial port converter Guide rail type 3.3V/5V With shell
Не удалось загрузить сведения о доступности самовывоза
Product Features

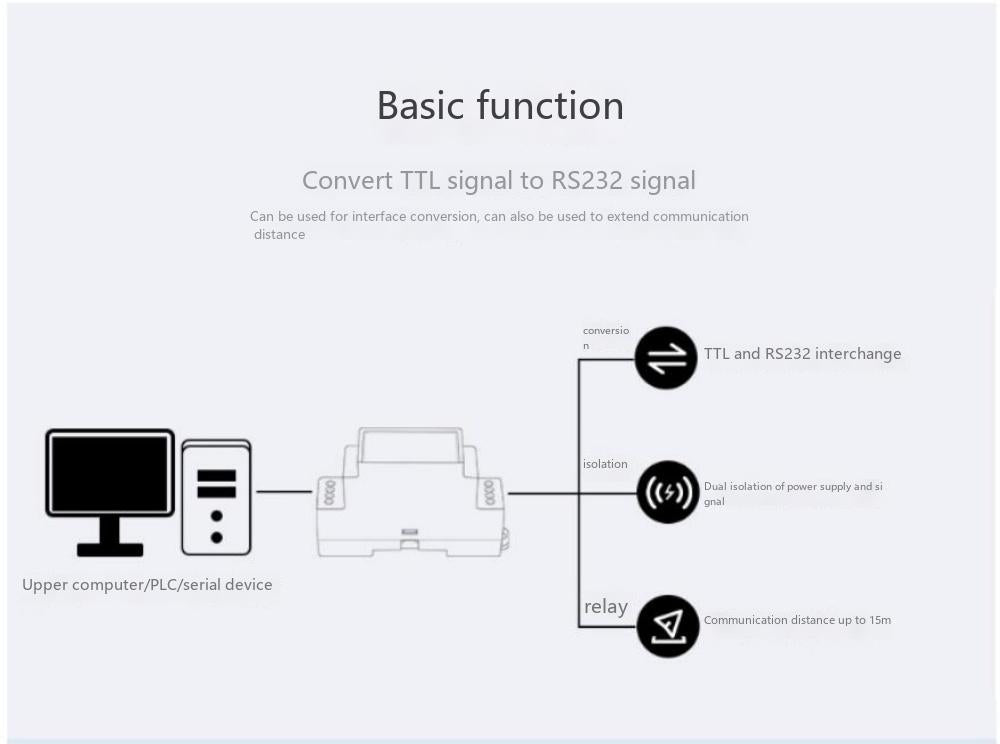

Compatible with TTL/RS232 standards, it can convert TTL signals to RS232 signals and supports full-duplex communication.
Compatible with 3.3V ~ 5V TTL signal levels, the power supply terminal is equipped with anti-reverse connection and over-voltage protection circuits.
On-board integrated power isolation can provide stable isolation voltage, and no additional power supply is required for the isolation terminal.
On-board integrated digital isolation can perform signal isolation, featuring high reliability, strong anti-interference capability and low power consumption.
On-board TVS (Transient Voltage Suppressor) can effectively suppress surge voltage and transient peak voltage in the circuit, providing lightning and electrostatic protection.
On-board protection diodes can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve anti-impact capability.
On-board terminal power supply interface supports 3.3V ~ 5V DC voltage range for power supply.
Industrial rail-type ABS environmentally friendly shell, small in size, easy to install and high in cost performance.
|
Item |
Description |
|
Product Type |
Electrically Isolated TTL to RS232 Serial Converter |
|
Power Supply Interface |
Power Supply Voltage: 3.3V ~ 5V |
|
|
Interface Protection: Overvoltage Protection, Reverse Connection Protection |
|
Device Interface |
Compatible with TTL / RS232 Standards |
|
TTL Interface |
Interface Type: Terminal Block |
|
|
Transmission Distance: Less than 10 Meters |
|
|
Transmission Mode: Point-to-Point |
|
RS232 Interface |
Interface Type: Terminal Block |
|
|
Interface Protection: TVS Diode Protection, Surge and ESD Protection, Power and Digital Isolation |
|
|
Transmission Distance: Approximately 15 Meters |
|
|
Transmission Mode: Point-to-Point |
|

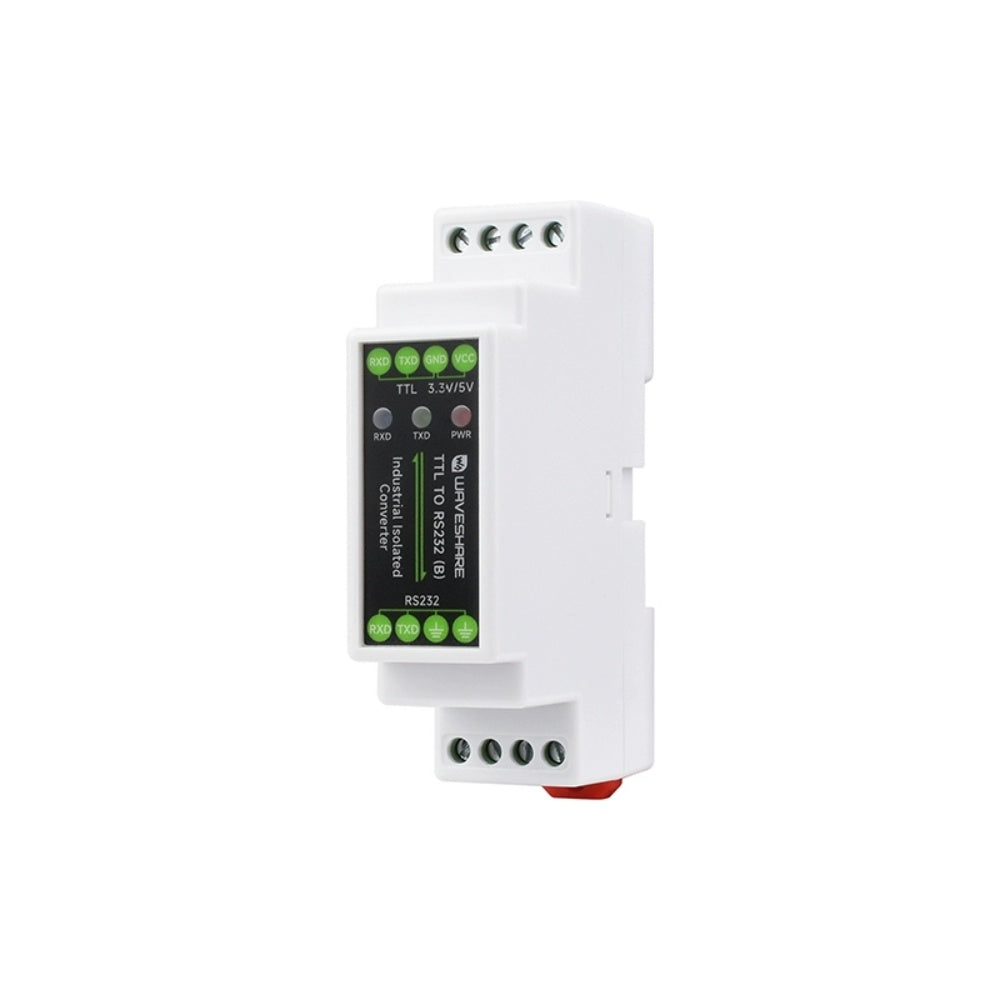

Indicators |
PWR: Power Indicator, lights red when power is connected and voltage is detected |
|
|
TXD: Transmit Indicator, lights when data is sent from the RS232 interface |
|
|
RXD: Receive Indicator, lights when data is sent from the TTL interface |
|
Product Appearance |
Housing: Rail-mounted ABS Environmentally Friendly Housing, suitable for 35mm DIN Rail |
|
|

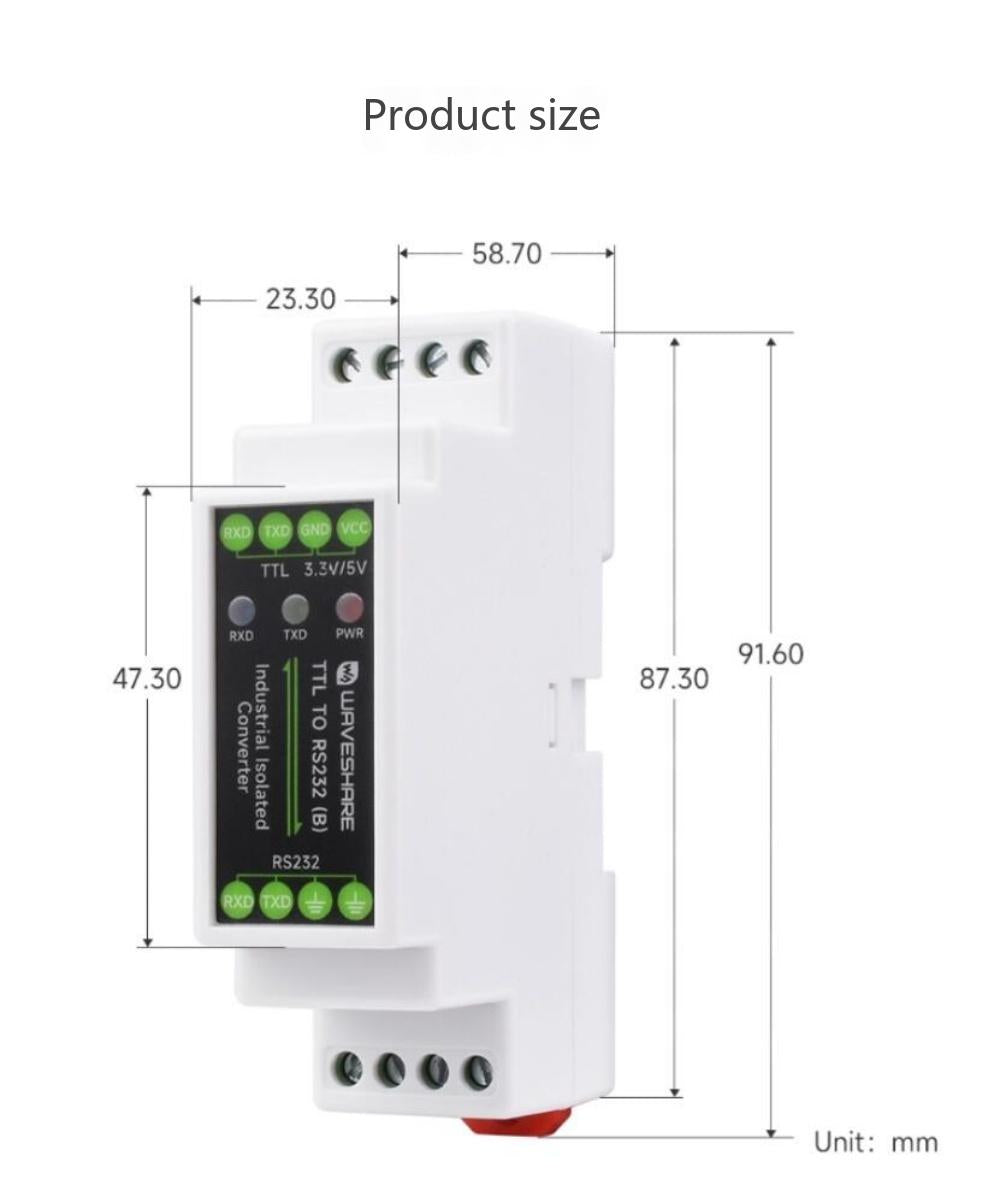

Dimensions: 91.6 x 58.7 x23.3mm |
