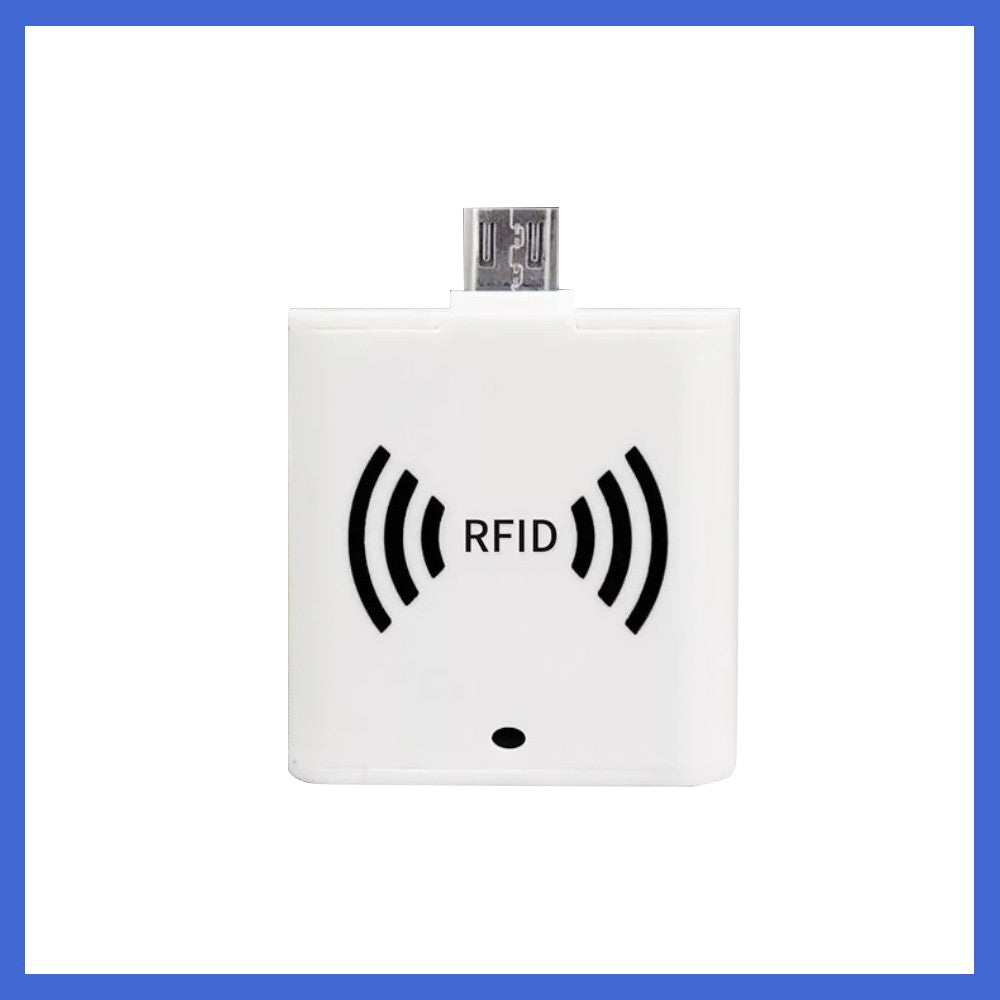

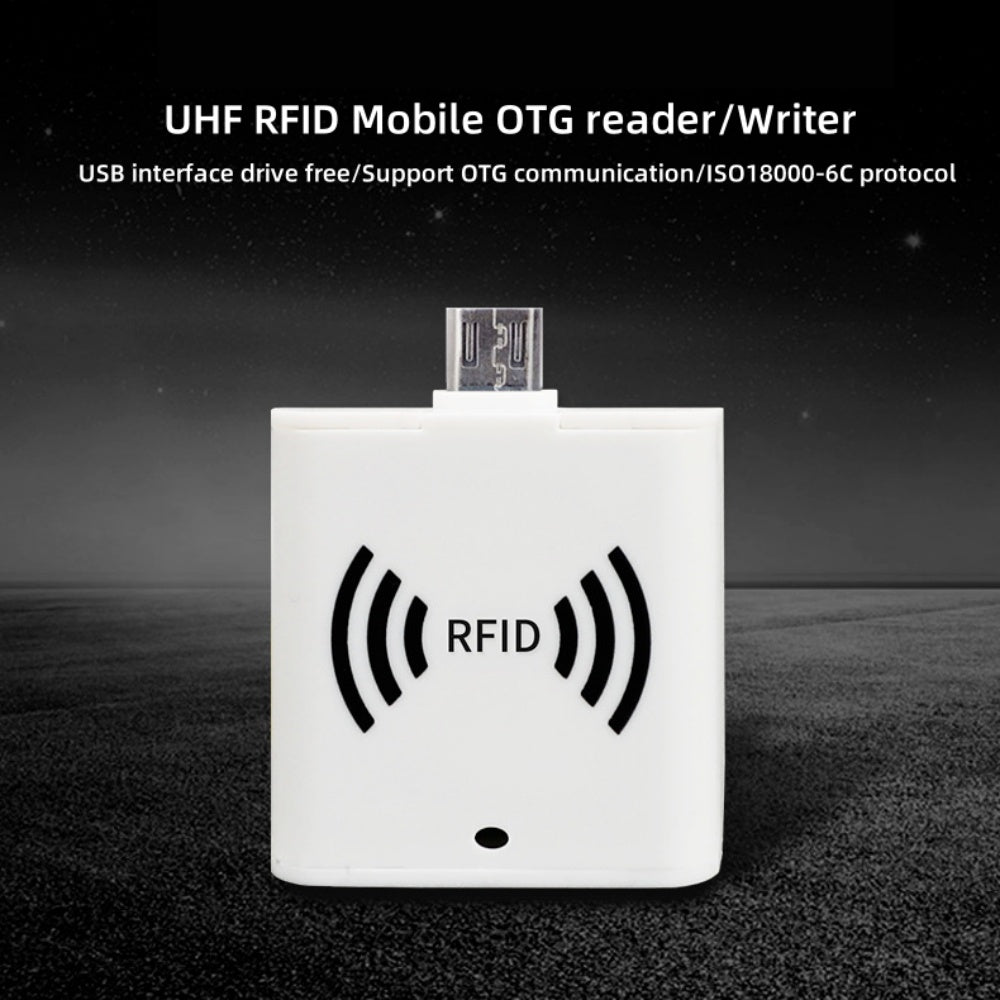

UHF 902-928MHz ISO-18000-6C RFID Mini USB OTG Mobile Reader/writer
UHF 902-928MHz ISO-18000-6C RFID Mini USB OTG Mobile Reader/writer
Не удалось загрузить сведения о доступности самовывоза

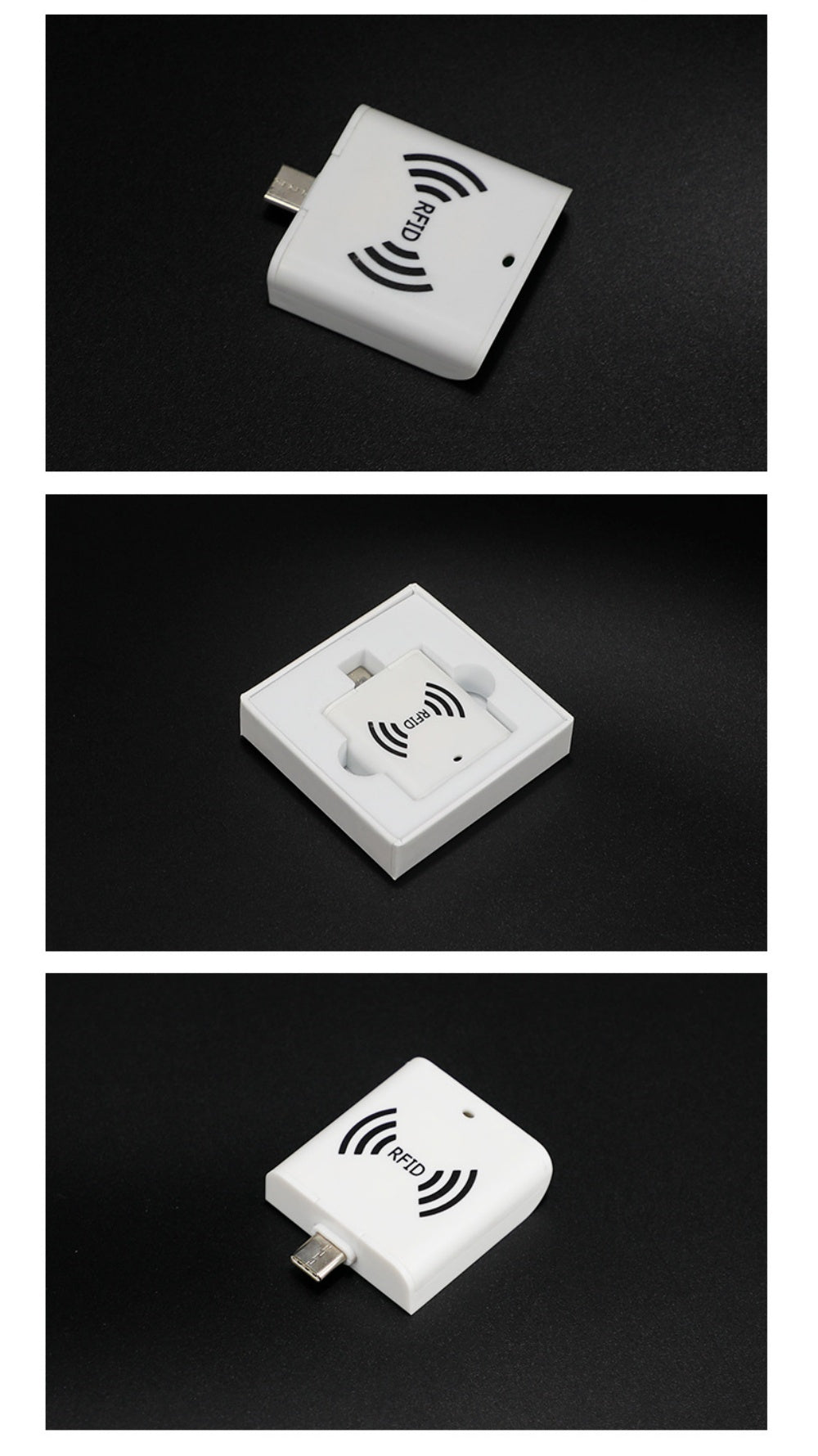

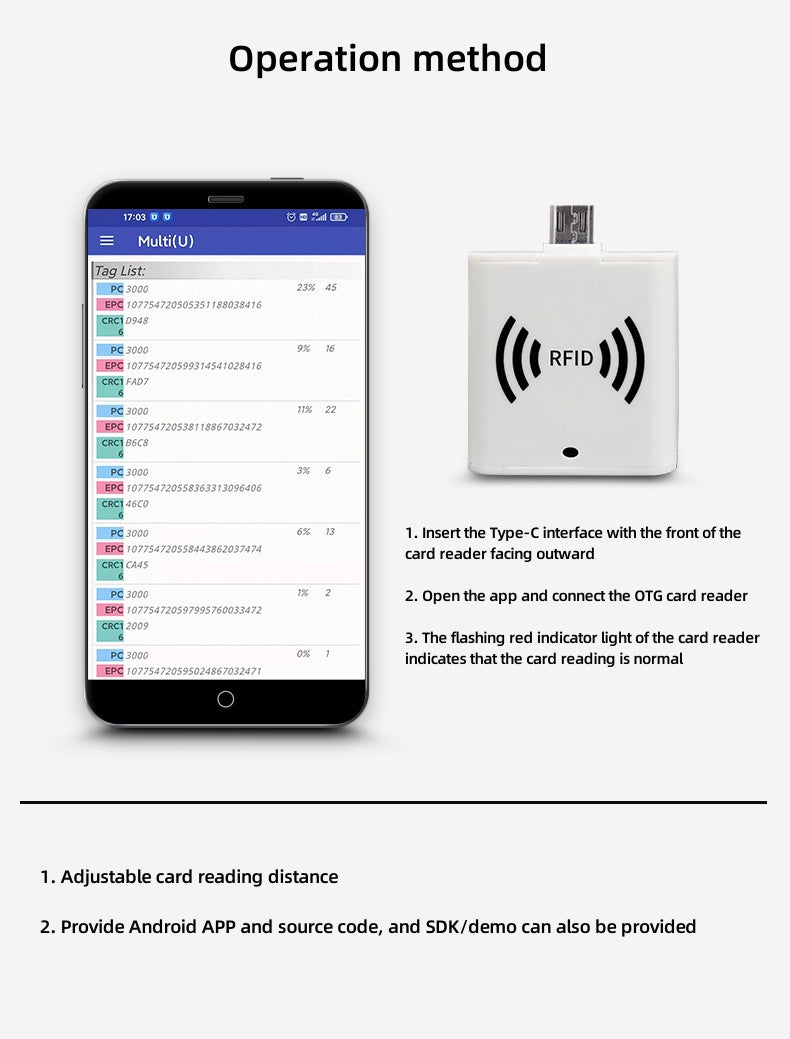

FH-930 USB OTG reader is designed for a Android platform, this small portable reader which work with android mobile with App support, application for:
- Library management
- Assets management
- Office files tracking
- Retail shop
- Assets tracking
- Outdoor/Exhibition e-ticket checking
- Personal management
- Logistics
Specification
|
Specification |
|
|
Model# |
FH-930 |
|
Performance Index |
|
|
Frequency range |
902-928MHZ（or customized） |
|
RF output |
Max 18dBm |
|
Communication interface |

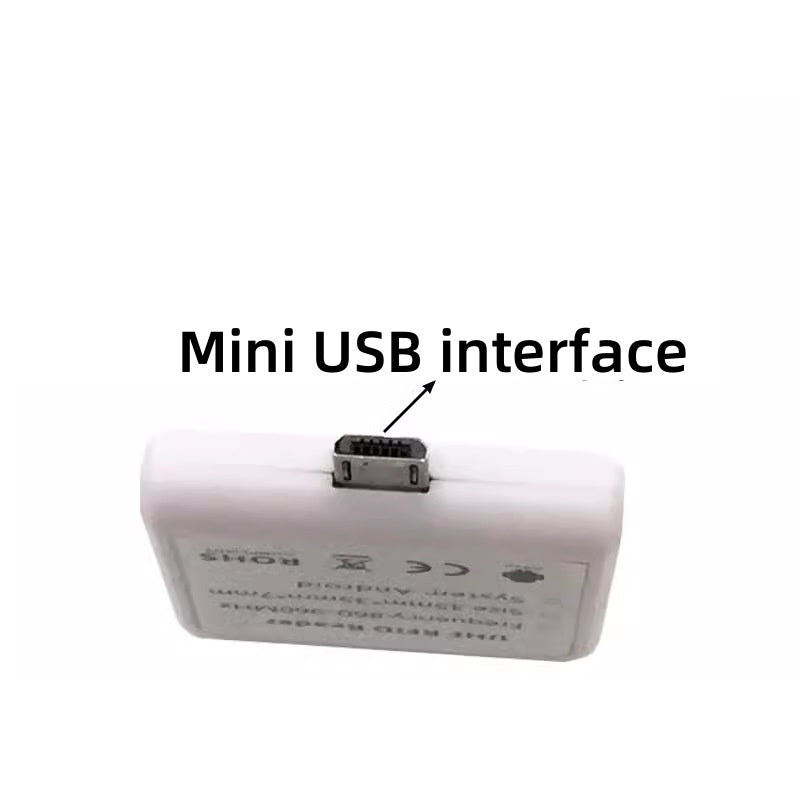

USB OTG |
|

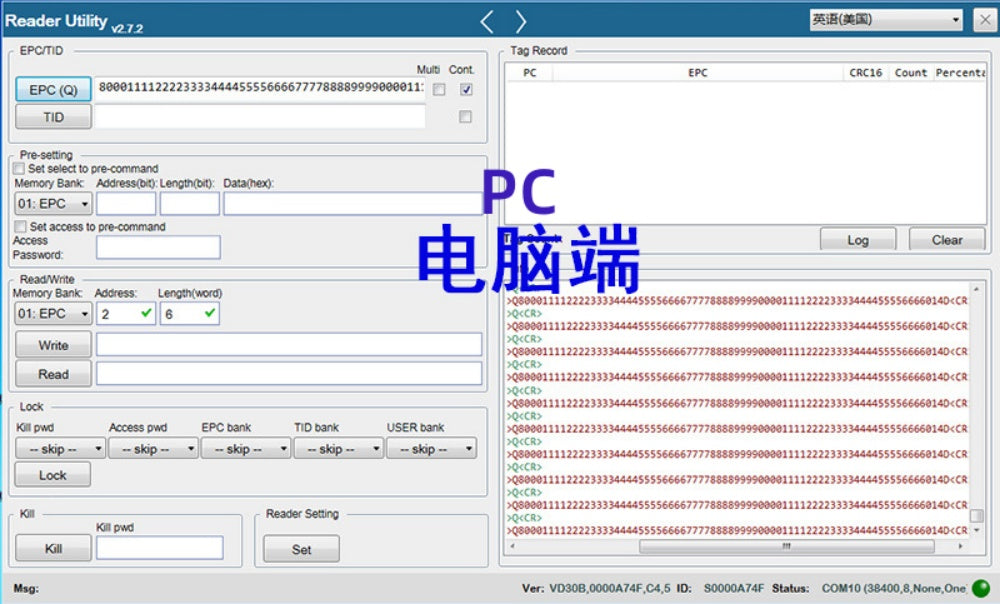

Application software |

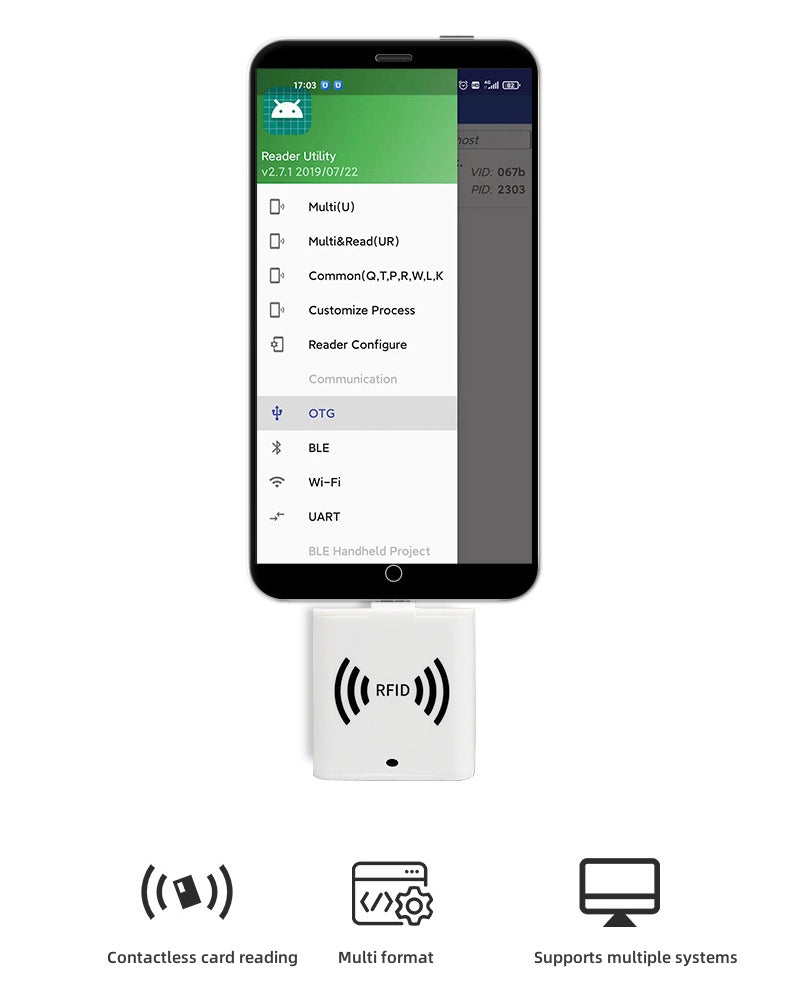

Provide with Android SDK and APP |
|
Tag Operation Performance |
|
|
Reading distance |
0-50cm (depend on tag & environment) |
|
Tag operation |

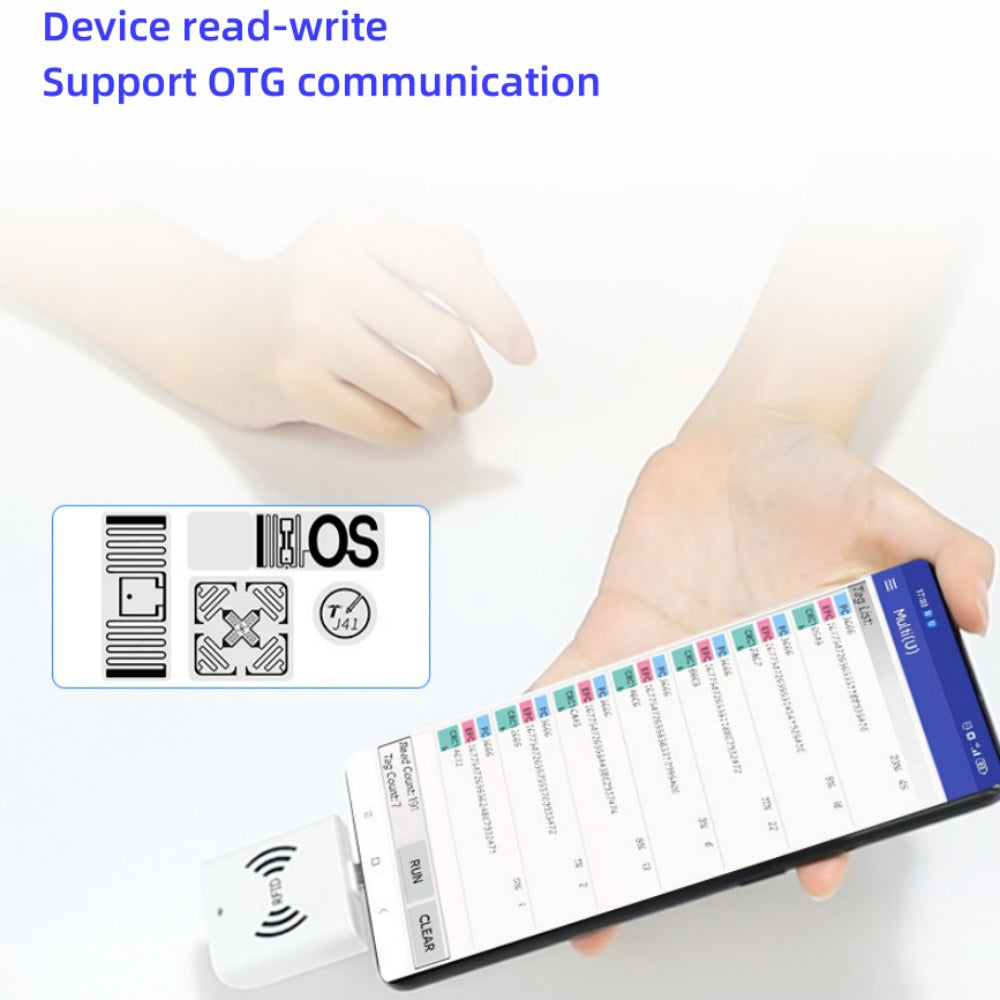

Read / Write / Kill / Lock the tag |
|
Air interface |
EPC global UHF ISO-18000-6C (EPC G2) |
|
Mechanical and Electrical Performance |
|
|

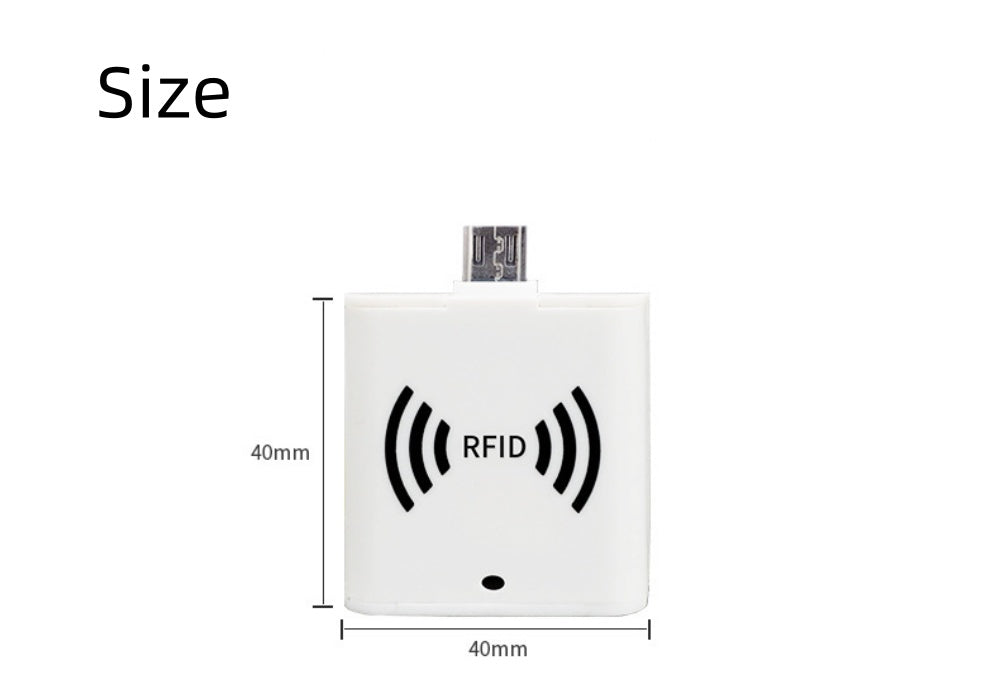

Dimension |
40*40*12mm |
|

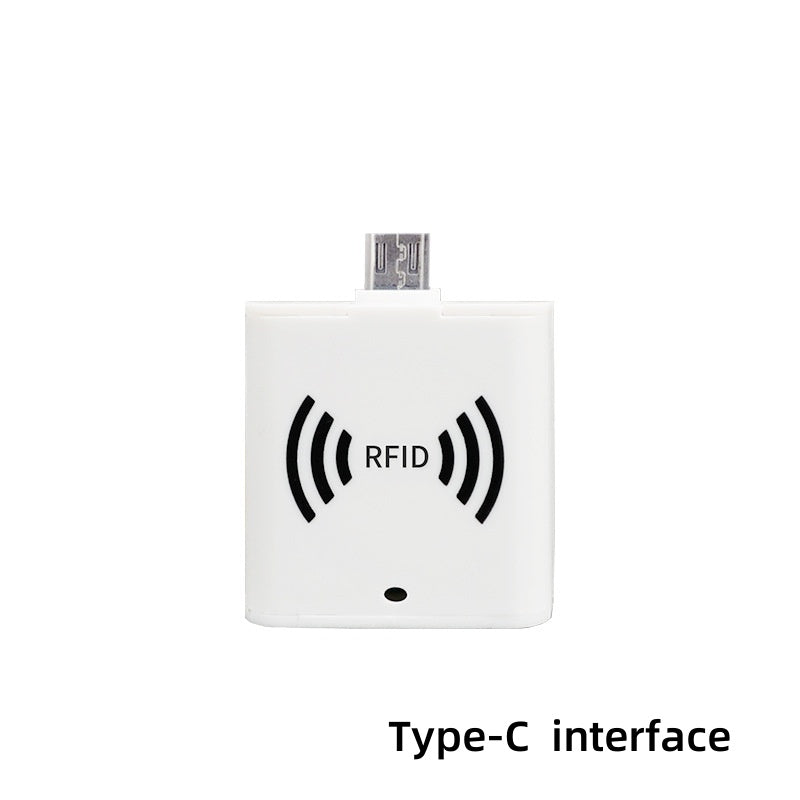

Power supply |

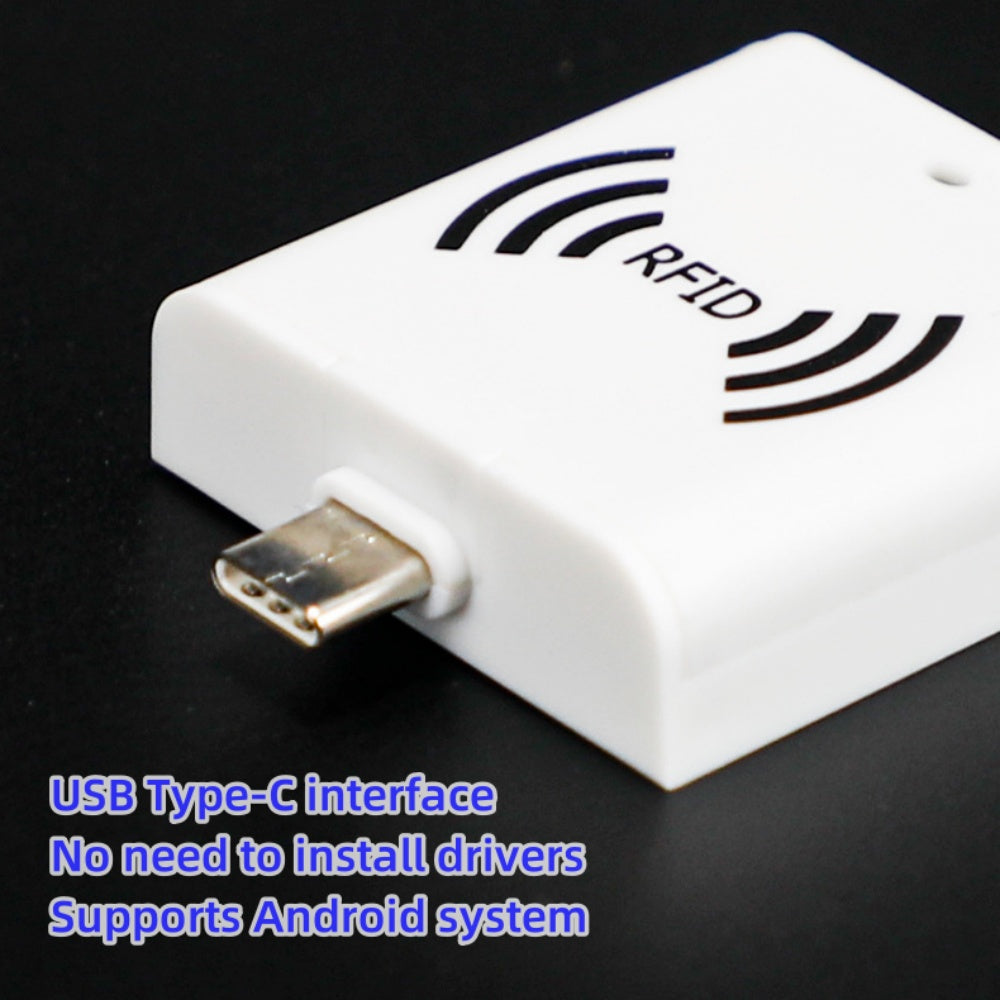

TYPE-C |
|
Weight |
25g |
|
Humidity |
5% to 95%, non-condensing |
|
Protection grade |
IEC IP52 |
|
Operation temperature |
-20 ºC to +60 ºC |
|
Storage temperature |
-40°C to 80°C |
