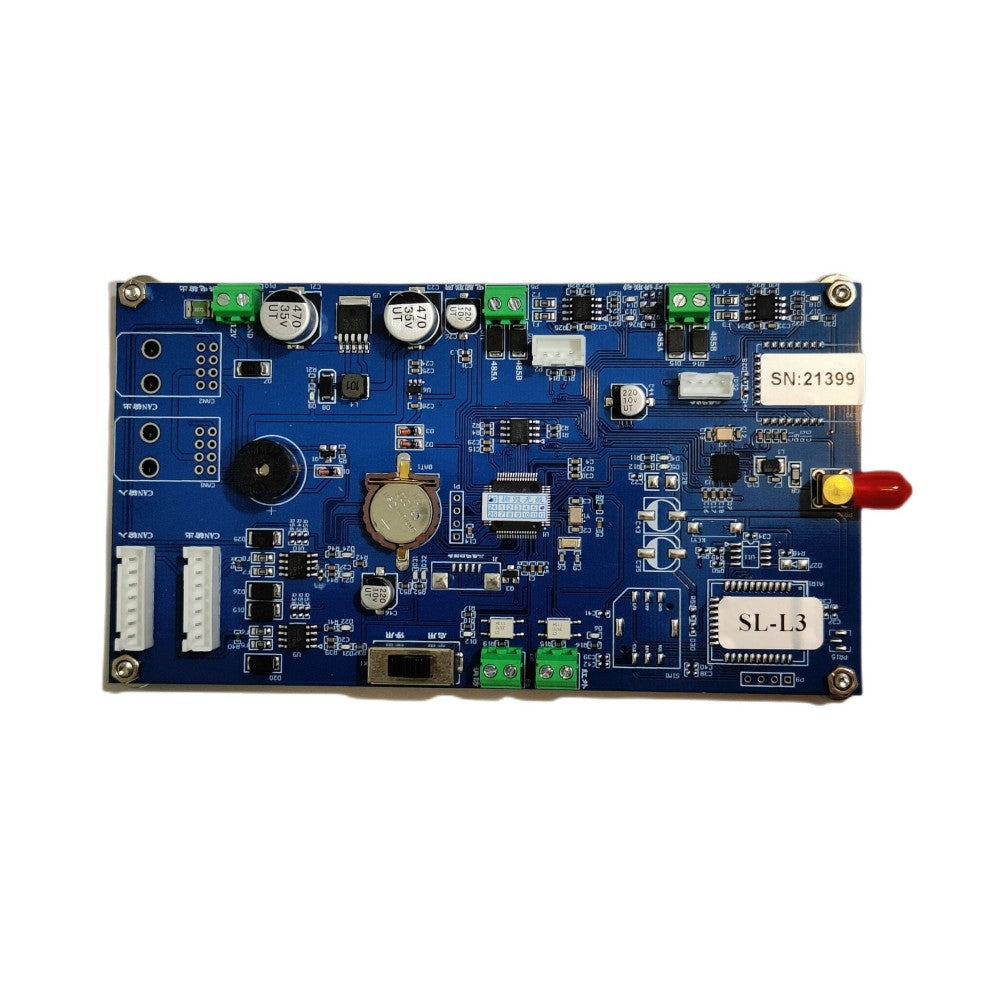

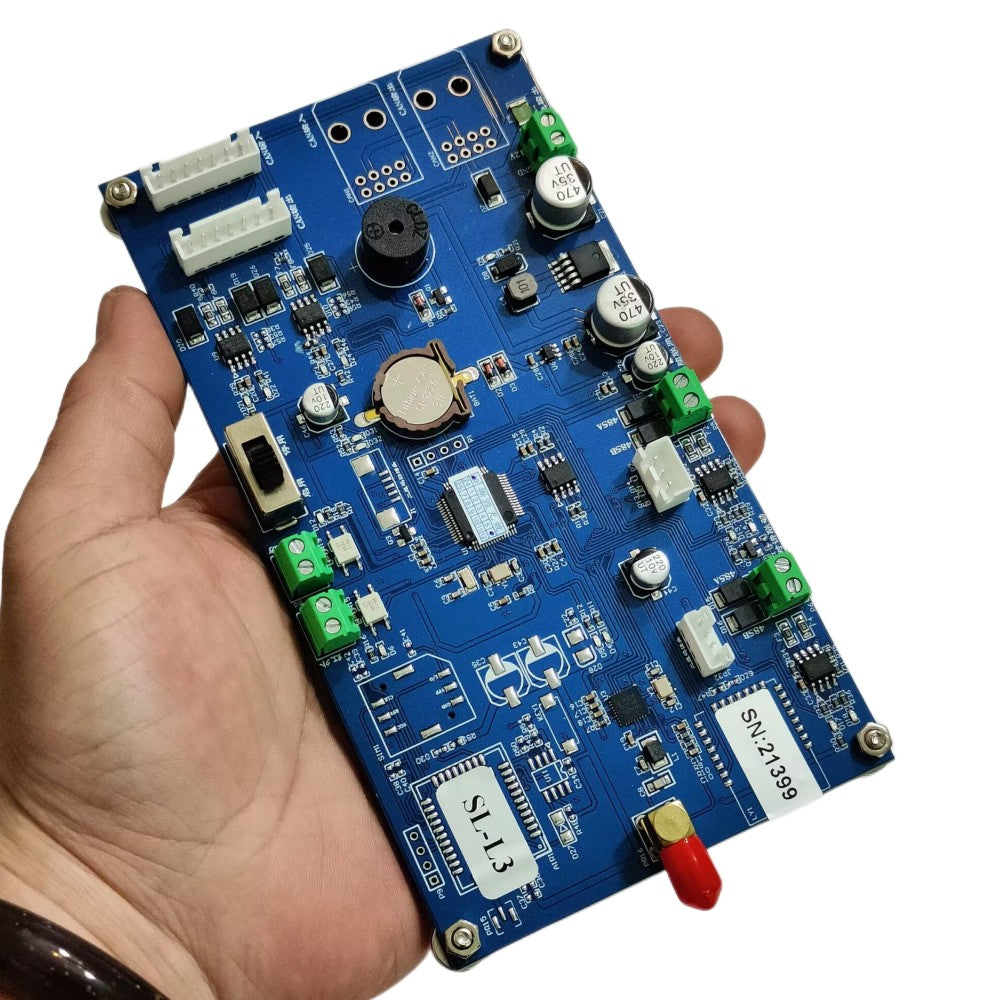

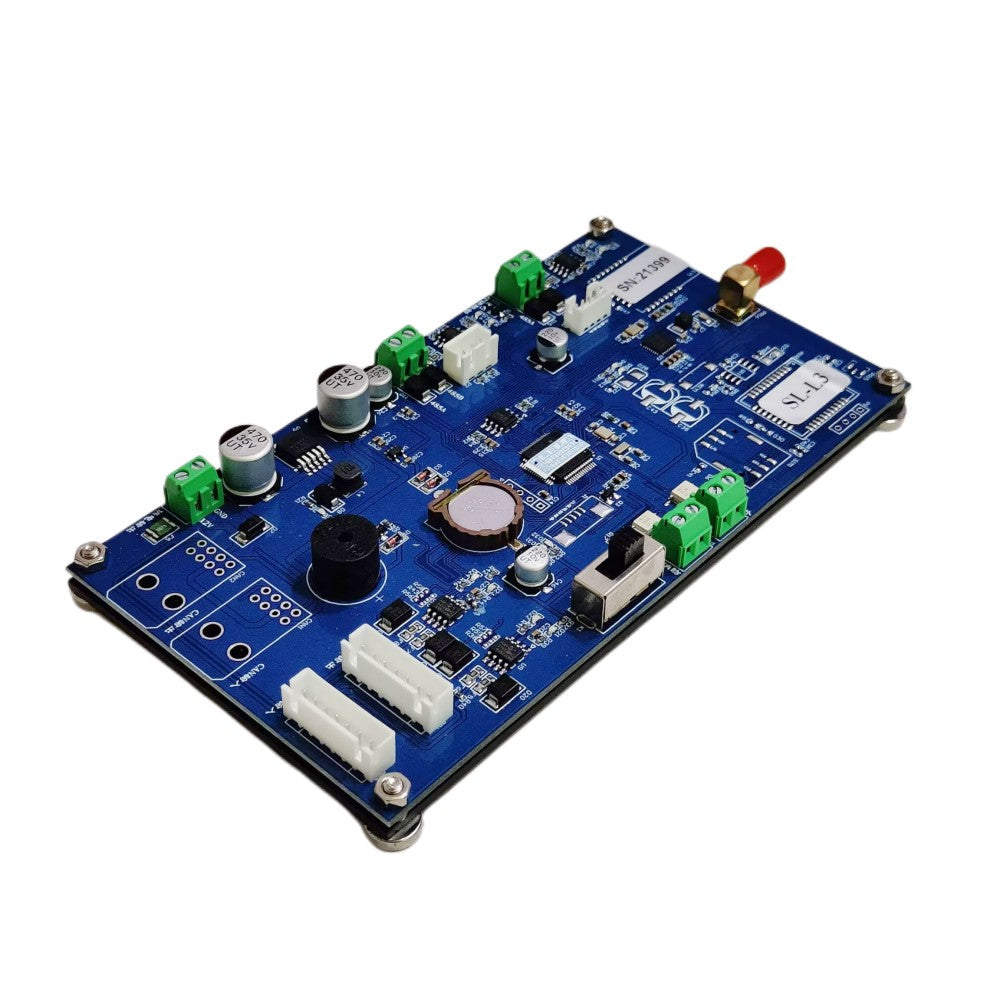

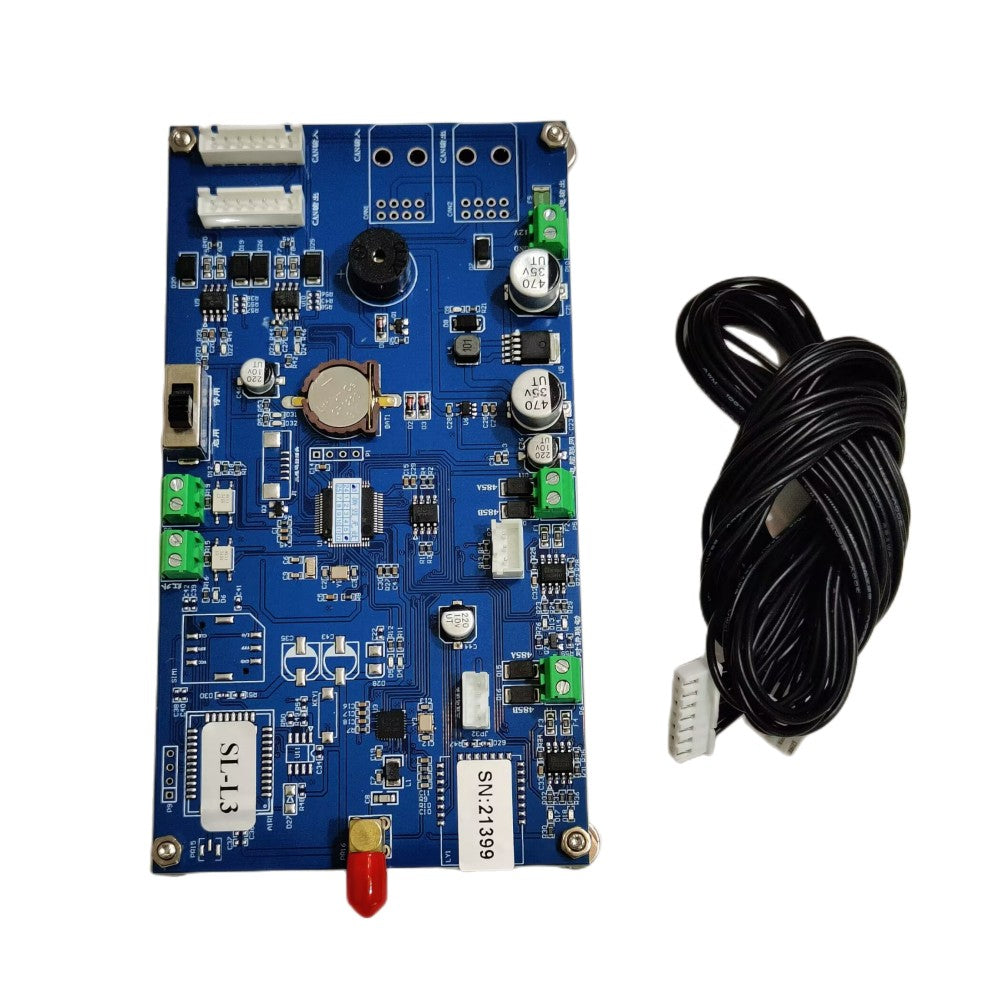

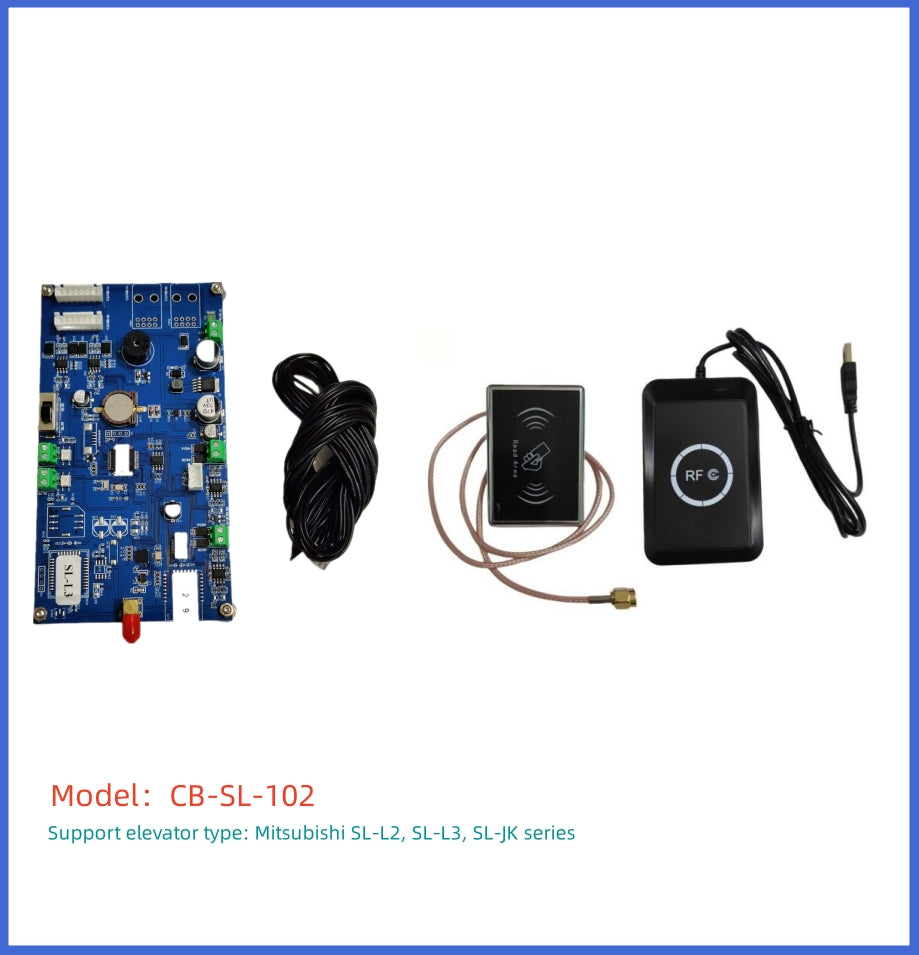

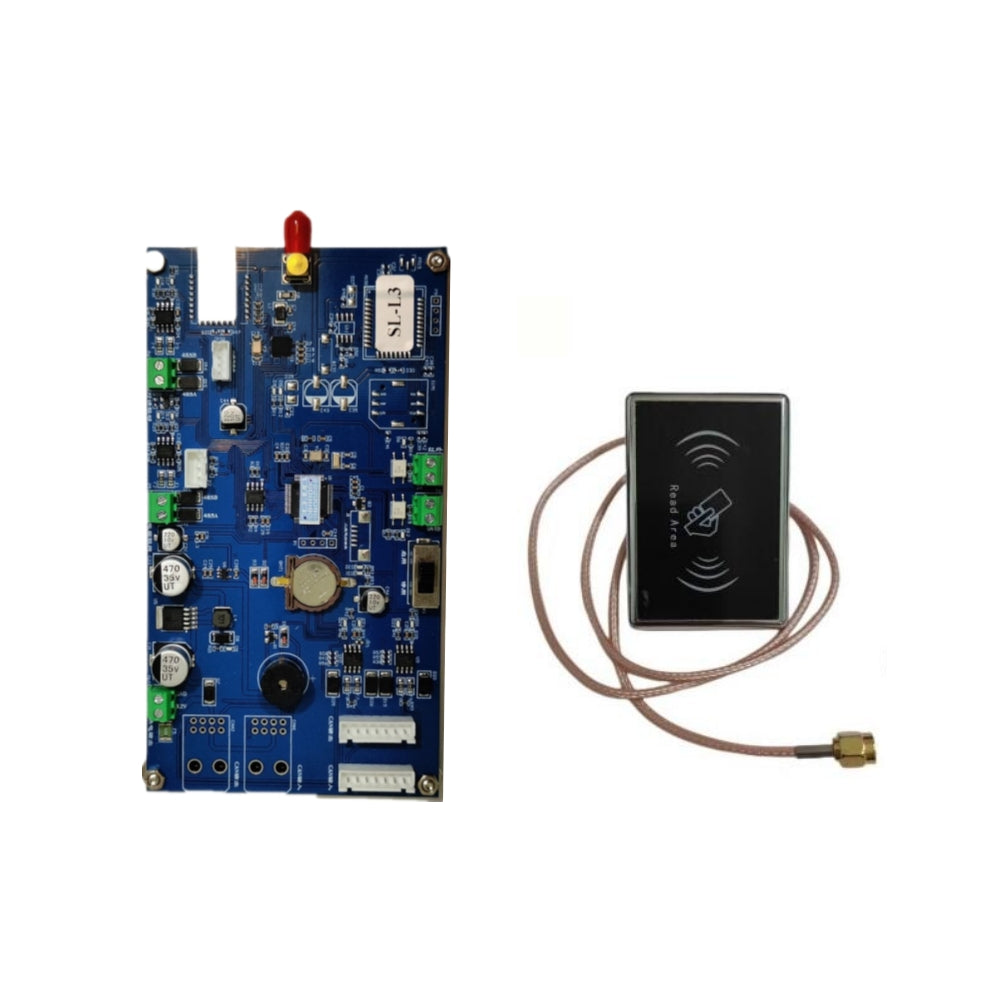

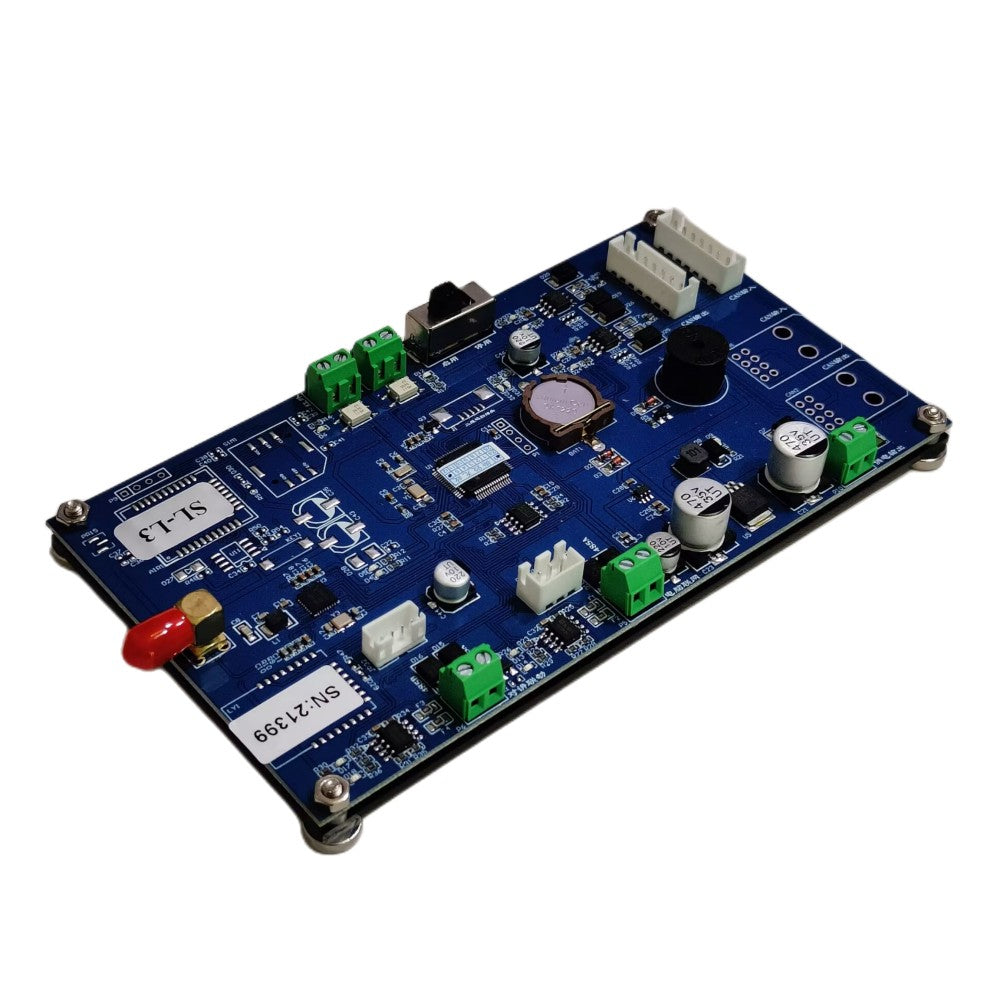

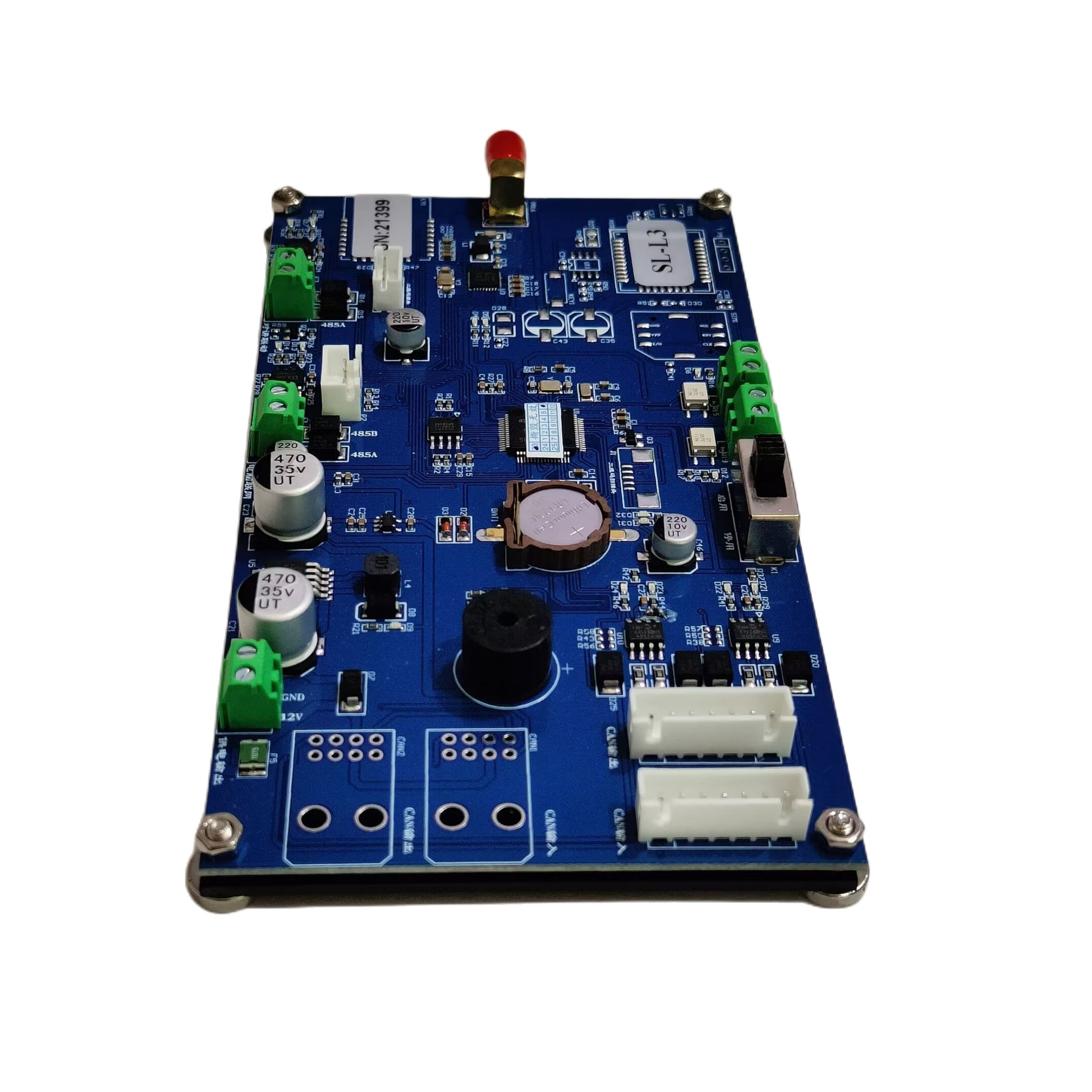

Up to 32 Elevator/Lift access control Board for Mitsubishi SL-L2, SL-L3, SL-JK series

Functional features

• Adopting advanced ARM rack design for stable performance
• Offline authorization can be used offline or online
• Capable of supporting both buttons and direct access functions
• Support TF card data export and import functions, facilitating data extraction.
• The motherboard supports 32 layers of management, and the expansion board can have up to 64 layers,
• The main control board communicates with the computer in RS485 format, supporting multiple serial ports, and each bus can manage 127 controllers
• Supporting the linkage function of building intercom system, users can activate the corresponding floor buttons while opening the door using the extension.
• Manage card issuance, cancellation, disabling, and replacement
• Flexible configuration of user access to elevators, time limits, frequency limits, time limits, and week and time period restrictions.
• Support real-time monitoring and view user swiping records
• Input an emergency signal and restore the elevator to normal mode of operation.
• Support for multi-polar permission authorization

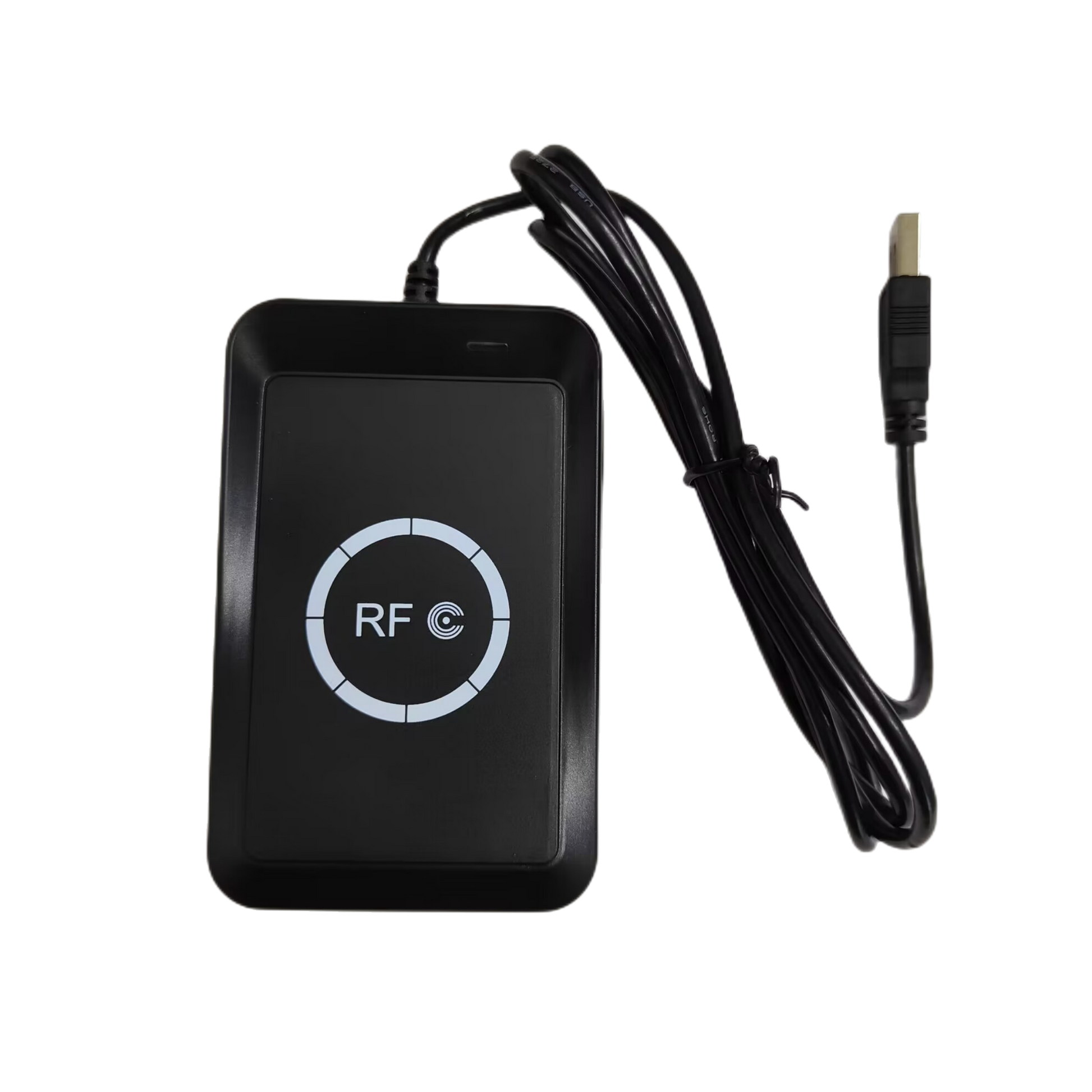

• The USB card issuer for card issuance does not require the installation of a driver plug and play.
• The software adopts ACCESS database or SQL database

Electrical parameters：

• Standard Voltage: DC12V-30V (± 30%)
• Operating current :<1000 mA;
• Operating temperature :-40℃ ~70℃
• Operating humidity : <90%
• Floor number :main control board: 32
• Output load:photoelectric drive
• User capacity:60,000 pieces
• Record capacity :100,000 pieces
• Blacklist: 20,000
• Communication mode:RS485
• Communication distance : 1,200 meters
• Number of networking units:255
• Overall size: motherboard: length 148mm x width 48mm x height 15mm;
• Support elevator type: Mitsubishi SL-L2, SL-L3, SL-JK series

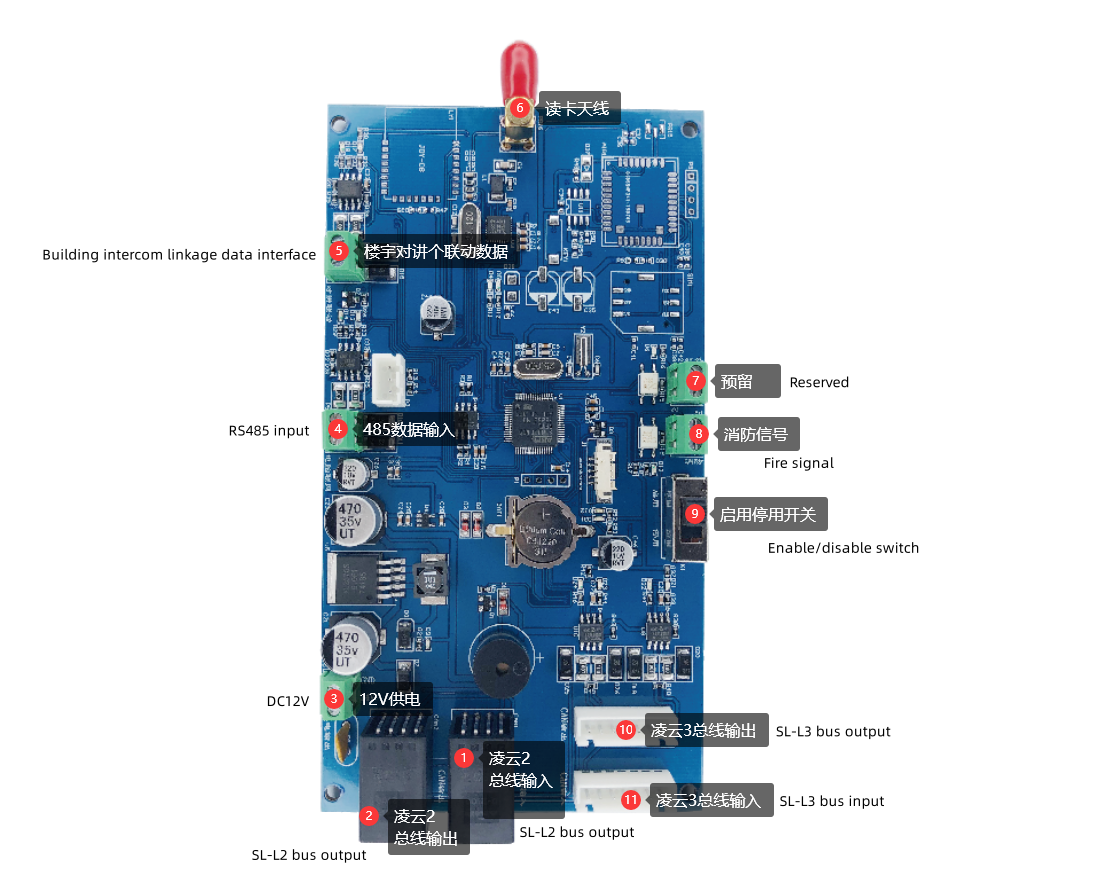

Wiring port description:

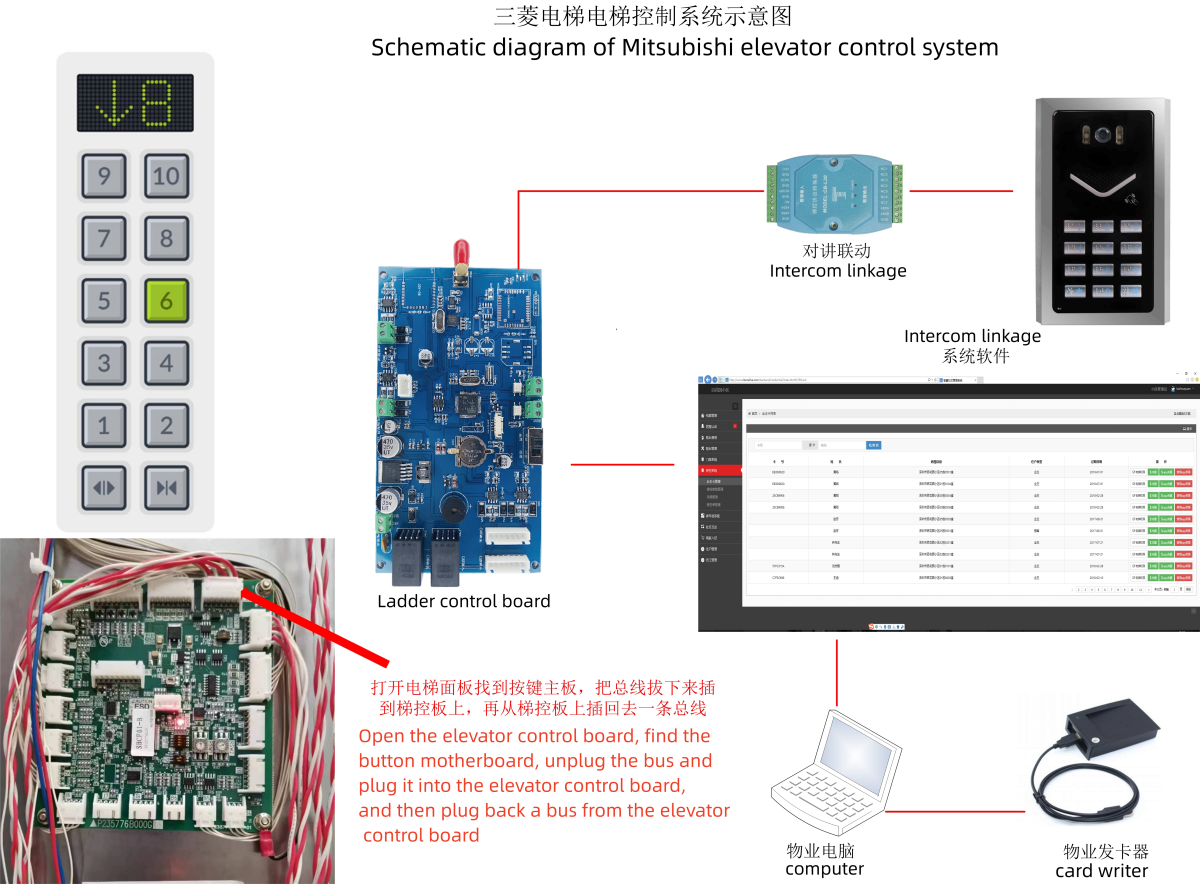

Wiring diagram:

Software：

Note：If you need more information on the elevator access control panel, please contact us.
