Up to 32 Elevator/Lift access control Board for Schindler 3300/3600/5400/5600
Up to 32 Elevator/Lift access control Board for Schindler 3300/3600/5400/5600
Обычная цена
$159.95 USD
Обычная цена
Цена со скидкой
$159.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Functional features
- Adopt advanced ARM frame hook design with stable performance
- Offline authorization can be used offline or online
- Can support both button and direct functions
- Supports TF card data export and import functions to facilitate data extraction.
- The mainboard supports 32 layers of management, and up to 64 layers with expansion boards.
- The main control board communicates with the computer in RS485 format, supports multiple serial ports, and each bus can manage 127 controllers.
- Supports the linkage function of the building intercom system. When the user uses the extension to open the door, the corresponding floor button is activated at the same time.
- Manage the issuance, cancellation, disabling and card replacement of cards
- The user's elevator permissions can be flexibly configured, including time limit, time limit, time limit and time limit, as well as week and time period restrictions.
- Support real-time monitoring and view user card swiping records
- When the emergency signal is input, the elevator returns to normal operation.
- Support multi-level authority authorization

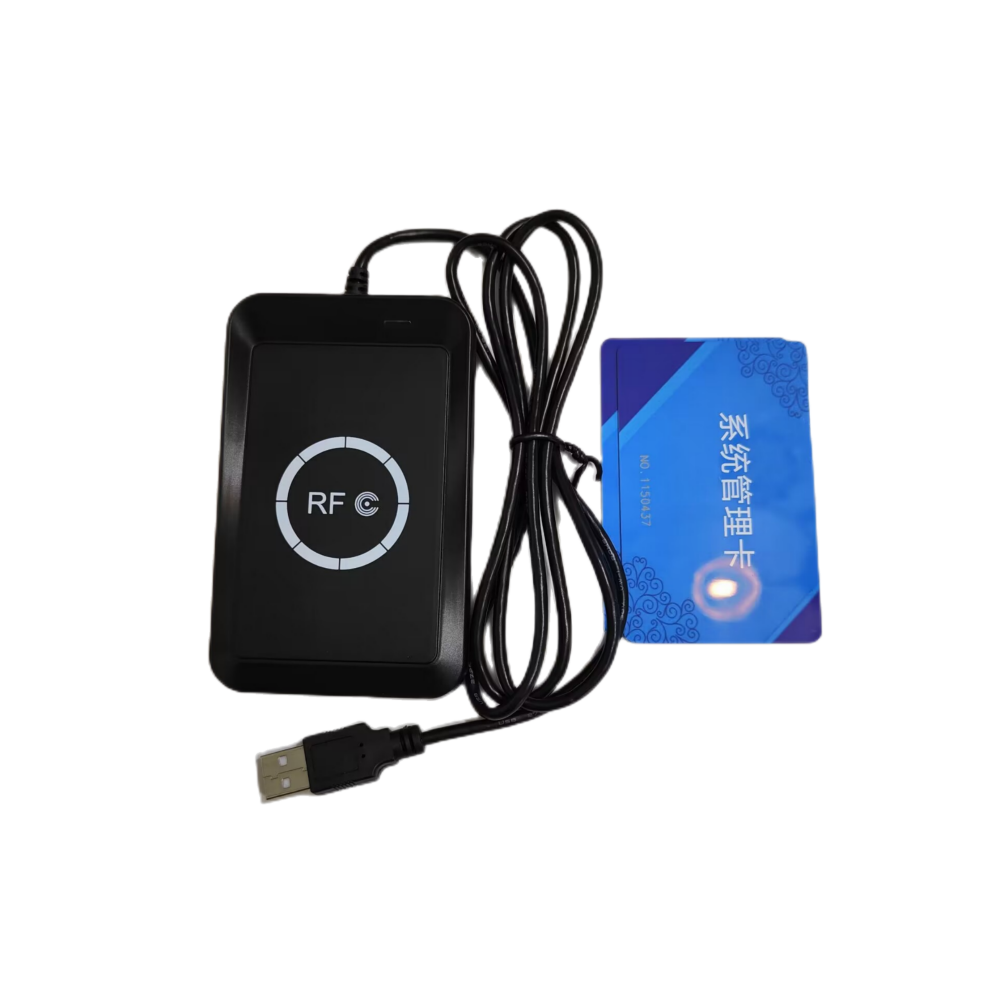

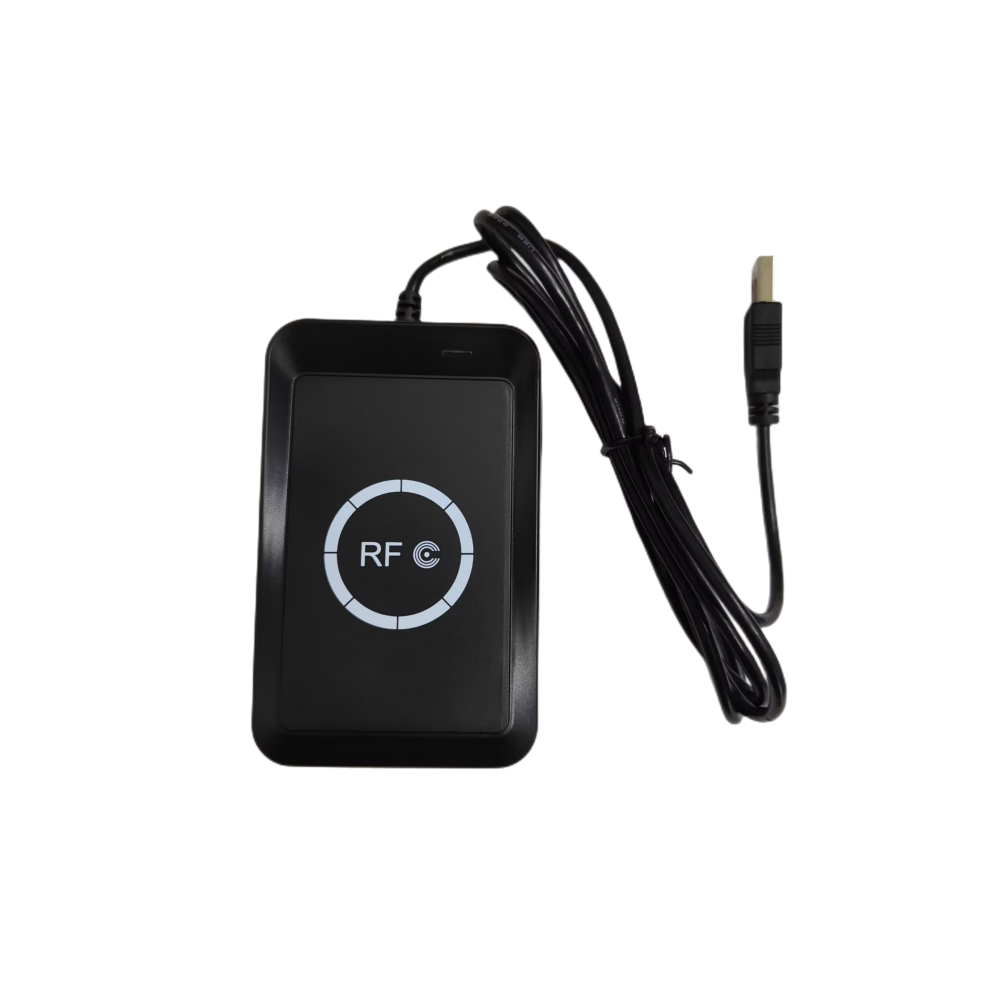

- The USB card issuer for issuing cards is plug-and-play without installing a driver.
- The software uses ACCESS database or SQL database.
Electrical parameters:
- Standard voltage:DC12V-DC30(±30%)
- Working current <1000mA;
- Working temperature -40℃~70℃
- Working humidity <90%
- Number of floors Main control board: 32
- Output load: photoelectric driver
- User capacity: 60,000 pieces
- Record capacity: 100,000 records
- Blacklist:20,000 photos
- Communication method :RS485
- Communication distance: 1200 meters
- Number of connected devices: 255
- Overall dimensions: Mainboard: 160mm long x 100mm wide x 15mm high;

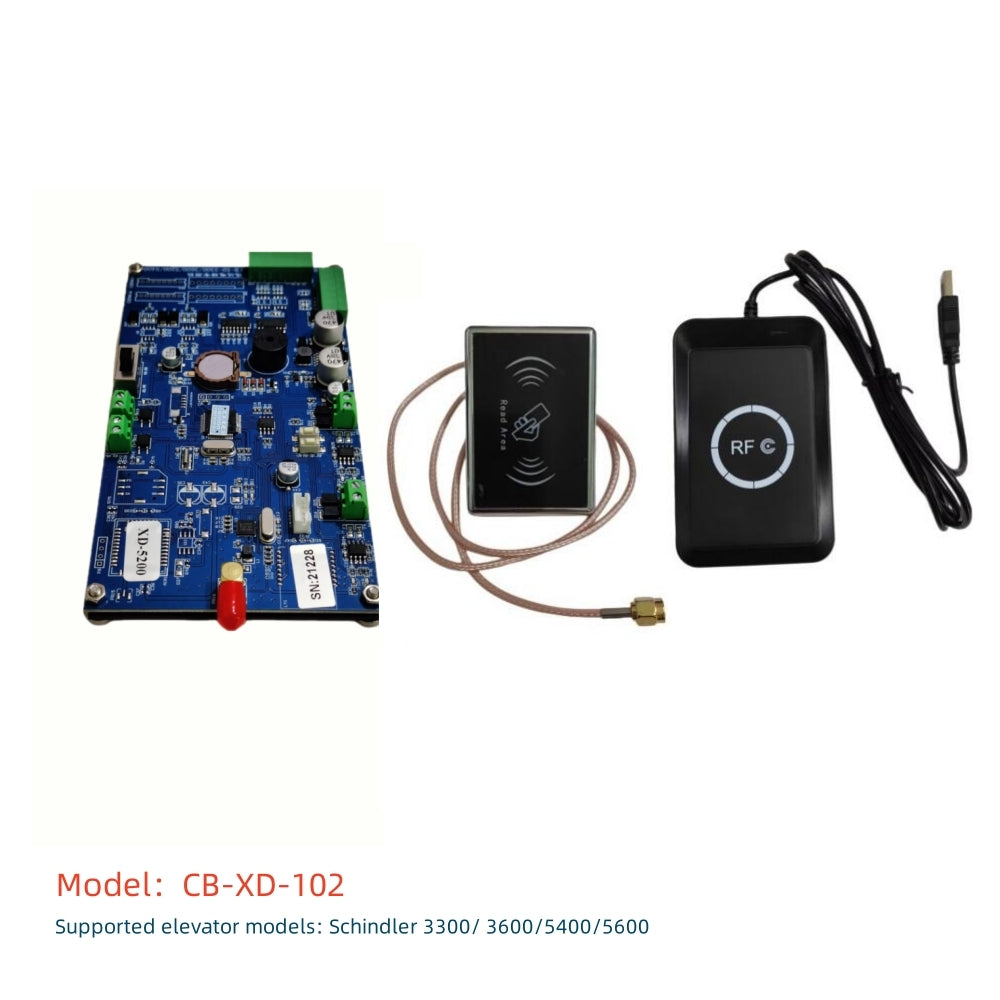

- Supported elevator models: Schindler 3300 3600 5400 5600

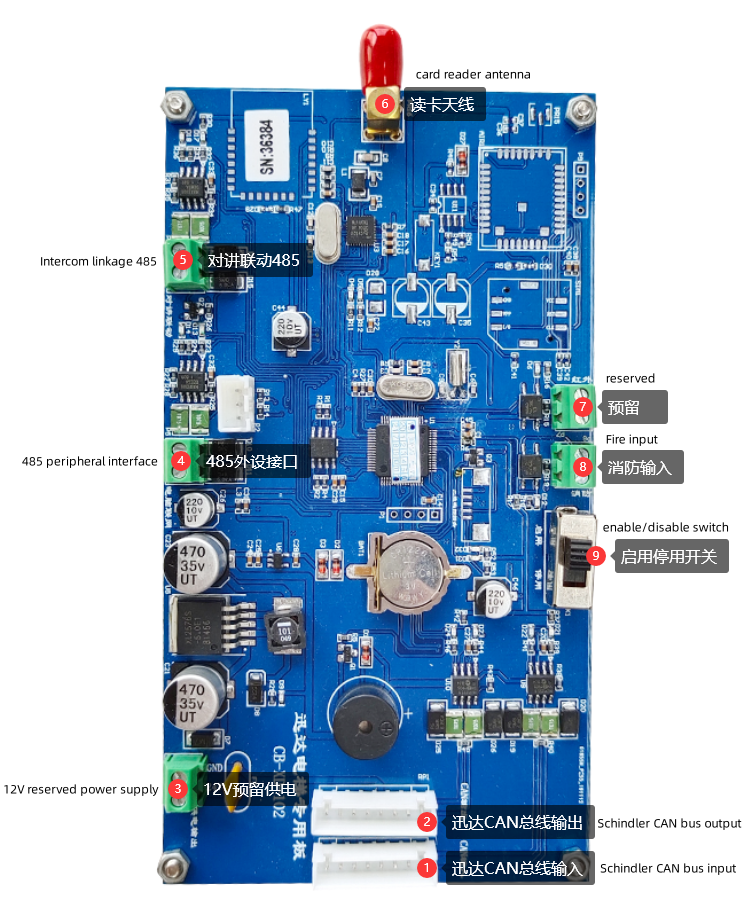

Wiring port description:

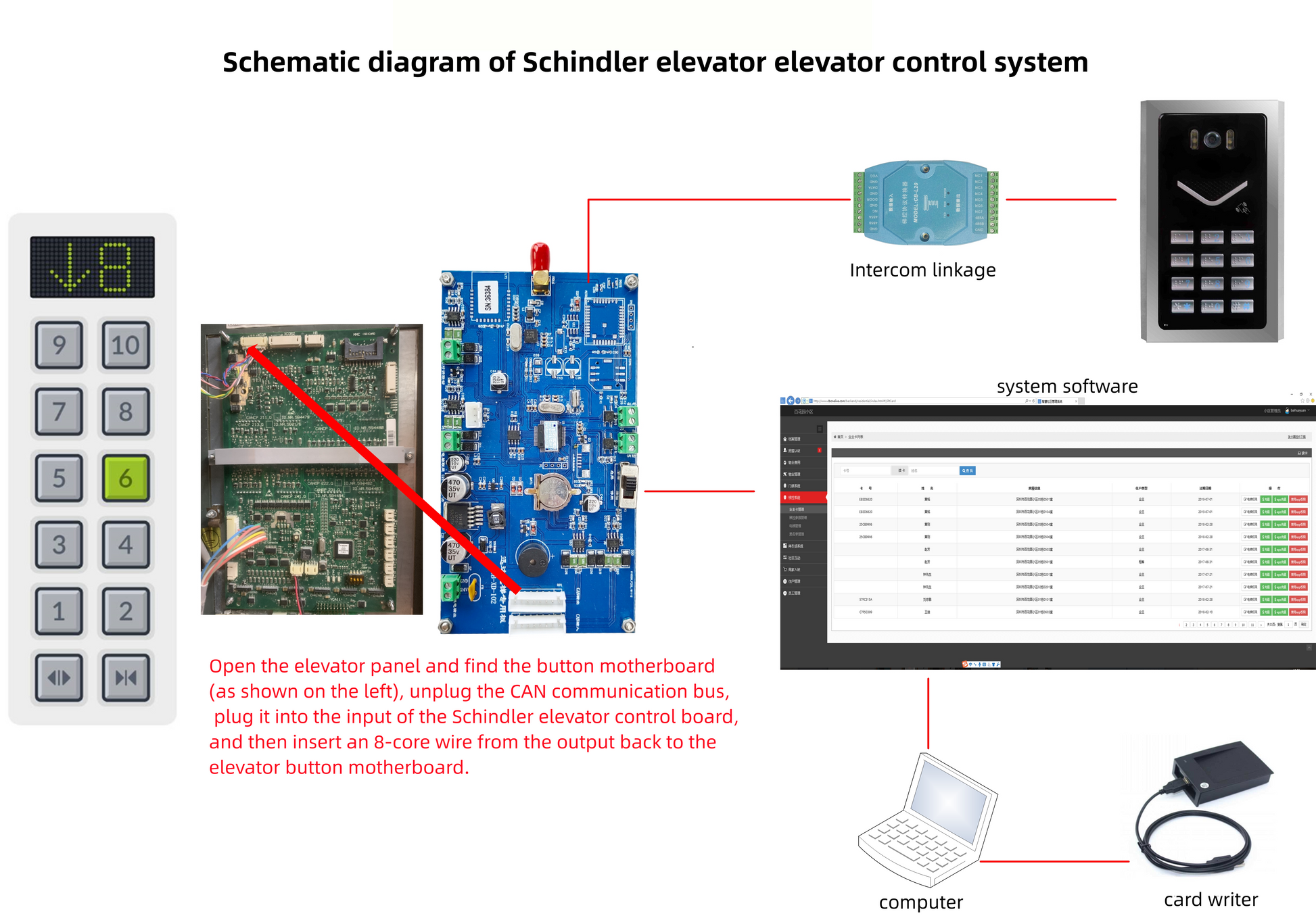

Wiring diagram:
Software:
Note:If you need more information on the elevator access control panel, please contact us.
