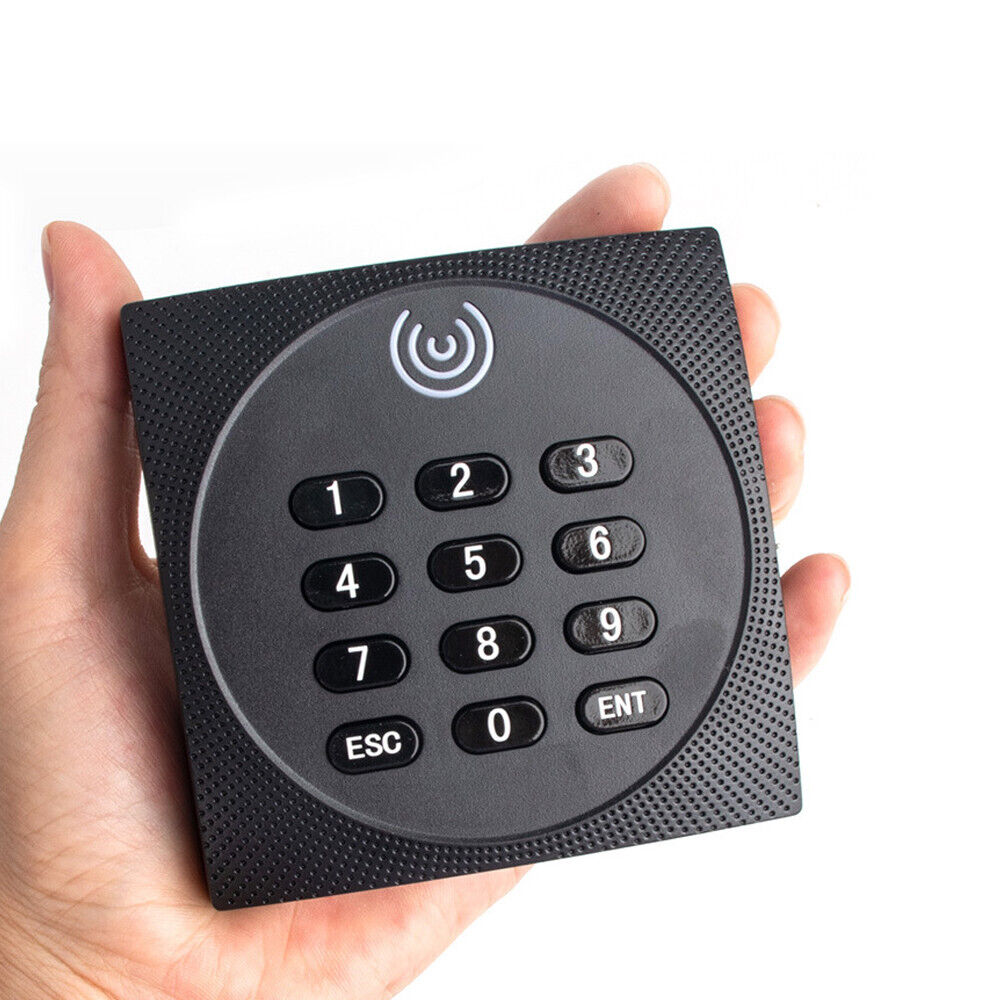

Waterproof EM Proximity Keyboard 13.56KHz WG26/34 RFID Access Card Reader
Waterproof EM Proximity Keyboard 13.56KHz WG26/34 RFID Access Card Reader
Не удалось загрузить сведения о доступности самовывоза
Function:
* Read range of up to 10cm for proximity card and 5cm for Mifare card
* External LED control
* External Buzzer Control
* Indoor/Outdoor operation
* Solid Epoxy potted
* Waterproof IP64 or IP65
* Reverse Polarity Protection
Description:
Model：KR602M
|
Output Interface |
Wiegand26 / WG34 |
|
Operating Frequency |
13.56MHZ |
|
Reader Card |
RFID Card |
|
Transmitting Distance |
WG<100M |
|
Proximity Range |
KRxx E ,Up to 10CM ,KR x M ,Up to 5CM |
|
Power Supply |
DC9<14V, |
|
Static Power Supply |
<70mA |
|
Temperature |
Minus 10 degrees <65 degrees |
|
Relative Humidity |
10%<90% |
|
Recognition Speed |
<=200s |
|
Input Port |
External LED Control , External Buzzer Control |
|
Communication distance |
100m |
|
Communication way |
Real time |
|
LED |
Red and Green LEDs |
|
Buzzer |
Yes |
|
Color |
Black Color |
|
Material |
ABS+PVC Material (Black Resin for Water Proof Function) |
|
Waterproof |
IP65 Degree |
|

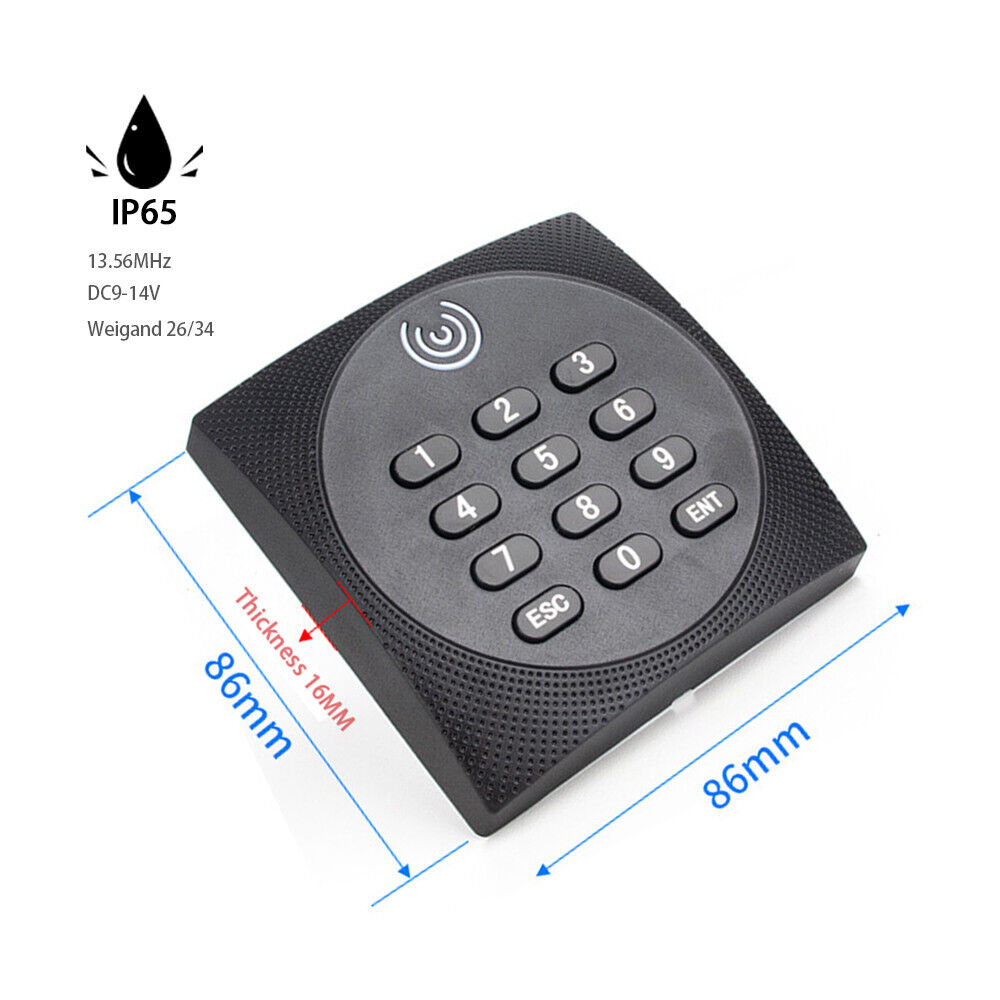

Dimension |
86*86*16(mm) |

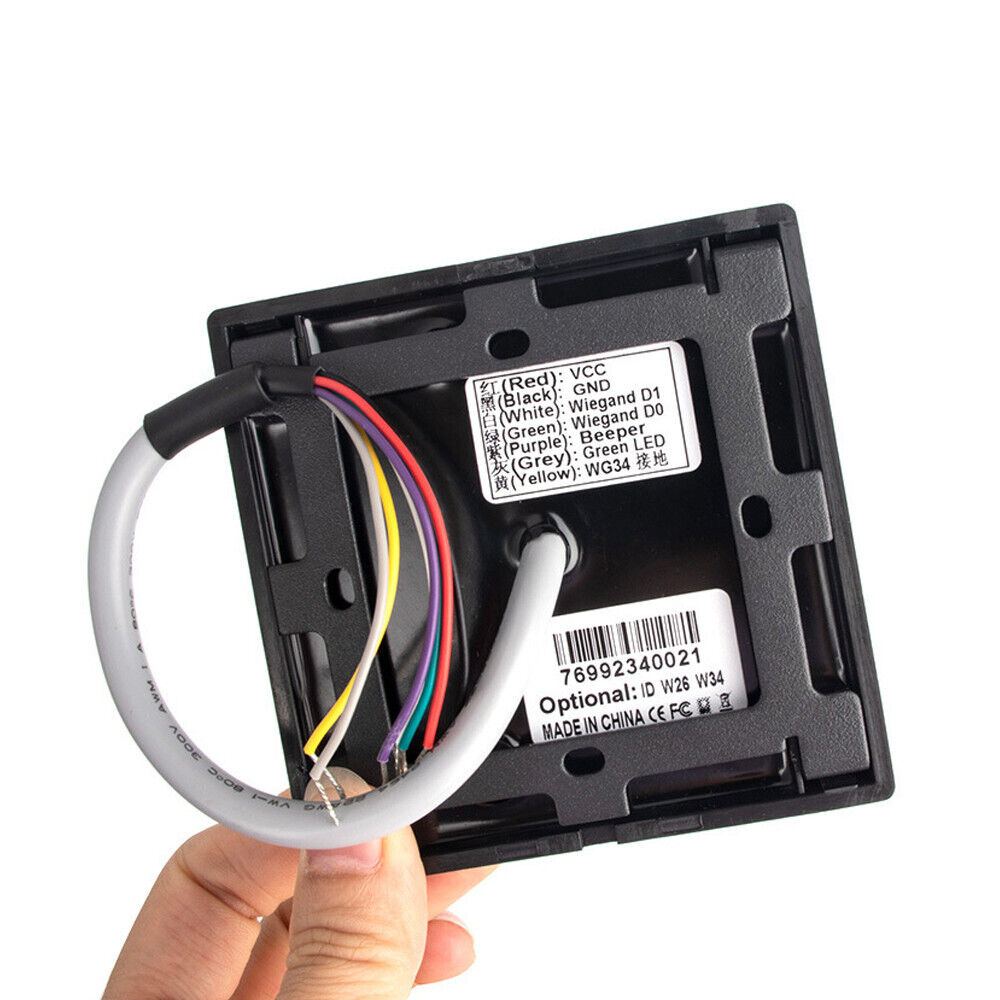

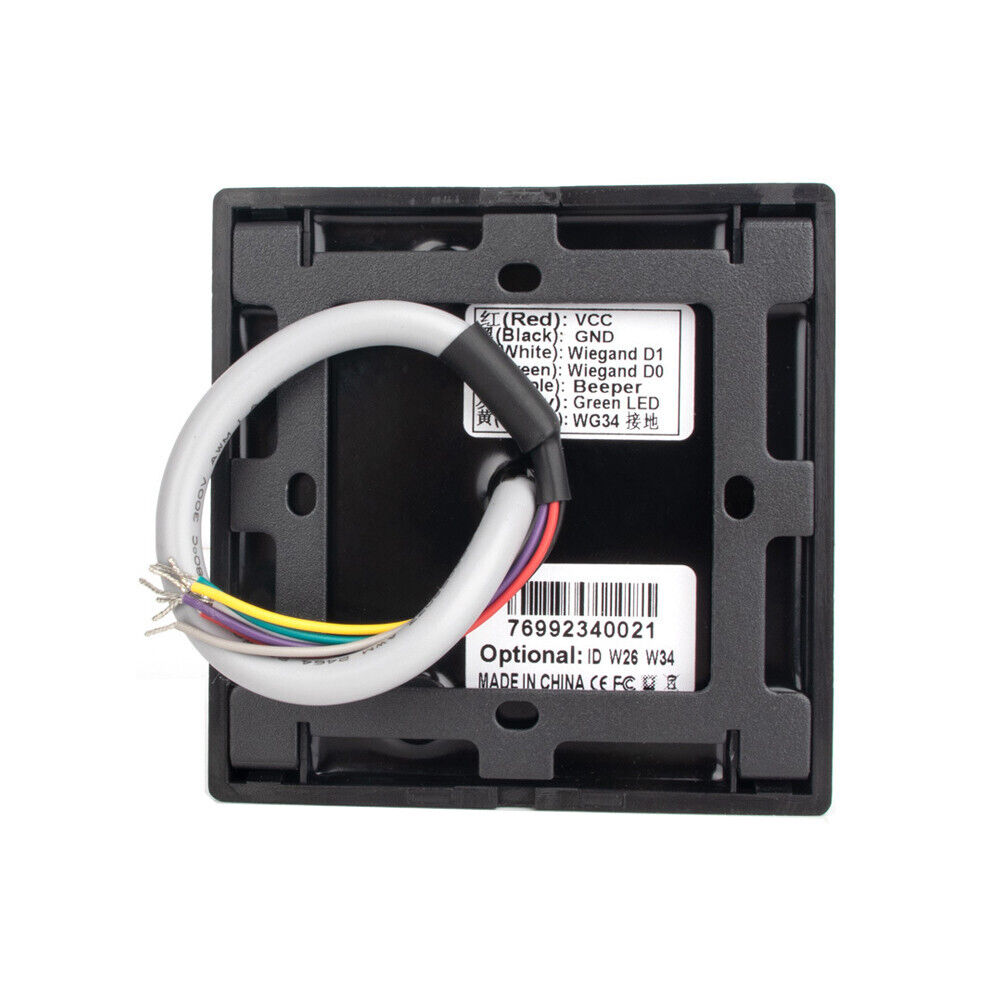

PIN descripiton
|
Pin |
Colour |
Description |
|
1 |
Red |
9V-15V |
|
2 |
Black |
GND |
|
3 |
Green |
D0(WG26) |
|
4 |
White |
D1(WG26) |
|
5 |
Purpleurple |
Beeper |
|
6 7 |
Grey Yellow |
Greed LED WG34-GND
|
