Weatherproof EM Proximity keypad 125KHz WG26/34 RFID Access Control Card Reader

Model:KR602E

Output Interface:Wiegand26/ Wiegan34
Operating Frequency:125KHZ
Reader Card:RFID Card
Transmitting Distance:WG<100M
Proximity Range:KRxx E,Up to 10CM,KR x M,Up to 5CM
Power Supply:DC9-14V
Static Power Supply:<70mA
Temperature:Minus 10 degrees <65 degrees
Relative Humidity:10%<90%
Recognition speed:<200s
Input Port:External LED Control,External Buzzer Control
Communication distance:100m
Communication way:Real time
LED:Red and Green LEDs
Buzzer:Yes
Color:Black Color
Material:ABS+PVC Material(Black Resin for Water Proof Function)
Waterproof:IP65 Degree

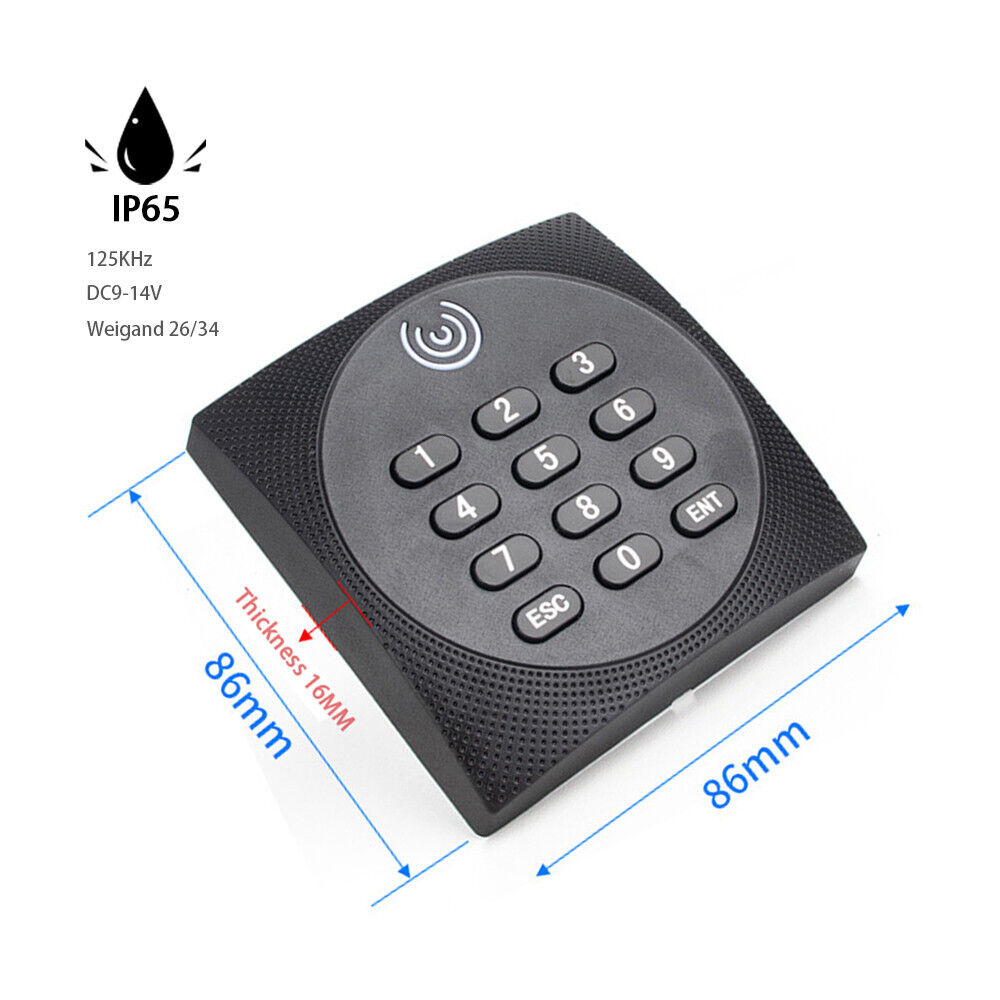

Dimension:86*86*16(mm)

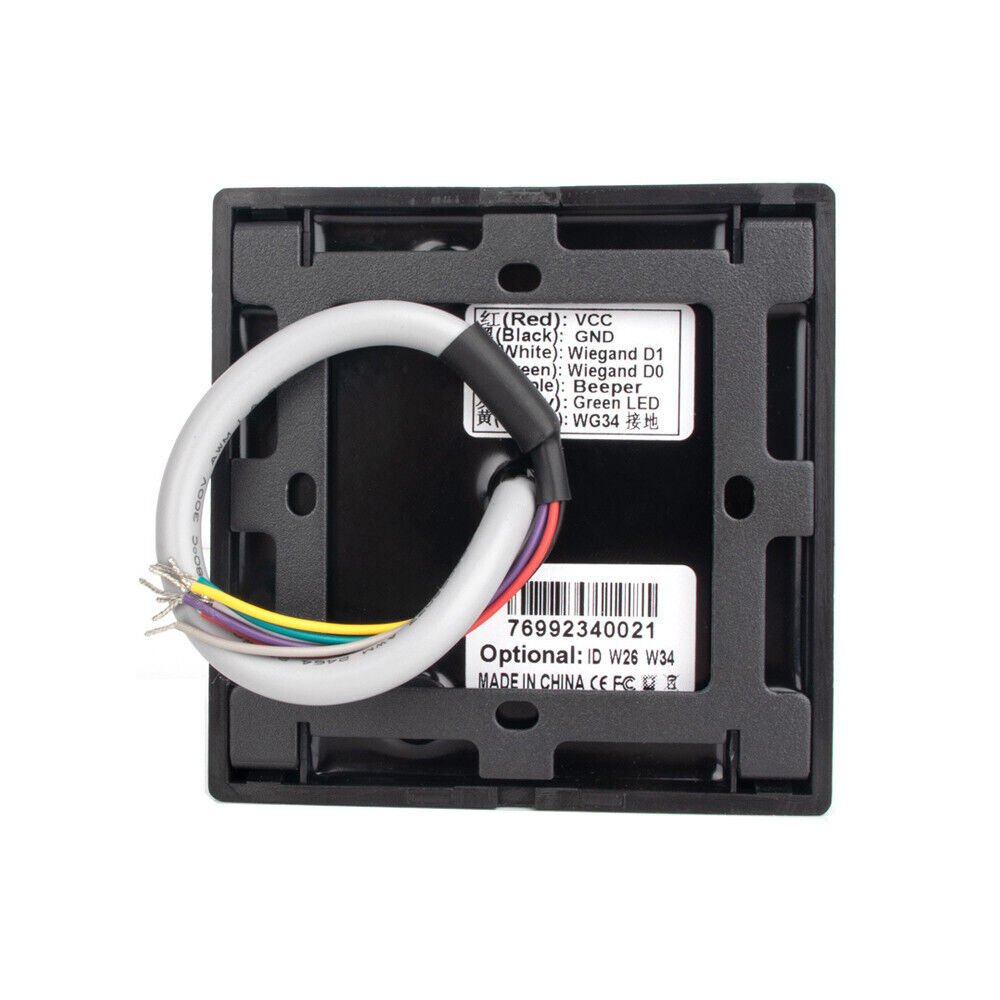

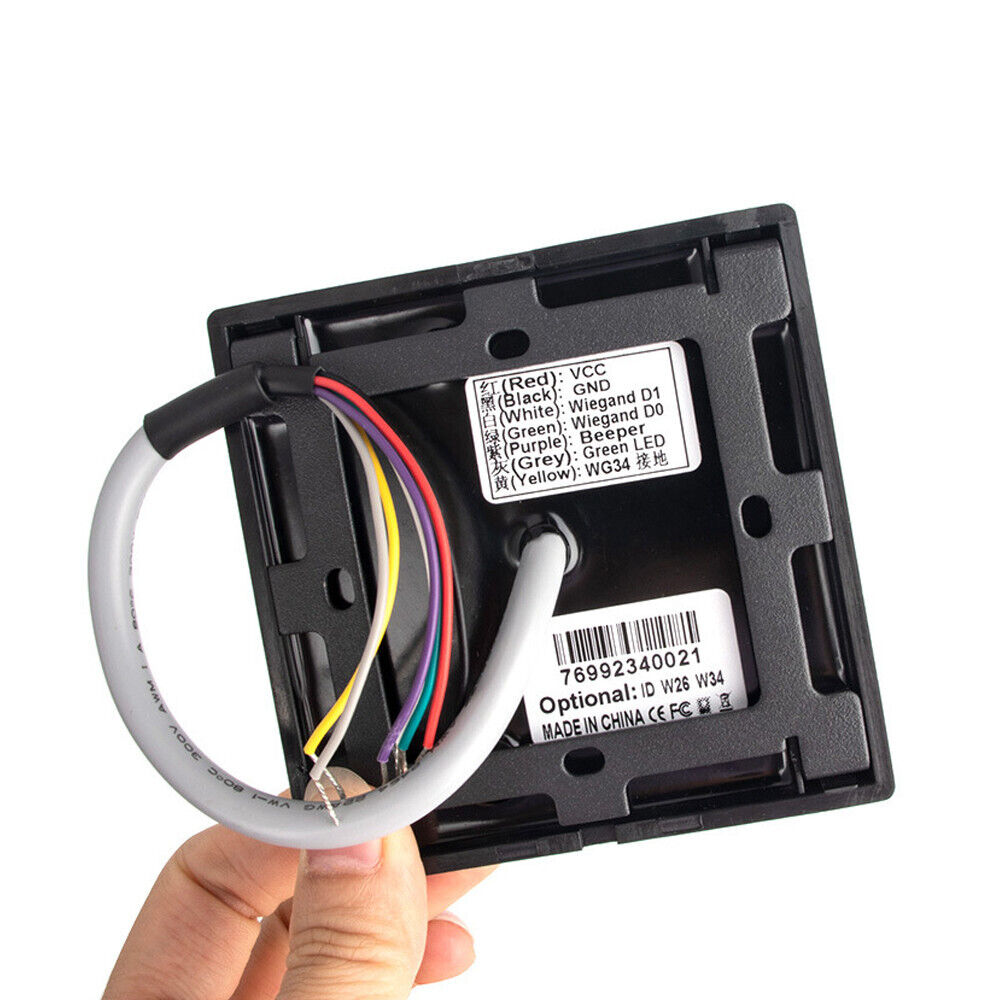

PIN descripiton

RED:9-15VDC
BLACK:GND
GREEN:D0(WG26)
WHITE:D1(WG26)
PURPLE:BEEPER
GREY:GREEN LED
YELLOW:WG34-GND
