Rhombus Access Control System
Weatherproof EM Proximity keypad 125KHz WG26/34 RFID Access Control Card READER
Weatherproof EM Proximity keypad 125KHz WG26/34 RFID Access Control Card READER
Обычная цена
$19.95 USD
Обычная цена
Цена со скидкой
$19.95 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
Specification
Decode timeL:<0.2s
Communication:Weigand 26/34
Card type:125KHZ EM card , EM compatible card ,EM4100\4102
Induction Distance:1-5cm
Power supply:DC12V
DATA transfer range:Max 80m
Currency <100MA
Working Temperature :0~70°C
Working Humidity :Less than 80%

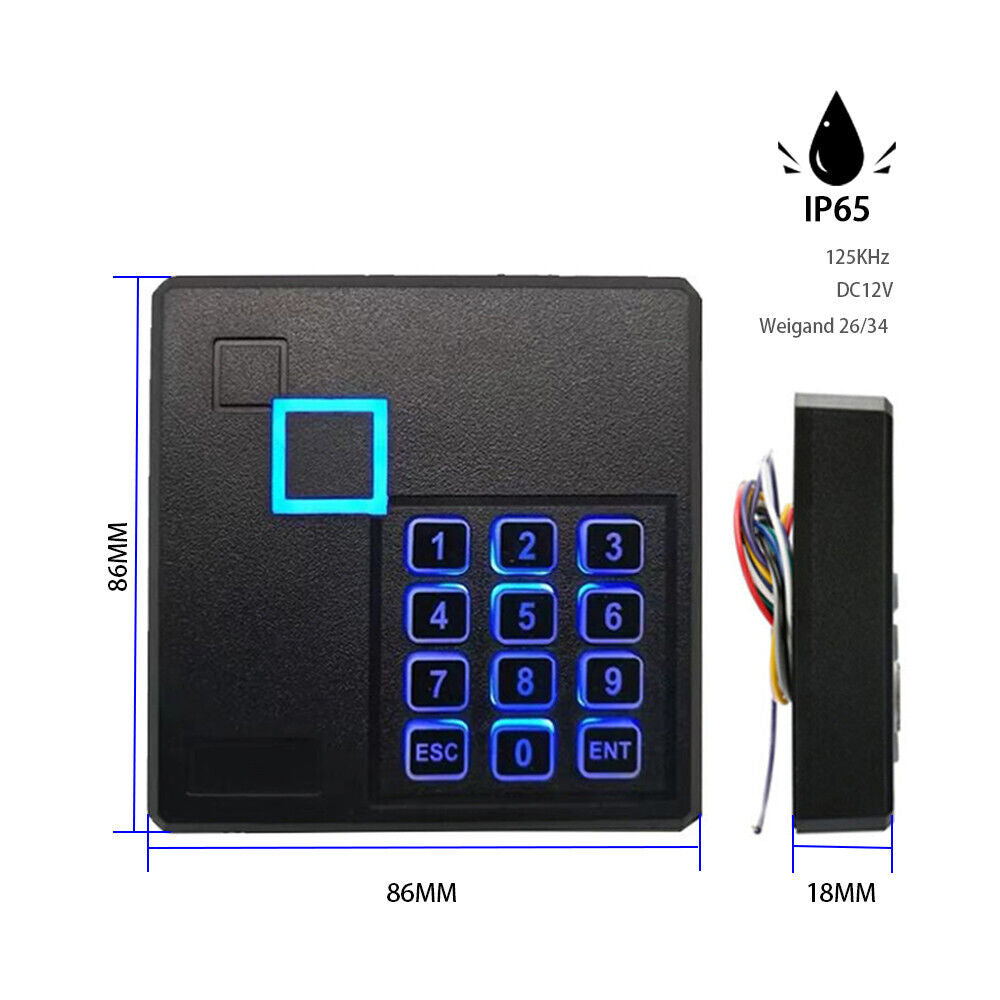

Dimension (LxWxH mm):86x86×18
Package:plastic casing &epoxy saturated
Weight (kg):0.2
PIN description
|
Pin |
Color |
Description |
|
1 |
RED |
DC12V |
|
2 |
BLACK | GND |
|
3 |
GREEN |
WG data0(RS485+) |
|
4 |
WHITE |
WG data1(RS485-) |
|
5 |
YELLOW |
BUZZER |
|
6 |
BLUE |
LED |
|
7 |
BROWN |
Select, No Contact means WG26,Connect to GND means WG34 output |
