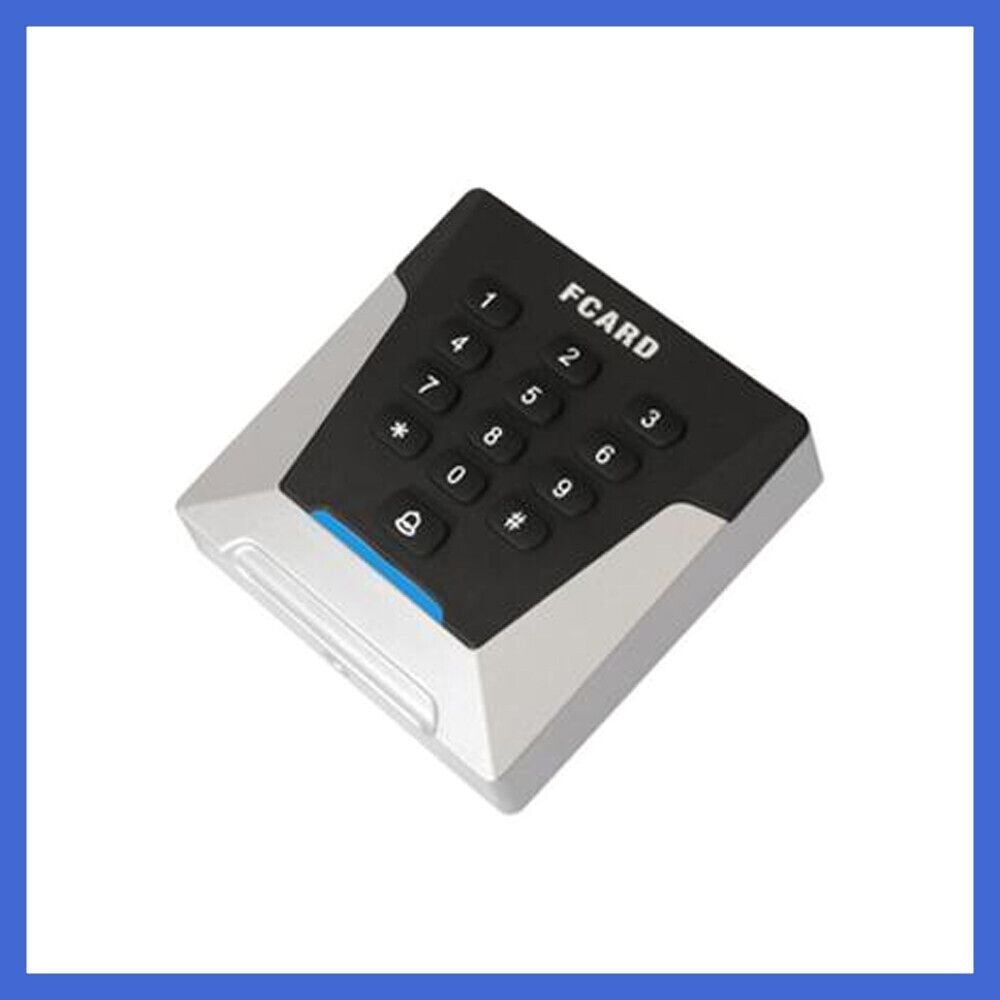

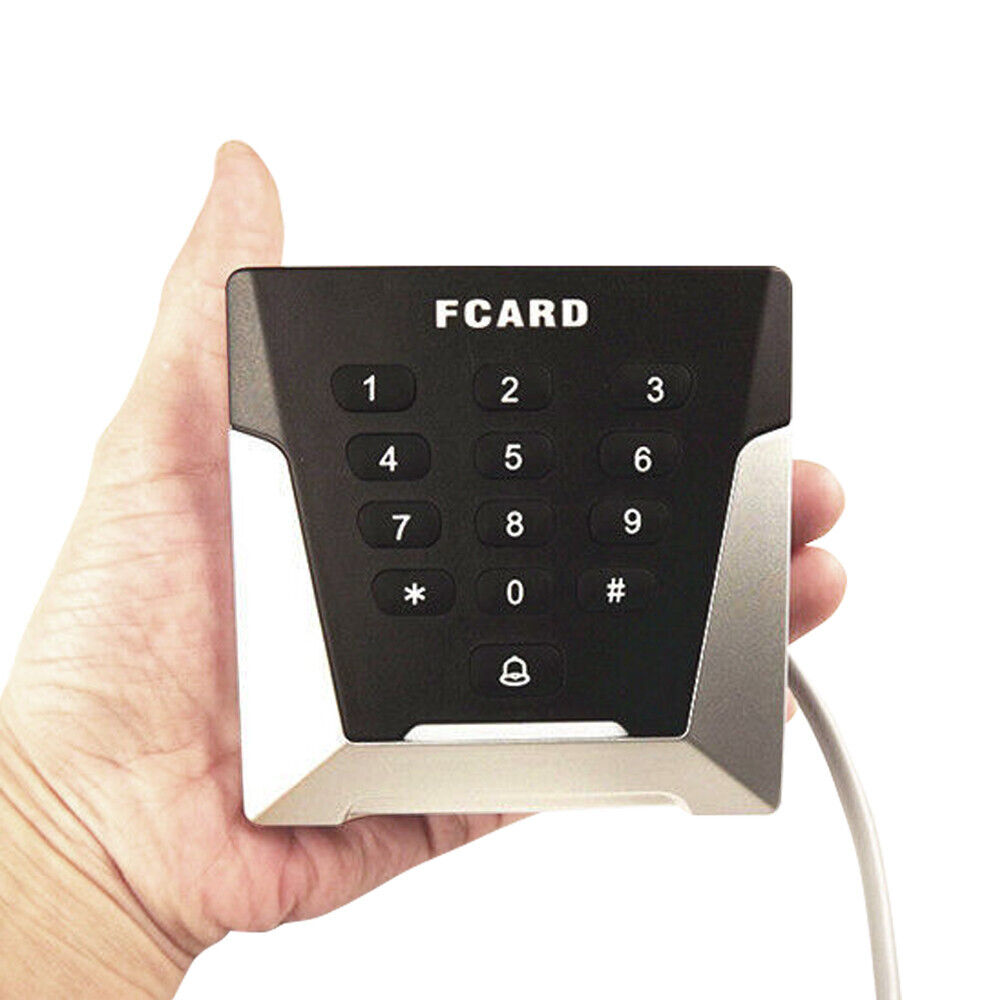

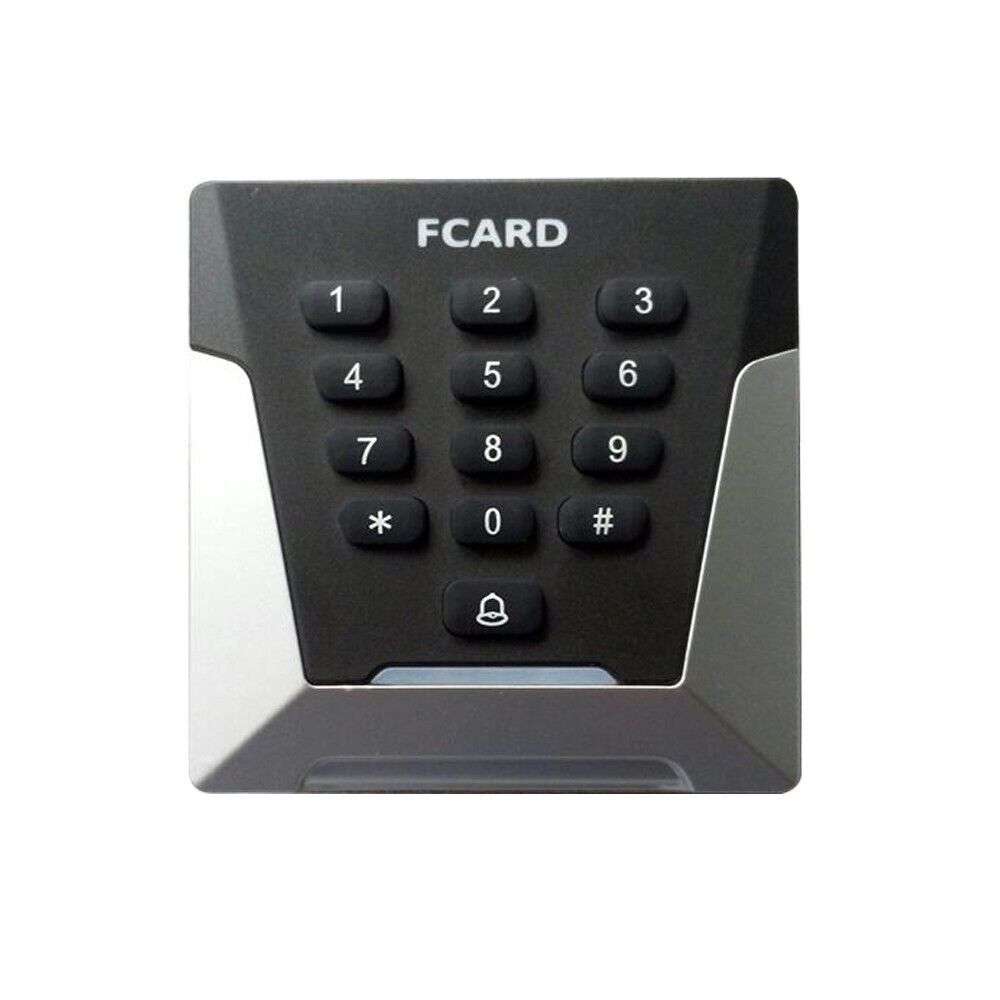

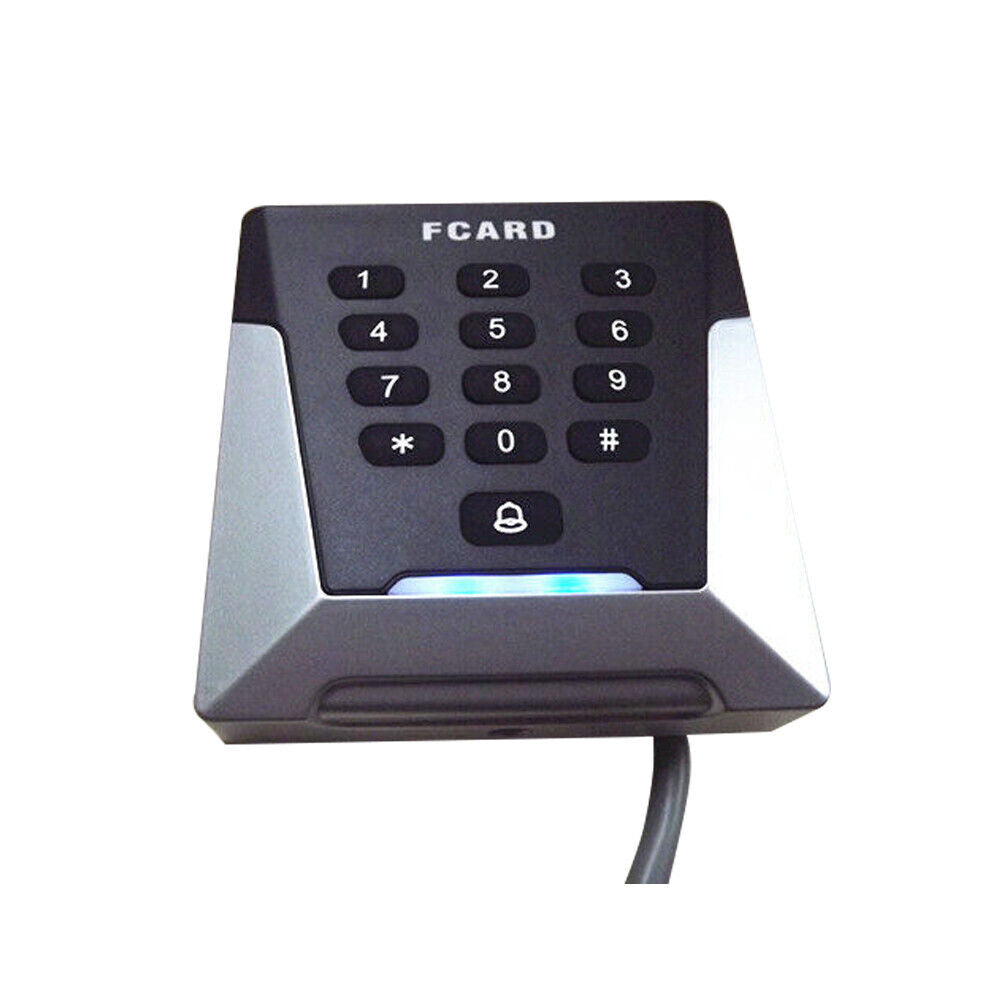

Weatherproof EM Proximity keypad 125KHz WG26/34 RFID Access Control Card READER
Weatherproof EM Proximity keypad 125KHz WG26/34 RFID Access Control Card READER
Обычная цена
$27.99 USD
Обычная цена
Цена со скидкой
$27.99 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
|
Detailed Description: |
|
|
Specification |
|
| decode time | <0.2s |
| Communication | Weigand 26/34 |
| Card type | EM card , EM compatible card ,EM4100\4102 |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 80m |
| Currency | <100MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |

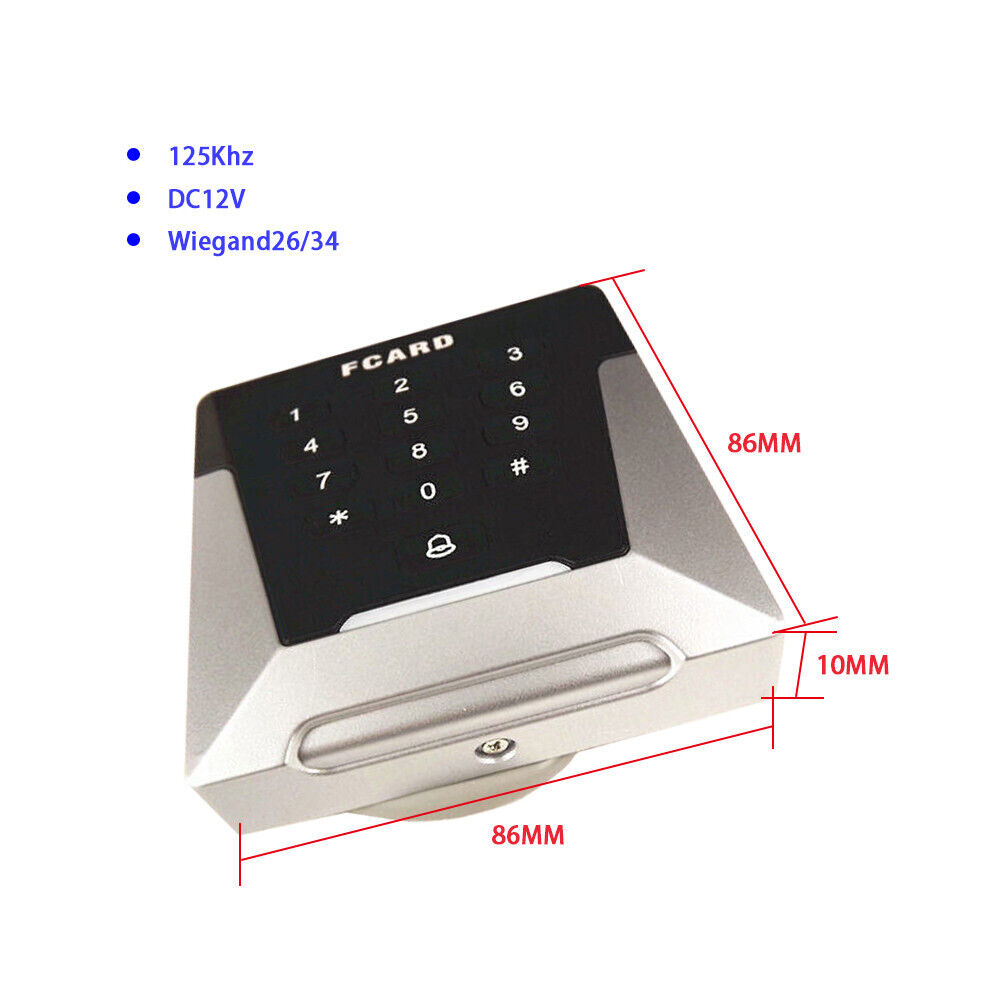

| Dimension (LxWxH mm) | 86×86×10 |
| Package | plastic casing &epoxy saturated |
| Weight (kg) | 0.2 |
Color Black/Silver

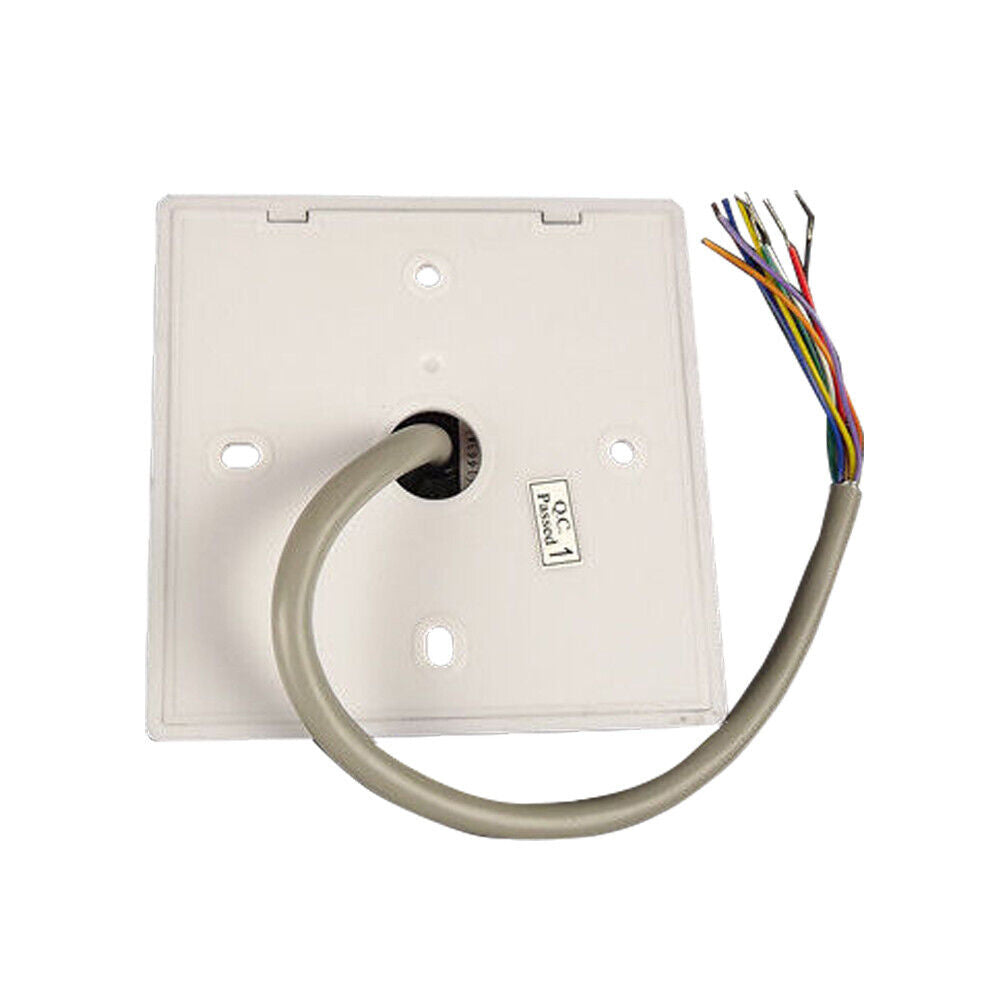

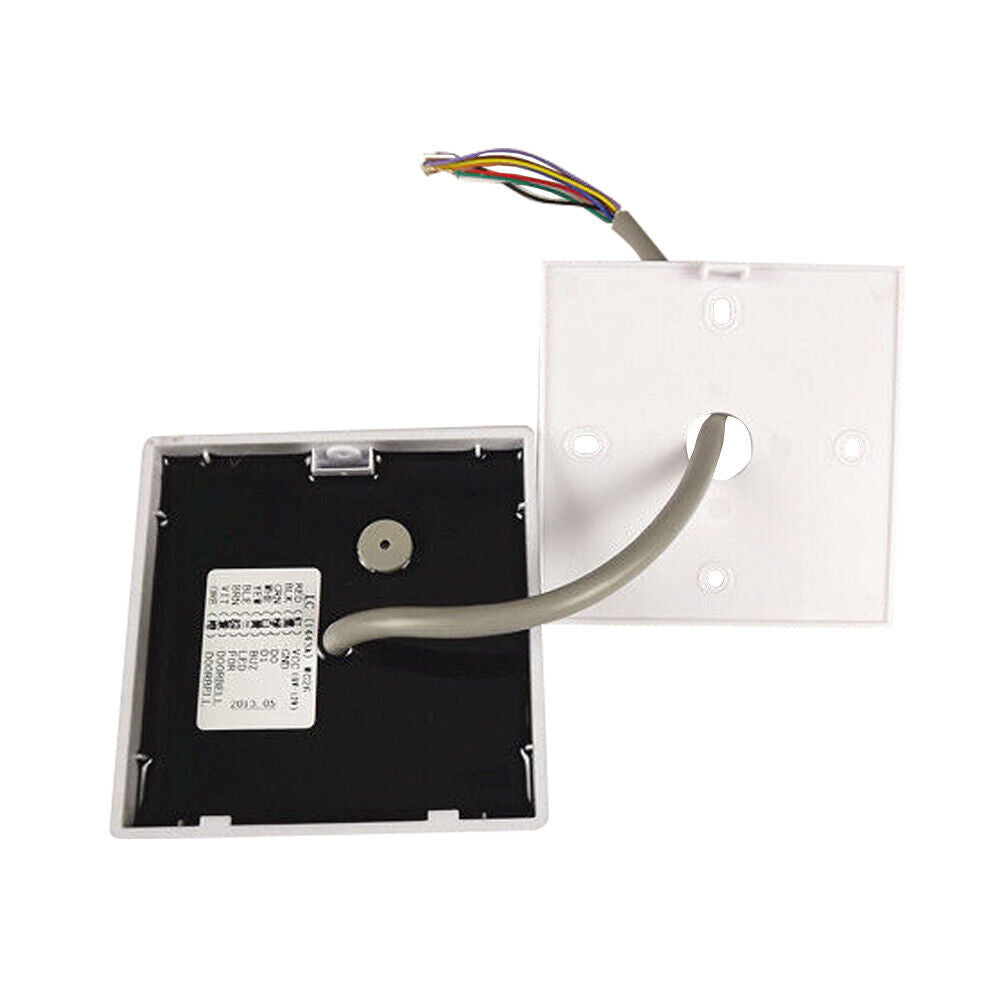

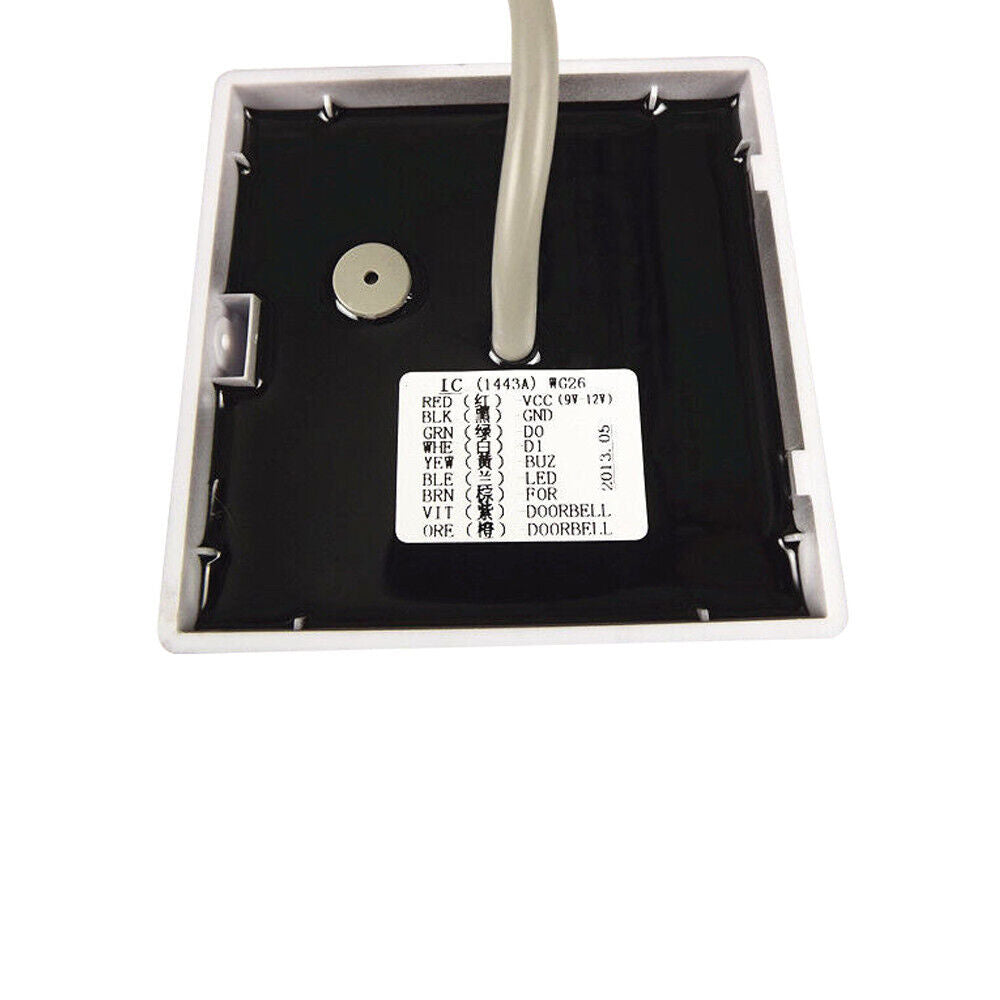

PIN description
|
Pin |
Color |
Description |
|
1 |
RED |
DC12V |
|
2 |
BLACK | GND |
|
3 |
GREEN |
WG data0(RS485+) |
|
4 |
WHITE |
WG data1(RS485-) |
|
5 |
YELLOW |
BUZZER |
|
6 |
BLUE |
LED |
|
7 |
BROWN |
Select, No Contact means WG26,Connect to GND means WG34 output |
