Weatherproof EM Proximity keypad 125KHz WG26 RFID Access Control Card READER
Weatherproof EM Proximity keypad 125KHz WG26 RFID Access Control Card READER
Не удалось загрузить сведения о доступности самовывоза
Note:This keyboard reader is only suitable for ZK controllers.
Function:
* Read range of up to 10cm for proximity card and 5cm for Mifare card
* External LED control
* External Buzzer Control
* Indoor/Outdoor operation
* Solid Epoxy potted
* Waterproof IP64 or IP65
* Reverse Polarity Protection
Description:
Model:KR102E
Output Interface |
Standard Wiegand26 |
Operating Frequency |
125KHZ |
Reader Card |
RFID Card |
Transmitting Distance |
WG<100M |
Proximity Range |
KRxx E ,Up to 10CM ,KR x M ,Up to 5CM |
Power Supply |
DC9<14V, |
Static Power Supply |
<70mA |
Temperature |
Minus 10 degrees <65 degrees |
Relative Humidity |
10%<90% |
Recognition Speed |
<=200s |
Input Port |
External LED Control , External Buzzer Control |
Communication distance |
100m |
Communication way |
Real time |
LED |
Red and Green LEDs |
Buzzer |
Yes |
Color |
Black Color |
Material |
ABS+PVC Material (Black Resin for Water Proof Function) |
Waterproof |
IP65 Degree |

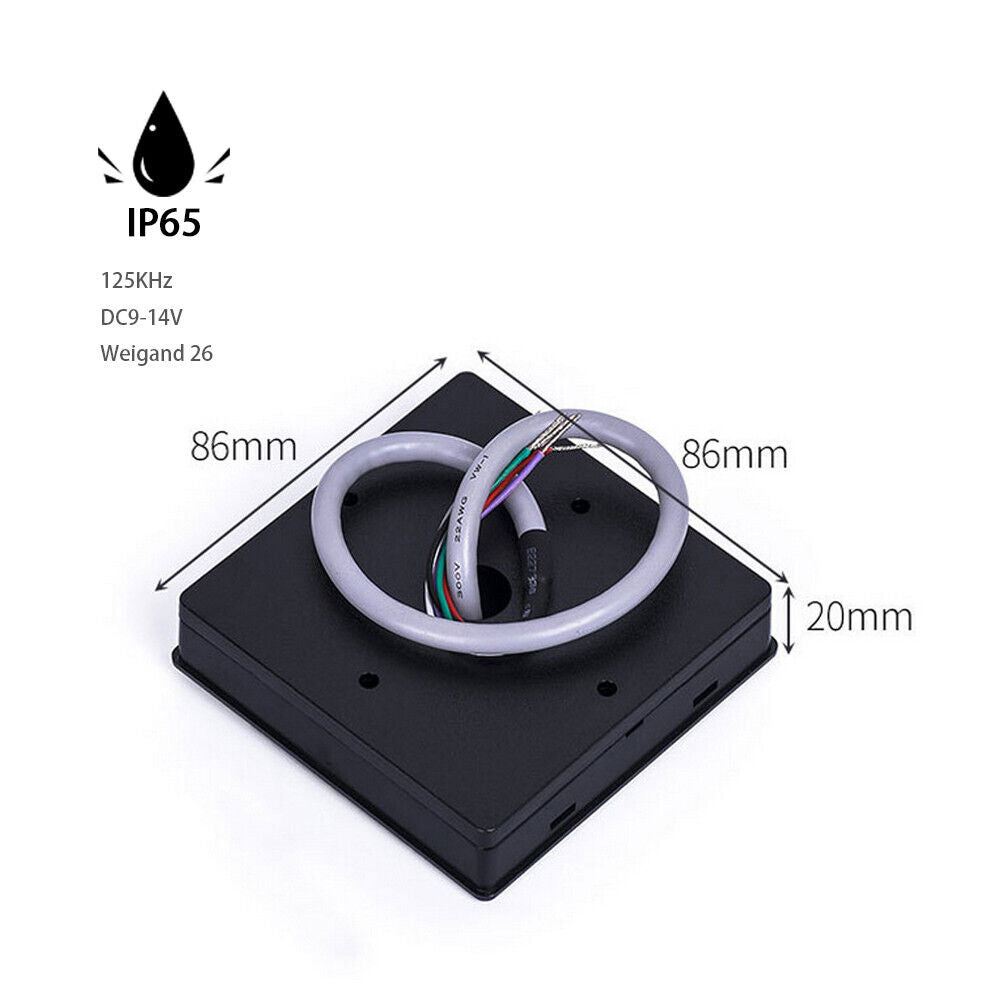

Dimension |
86*86*16(mm) |
PIN descripiton
Pin |
Colour |
Description |
1 |
Red |
9V-15V |
2 |
Black |
GND |
3 |
Green |
D0(WG26) |
4 |
White |
D1(WG26) |
5 |
Blue |
LED |
6 |
Grey |
Ring |
