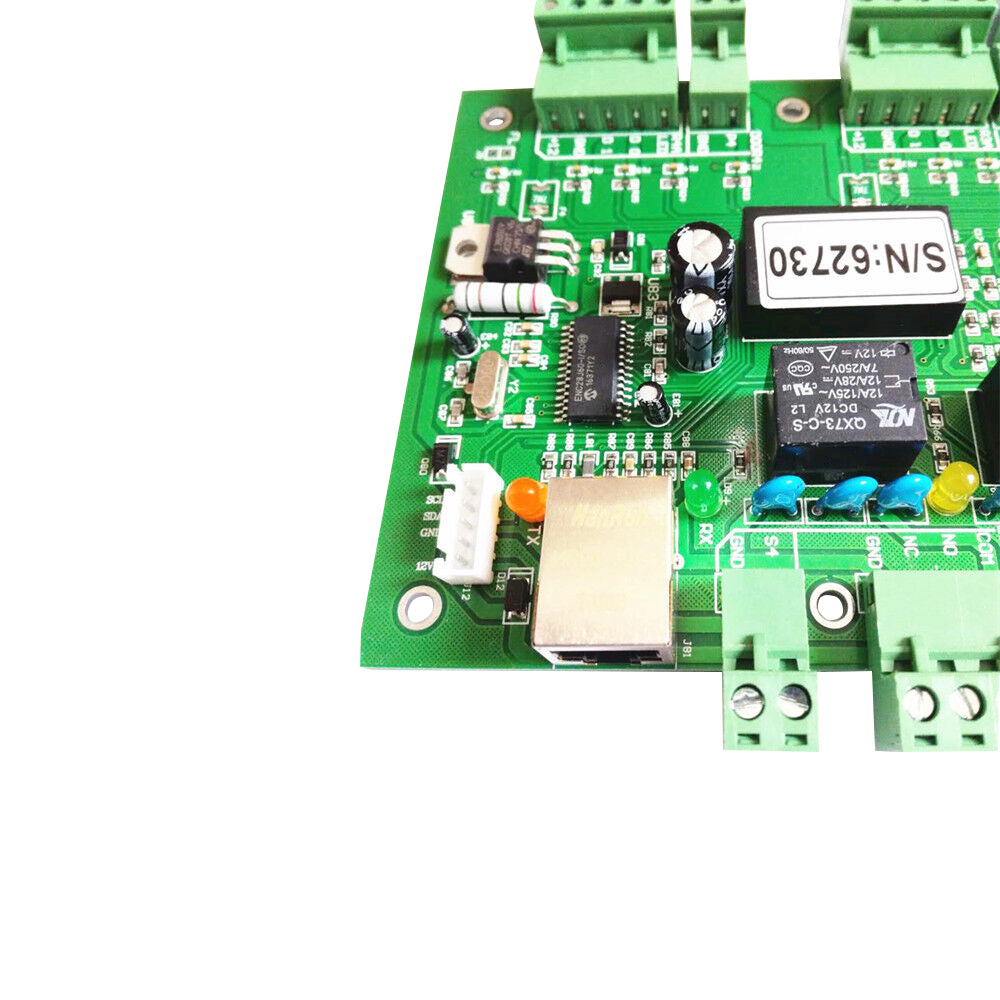

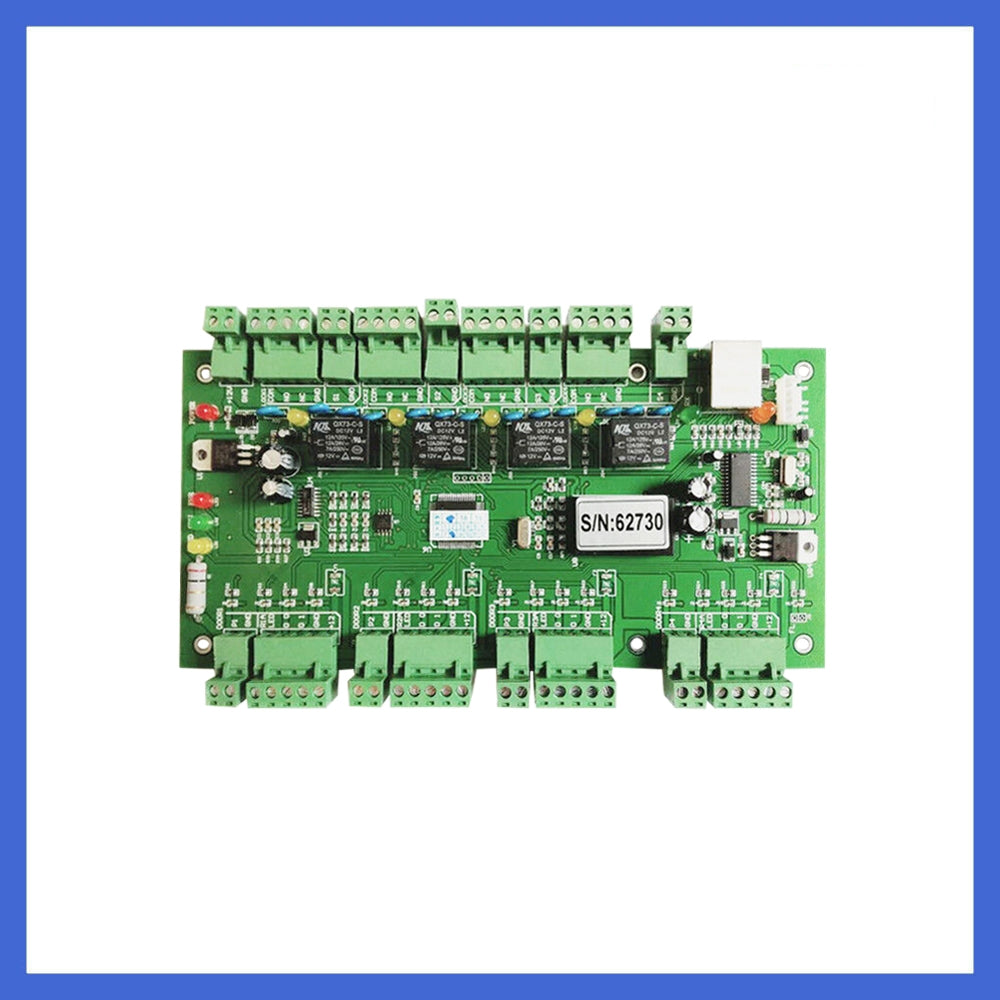

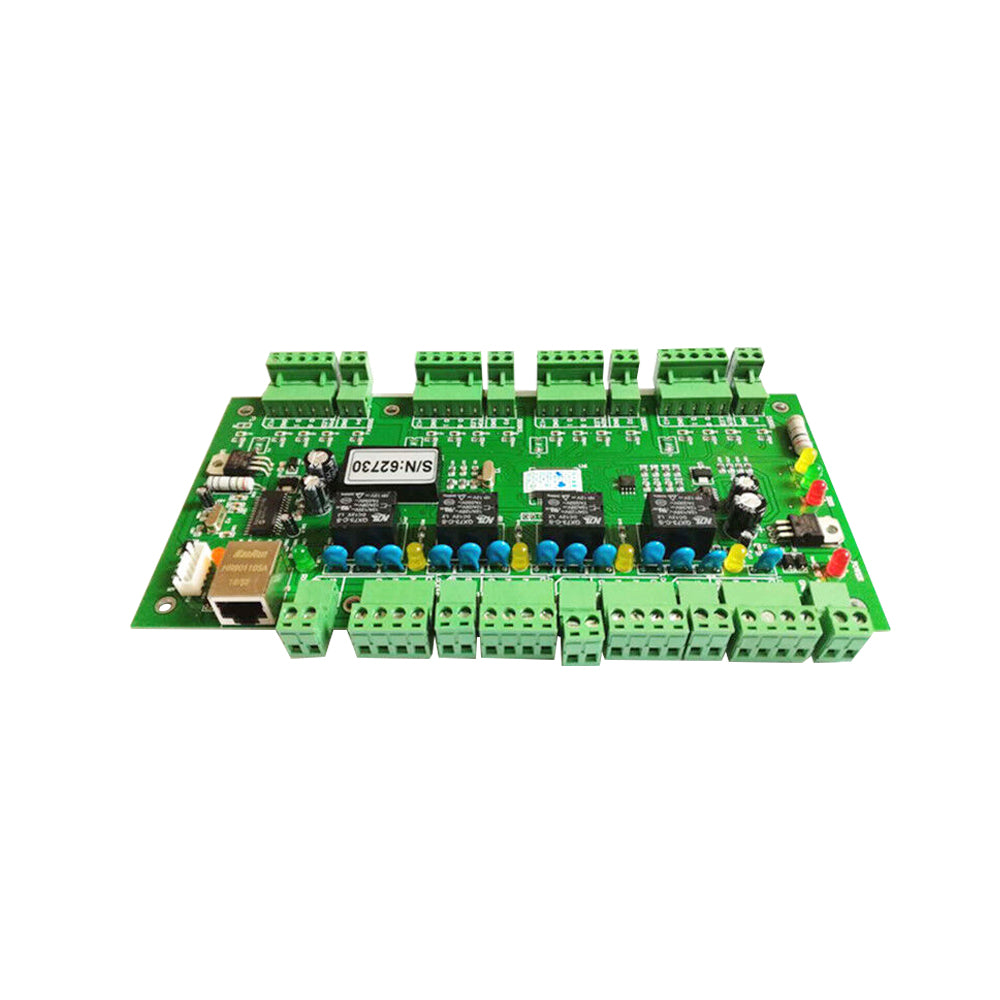

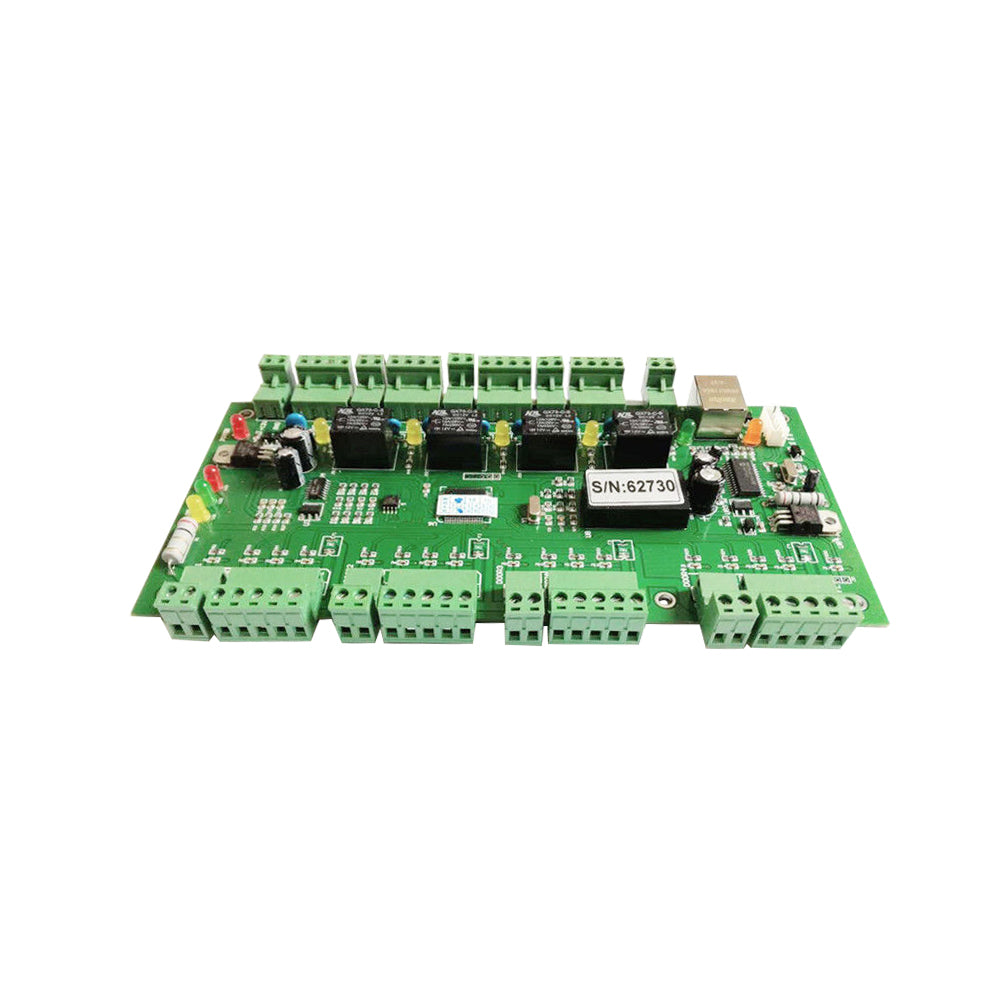

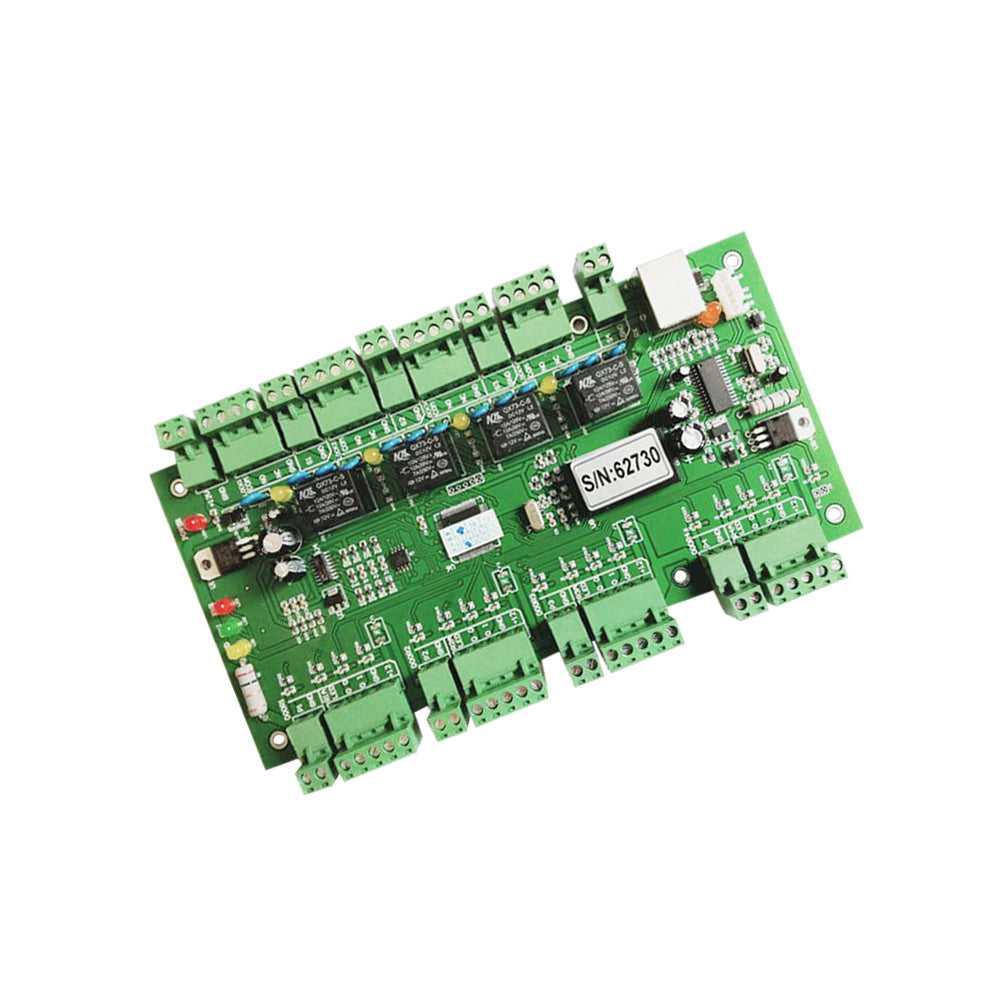

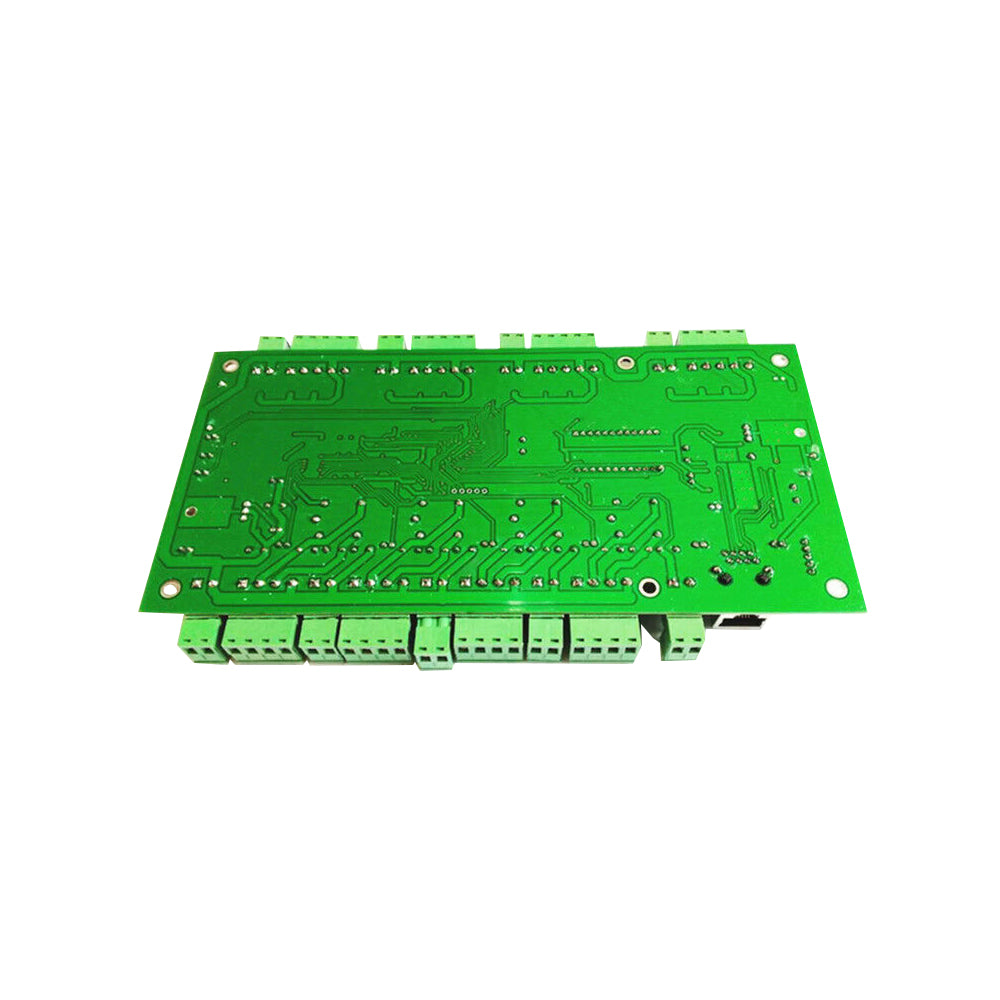

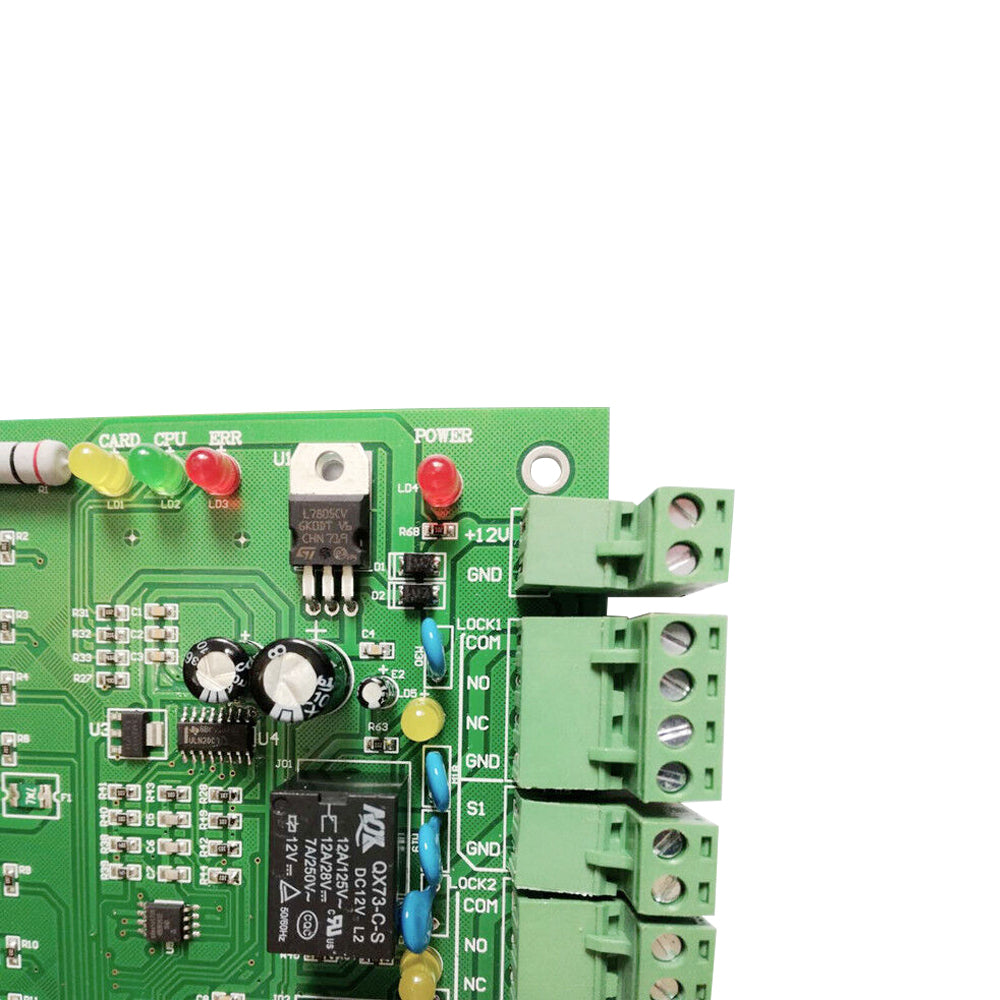

WG2004.NET WAN/LAN TCP/IP 4 Door 20K Users 100K Records Access Controller Board

Preferences

Single Door/Bidirectional Controller

2-Door/Bidirectional Controller

4-Door/Unidirectional Controller

Model

WG2001

WG2001.NET

WG2002

WG2002.NET

WG2004

WG2004.NET

(this is it)

Software Download

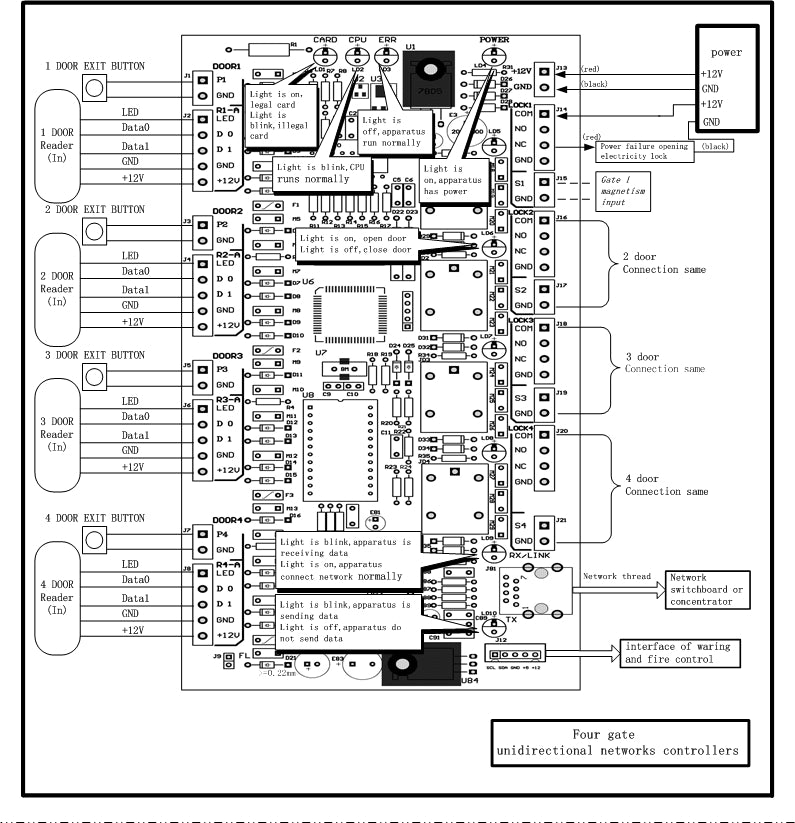

Download the software+Wiring diagram+Software instruction link below:

https://1drv.ms/u/s!AiNlPx4goNe-rjMwhTx2om337YgS?e=WNbIRb

Double click “setup.exe”.Username:ABC,Password:123

Registration code:2004

Extended functions password:5678

Communications

RS485

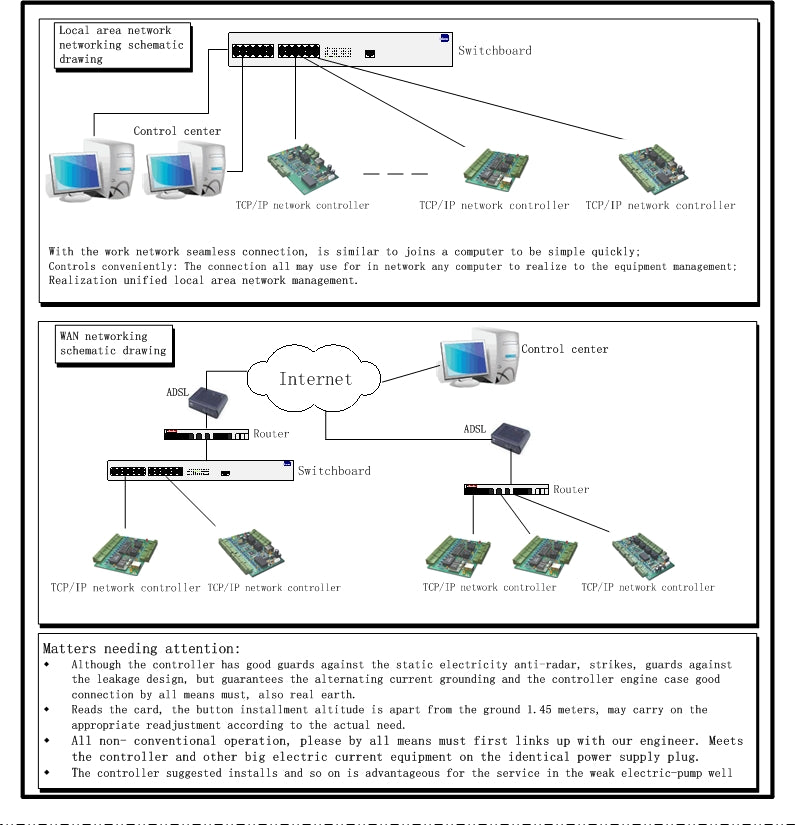

TCP/IP 10M/100M Self-adaptive

RS485

TCP/IP 10M/100MSelf-adaptive

RS485

TCP/IP 10M/100MSelf-adaptive

Description

One door,Card enter,Card or button exit

2 doors,Card enter,Card or button exit

4 doors,Card enter,Button exit

PCB Dimensions

160mm *106mm

160mm *106mm

218mm*106mm

Iron Box Dim

273mm*228mm*65mm

Power Supplier

12VDC 4-7A

Current

<100mA

Acceptable Card Readers' Format

Wiegand 26bit or 34bit(optional by hardware switch,default is 26bit)

Extensible Card Readers

2

4

4

Door(s) for control

1

2

4

Delay

1-600 seconds  adjustable

Max units online

N*256

Unlimited

N*256

Unlimited

N*256

Unlimited

Note:"N" means quantity of Com ports or RS485 Hub's ports

Working Temperature

-40 ~70 Centigrade

Working Moisture

10-90%RH

Max Users Quantity

20,000

Event records quantity

100,000

Power off Protection

High speed flash memory,keep data safe without power

Max Distance from Reader to Controller

 Max to 100M

Max Distance from Controller to PC

RS485:Max to 1,200M,Reliable value 1,000M,can be extended up to 3000 M by RS485 relay.

TCP/IP:According to the network coverage

Accessories

PCB*1pcs,CD*1pcs,Manual*1pcs,Certificate*1pcs,Carton * 1pcs

Alarm when:Door un-closed overtime,unlawful entry  or being Threatened

yes

yes

yes

Fire protection &Alarm Trigger

If theft or fire occurs,the software can alarm by PC's speaker.If the controller contact to "alarm external module",it can also drive the alarm Siren,

Hold  the door open/closed by software

yes

yes

yes

Remote open by software

yes

yes

yes

Programmable Interrelation of doors' condition(open/closed)

yes

yes

Note:you can setup the interrelation between the doors Arbitrarily,such as "only when door A is open &door B is closed,Door C can be openned"

Anti go back convertly,Anti followed

yes

yes

Note:This function means if a card has already exited,it can not exit again without enter.

Multi-card open

yes

yes

yes

Note:A door can be openned only when 2 or more cards are read(multiple persons are present). This function maybe useful for very important place.

programmable time of hold open

yes

yes

yes

Note:can setup the door hold open at a specified time,maybe useful during the period of going to work every morning

Electrical Map

yes

yes

yes

Note:Can easily know your doors' condition vividly from the software.

Urgently close Both enter&exit

yes

yes

yes

Note:The door(s) can be hold closed,refuses both enter and exit in case of theft or other accident occurs.

Initial Card

yes

yes

yes

Note:If Initial Cards was activated,Only after Initial card is read,Other user cards can be available.

validate from both side

yes

yes

yes

Note:Door can be set to openned only when  card reading from both  outside and inside of the door.

Extensible pin code RFID reader(card+pin code/super password)

yes

yes

yes

Note:Door can be set to openned only when  both card reading and pin code pressed.
