ZK WAN/LAN TCP/IP RS485 C3 Series Professional RFID Card Reader Access Control/

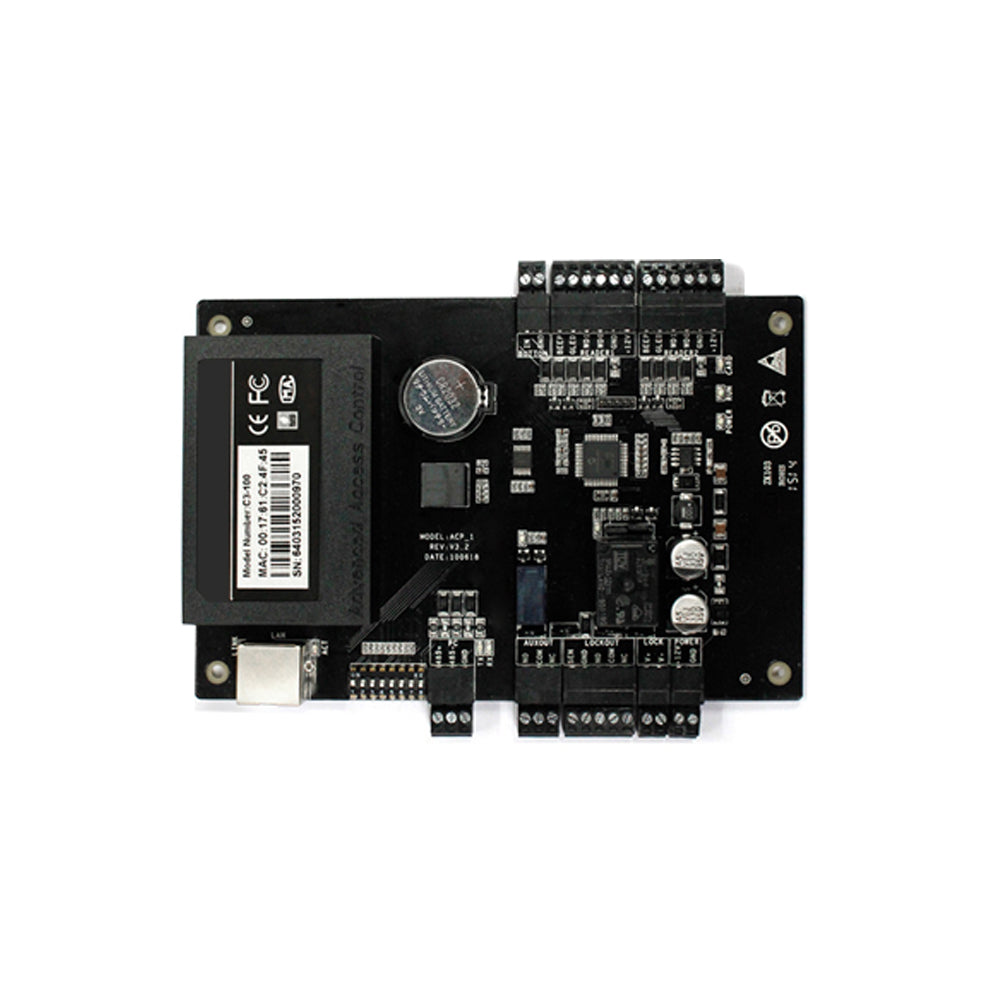

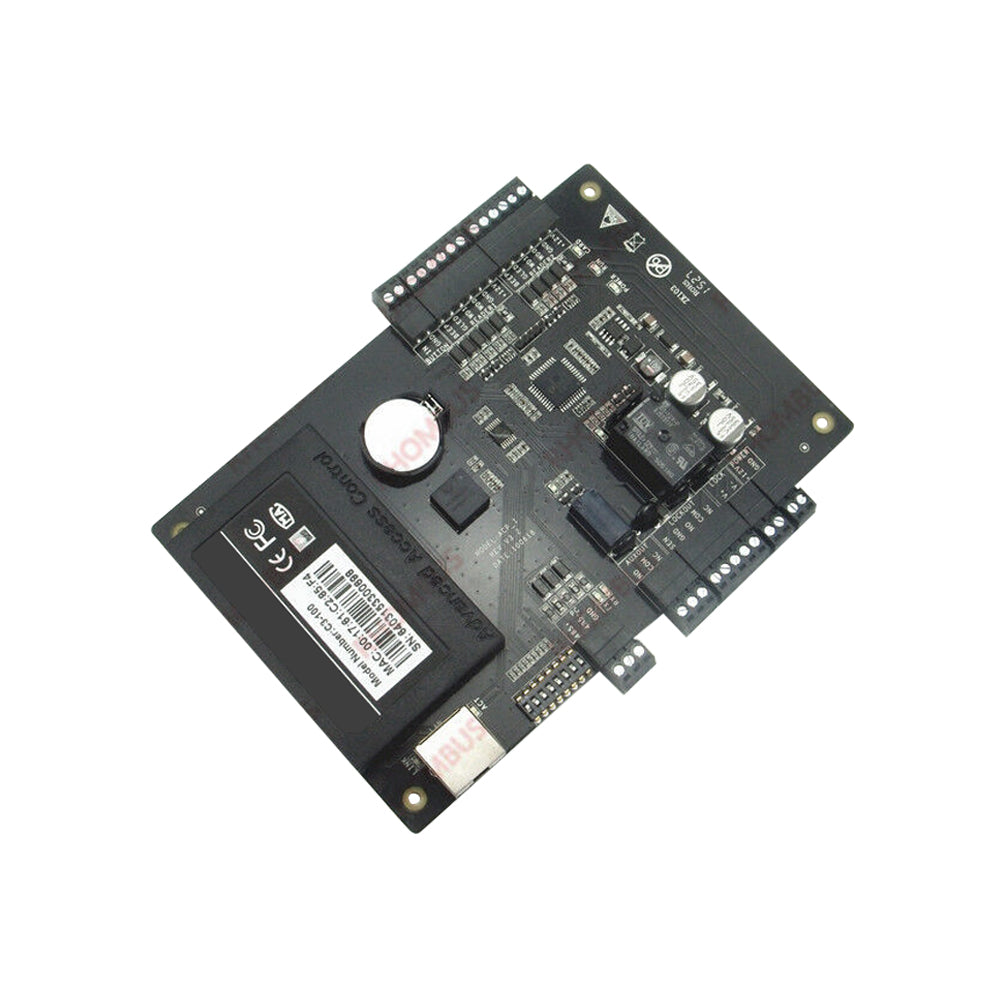

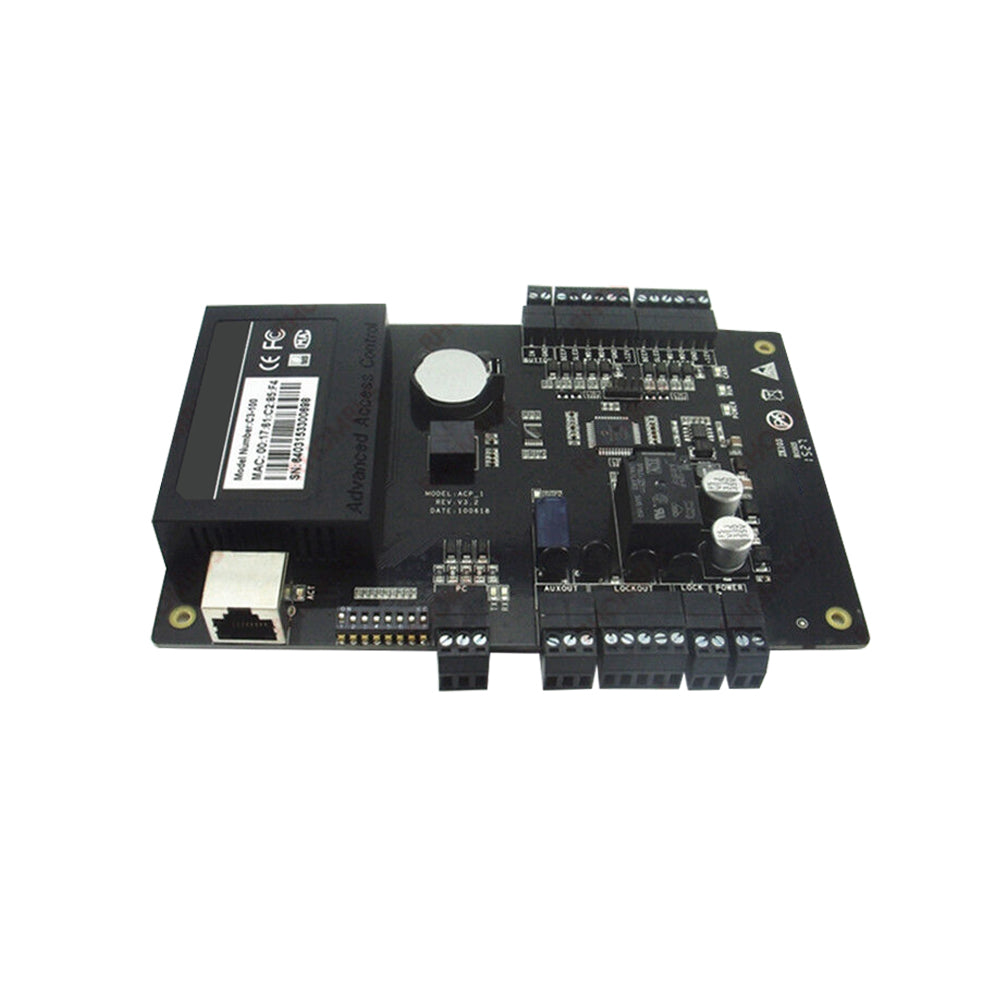

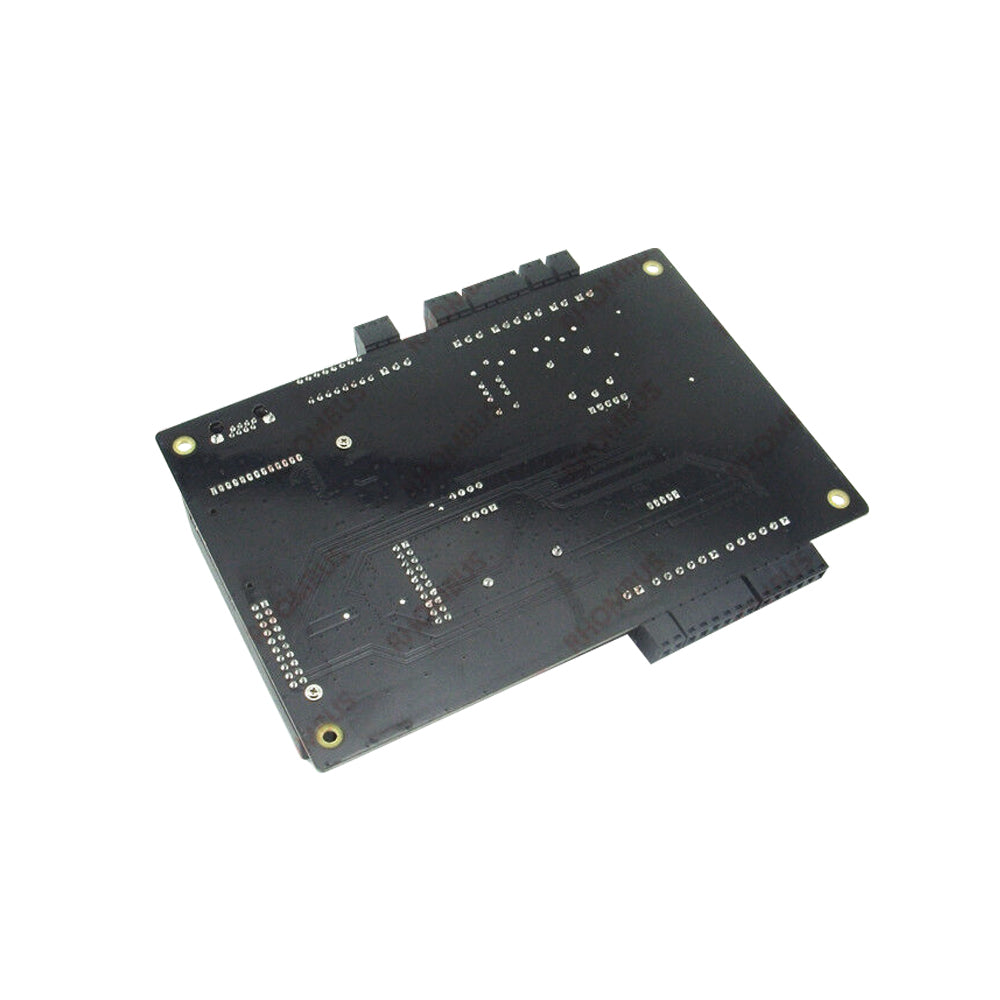

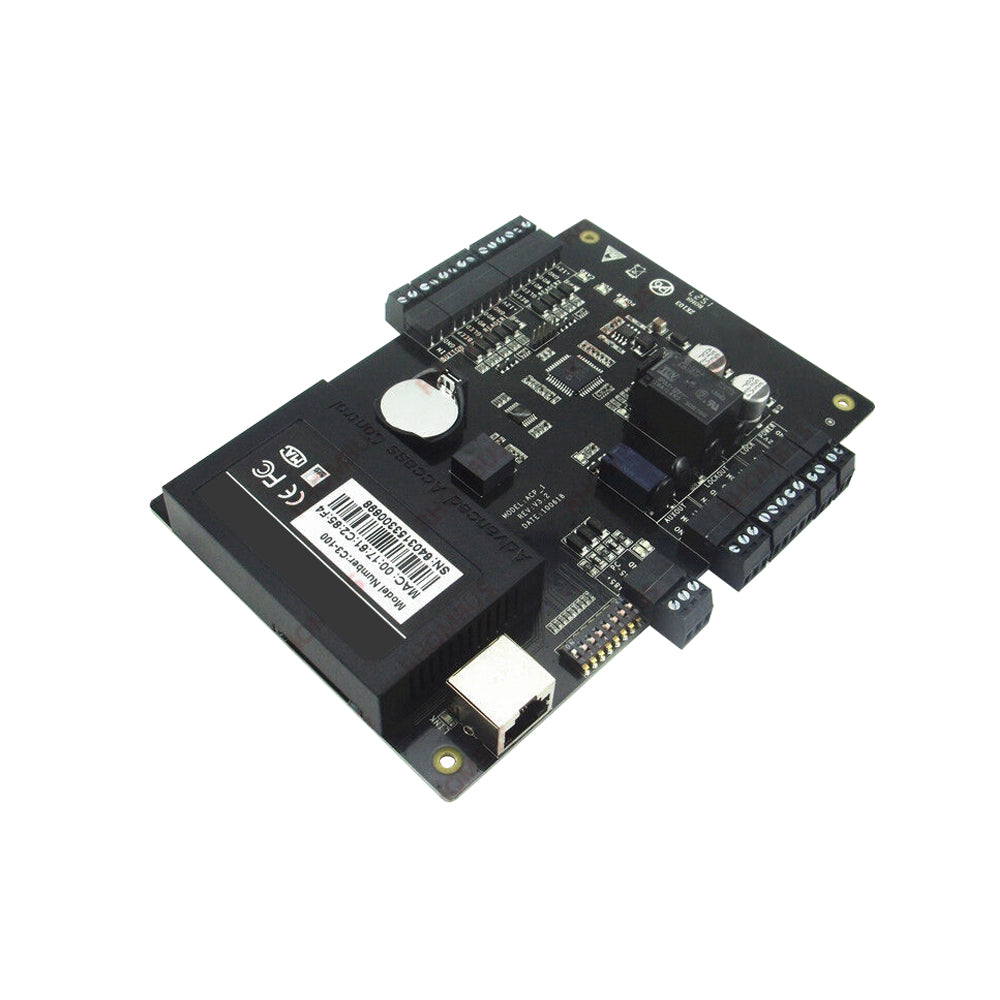

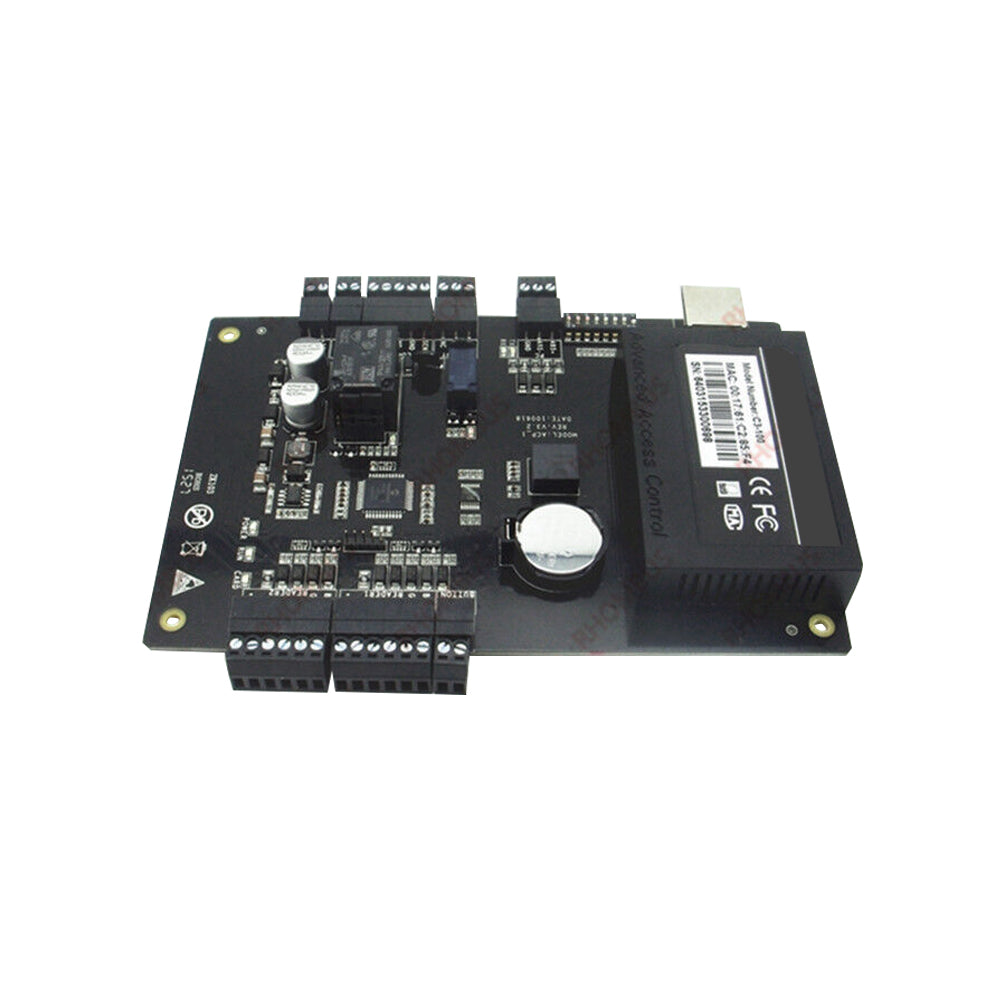

Model:C3-100

Number of Doors Controlled: 1 Door
Number of Readers Supported:2
Types of Readers Supported:26-bit Wiegand, others upon request

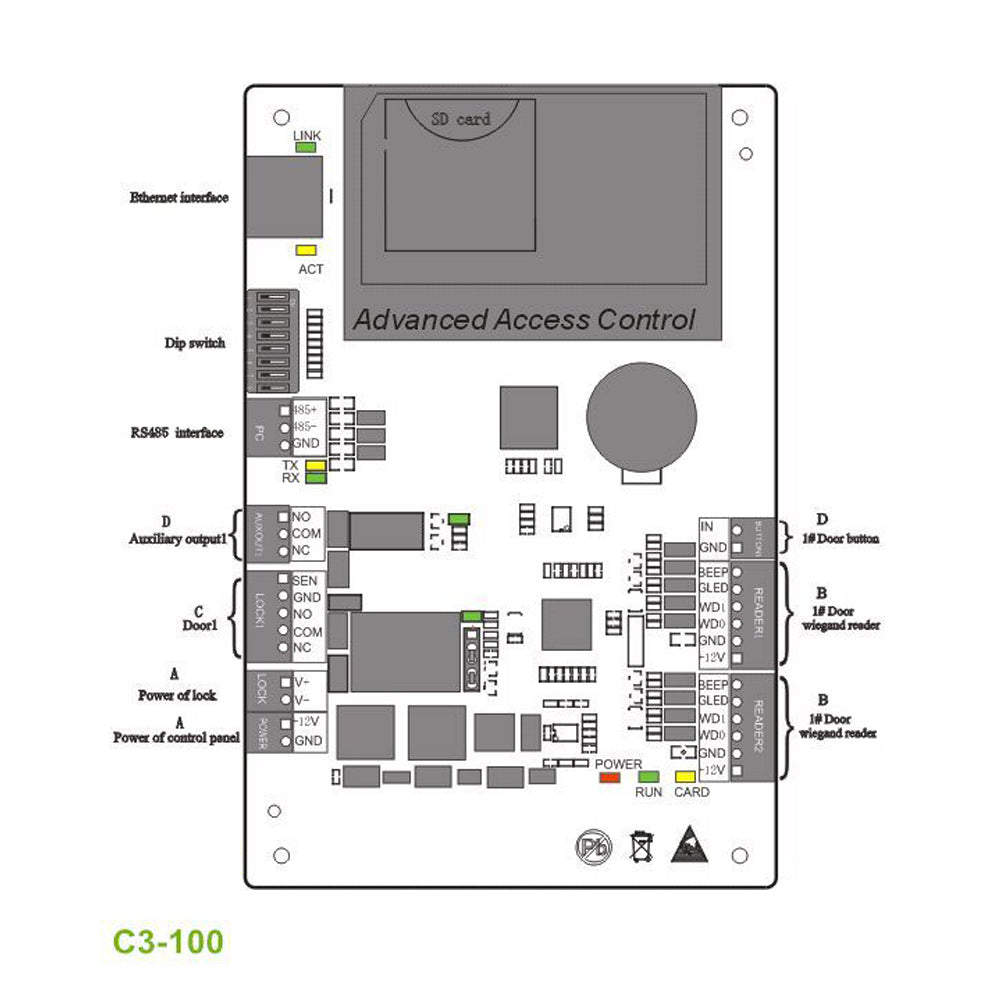

Number of Inputs: 2 (Exit Device and Door Status, AUX)
Number of Outputs: 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
Card Holders Capacity:30,000
Log Events Capacity: 100,000
Communication:TCP/IP and RS-485
Recommended Power Supply:12V DC, 1.5A
Dimensions ( Board Only):160*106(mm)
Software Diagram:

Pure Web Based Software, You can access Software from Mobile, iPad, Computer from any where of the world.
Powerful data processing capacity, allowing management of the access control data of 30,000 people.
Visible and reasonable work flows come from abundant experience in access control management.
Automatic user name list management.
Multilevel management role-based level management secures user data confidentiality.
Real-time data acquisition system ensures prompt feedback of access control data to the management.
