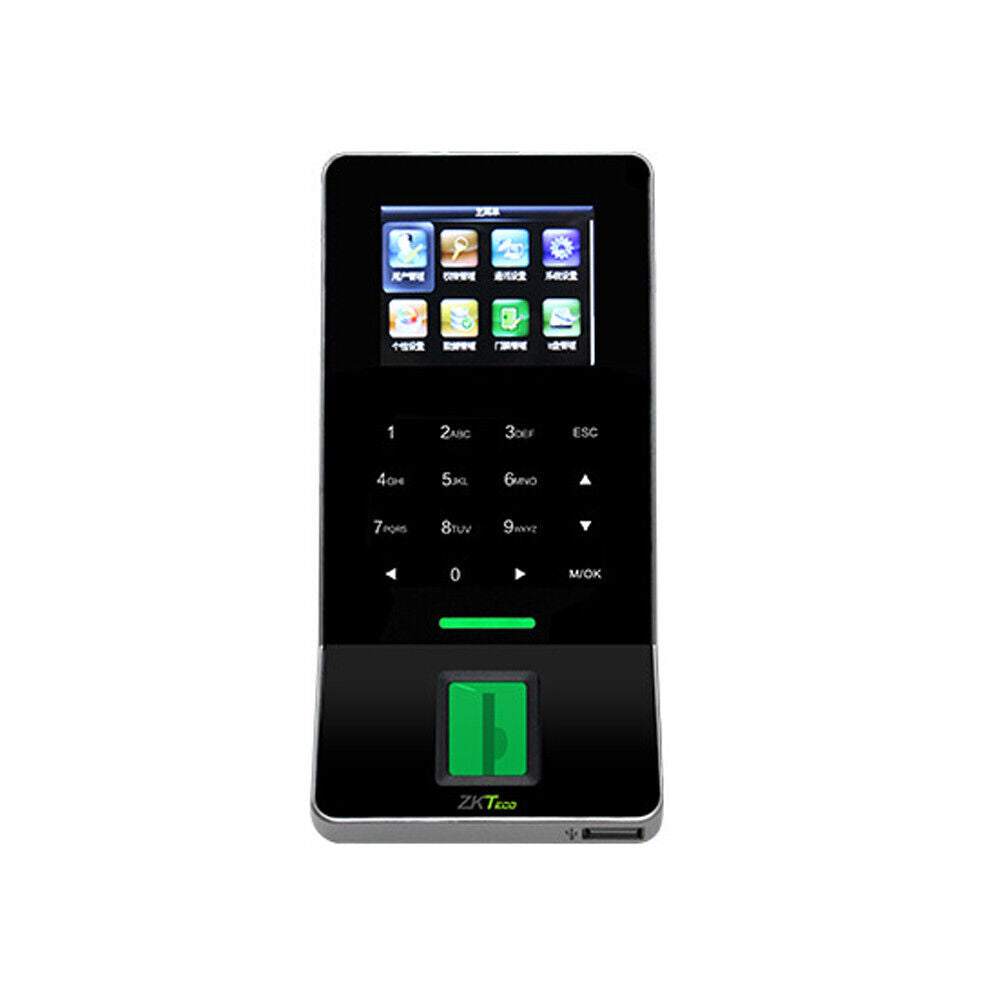

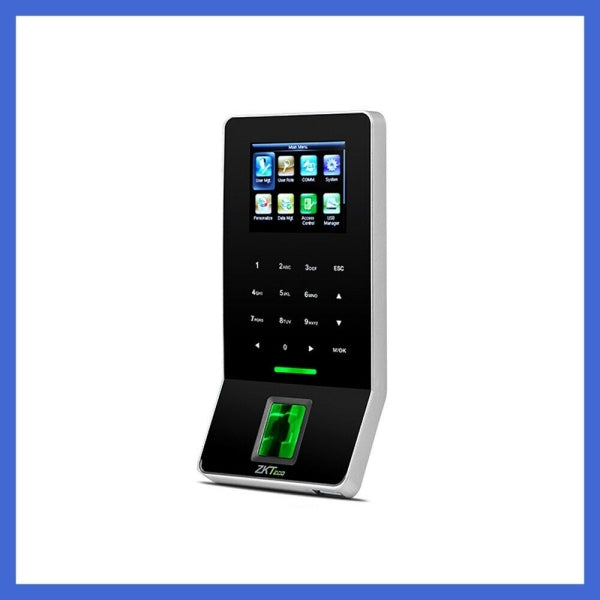

ZKSoftware F28 Fingerprint Time Clock And Access Controller System With TCP/IP
ZKSoftware F28 Fingerprint Time Clock And Access Controller System With TCP/IP
Det gick inte att ladda hämtningstillgänglighet
2. Professional Fingerprint Access Control and Time Attendance Check
3. Communication:TCP/IP,RS232/485,USB-Host,Wi-Fi
4. Anti-pass back
5. Free software
Introduction:

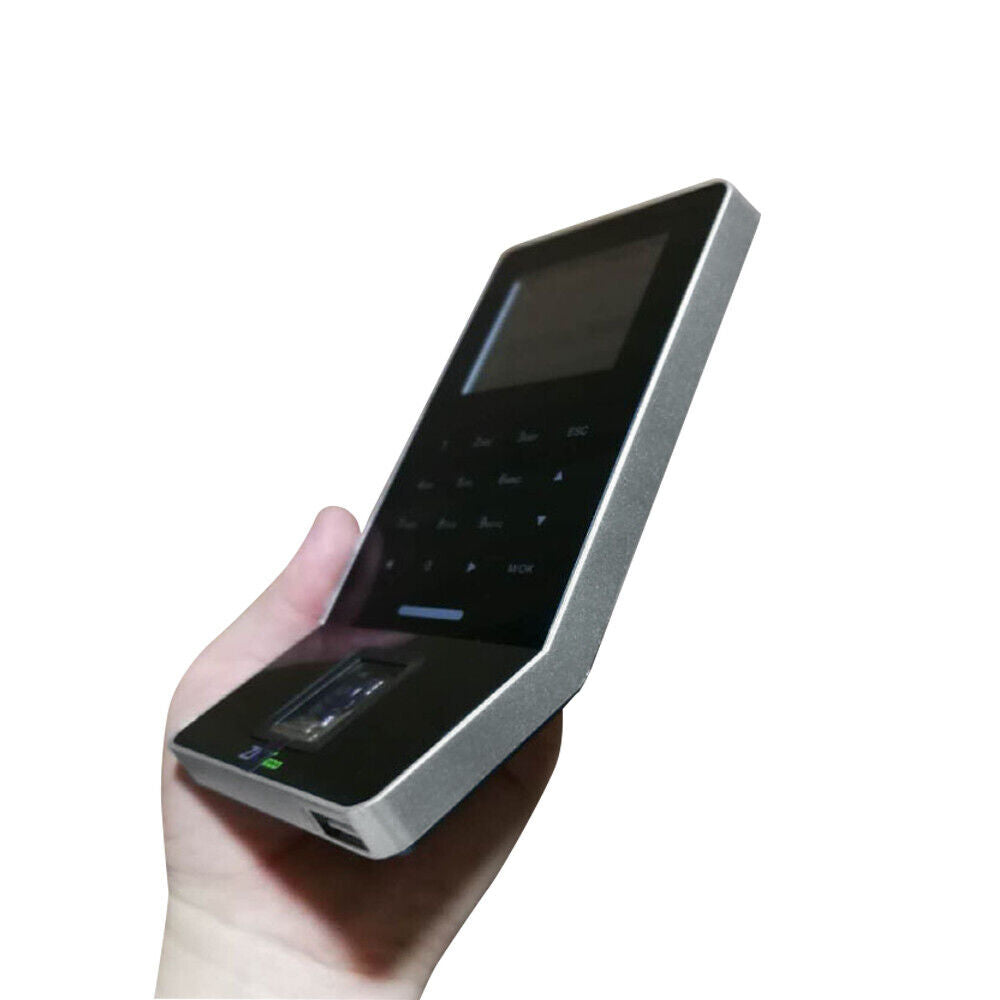

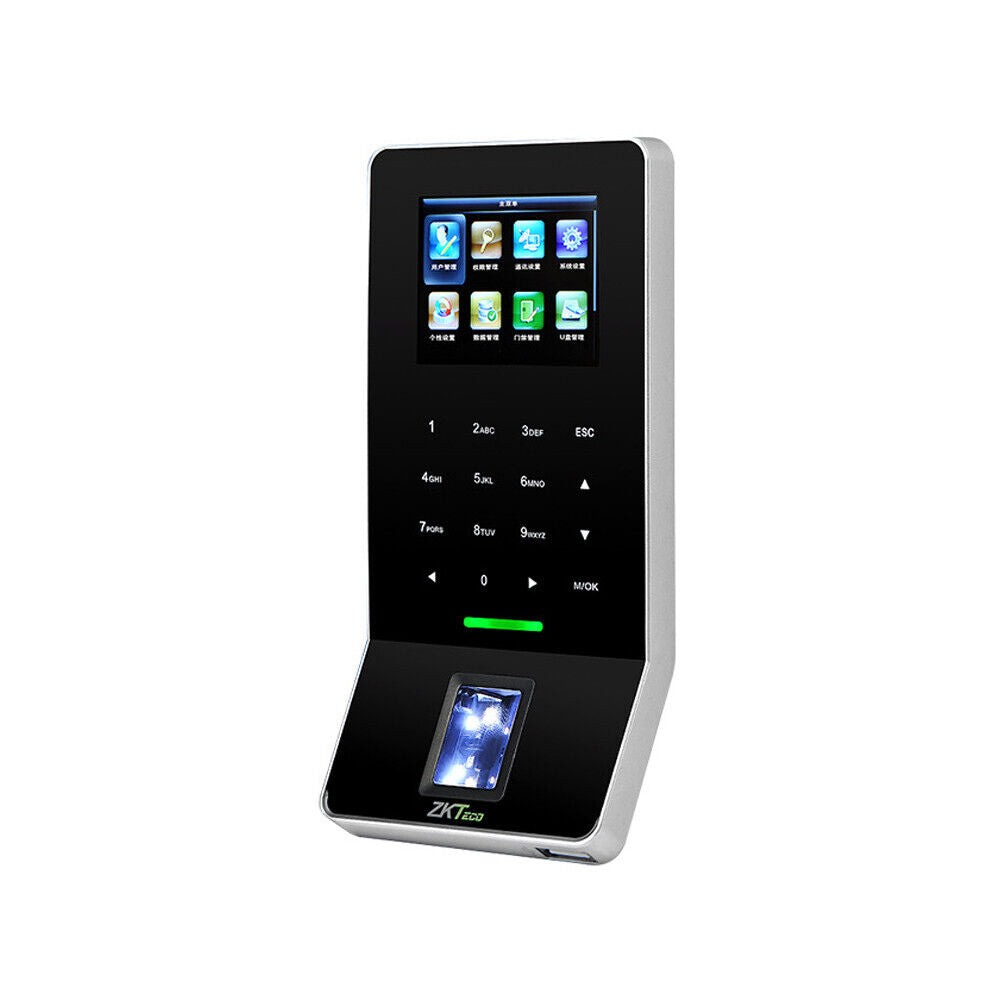

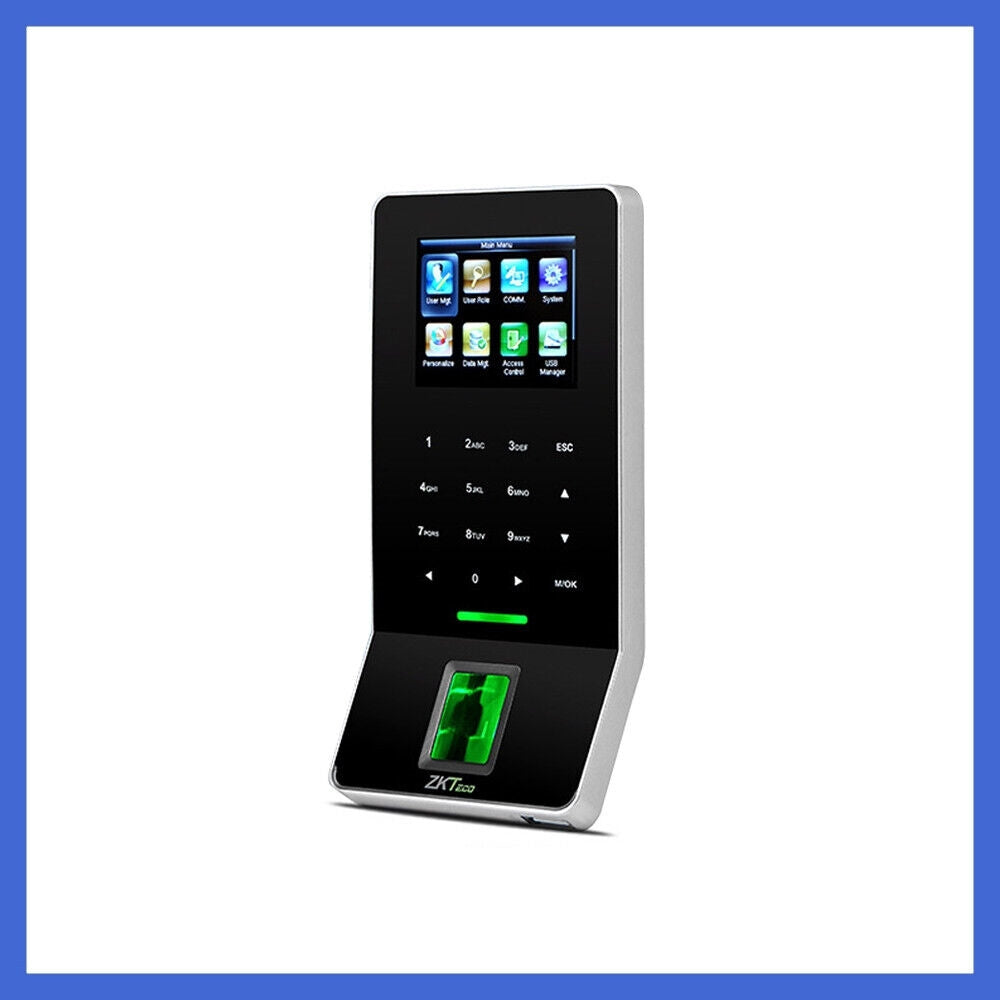

F28 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.
F28 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
Features

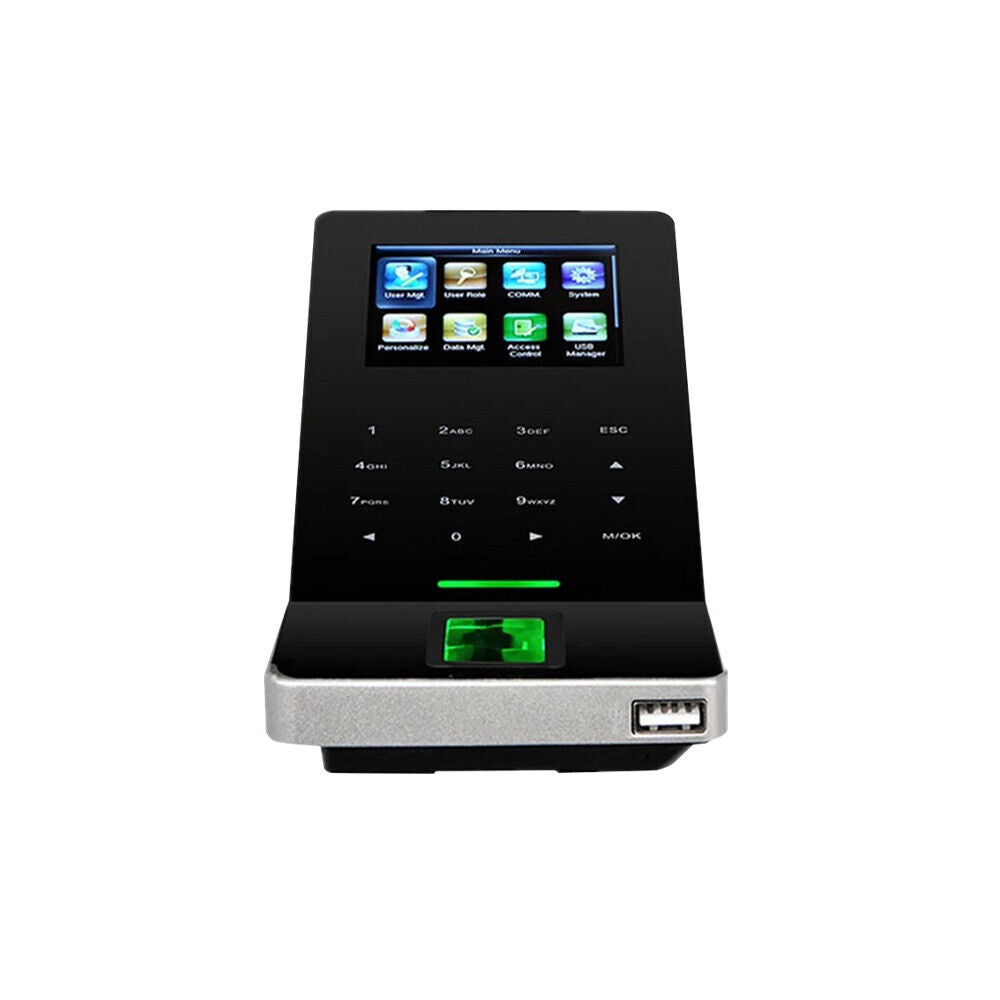

- 2.4-inch TFT color screen and Touch keys
- Ultra thin and elegant design

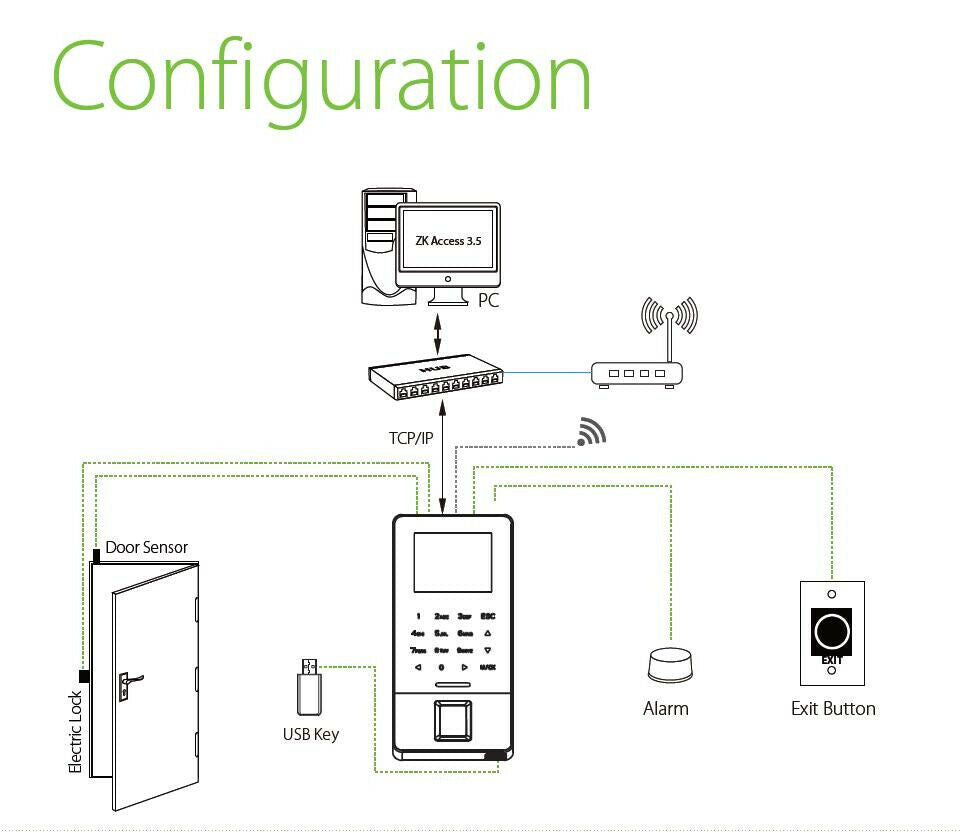

- Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm

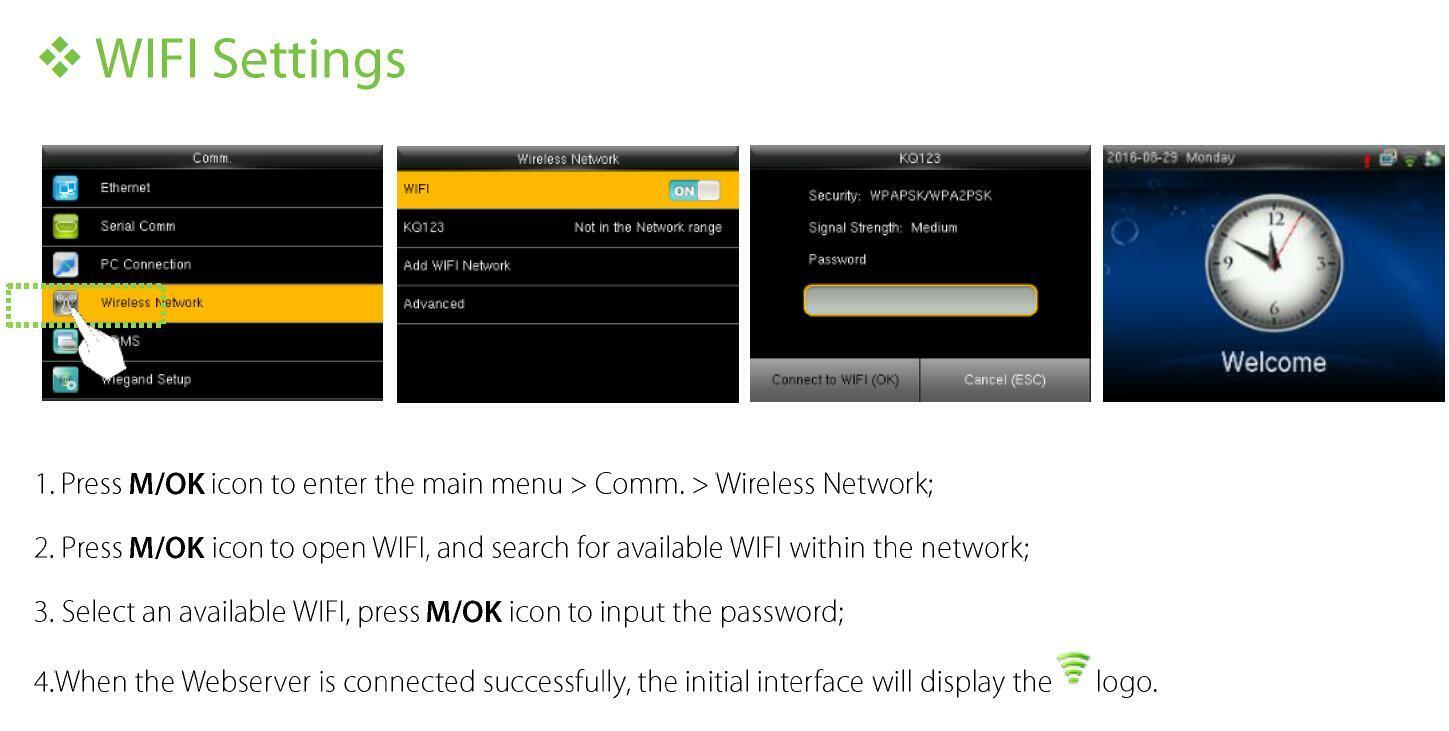

- Standard Wi-Fi
- Network interface by TCP/IP or RS485
- Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
- Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
Specifications
|
Display |
2.4-inch TFT LCD Color Screen |
||
|
Fingerprint Capacity |
3000 |
||
|
Card Capacity |
5000(Optional) ID or mifare card |
||
|
Transaction Capacity |
30,000 |
||
|
Sensor |
BioID Sensor/ SilkID Sensor (optional) |
||
|
Algorithm Version |
ZKFinger VX10.0 |
||
|
Communication |
RS232/485, TCP/IP, USB-host,Wi-Fi |
||
|

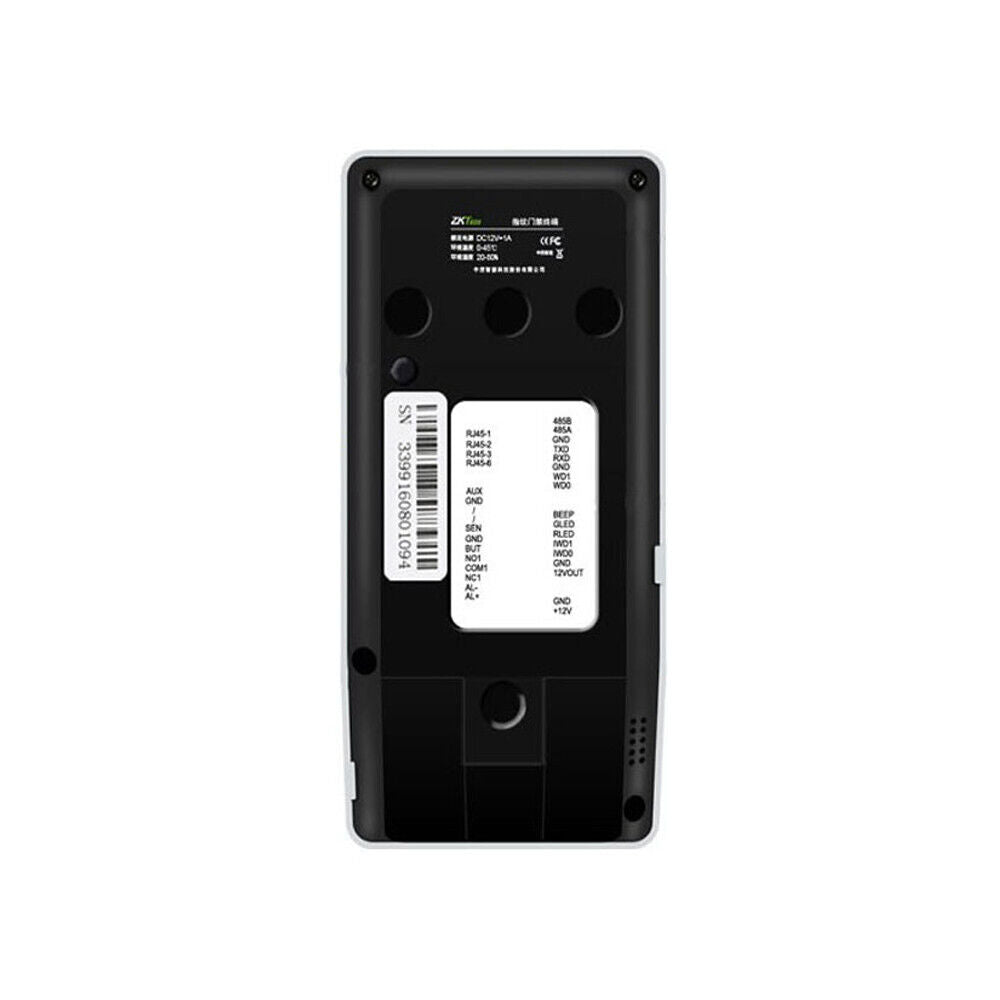

Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
||
|
Wiegand Signal |
Input, Output |
||
|
Aux. Input |
1ea for linkage function |
||
|
Functions |
DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) |
||
|
Power Supply |
12V DC,3A |
||
|
Operating Temperature |
0 °C- 45 °C |
||
|
Operating Humidity |
20%-80% |
||
|

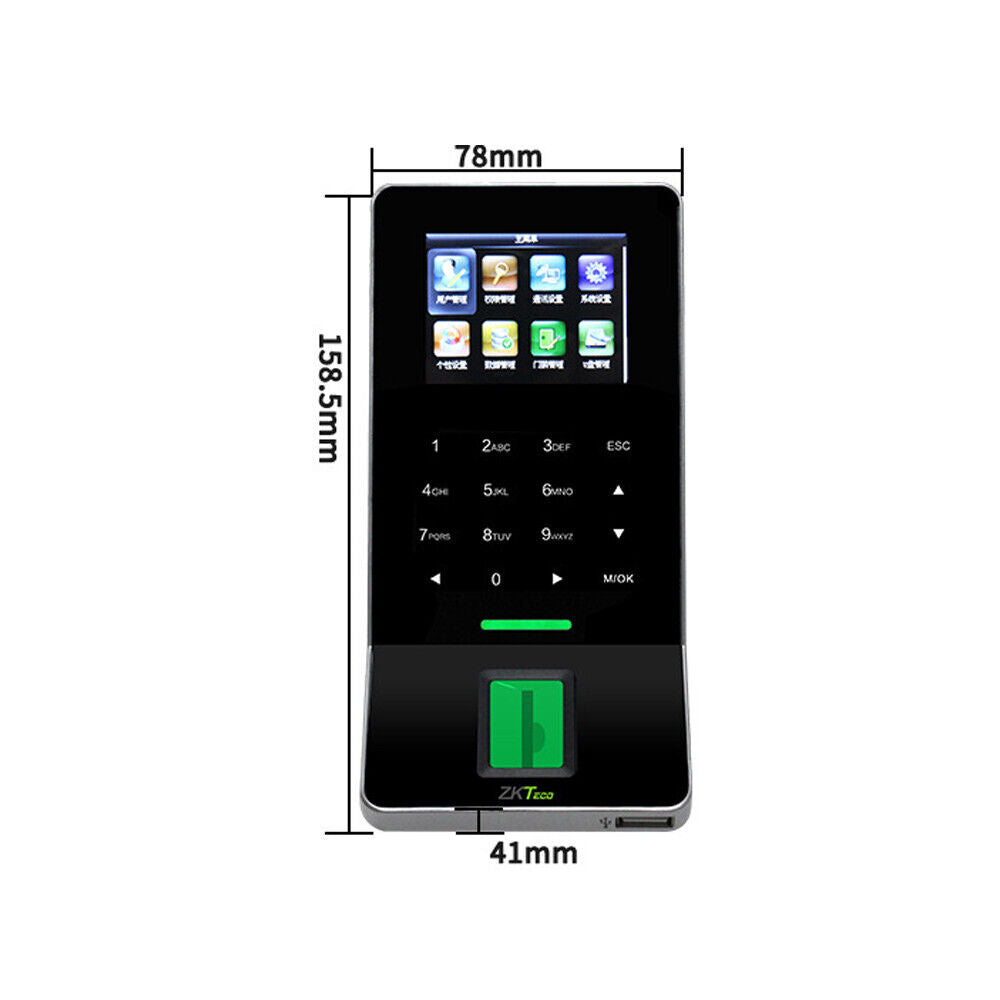

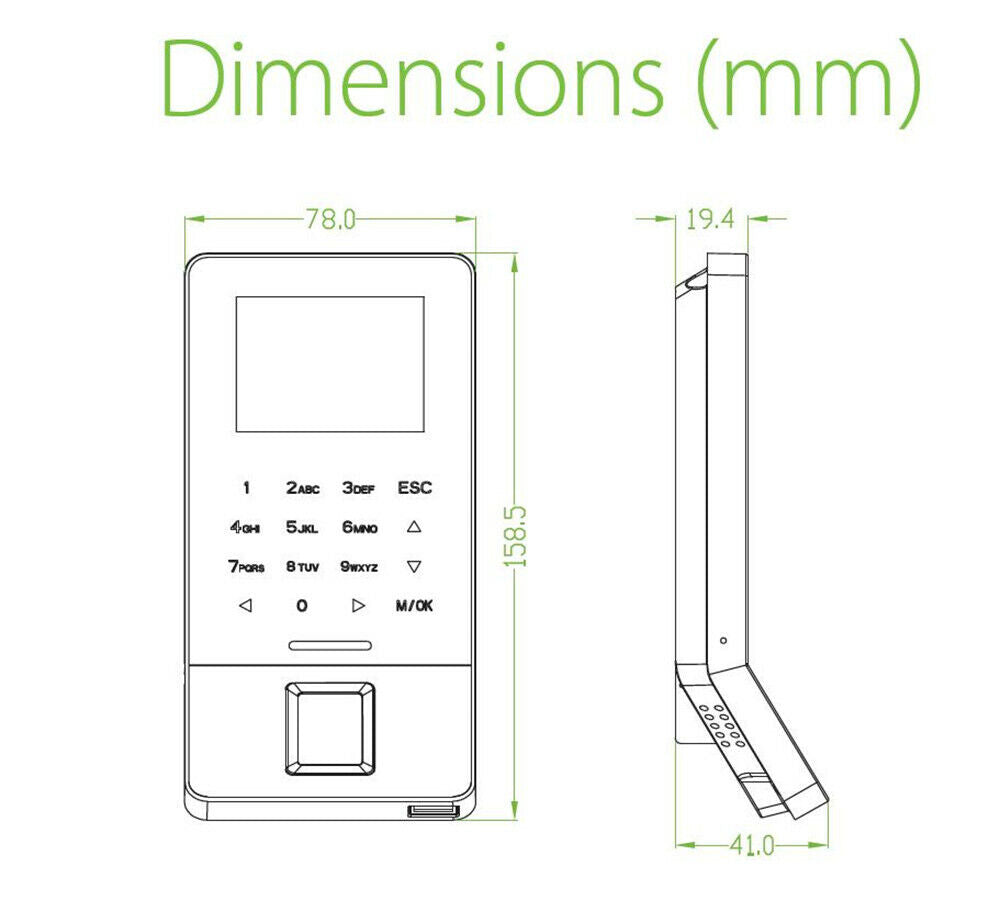

Dimension(LxWxH) |
158.5x78.0x19.4mm |
||
|
SDK and software |
Standalone SDK,ZKAccess3.5 software |
||
Package
- 1x fingerprint time attendance and access control
