Rhombus Access Control System

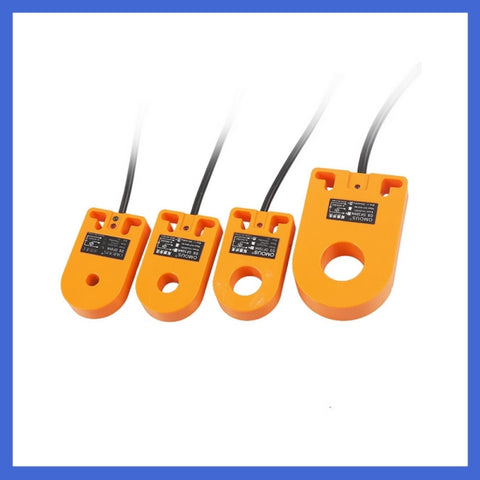

DC6-36V NO Ring Proximity Switch /Metal Induction Sensor

DC6-36V NO Ring Proximity Switch /Metal Induction Sensor

Normal fiyat $11.95 USD
Normal fiyat İndirimli fiyat $11.95 USD
İndirim Tükendi
Type





Ordering precautions:

  • First select normally open or normally closed
  • Select the Output form



Description

  • Product name: Ring proximity switch
  • Product model: GF6-20NK
  • External dimensions:
        M6/M10/M15: 50mmx32mmx11mm; Diameter: 6/10/15mm;
        M25/M30: 74mmx48mmx15mm; Diameter: 25/30mm
  • Aperture: M6/M10/M15/M25/M30
  • Working voltage: 6-36VDC
  • Detection diameter: 6-20mm
  • Current specification: 200mA
  • Output format: NPN NO
  • Line length: 1.8m
  • IP67 protection, can work normally in water for a short period of time



    Package:

    • 1x Proximity Switch
