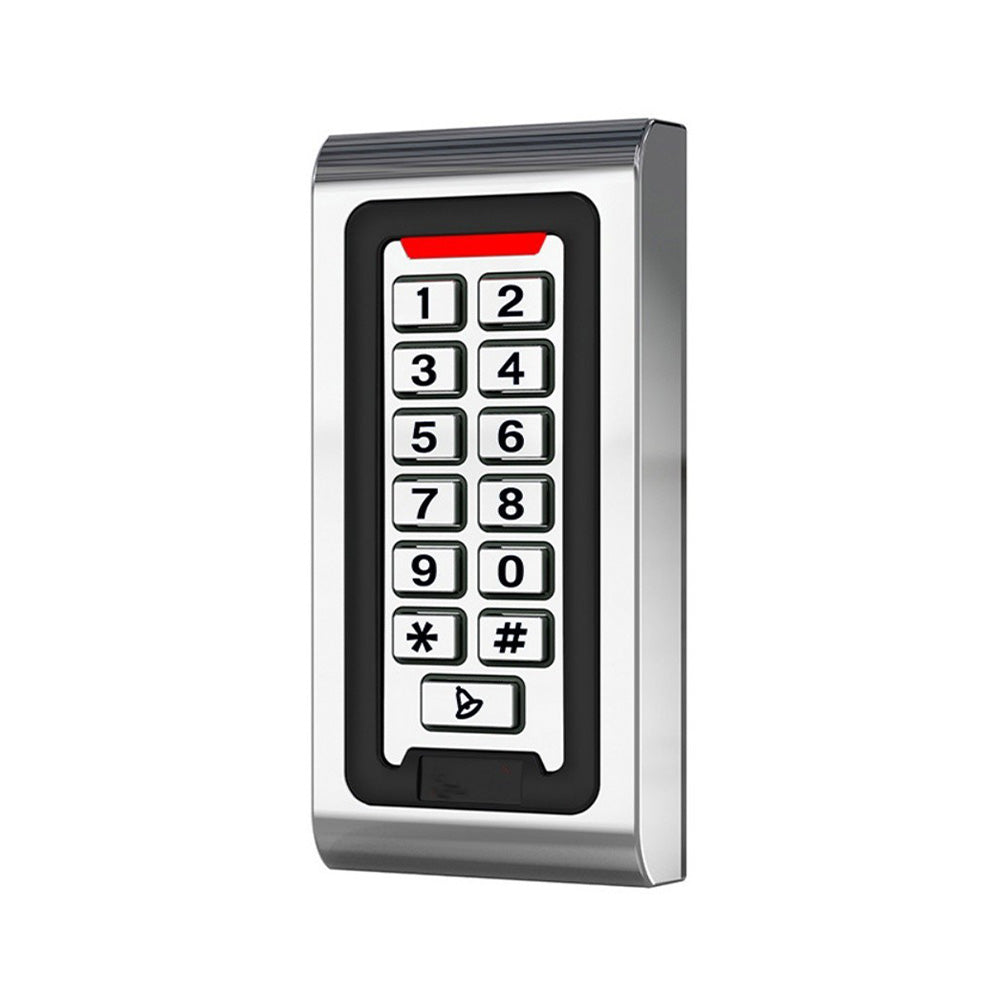

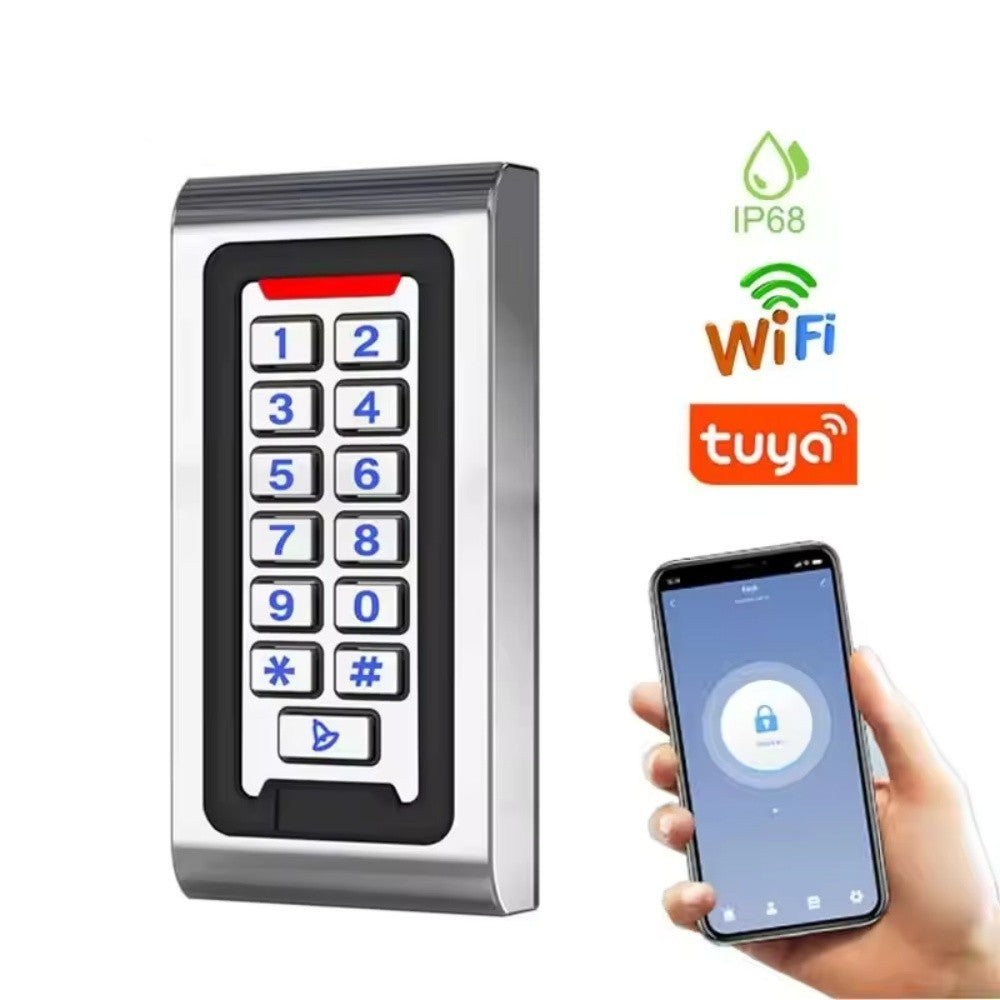

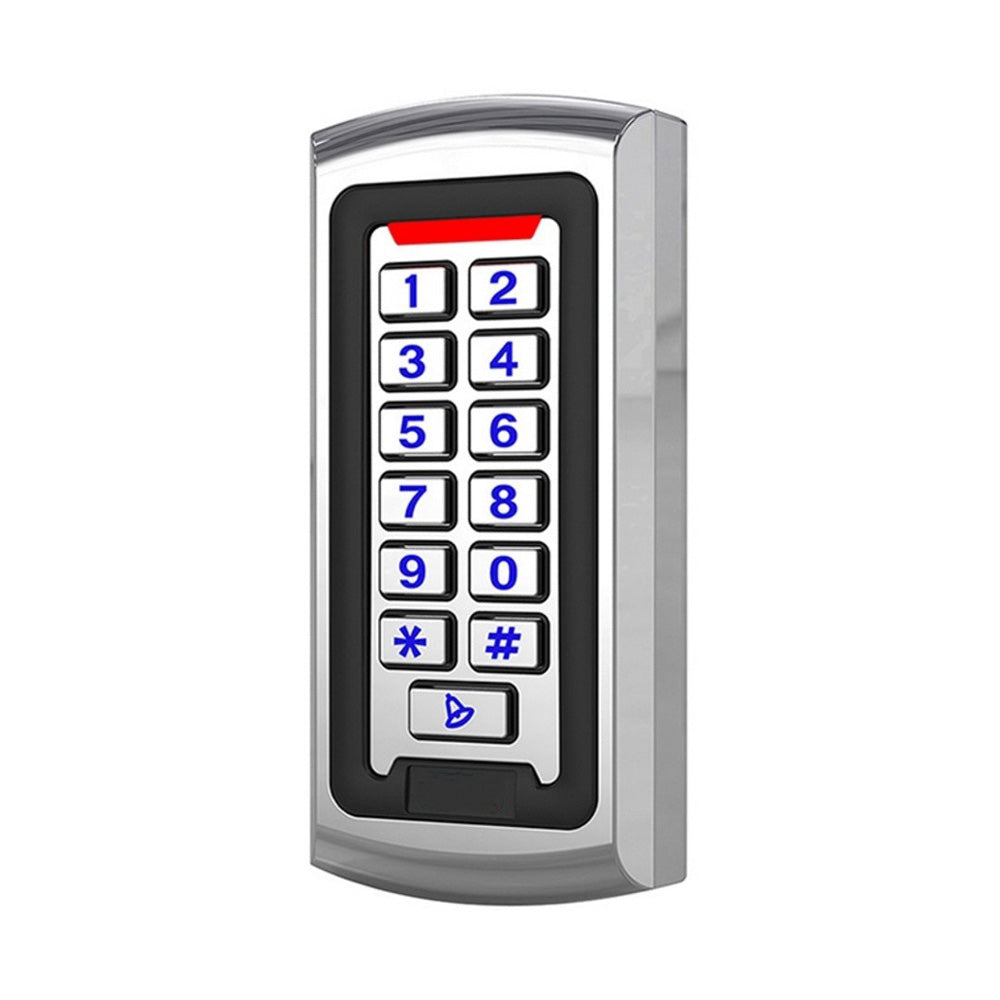

WiFi Tuya App Metal Keypad 125KHz EM/ID Standalone Access Controller
WiFi Tuya App Metal Keypad 125KHz EM/ID Standalone Access Controller
Teslim alım stok durumu yüklenemedi
Feature：
- The excellent design, surface waterproof keyboard, silver plating, fashion style.
- The multi-function equipment.
- The high and low temperature environment to use, surface waterproof.
- The storage capacity of 2000 user card, 2000 user password.

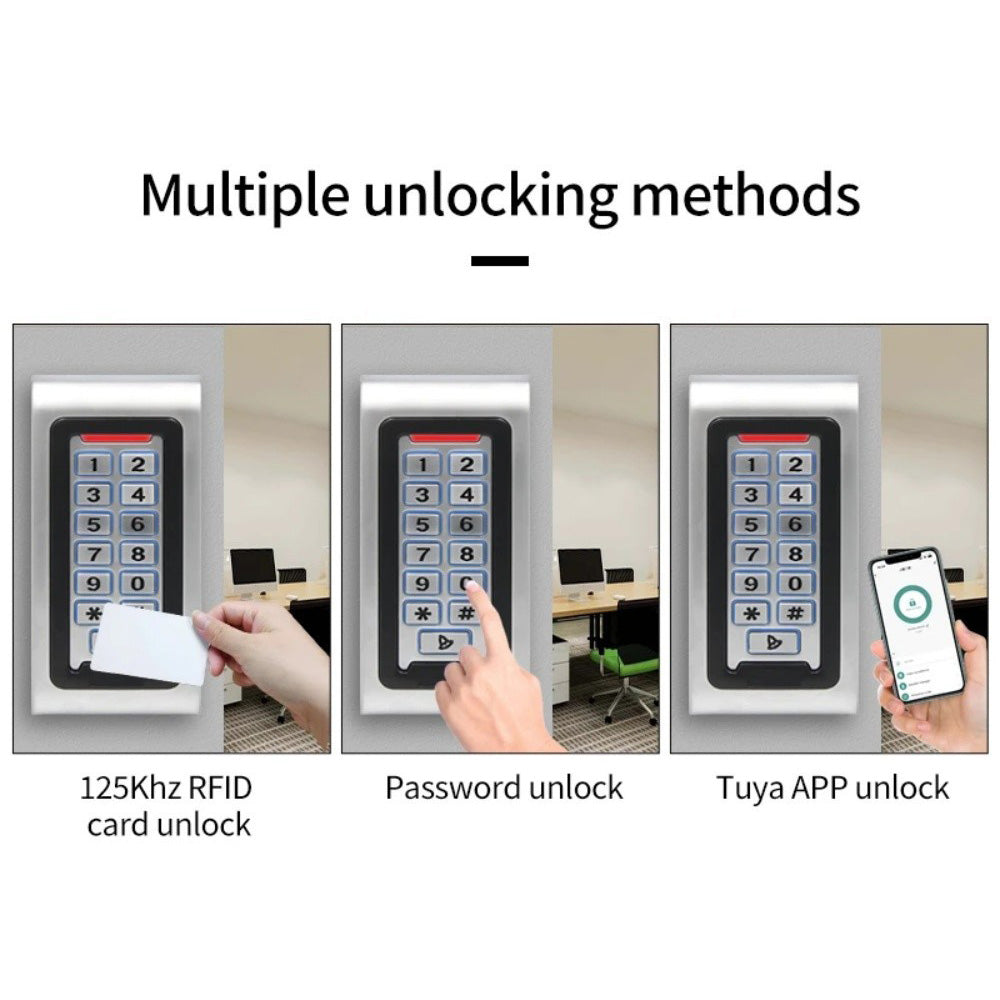

- Open three ways: card, password. Card and password.
- Ultra-low power consumption: Standby current is less than 50 ma.
- Keyboard: Be able to operate the keyboard.
- Large capacity of users: support 2000 users.
- Independent password (4 digitals).
- Change password: The user can modify the code itself.
- Identify speed: Swipe to open the door of time is less than 0.1 S.
- Weigand26/34 output/ input (can connect a card reader and as a reader)
- With bell,alarm button and time delay function (1-255s adjustable).
Specifications：
|

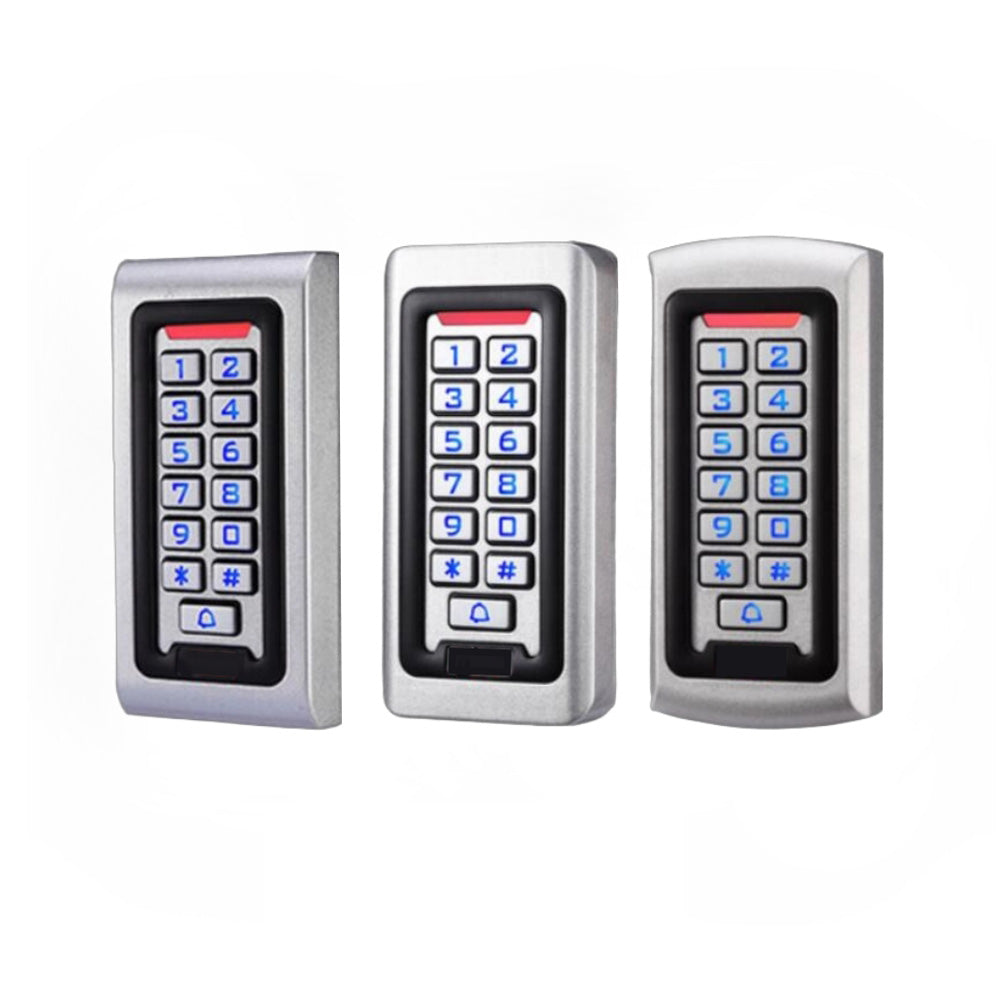

Model |
S601,S602,S603 |
|
Capacity |
2000 |
|
working voltage |
12V DC |
|
Lock Open Current |
2A |
|
Identify speed |
<=1s |
|
Open mode |
Card/ password/card+password |
|
Card Type |
125KHz EM4100/4102 ID RFID card |
|
Work distance |
1-15cm |
|
Work temperatrue |
-25 to 55 |
|
Waterproof Degree |
Waterproof：IP68 |
|
Not waterproof |
|
|
Wiegand |
input/output |
|

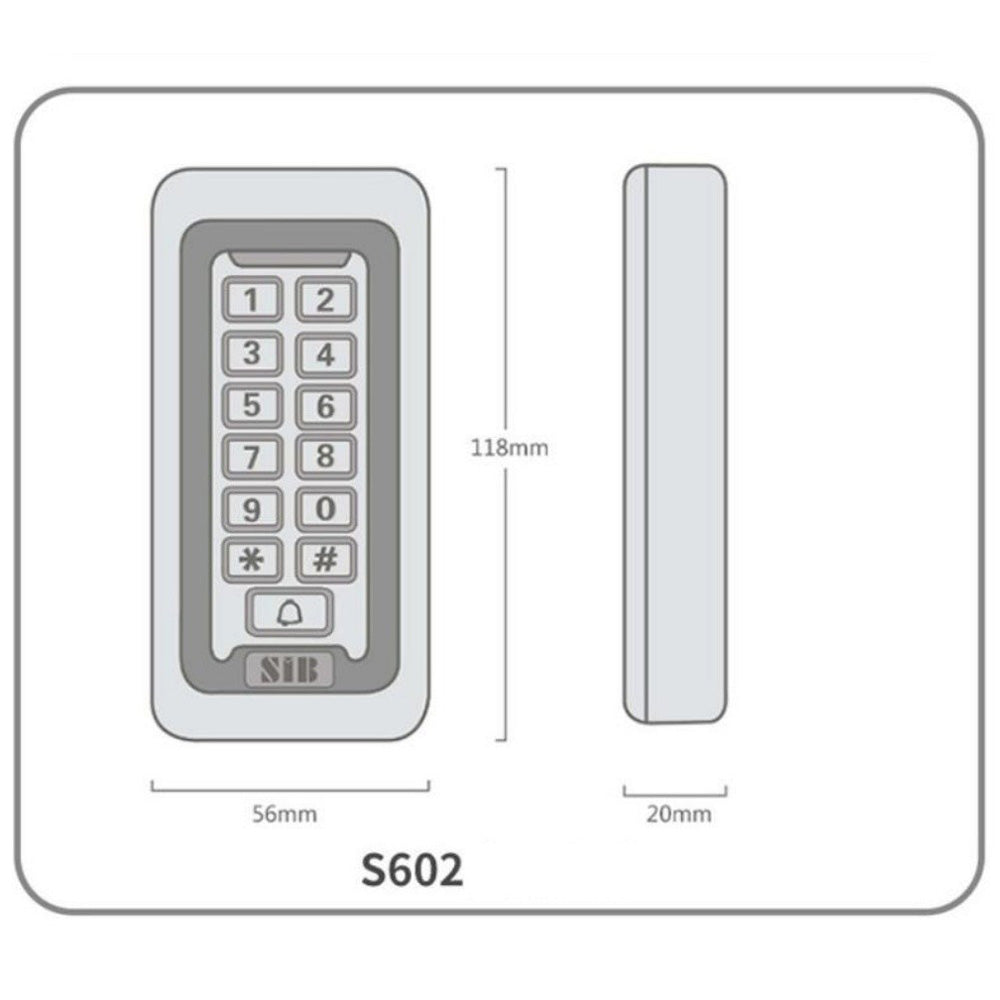

Dimension |

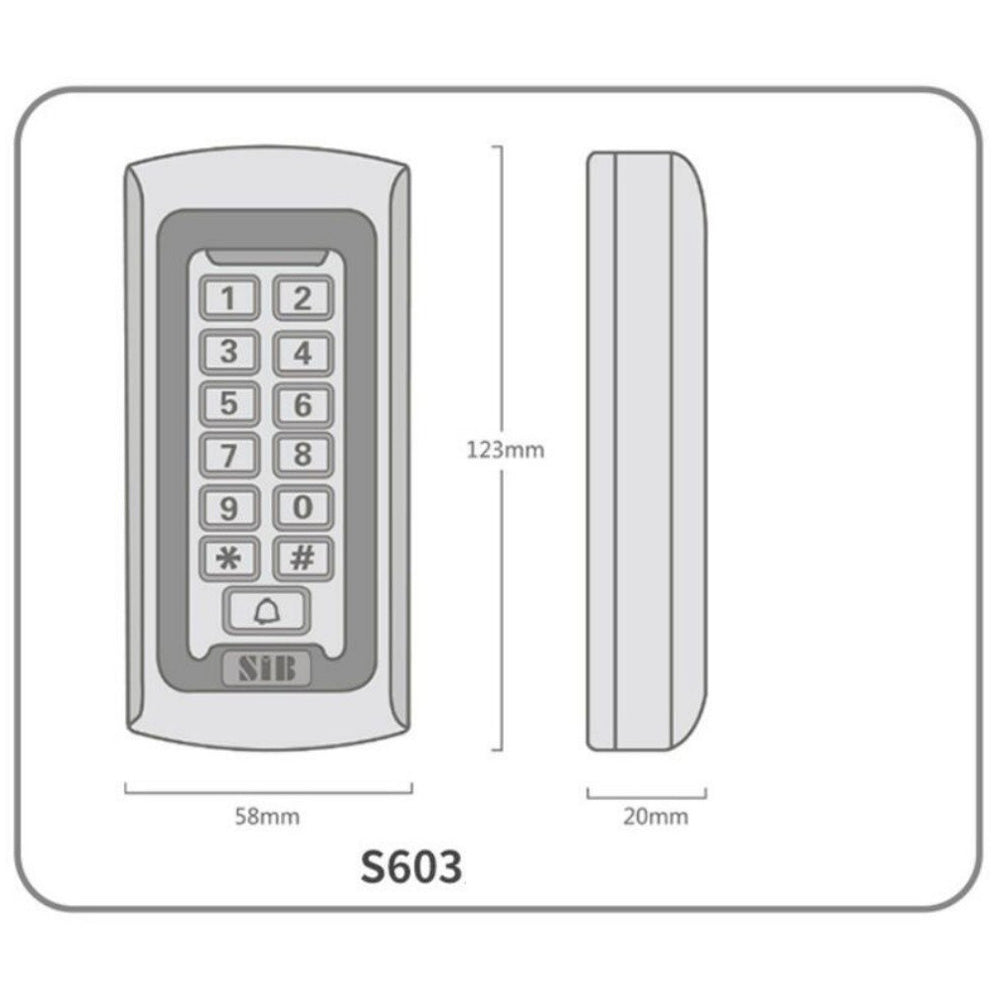

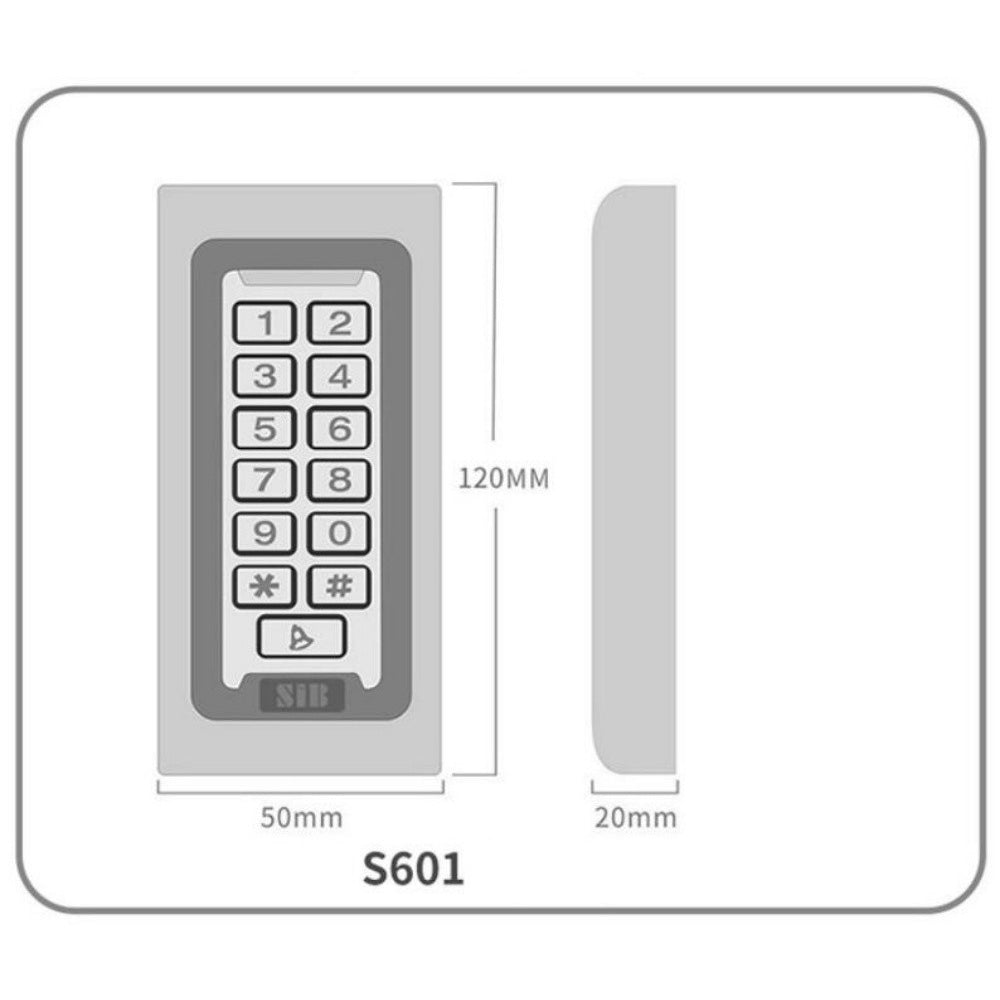

S601:120mm*56mm*20mm S602:118mm*56mm*20mm S603:123mm*58mm*20mm |
Wiring
|
Color |
Marks |
Description |
|
Green |
D0 |

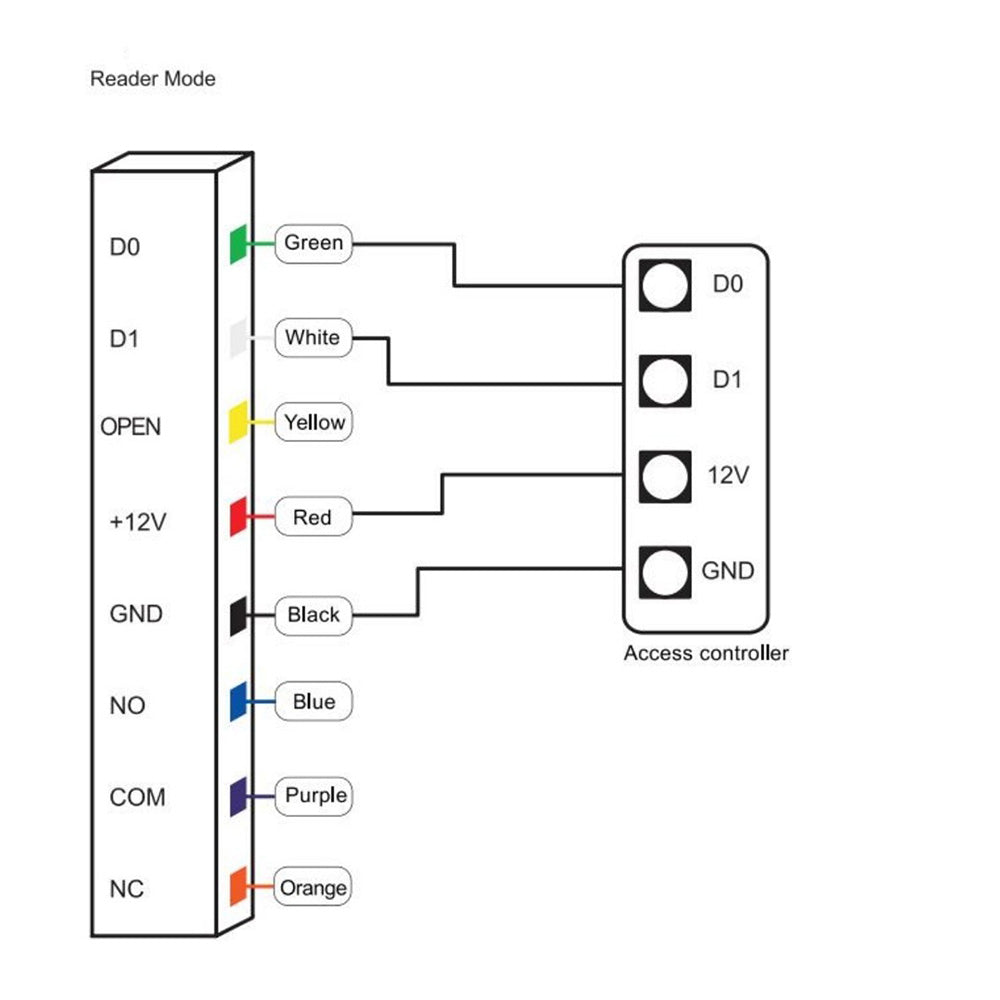

Wiegand Input (Wiegand Output in Card Reader Mode) |
|
White |
D1 |
Wiegand Input (Wiegand Output in Card Reader Mode) |
|
Yellow |
OPEN |
Exit button input end |
|
Red |
+12V |
Positive power supply |
|
Black |
GND |
Negative power supply |
|
Blue |
NO |
Relay NO end |
|
Purple |
COM |
Relay COM end |
|
Orange |
NC |
Relay NC end |

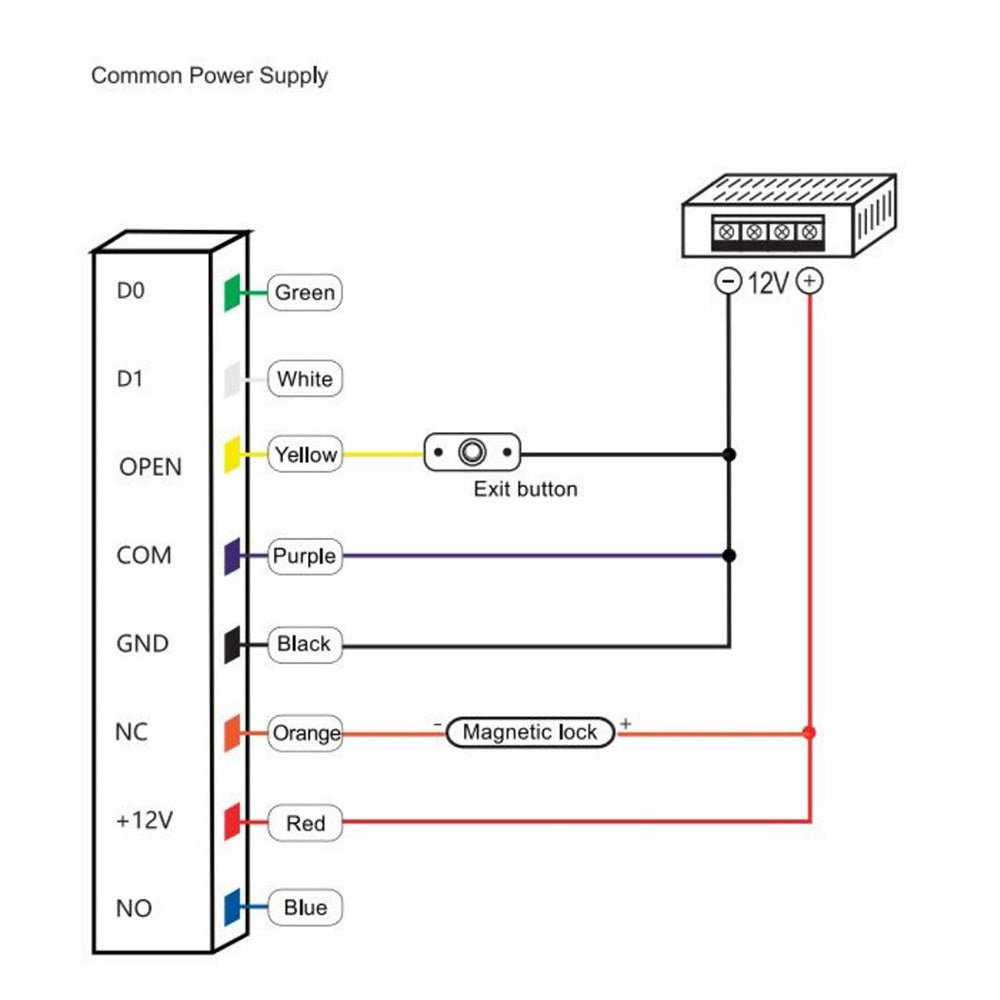

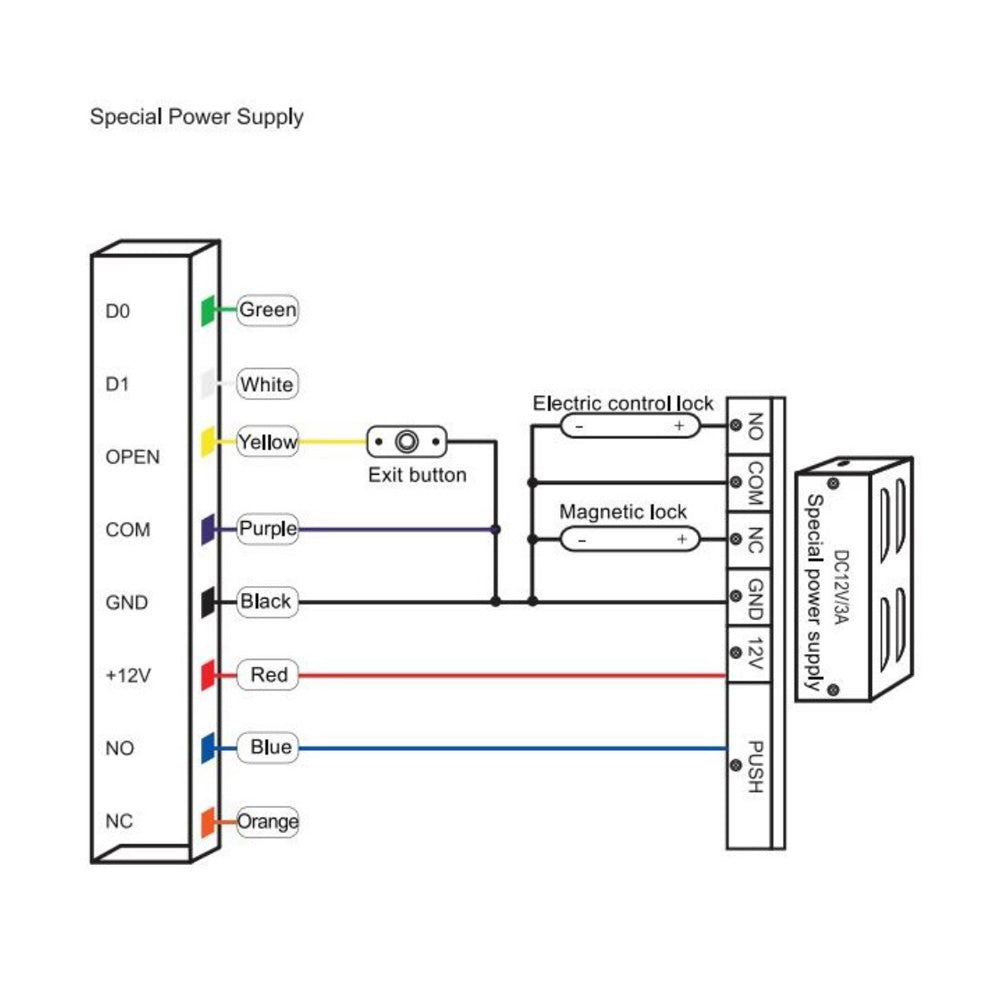

Diagram

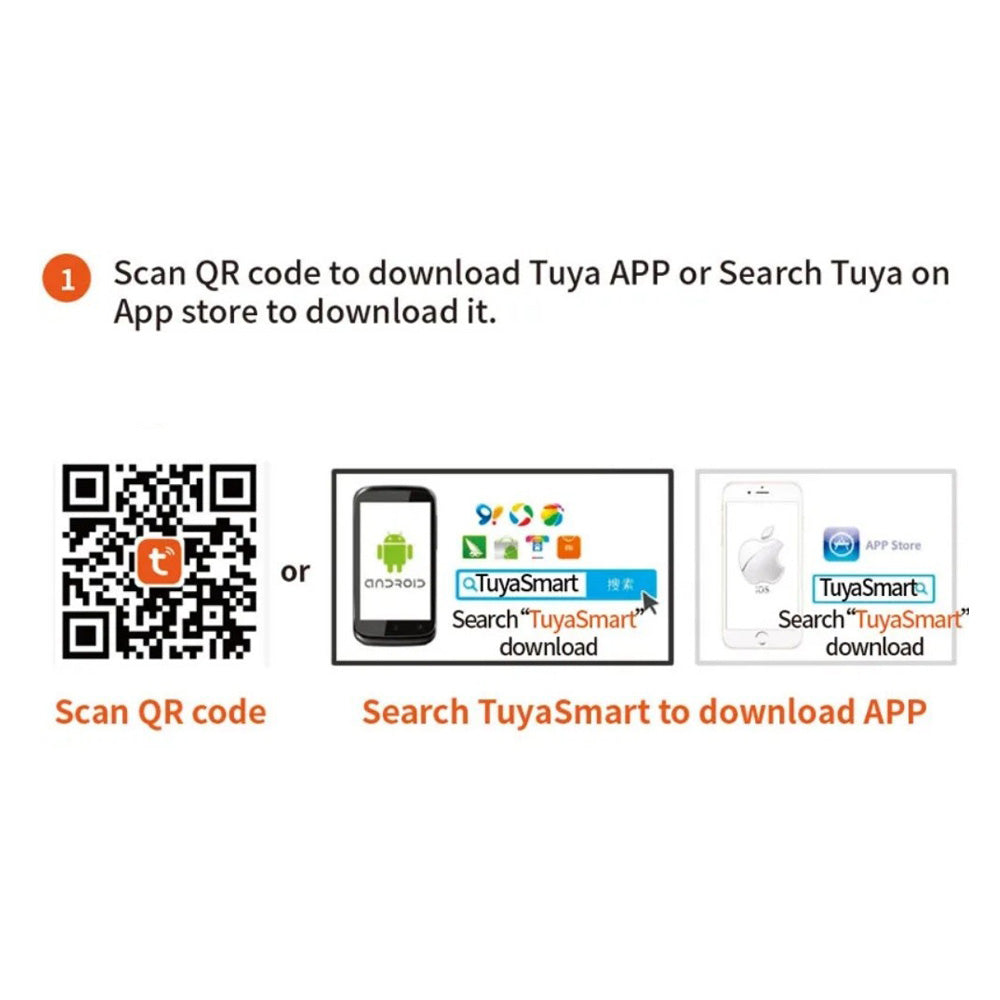

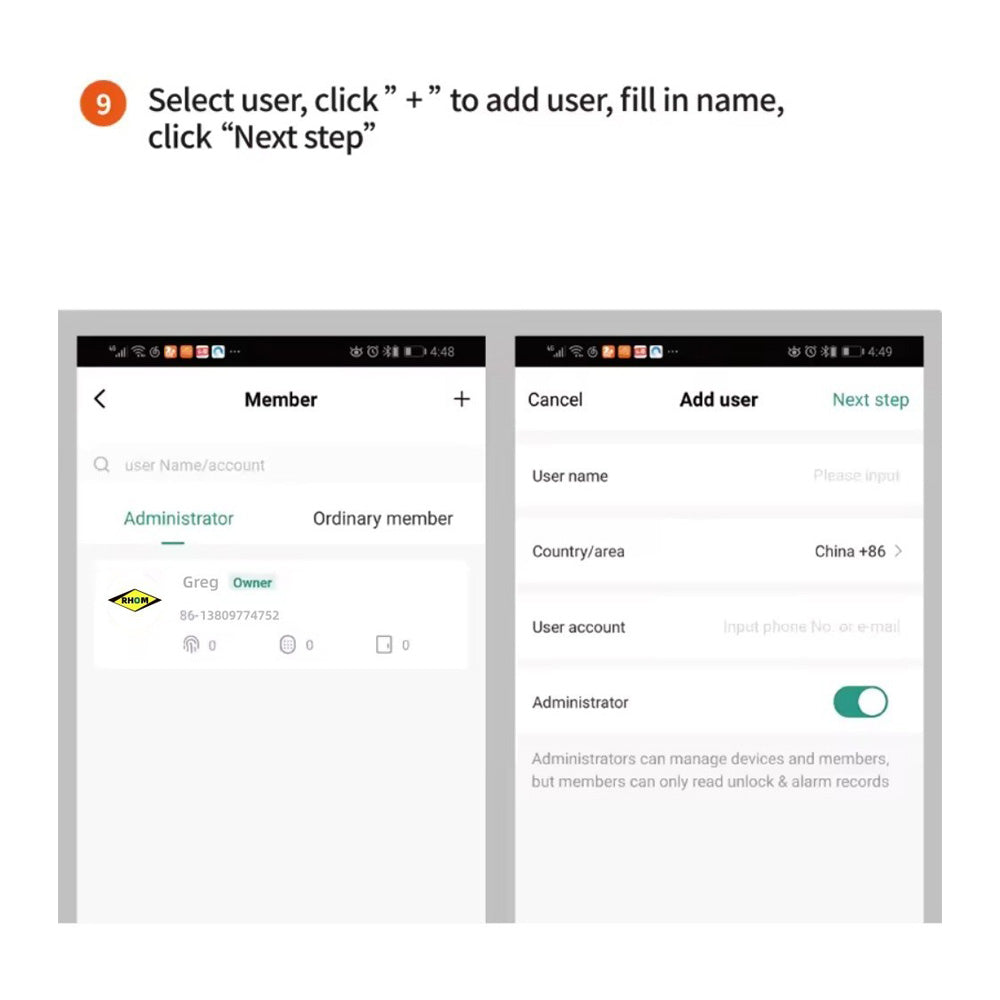

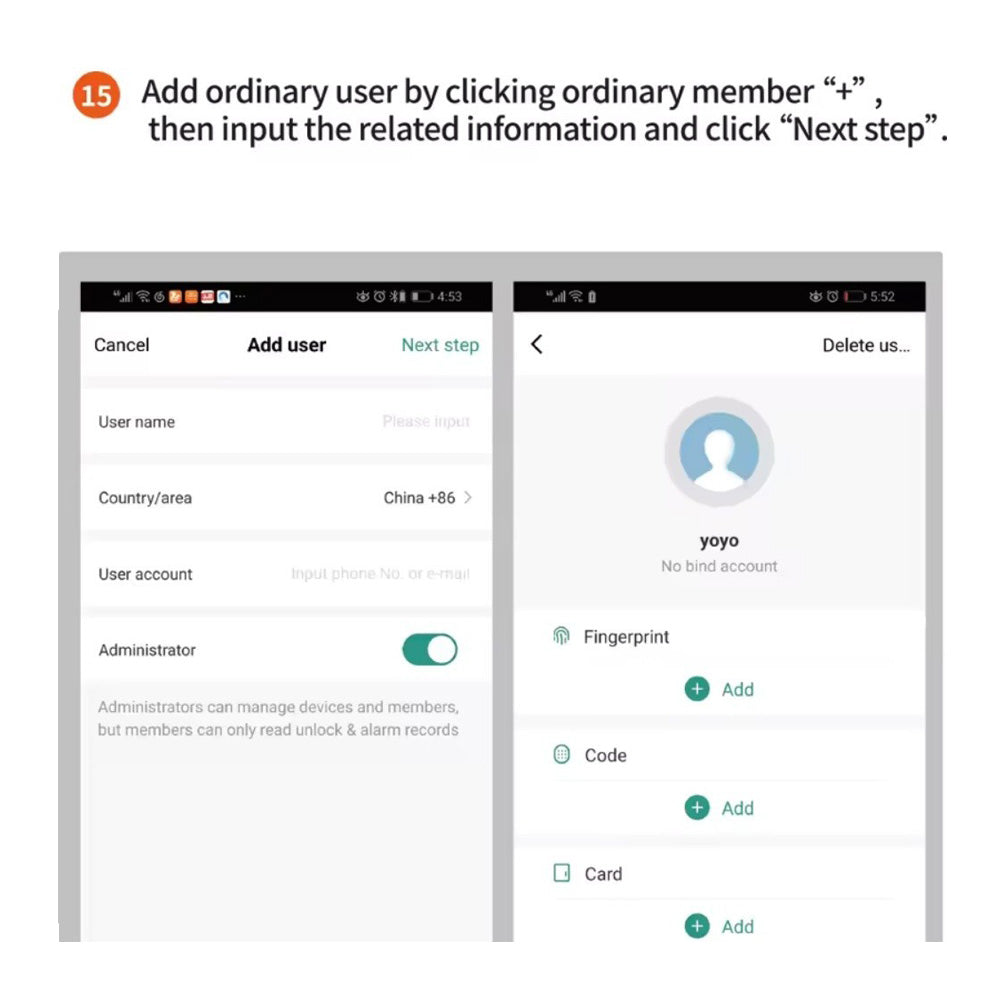

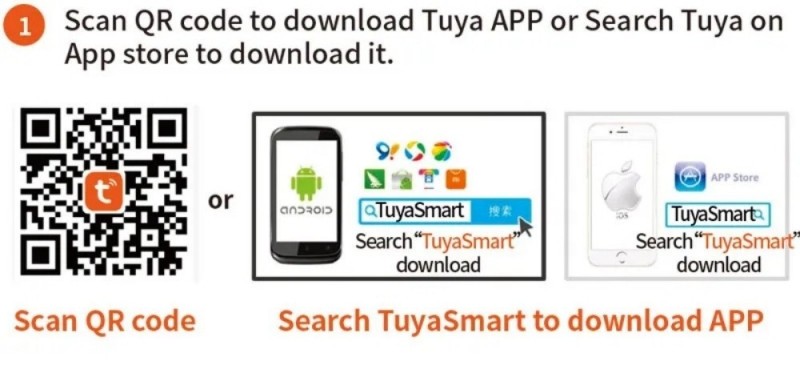

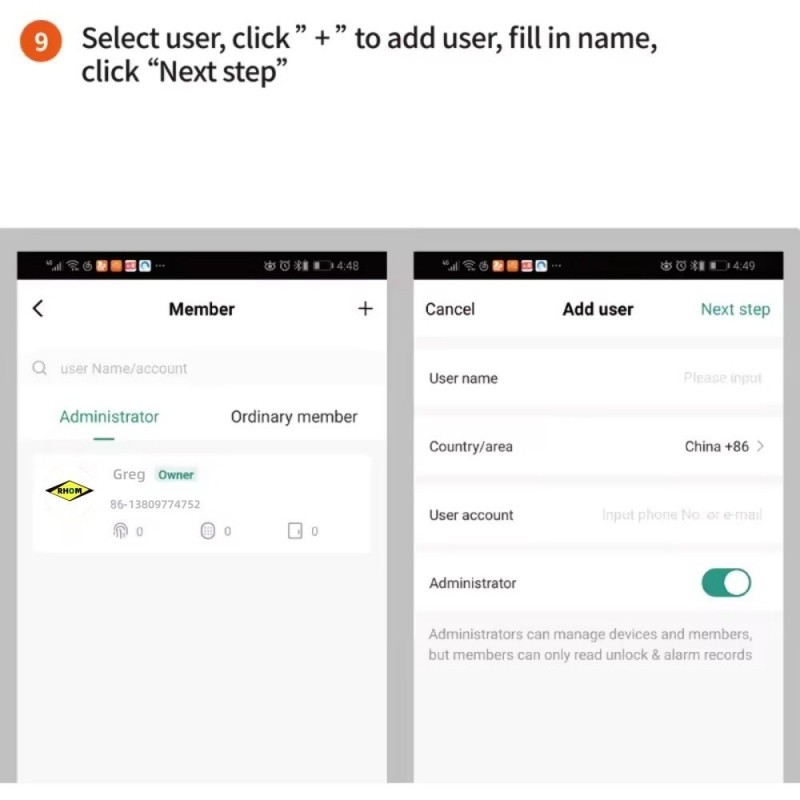

TuyaApp

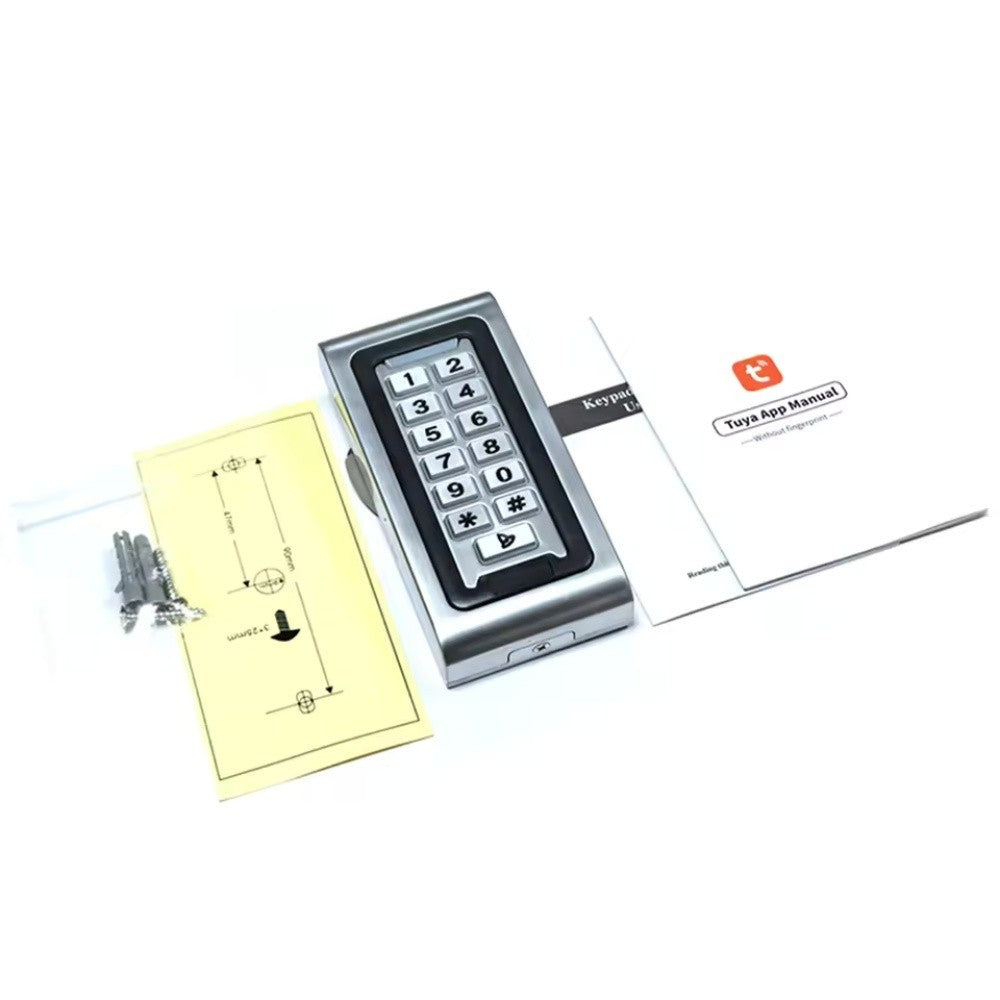

Package
- 1 x standalone access control
